Krowne KR24-W72C-10 Royal Series Bar Equipment
Description

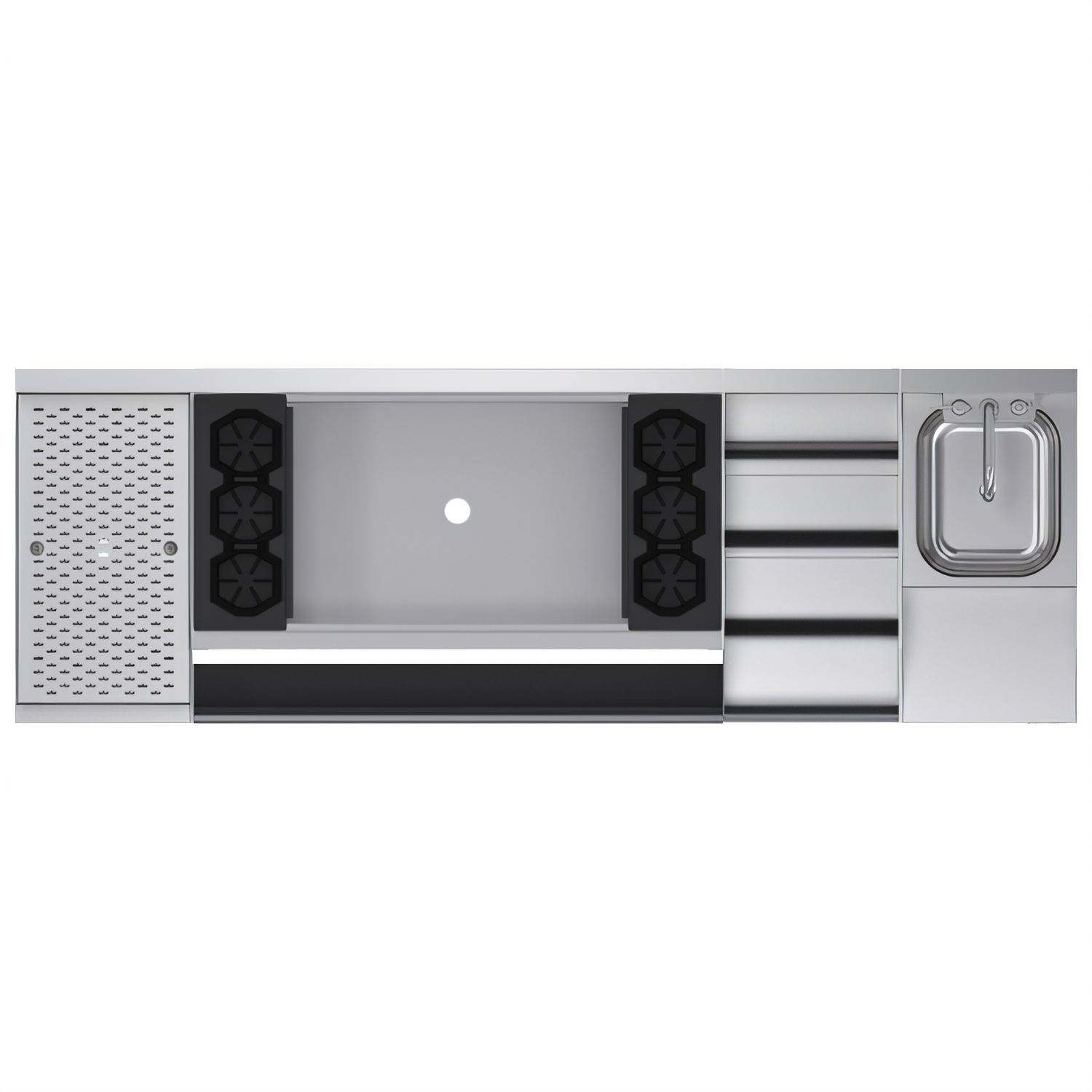

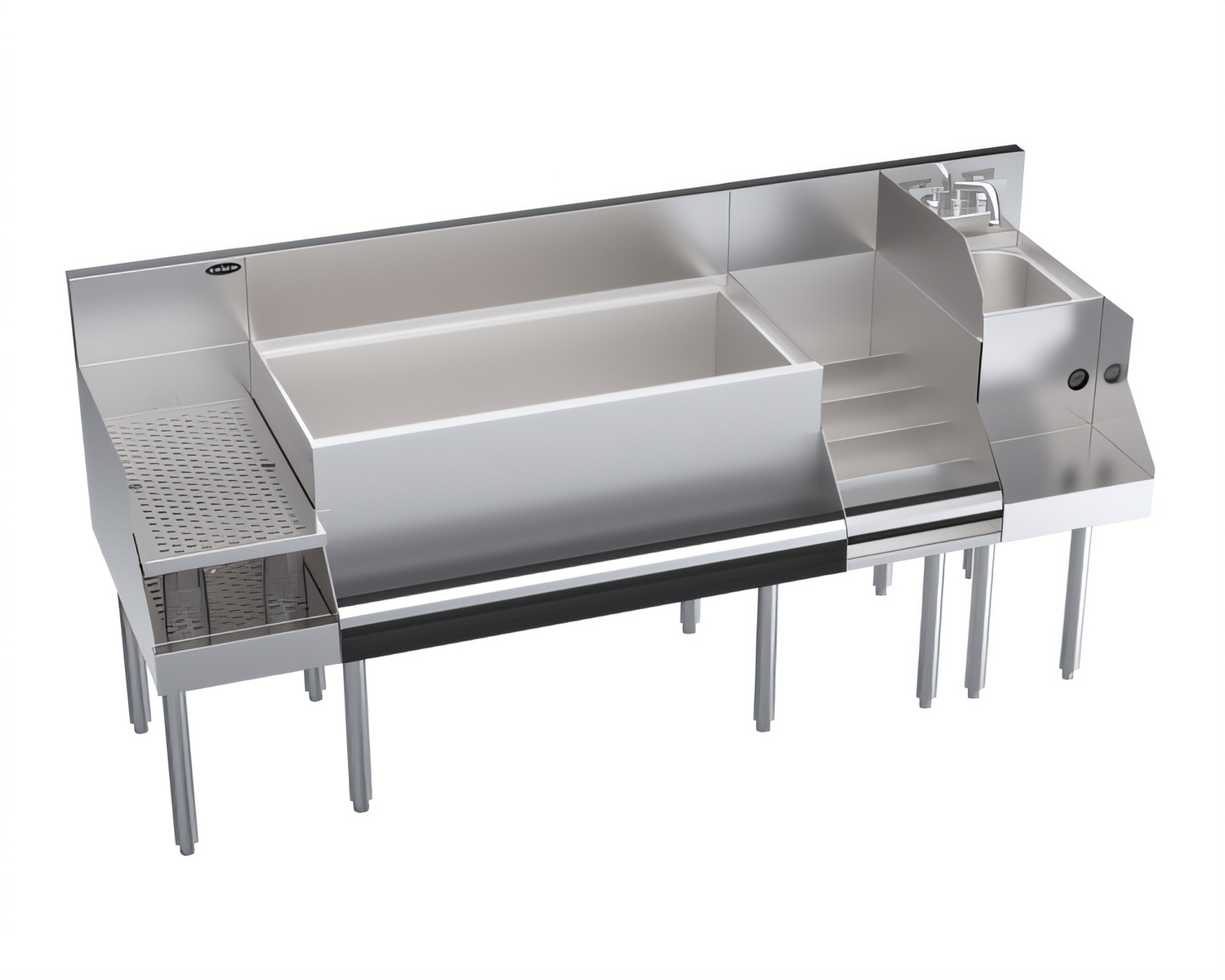

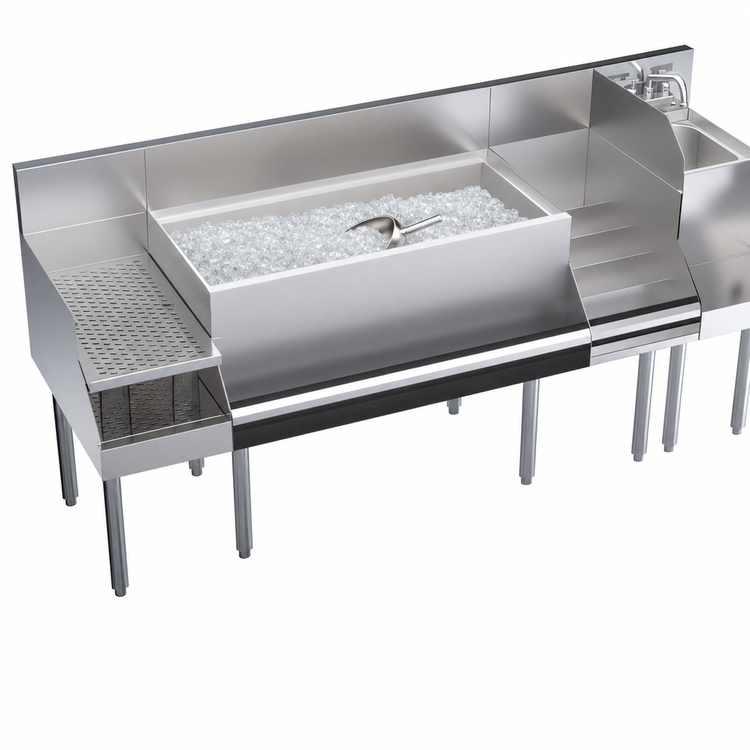

Krowne Royal Series 72" Underbar Ice Bin / Cocktail Workstation – Model KR24-W72C-10
With built-in blender, liquor display & recessed drainboardStreamline high-volume drink service with the Krowne Royal Series 72" workstation. Engineered for speed, sanitation and bartender comfort, this all-in-one station combines a 110 lb ice bin, 10-circuit cold plate, blender dump sink, raised liquor display and recessed drainboard in one 24"-deep footprint. NSF certification and rugged stainless-steel construction make it ready for any busy bar, nightclub or resort beverage program.
Why It Stands Out

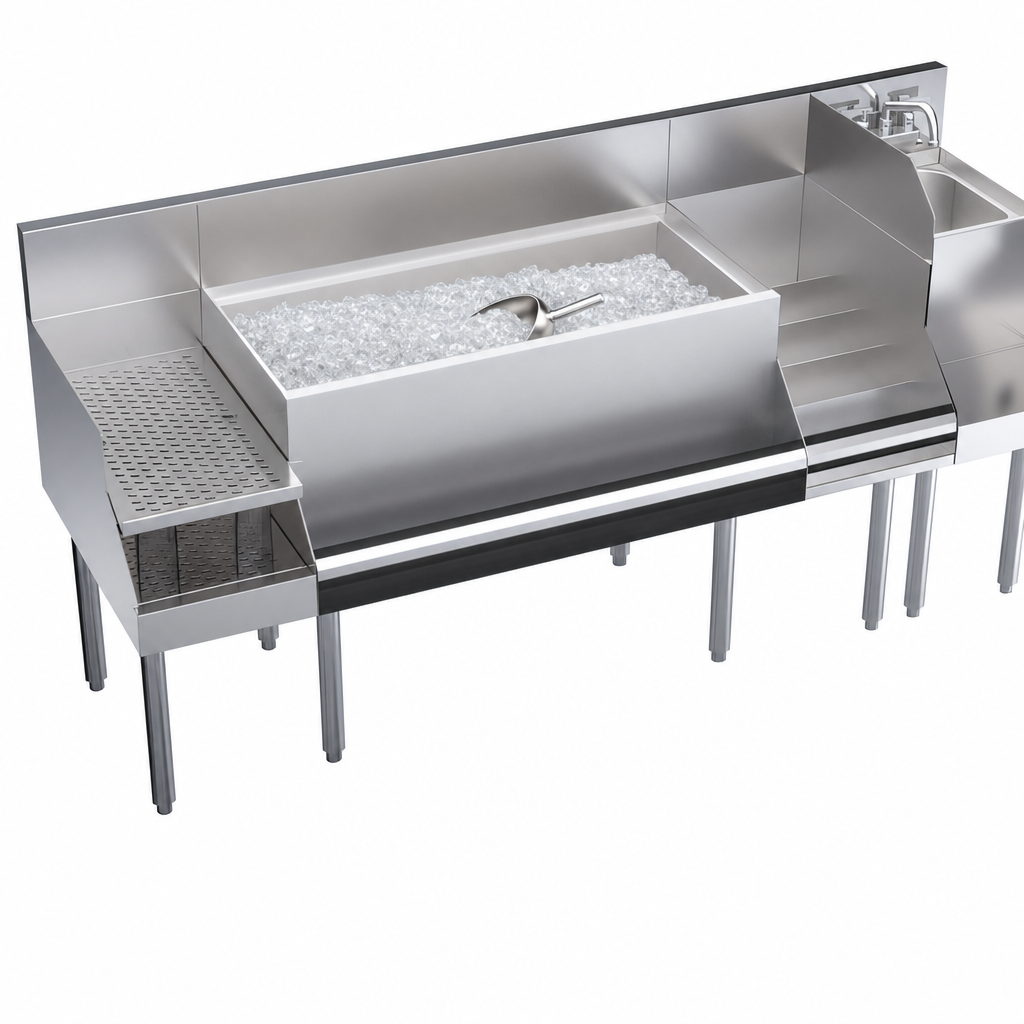

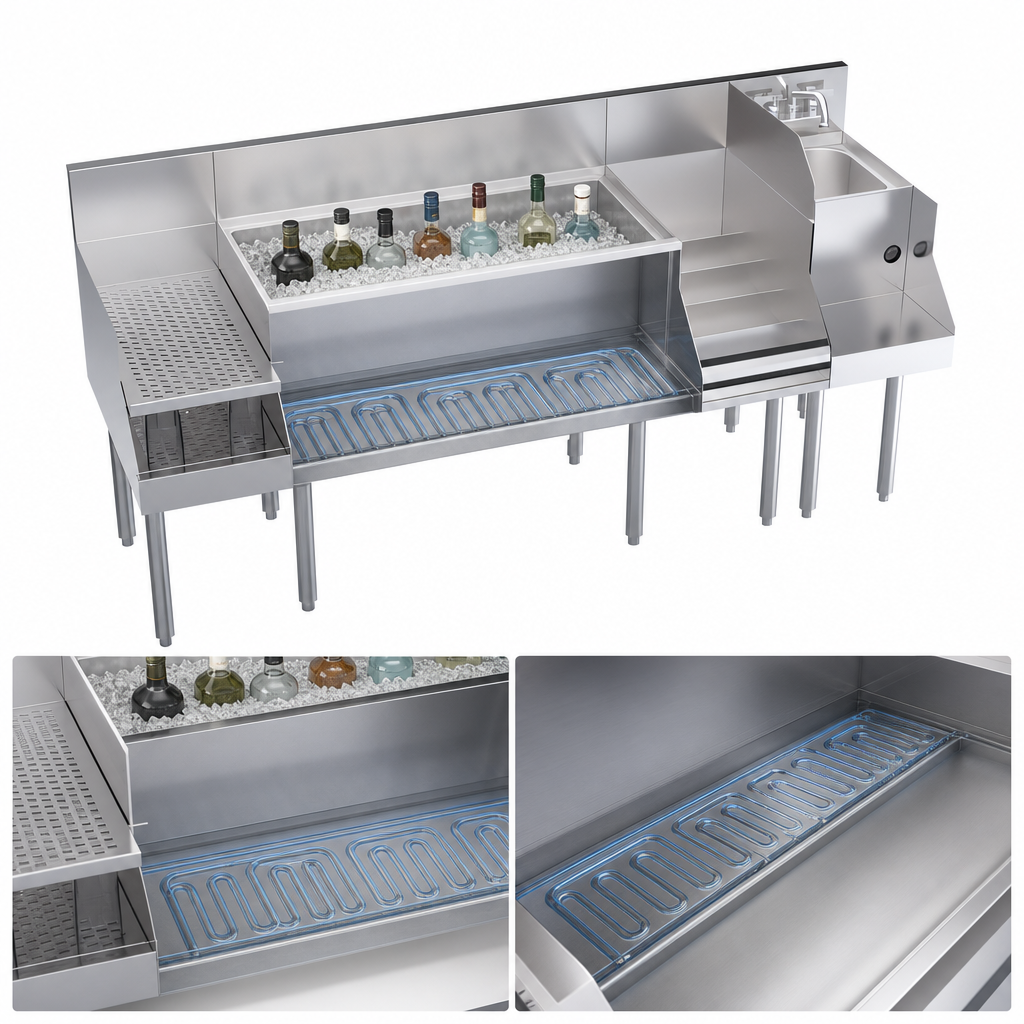

- 36" insulated ice bin (12" deep) with 110 lb capacity and 10-circuit cast-aluminum cold plate
- 12" recessed drainboard for glass drying and drink prep
- 12" raised, sound-deadened single speed rail plus 12" liquor display for fast bottle access
- Dedicated 12" blender station with dump sink, Royal Series faucet (4" centers) & built-in duplex outlet
- Removable bottle wells keep mixers chilled and organized
- Foamed-in-place polyurethane insulation prevents ice melt and condensation
- Heavy-duty 20 ga stainless-steel interior & stainless / galvanized exterior for lasting durability
- 1-5/8" Ø 16 ga stainless legs with adjustable thermoplastic bullet feet for wobble-free set-up
- NSF listed for open-food, beverage & bar service
Technical Specs
| Model | KR24-W72C-10 |
|---|---|
| Overall Dimensions (W × D × H) | 72" W × 24" D × 36-1/2" H (to top of 6-1/2" backsplash) |
| Ice Bin Capacity | 110 lbs • 36" length × 12" depth |
| Cold Plate | Cast-aluminum, 10 circuits (5/16" OD stainless tubing) |
| Blender Dump Sink Bowl | 10" × 12" × 7" • 20 ga stainless |
| Speed Rail / Liquor Display | 12" sound-deadened rail + 12" raised display |
| Drainboard | 12" recessed, 20 ga stainless |
| Water Connections | ½" NPT hot & cold (faucet); ½" IPS drain on cold-plate ice bin |
| Drain Connections | Ice bin: ½" IPS with supplied 4" PVC tailpiece Drainboard: 1" IPS • Dump sink: 1-½" IPS |
| Electrical | Blender shelf: GFCI duplex outlet (pre-wired) |
| Construction | 20 ga stainless interior, 20 ga stainless clad apron, galvanized back & bottom |
| Shipping Weight | ≈ 312 lbs |
| Certifications | NSF, Lead-Free compliant |
Cold-plate ice bins require PVC tailpiece (included) to prevent condensation. ¾" × 3-½" tubing access cut-out provided in left backsplash for post-mix lines.
Popular Add-Ons (sold separately)
- Partial or full sliding ice-bin covers (model SCXXH / SCXXF)
- KR-101 condiment tray
- KR-103 stainless divider set
- End or side splashes (KR-313, KR-314, KR-315)
- 6" taller legs for bar-height installs (KR-806)
