Krowne

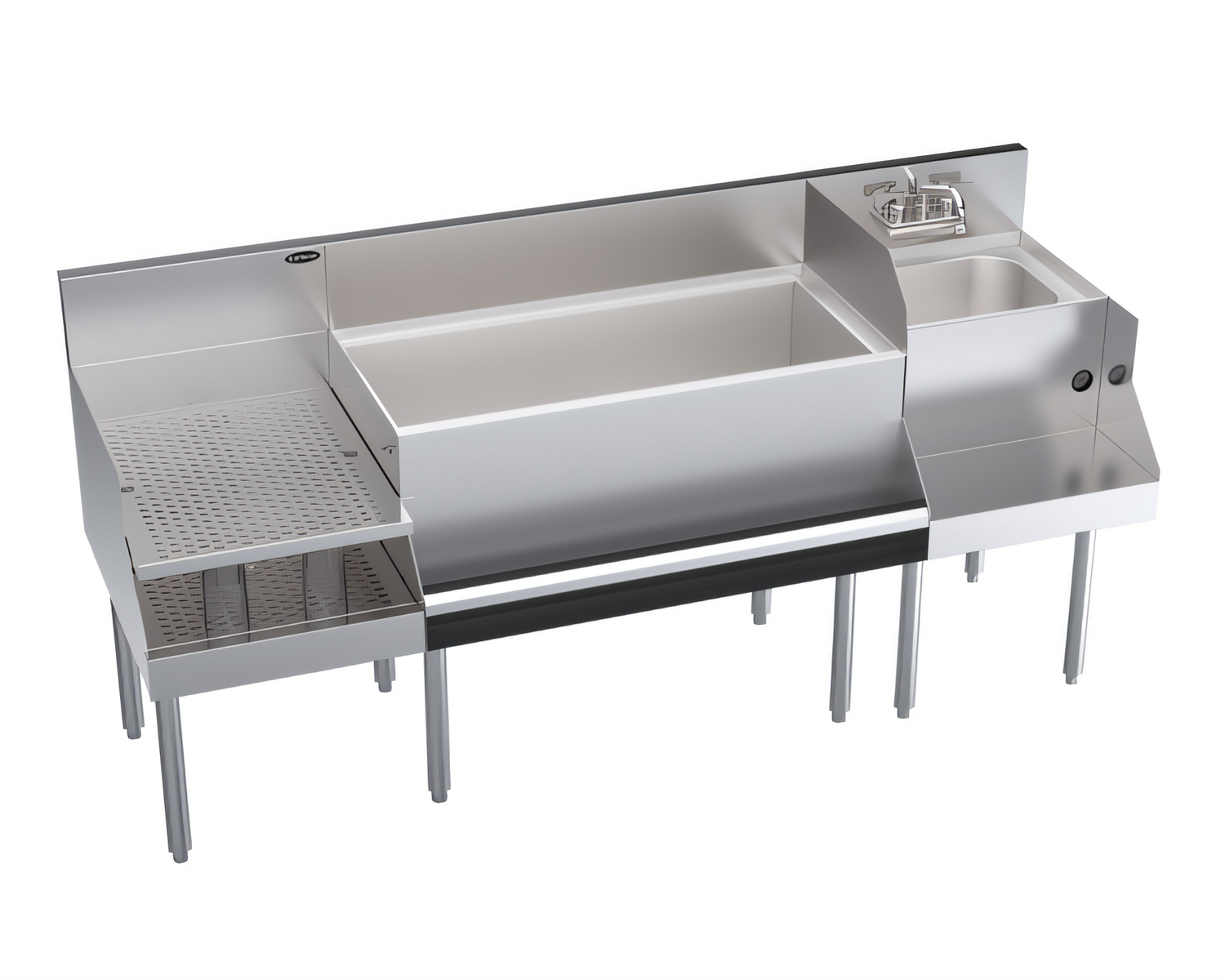

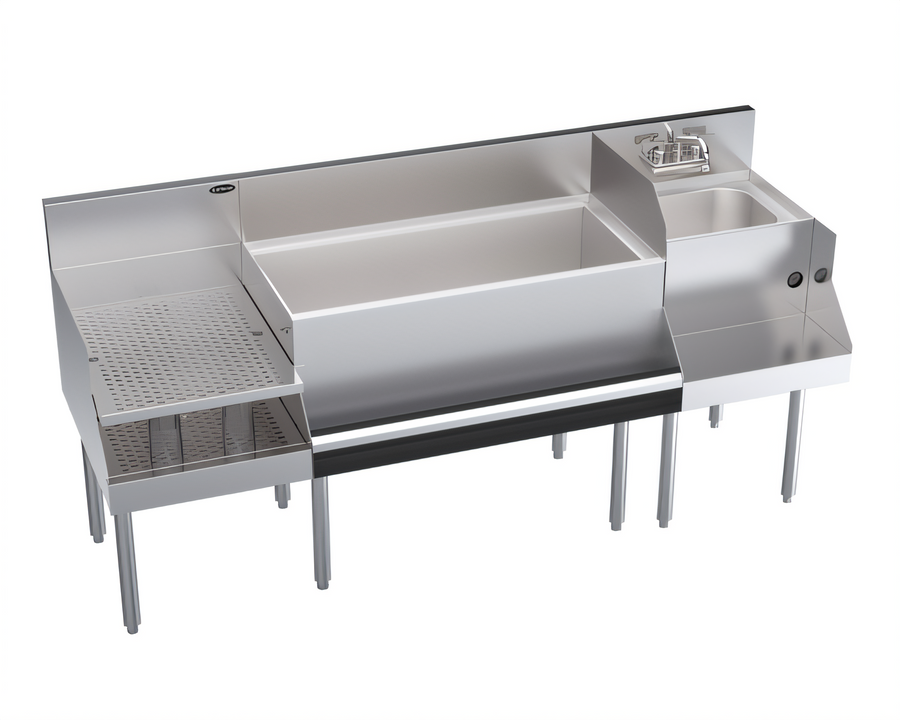

Krowne Royal Series 72-Inch Underbar Ice Bin/Cocktail Station with Recessed Drainboard, 36-Inch Ice Bin, 18-Inch Blender Station with Dump Sink, 10-Circuit Cold Plate, and 110-Lb Ice Capacity

SKU: KR24-W72B-10
$6,164.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Krowne Royal Series 72-Inch Underbar Ice Bin/Cocktail Station with Recessed Drainboard, 36-Inch Ice Bin, 18-Inch Blender Station with Dump Sink, 10-Circuit Cold Plate, and 110-Lb Ice Capacity

Single Speed Rail, Left Splash, and Included Faucet

This all-in-one 72-inch underbar workstation streamlines cocktail service with ice storage, a blender station, and a recessed drainboard in one rugged stainless steel unit.

  • Combines a recessed drainboard, center ice bin, and blender station in one 72-inch underbar unit.
  • Built-in 10-circuit cold plate supports chilled beverage service at the point of use.
  • Holds up to 110 lbs. of ice and includes bottle wells for fast bartender access.
  • 18-inch blender station includes a dump sink, duplex outlet, and splash-mount faucet.
  • Sound-deadened single speed rail keeps bottles organized and within easy reach.
  • Stainless steel construction with adjustable bullet feet is built for commercial durability.

Overall Dimensions:

72.0"W x 24.0"D x 36.5"H

Product Weight:

280.0 lb

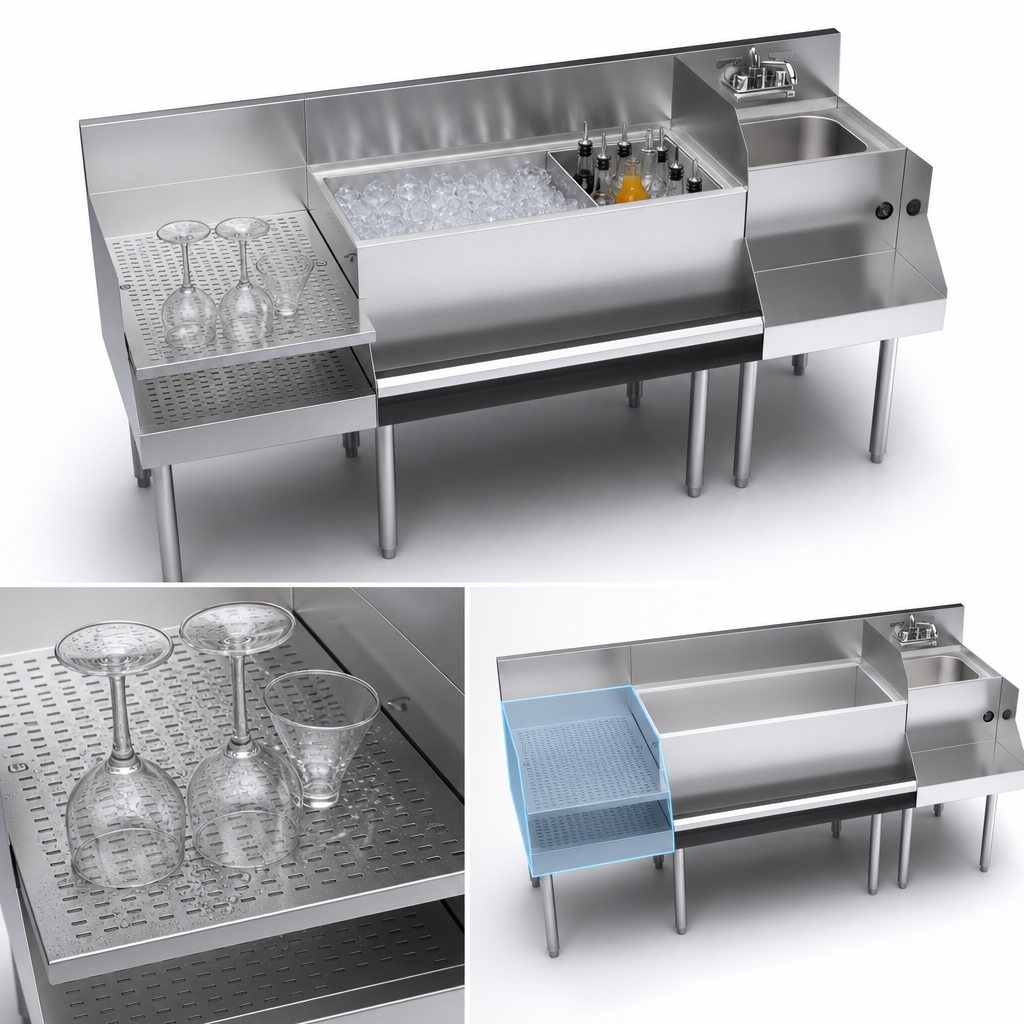

Recessed Drainboard Layout

The 18-inch recessed drainboard gives bartenders a dedicated landing area for wet glassware and prep.

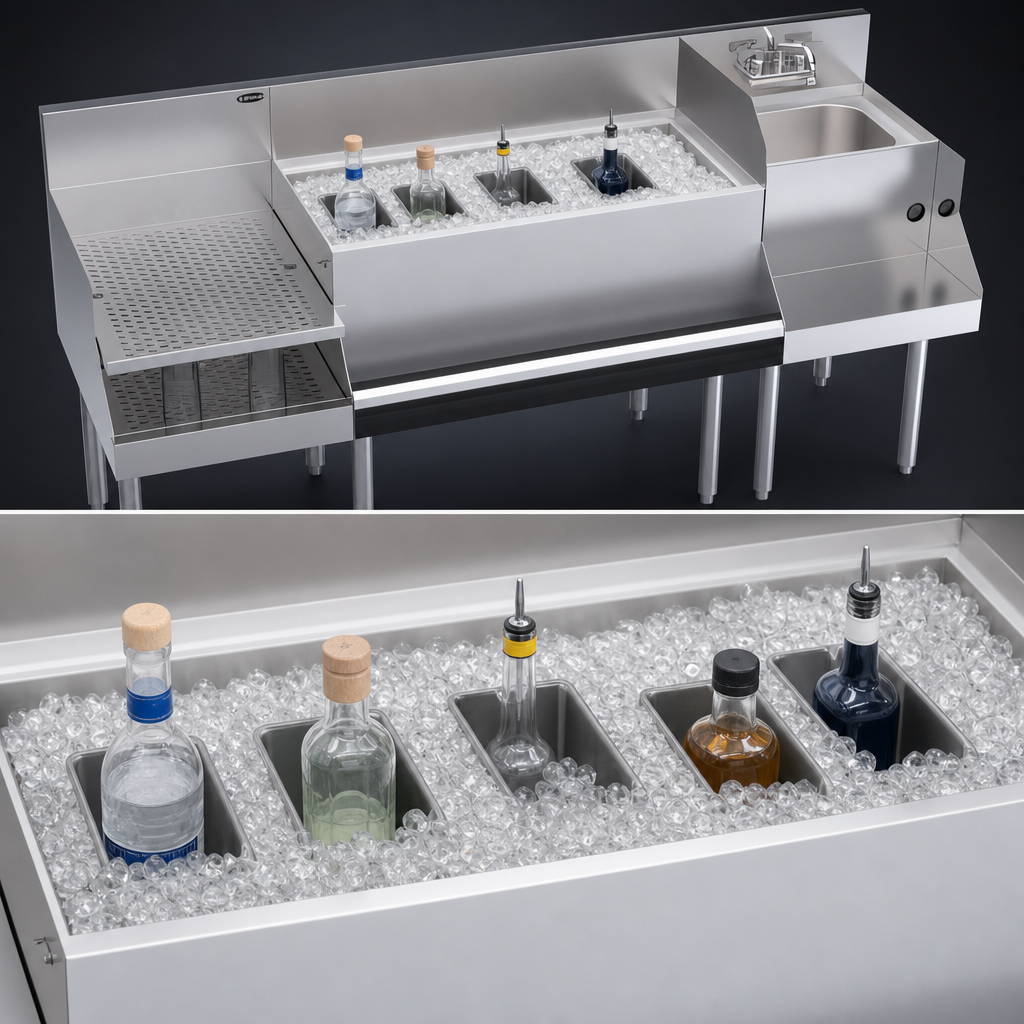

Center Ice Bin With Bottle Wells

The 36-inch center ice bin holds 110 lbs. of ice and includes removable bottle wells for faster service.

Built-In 10-Circuit Cold Plate

A cast aluminum post-mix cold plate is sealed into the bottom of the ice bin to help keep beverages cold.

18-Inch Blender Station With Dump Sink

An integrated blender shelf and dump sink streamline cocktail prep and cleanup.

Sound-Deadened Single Speed Rail

The single speed rail keeps bottles organized and helps reduce noise during service.

Duplex Outlet Under Blender Shelf

A built-in duplex outlet is located underneath the blender shelf for convenient equipment power.

Foamed-In-Place Insulation

Polyurethane insulation helps maintain ice and reduce condensation in the bin.

Stainless Steel Construction

Stainless steel surfaces with galvanized steel backing and stainless steel legs support long-term durability.

Included Faucet And Left Splash

Includes a splash-mount Royal Series faucet and a left splash panel for service area protection.

NSF Certified

Certified to NSF/ANSI 2 for commercial foodservice use.

Type Underbar Ice Bin/Cocktail Station
Style Recessed Drainboard
Installation Type Floor Model (With Legs)
Capacity 110 lbs. Ice Capacity
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Working Height 30 Inches
Ice Bin Location Center
Ice Bin Length 36 Inches
Blender Station Length 18 Inches
Drainboard Length 18 Inches
Cold Plate Circuits 10 Circuits
Water Inlet Size 1/2 Inches IPS
Drain Connection Size 1/2 Inches IPS
Dump Sink Drain Connection Size 1-1/2 Inches IPS
Backsplash Height 6.5 Inches
Backsplash Depth 1.5 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 280 lbs.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

The workstation measures 72 inches wide x 24 inches deep x 36.5 inches high.
The center ice bin holds 110 lbs. of ice.
Yes. A built-in 10-circuit cold plate is sealed into the bottom of the ice bin.
Hot and cold water require 1/2-inch IPS connections. The ice bin uses a 1/2-inch IPS drain, and the dump sink uses a 1-1/2-inch IPS drain.
Yes. A splash-mount Royal Series faucet is included.
Optional accessories include condiment trays, stainless dividers, side and end splashes, sliding ice bin covers, a towel ring, a perforated dump basket, and longer legs.
