Krowne KR24-W72A-10 Royal Series Bar Equipment
Description

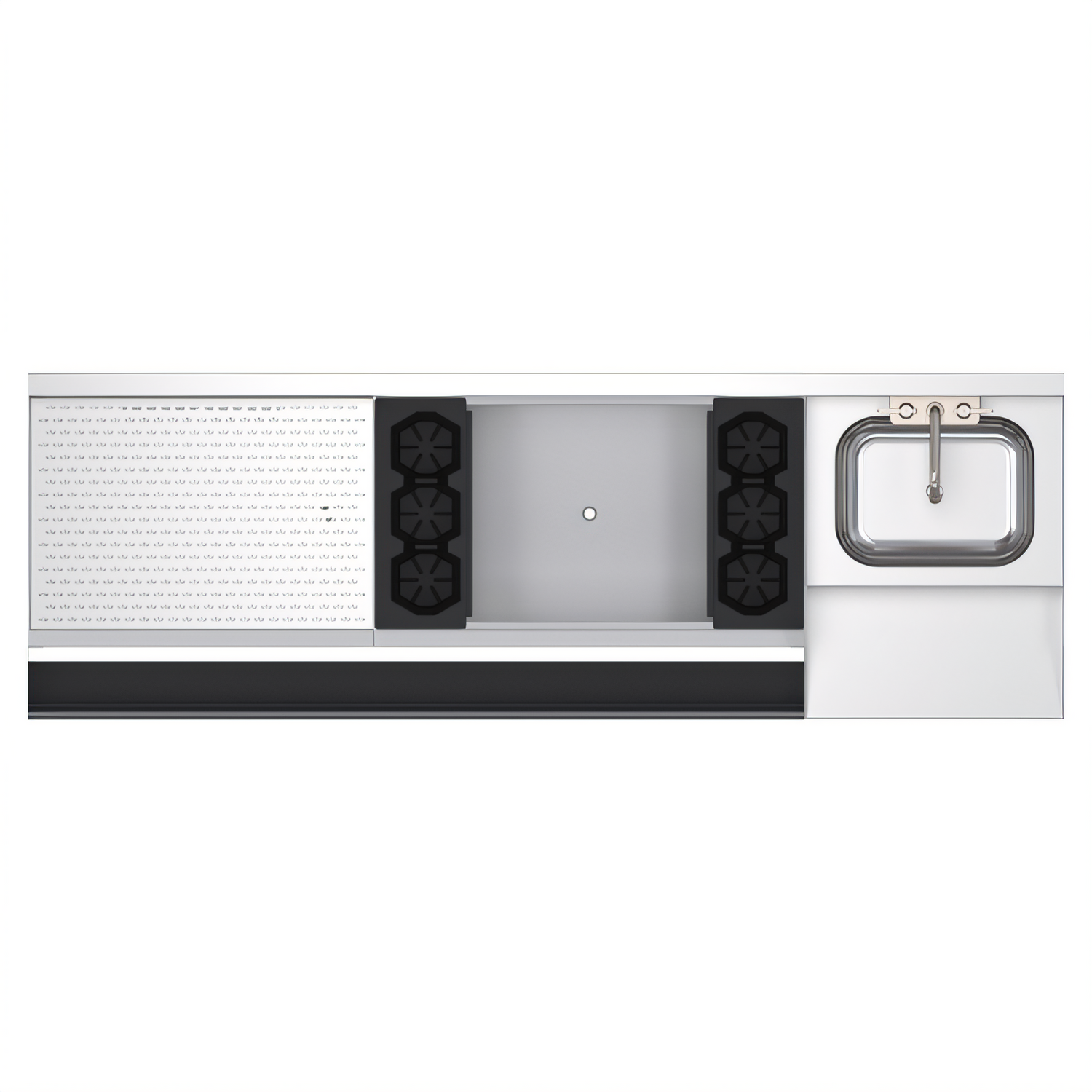

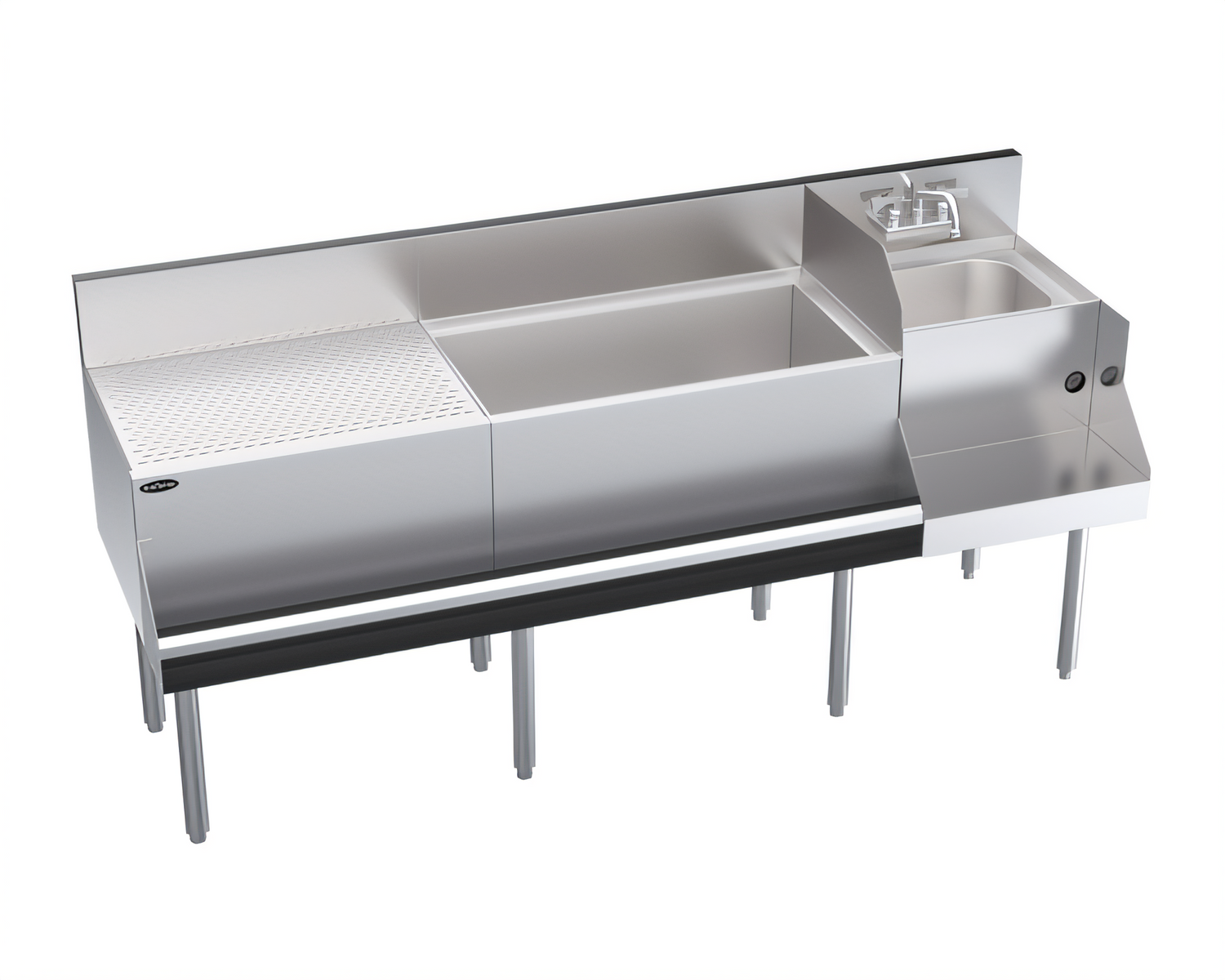

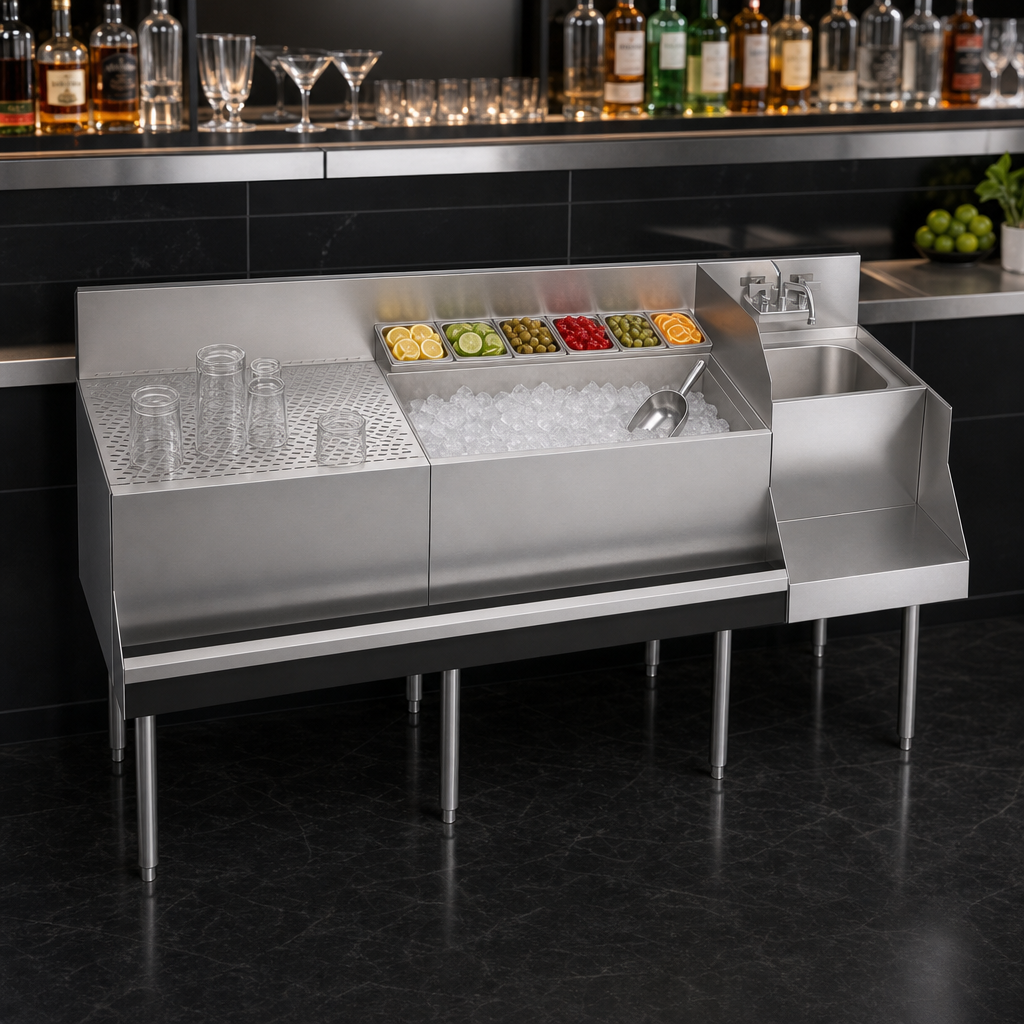

Royal Series 72" Underbar Ice Bin / Cocktail Workstation
by Krowne Metal – Model KR24-W72A-10Give bartenders everything they need—right where they need it. Krowne’s Royal Series 72" workstation packs an ice bin, 10-circuit cold plate, blender dump sink, speed rail and drainboard into a single, NSF-listed underbar unit that maximizes speed and minimizes footprint.
Why You’ll Love It

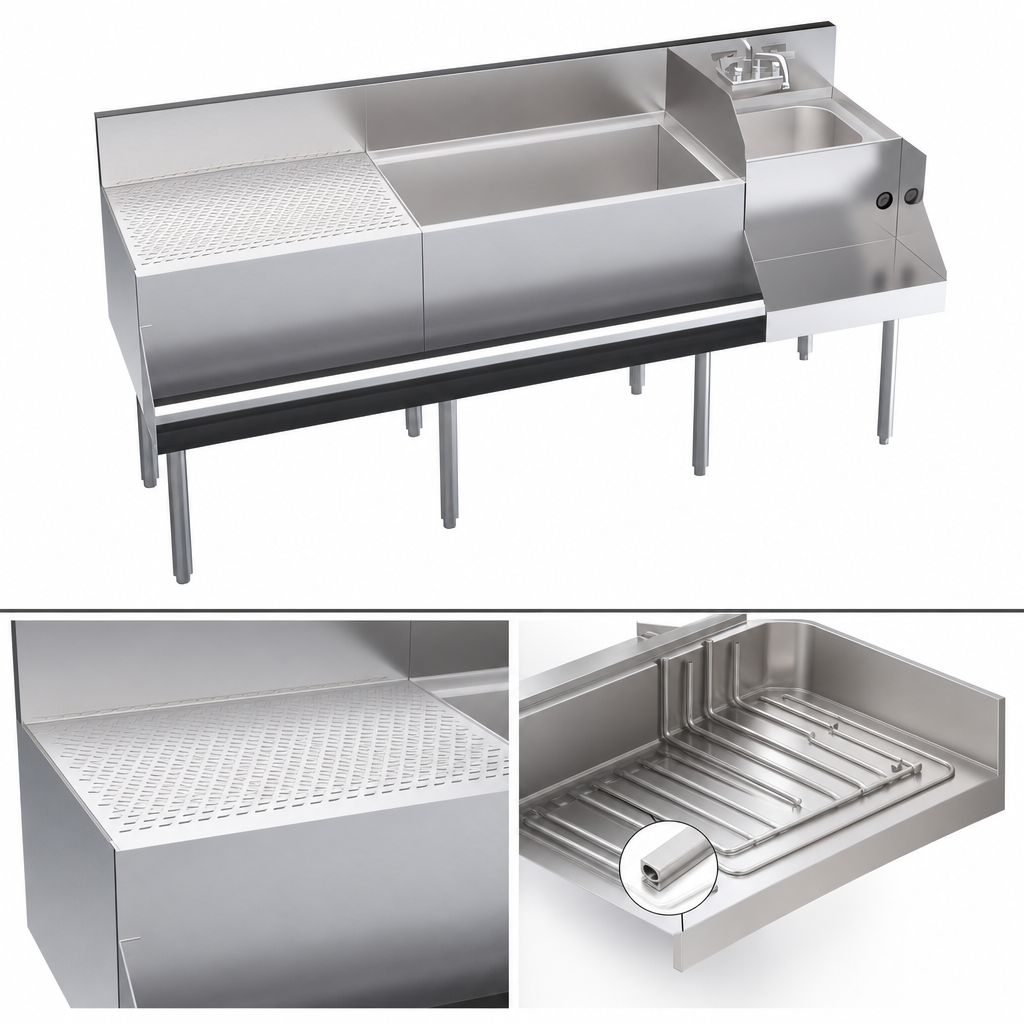

- Built-in 10-circuit cast-aluminum cold plate keeps syrup lines ice-cold.
- 30" wide, 12" deep ice bin holds up to 74 lb of ice & includes removable bottle wells.
- 18" blender station with 7" deep dump sink, left side splash & Royal Series faucet.
- 24" sound-deadened drainboard for glass staging and drying.
- Factory-installed duplex GFCI outlet beneath blender shelf—perfect for blenders or immersion blenders.
- Single speed rail puts six of your top movers front and center.
- Durable 20-ga. stainless interior; galvanized back & bottom for corrosion resistance.
- 1-5/8" O.D. stainless legs with adjustable thermoplastic bullet feet level quickly on uneven floors.
- Foamed-in-place polyurethane insulation maximizes ice retention shift after shift.
- NSF certified for open-food, bar & beverage service.
At-a-Glance Specs
| Overall dimensions (W × D × H) | 72" × 24" × 36 1/2" |
|---|---|
| Ice bin capacity | 74 lb |
| Cold plate | 10 circuits – 5/16" O.D. stainless tubing |
| Blender dump sink bowl | 14" W × 10" L × 7" D |
| Drainboard length | 24" |
| Construction | Stainless interior & backsplash; stainless-clad apron; galvanized back/bottom |
| Plumbing connections | 1/2" IPS hot & cold; 1/2" IPS bin drain; 1-1/2" IPS sink drain |
| Electrical | 120 V / 15 A duplex outlet (field wired) |
| Certifications | NSF, cULus |
| Approx. shipping weight | 280 lb |
Cold-plate models ship with a PVC tailpiece to prevent condensation; use PVC only for the ice-bin drain to avoid metal-to-metal contact.
Popular Add-Ons
- Sliding or hinged ice-bin covers (partial or full)
- Perforated drainboard inserts for glass drying
- Left or right end/side splashes
- Towel ring, dump basket & additional speed rails
- 6" leg extension kit (Model KR-806)
