Krowne KR24-W66E-10 Royal Series Bar Equipment
Description

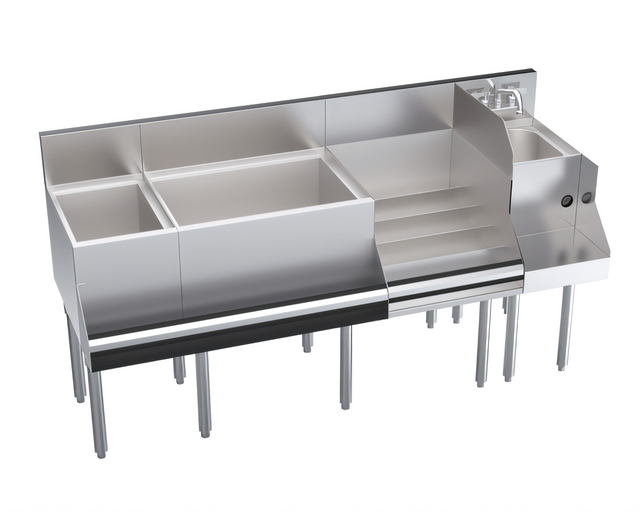

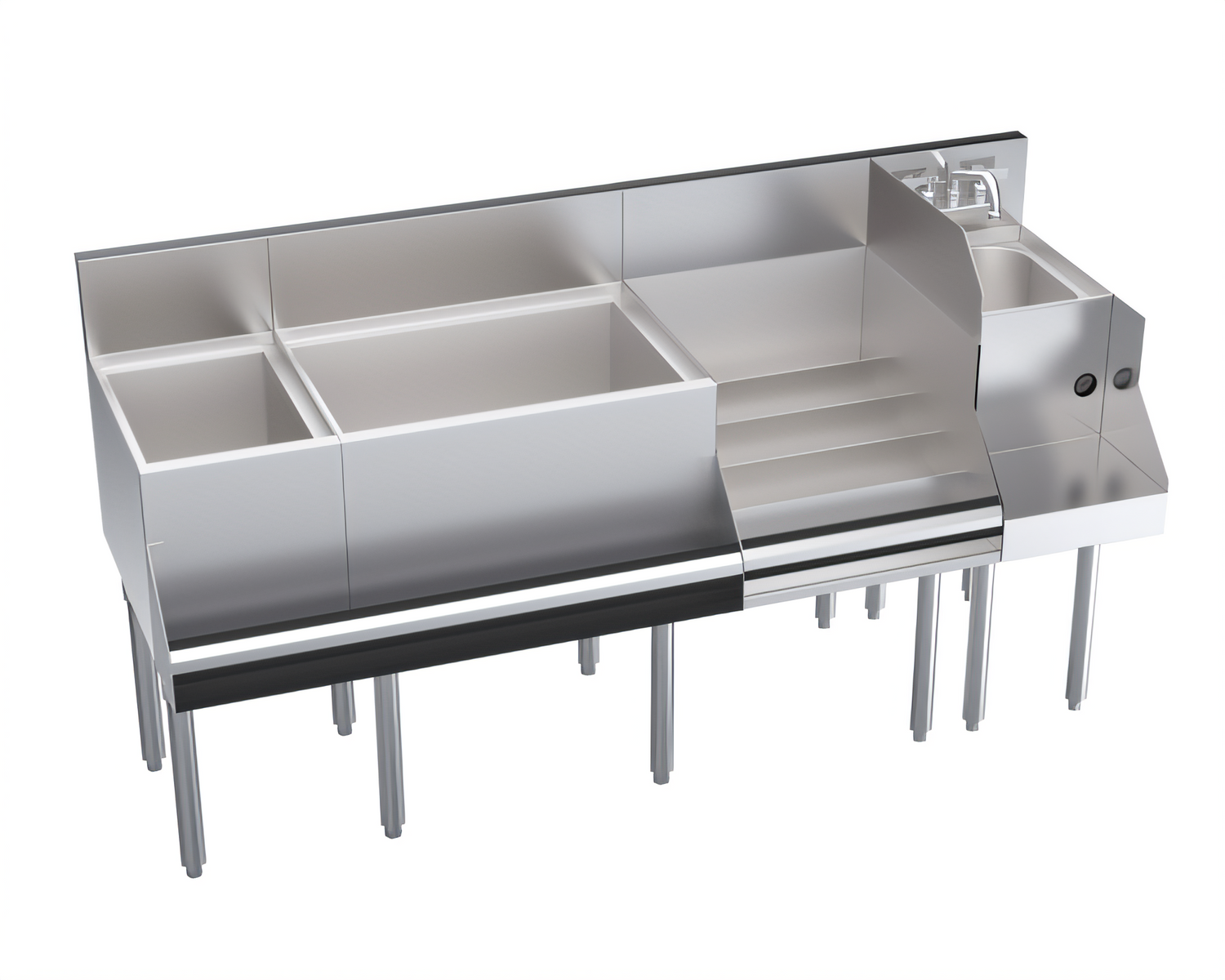

Krowne Royal Series 66" Underbar Ice Bin & Cocktail Station – 10-Circuit Cold Plate
Model KR24-W66C-10 (NSF)Build faster, cleaner cocktails behind the bar with Krowne’s flagship Royal Series workstation. This 66 inch unit combines a high-capacity ice bin, insulated bottle storage, built-in blender dump sink and a raised liquor display into one seamless, 24 inch-deep footprint.
Key Features

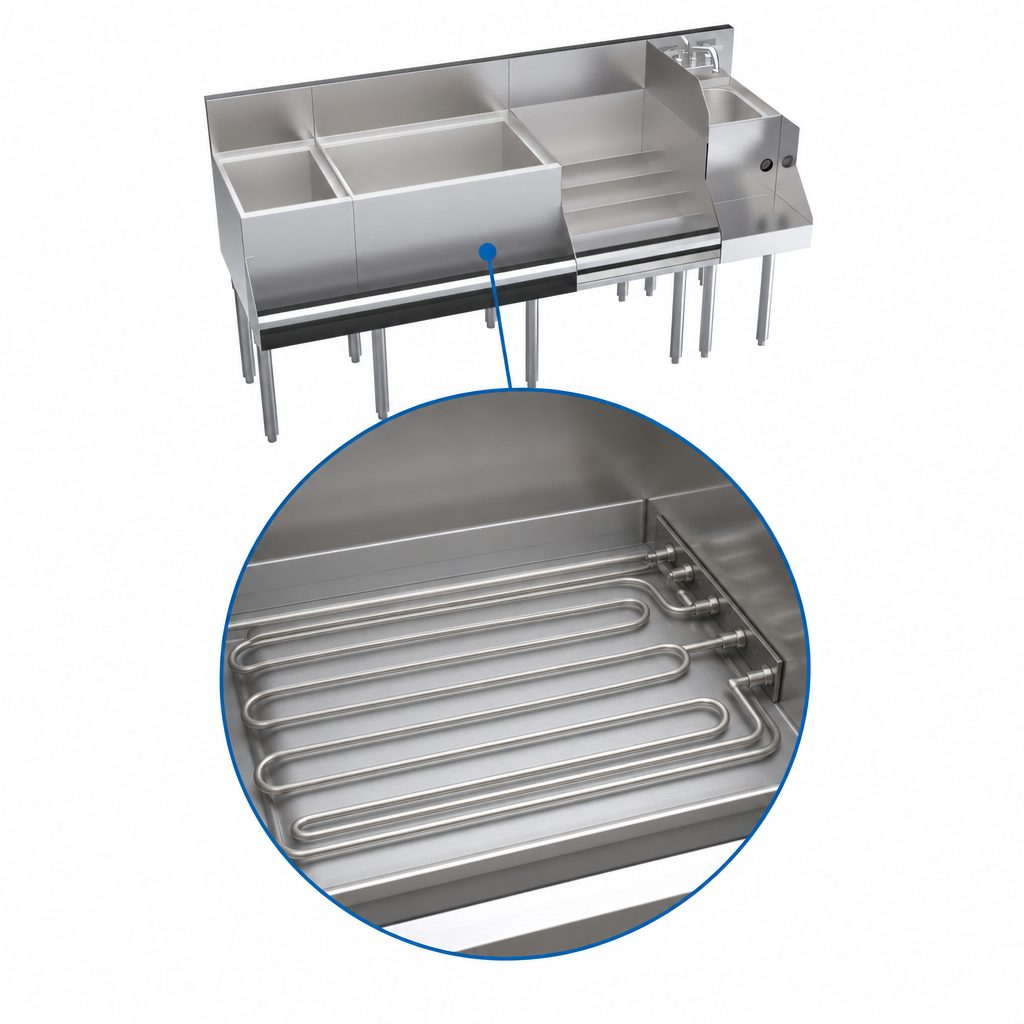

- 24" foamed-in-place ice bin with 10-circuit cast-aluminum cold plate & removable bottle wells
- 74 lb ice capacity keeps service humming during prime hours
- 12" insulated bottle storage section for chilled juices or mixes
- 12" blender station with stainless dump sink, side splash & duplex outlet
- 18" raised liquor display – bottles are lifted 6 ½" for quick reads & faster pours
- Sound-deadened single speed rail spans the full length for primary bottles
- Splash-mount Royal Series faucet with 4" centers & ¼-turn ceramic valves
- All-stainless interior plus stainless-clad front apron over galvanized steel for long-term durability
- 1 ⅝"-diameter 16-ga stainless legs with adjustable thermoplastic bullet feet
At-a-Glance Specs
| Overall dimensions (W × D) | 66" × 24" |
|---|---|
| Working height | 36 ½" |
| Ice bin size / depth | 24" wide × 12" deep (bin) – 74 lb capacity |
| Cold plate | 10 stainless circuits, bump & swedge ends |
| Blender dump sink bowl | 10" × 12" × 7" (with 1 ½" IPS drain) |
| Water connections | ½" IPS (hot & cold) |
| Drain connections | ½" IPS (cold-plate bin), 1" IPS (bin w/o plate), 1 ½" IPS (dump sink) |
| Materials | 20-ga stainless (interior, apron, backsplash, drainboard) 20-ga galvanized (back & bottom) |
| Weight | Approx. 289 lb ship weight |
| Certifications | NSF Std. 2 |
Perfect For
- High-volume cocktail bars and nightclubs
- Hotel lounges needing a compact, all-in-one bar station
- Restaurant bar remodels where every inch matters
Popular Accessories (sold separately)
- SC-XX-H / SC-XX-F partial or full sliding ice-bin covers
- KR-101 condiment tray & KR-103 stainless divider
- Side & end splashes for left / right installation (KR-313, KR-314, KR-315)
- 30-160 perforated dump basket
- KR-806 6" leg height upgrade
Need a different layout or length? 60" and 72" Royal Series stations are also available. Reach out to our team via the chat icon and we’ll configure the perfect setup for your bar.
