Krowne KR24-W66D-10 Royal Series Bar Equipment
Krowne KR24-W66D-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-W66D-10 Royal Series Bar Equipment
Description

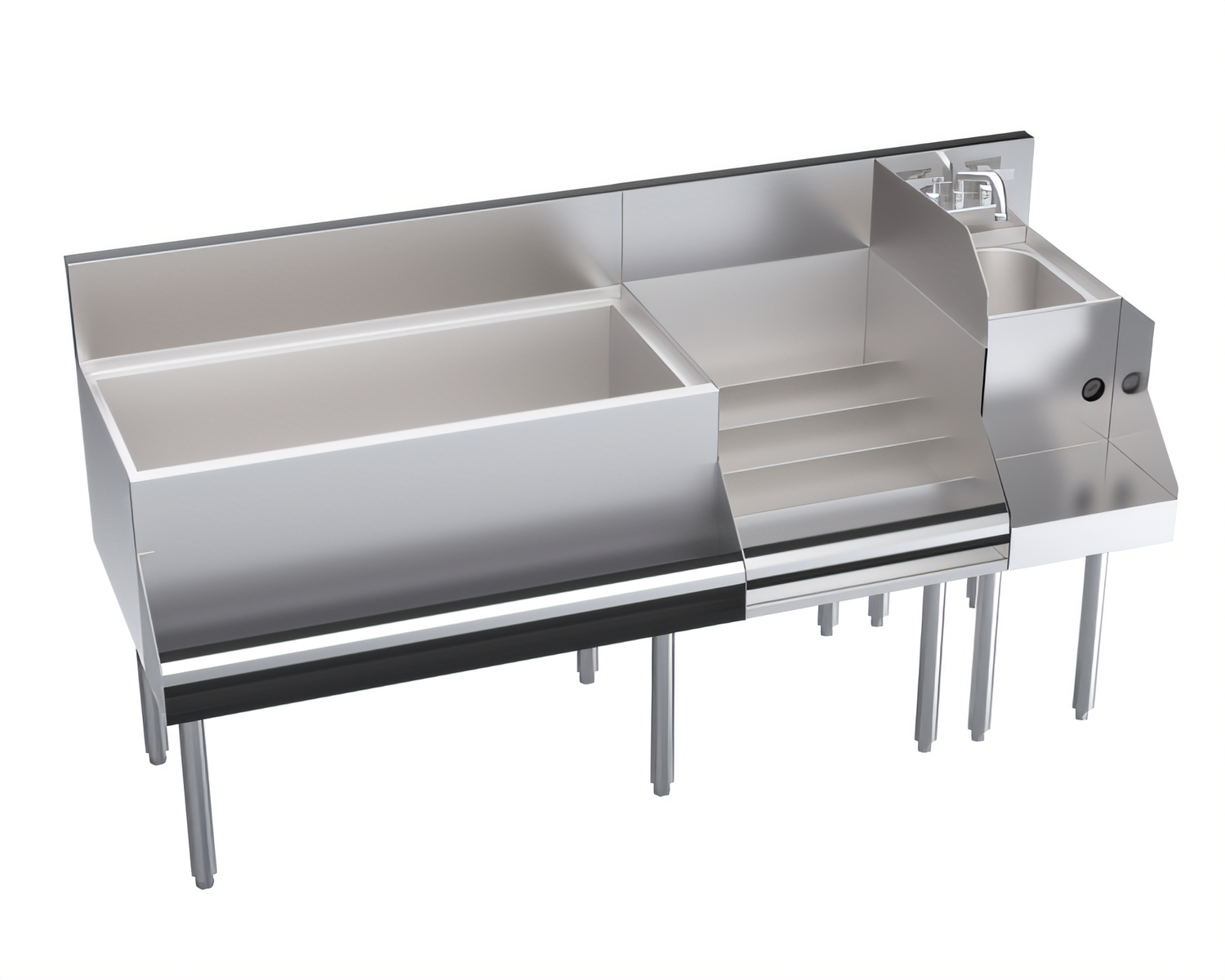

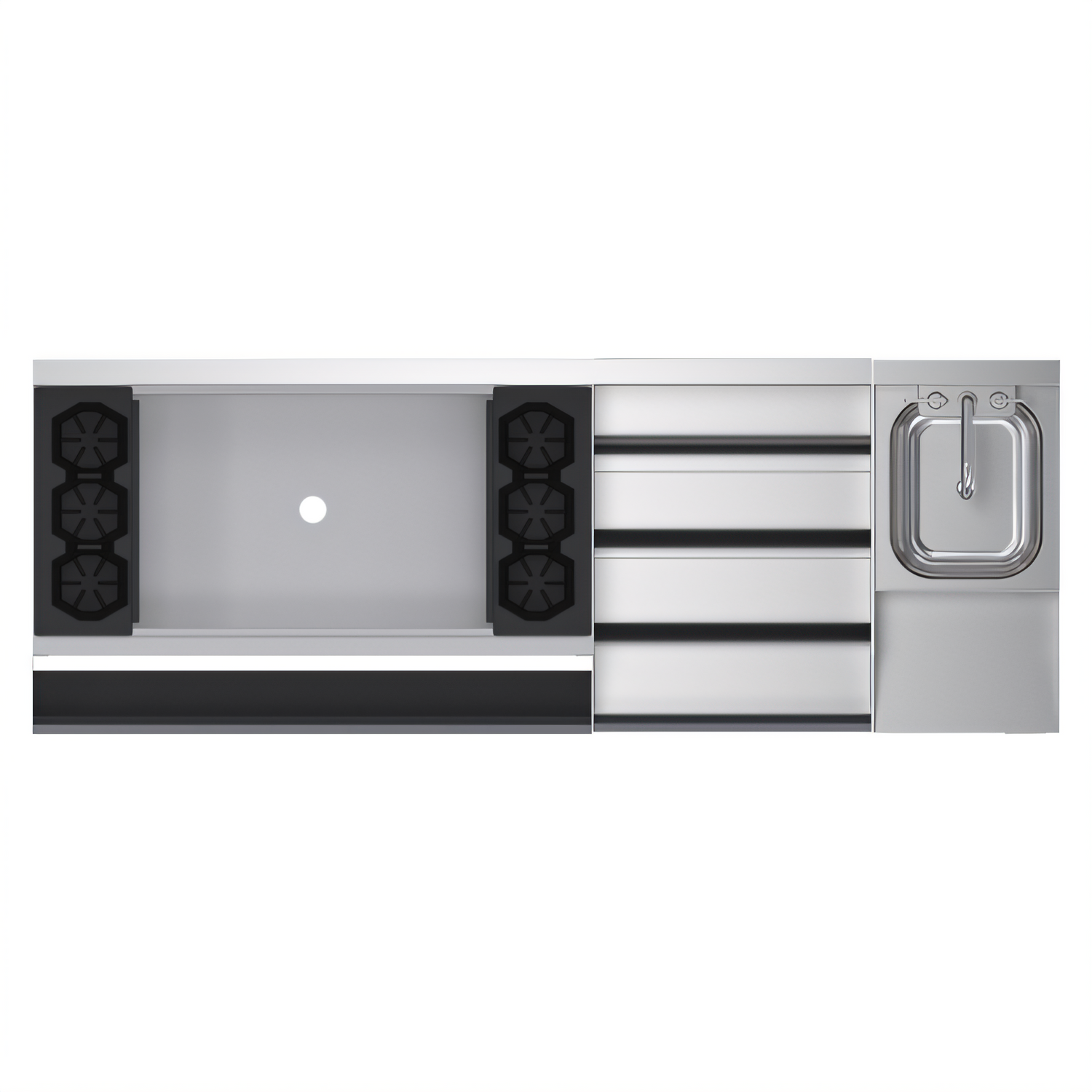

Royal Series 66" Underbar Ice Bin / Cocktail Station
Model KR24-W66D-10 | 10-Circuit Cold PlateGive your bartenders a purpose-built cocktail command center that keeps ice, liquor, mixers and blending power all within arm’s reach. Engineered for high-volume service, this Royal Series workstation combines a massive 36" ice bin, raised liquor display, dedicated blender dump sink and a sound-deadened speed rail—everything you need to speed up service while keeping your bar top spotless.
Why You’ll Love It

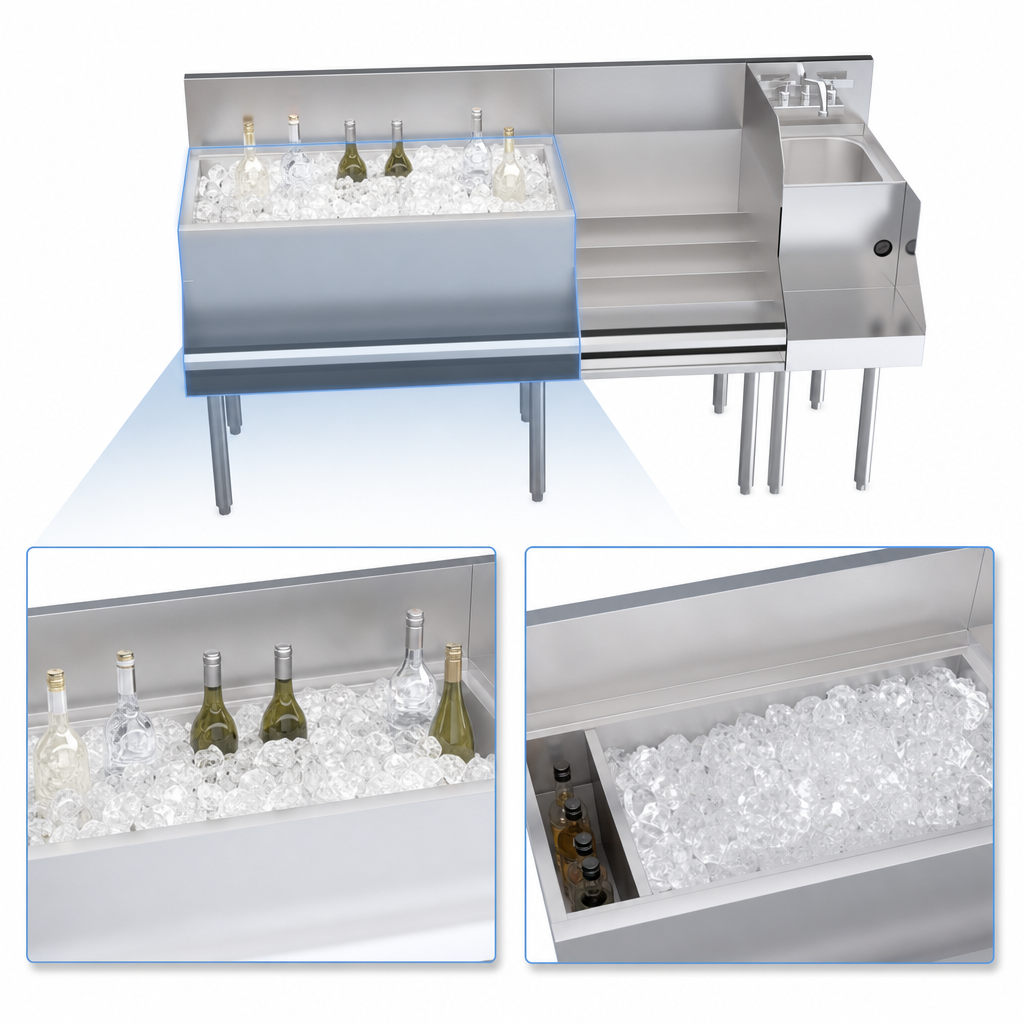

- One-piece 36" ice bin holds up to 110 lb of ice and includes removable bottle wells for iced bottle service.

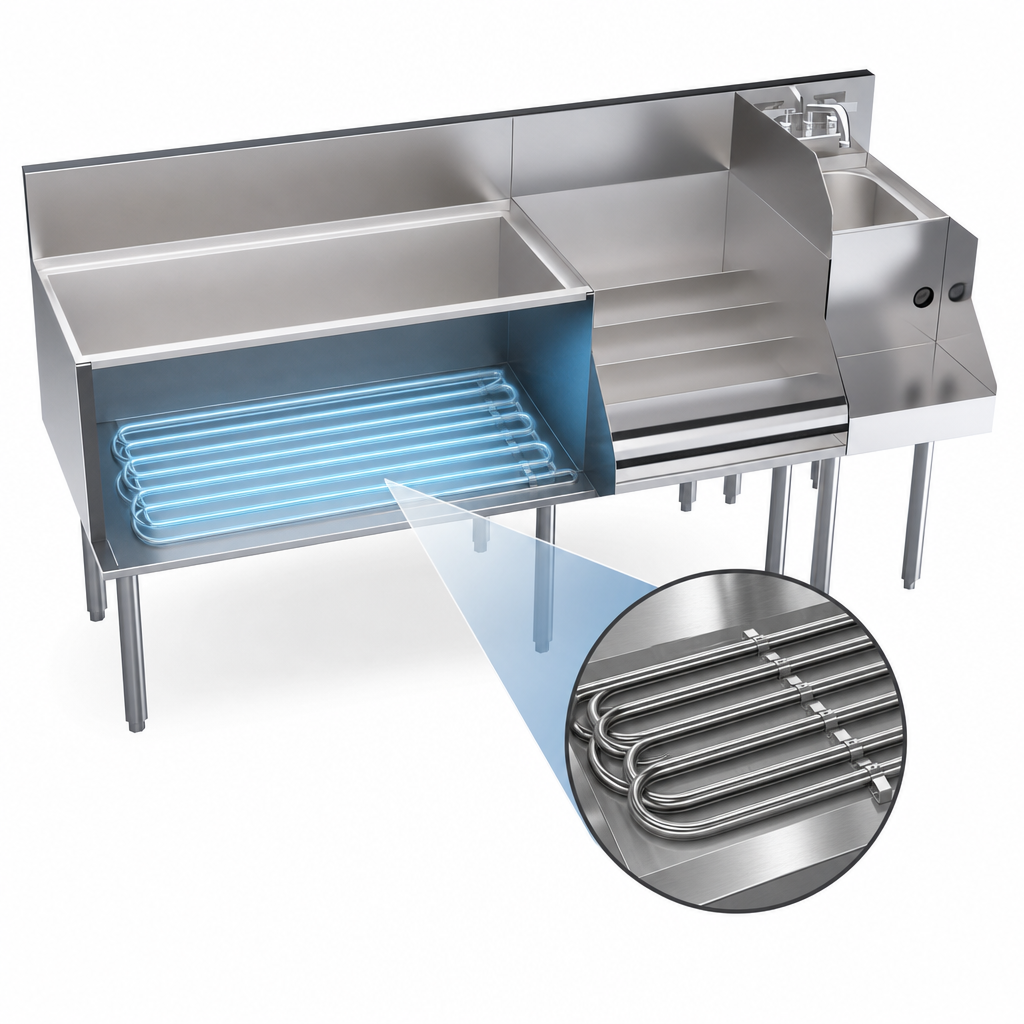

- Integrated 10-circuit cold plate (cast aluminum, 5/16" OD stainless tubing) delivers ice-cold soda or juice right from the gun.
- 12" blender station with 10" × 12" × 7" dump sink, side splash and splash-mount Royal Series faucet (¼-turn ceramic valves).
- Duplex 120 V outlet pre-wired under the blender shelf—just plug in a blender or immersion mixer.
- 18" raised liquor display keeps your top movers at eye level for faster bottle pulls.
- Sound-deadened single speed rail accommodates a full row of 750 ml bottles without rattling.
- Foamed-in-place polyurethane insulation maintains ice integrity shift after shift.
- Durable 20-gauge stainless steel interior with stainless-clad apron and galvanized back & bottom for long service life.
- 1 ⅝" Ø, 16-gauge stainless legs with adjustable thermoplastic bullet feet for rock-solid, NSF-approved footing.
- Meets NSF standards for food-zone sanitation.
Technical Specifications
| Overall dimensions (WxDxH) | 66" × 24" × 36 ½" (30" work height + 6 ½" backsplash) |
|---|---|
| Ice bin size / depth | 36" length • 12" depth • Foamed-in-place insulation |
| Ice capacity | 110 lb |
| Cold plate | Cast aluminum, 10 circuits, 5/16" OD stainless tubing |
| Liquor display | 18" raised, 1 tier |
| Blender dump sink bowl | 10" × 12" × 7" (12" station width) |
| Faucet | Royal Series splash-mount, 4" centers, ¼-turn ceramic cartridges |
| Electrical | 120 V duplex outlet under blender shelf |
| Drain connections |
Ice bin (with cold plate): ½" IPS w/ 4" PVC tailpiece Dump sink: 1 ½" IPS Drainboard (if added): 1" IPS |
| Construction | 20-ga. stainless interior & apron, galvanized back/bottom, stainless legs |
| Certifications | NSF |
Popular Add-Ons (Sold Separately)
- Sliding ice-bin covers (partial or full)
- Stainless steel bottle dividers
- Left/Right end & side splashes
- Towel ring or perforated dump basket
- 6" leg kit for added height
Need a different length, extra speed rails or custom sinks? Reach out to our team for a tailored Royal Series configuration that fits your exact bar layout.
