Krowne KR24-W66C-10 Royal Series Bar Equipment
$6,243.05
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Krowne KR24-W66C-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-W66C-10 Royal Series Bar Equipment
$6,243.05
Unit price
/
Unavailable
Description

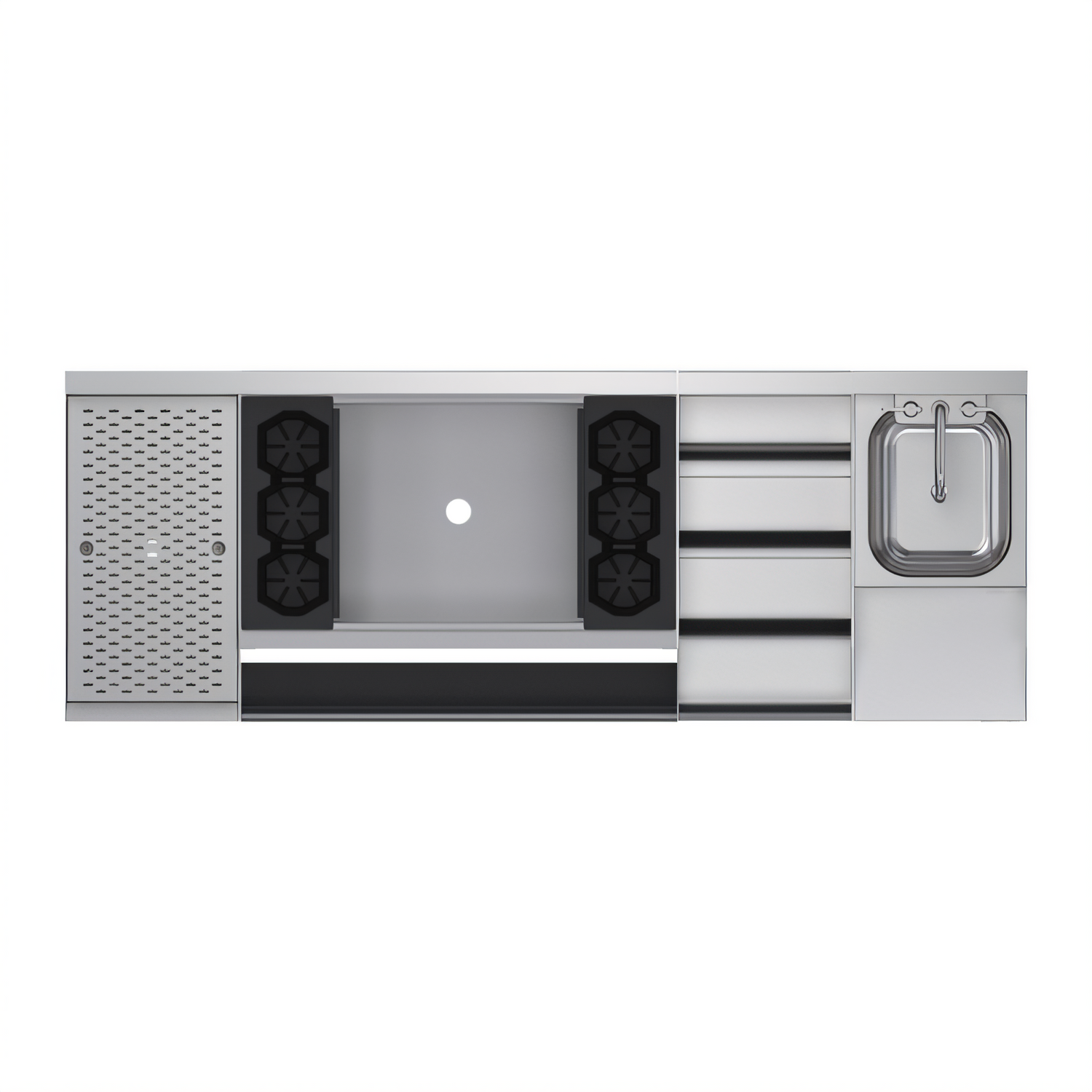

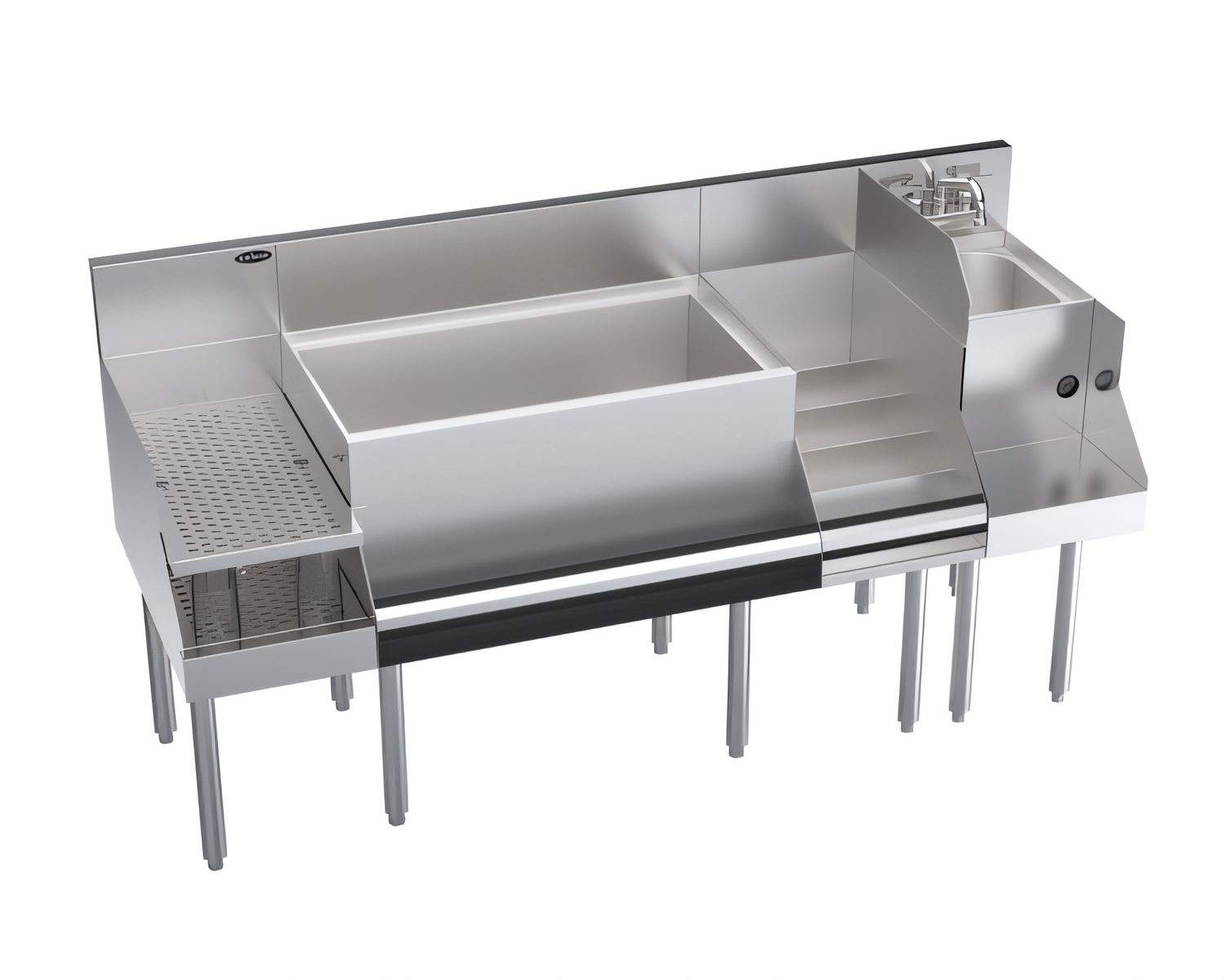

Krowne Royal Series 66" Underbar Ice Bin & Cocktail Workstation
Model KR24-W66C-10 | NSF CertifiedBuilt for high-volume bars that demand speed, organization and rock-solid durability, this 66" Royal Series workstation unites an ice bin, cold plate, liquor display, blender station and drainboard in one streamlined underbar unit.
Key Features

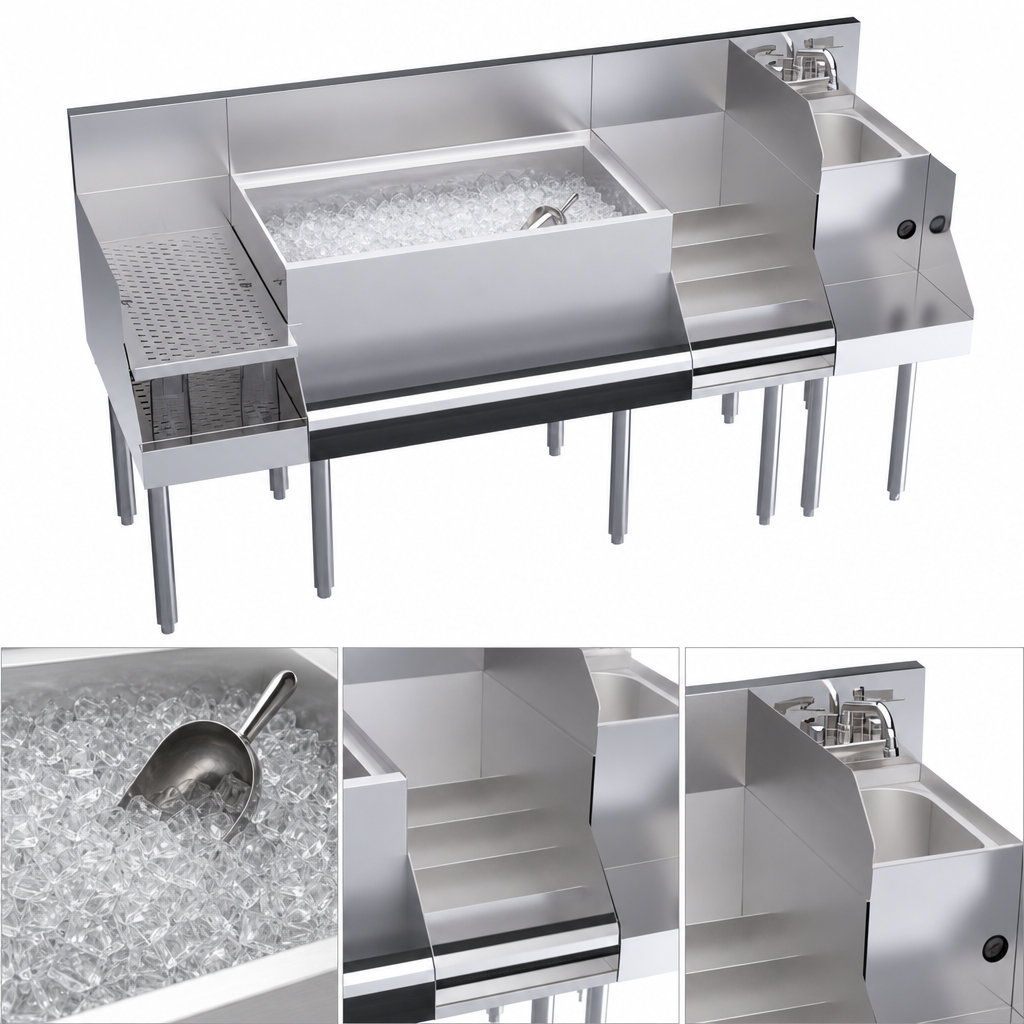

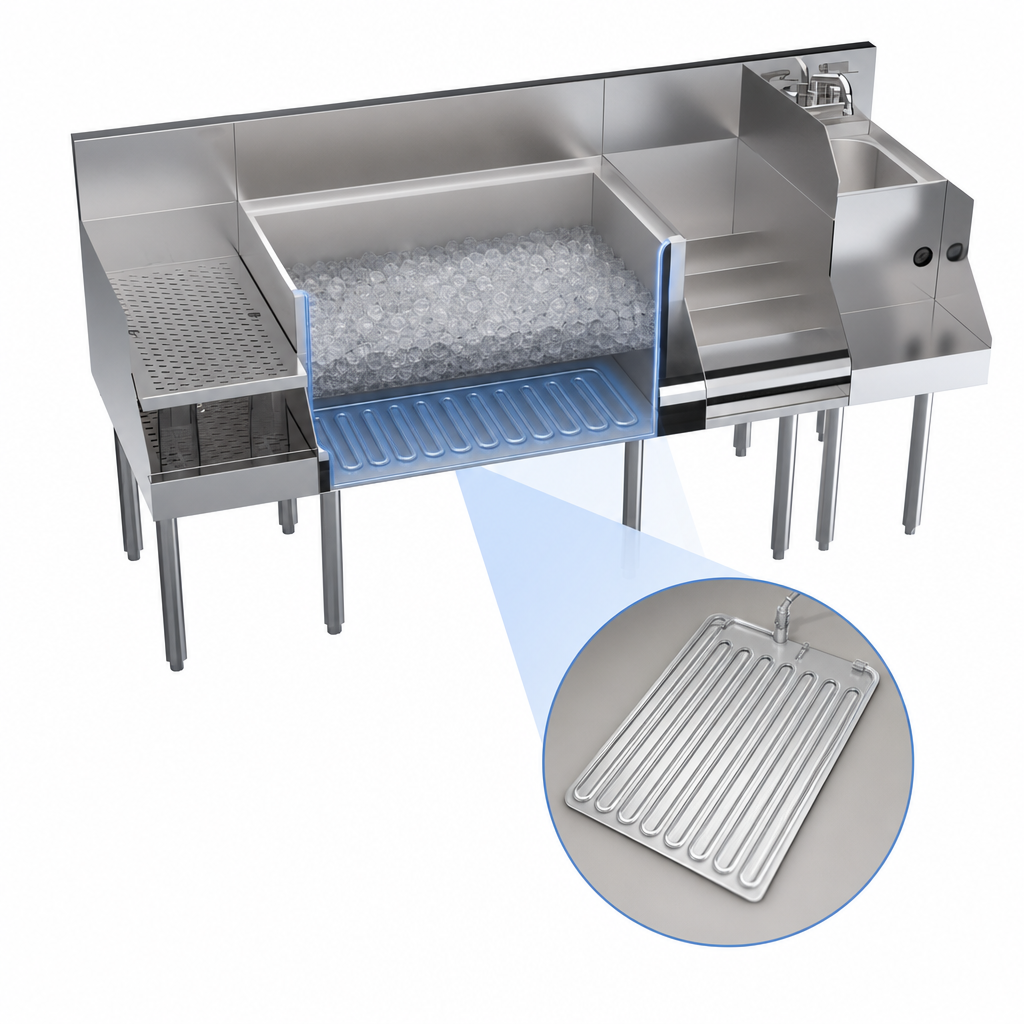

- 30" insulated ice bin (12" deep) with 10-circuit cast-aluminum cold plate; 92 lb ice capacity.
- 12" recessed drainboard keeps glassware above melt water; 1" IPS drain connection.
- Dedicated 12" blender station with stainless dump sink (10" × 12" × 7") and built-in duplex outlet.
- 12" raised liquor display puts premium bottles at eye-level and within easy reach.
- Sound-deadened single speed rail with removable bottle wells for fast bottle changes.
- Splash-mount Royal Series faucet, 4" centers, ¼-turn ceramic cartridges for long life.
- All-stainless interior with foamed-in-place insulation; stainless-clad front apron over galvanized steel back & bottom.
- 1-5/8" tubular stainless legs with adjustable thermoplastic bullet feet for easy leveling.
- NSF/ANSI Standard 2 listed and ready for commercial installation.
Specifications
| Overall Dimensions | 66" W × 24" D × 36½" H to work surface 42 15/16" H to top of backsplash |
|---|---|
| Ice Bin | 30" L × 12" D, 92 lb capacity, 10-circuit cold plate, removable bottle wells |
| Drainboard | 12" recessed, 1" IPS drain |
| Blender Dump Sink | 12" W bowl – 10" × 12" × 7"; 1½" IPS drain |
| Liquor Display | 12" W raised shelf |
| Plumbing | ½" IPS hot & cold water (faucet) ½" IPS drain with 4" PVC tailpiece (ice bin) |
| Electrical | Duplex outlet beneath blender shelf (120 V, 15 A max) |
| Construction | 20 ga stainless interior & apron, stainless over galvanized exterior, foamed-in-place insulation |
| Legs / Feet | 1-5/8" Ø stainless legs, adjustable thermoplastic bullet feet |
| Shipping Weight | ≈ 289 lb |
| Certifications | NSF/ANSI Std. 2 |
Popular Accessories
- SC30H / SC30F sliding ice-bin covers (partial or full)
- KR-101 condiment tray
- KR-103 stainless steel ice-bin divider
- KR-313 side-splash kits
- KR-501 towel ring & 30-160 perforated dump basket
Looking for a different size or layout? Krowne’s Royal Series can be configured in 60" and 72" lengths as well—contact us for details.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
66.0in
Depth
24.0in
Shipping Weight
289.0lbs
Ice Capacity
90 lbs.
Width (side - side) OA
61" - 66"
Ice Bin Location
ice bin - center
Construction
stainless steel & galvanized
Blender Unit Type
with sink
Splash
6" splash
Cold Plate
(10) circuit
Depth (front - back) OA
24"
Working Height
30" working height
Specifications
Royal Series Underbar Ice Bin/Cocktail Station, with blender, liquor stations & drainboard, 66"W x 24"D OA, 12"W recessed drainboard, 30"W ice bin with 10-circuit cold plate & bottle wells, 92 lbs. ice capacity, single speedrail, 12"W raised liquor display, 12"W blender station with dump sink & duplex outlet, splash mount Royal Series faucet, stainless steel interior, stainless steel & galvanized exterior, stainless steel legs with adjustable thermoplastic bullet feet, NSF
