Krowne KR24-W66B-10 Royal Series Bar Equipment
Description

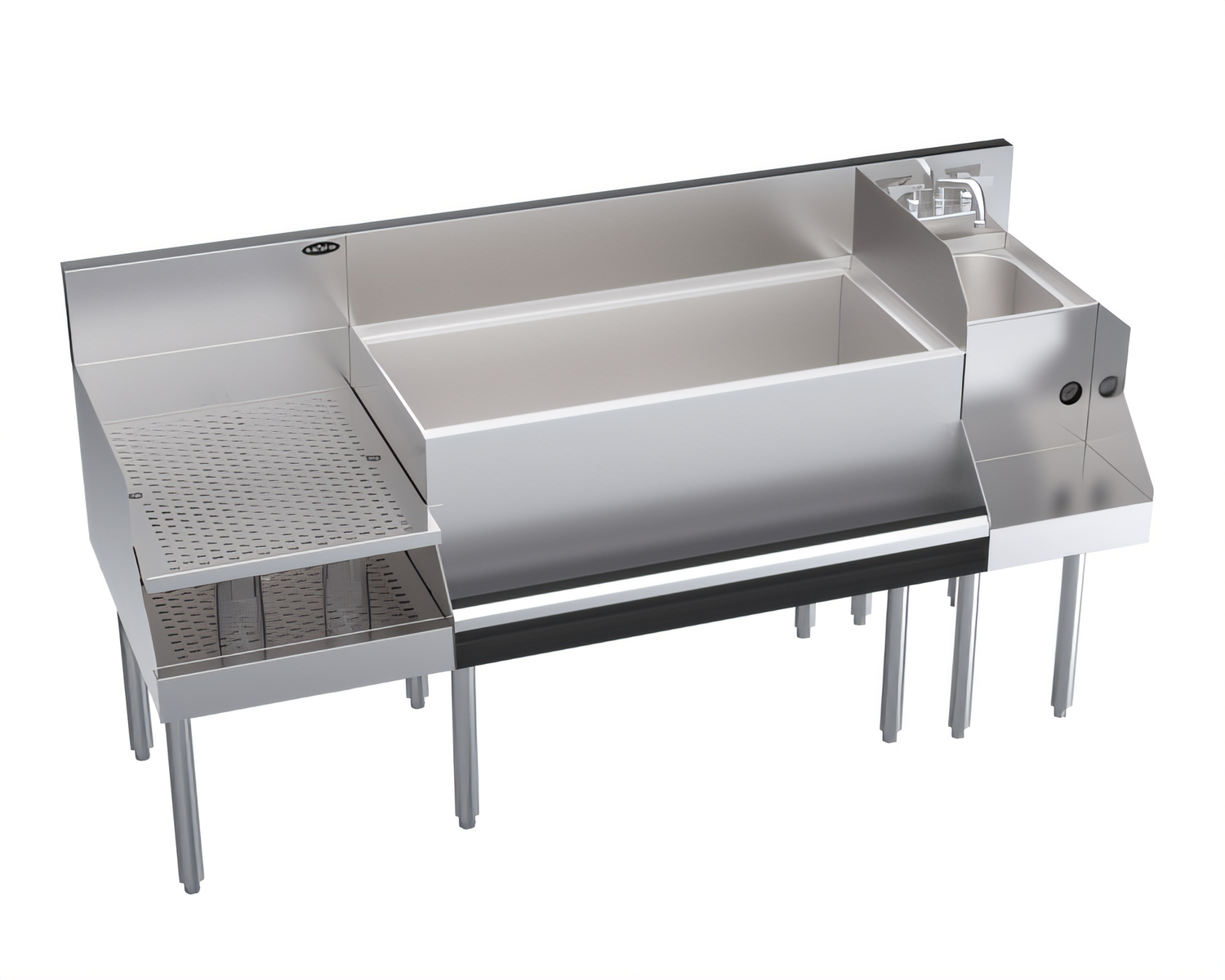

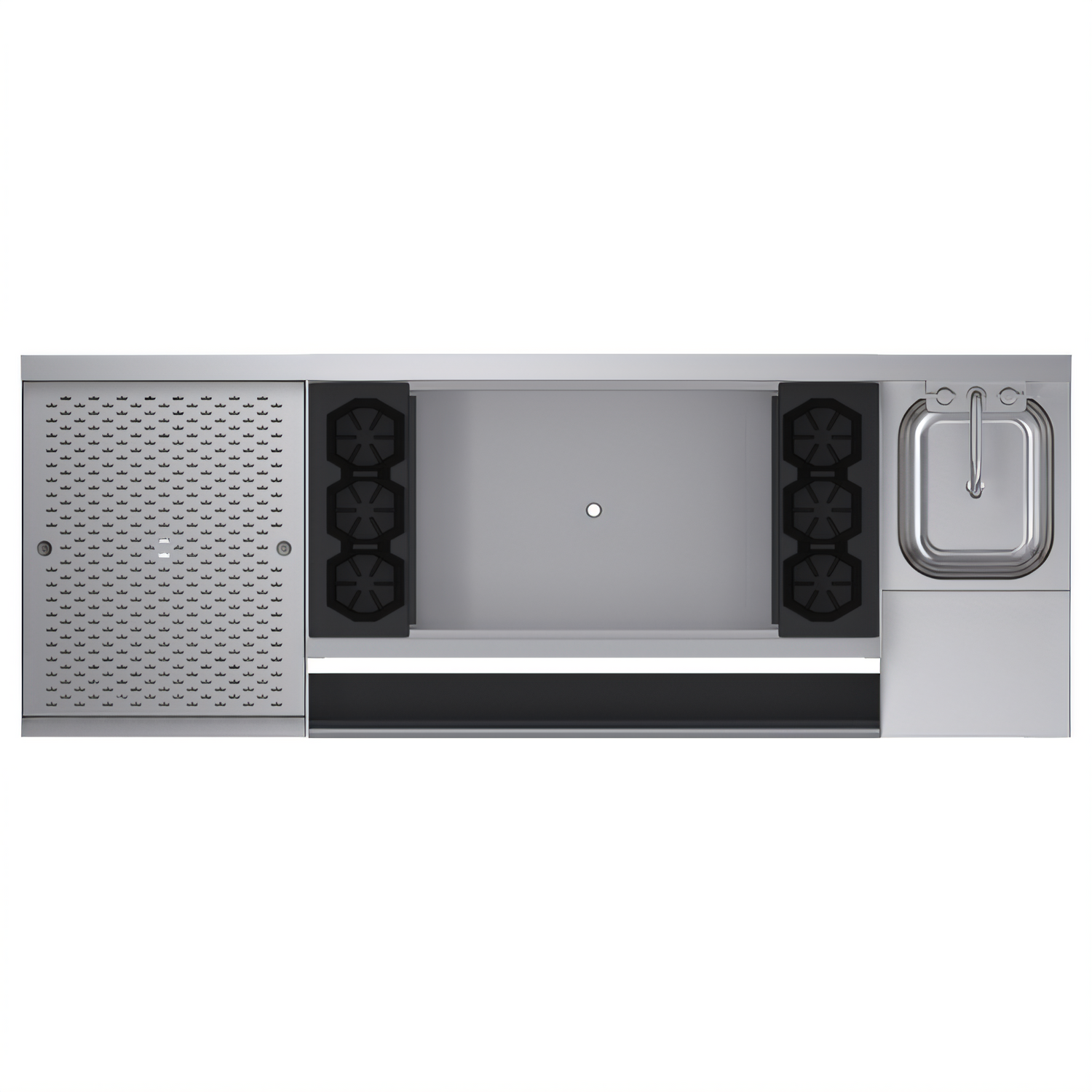

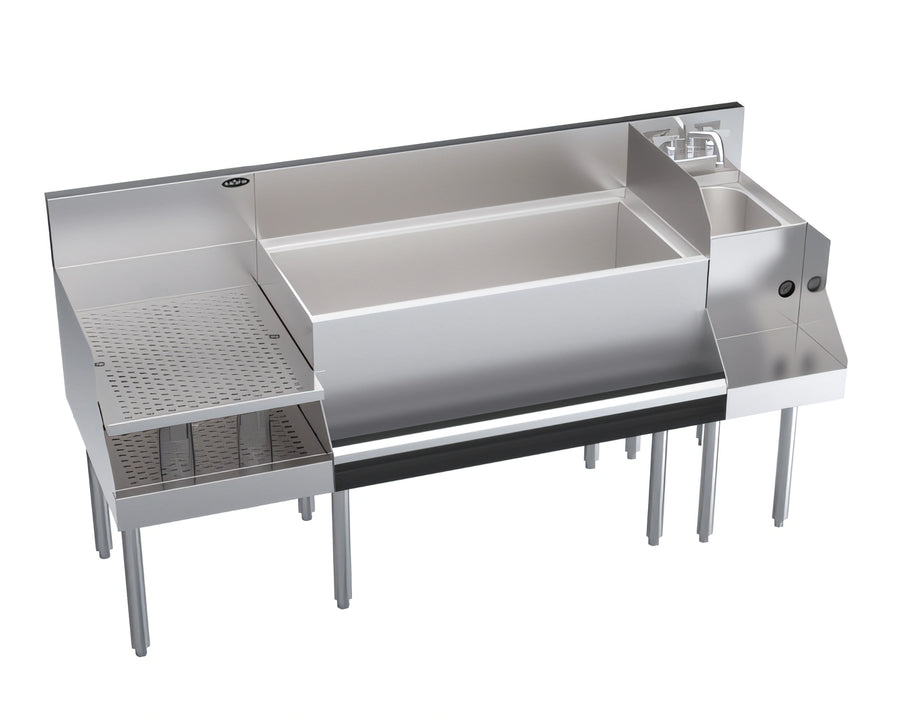

Krowne Royal Series Underbar Ice Bin / Cocktail Station – 66" Recessed Workstation
Model KR24-W66B-10 • 10-Circuit Cold Plate • 110 lb Ice CapacityGive your bartenders everything they need to pour, blend and serve at warp speed. This 66-inch Royal Series workstation combines a high-volume ice bin, dedicated blender bay and recessed drainboard in one seamless, NSF-listed unit built for today’s busiest cocktail programs.

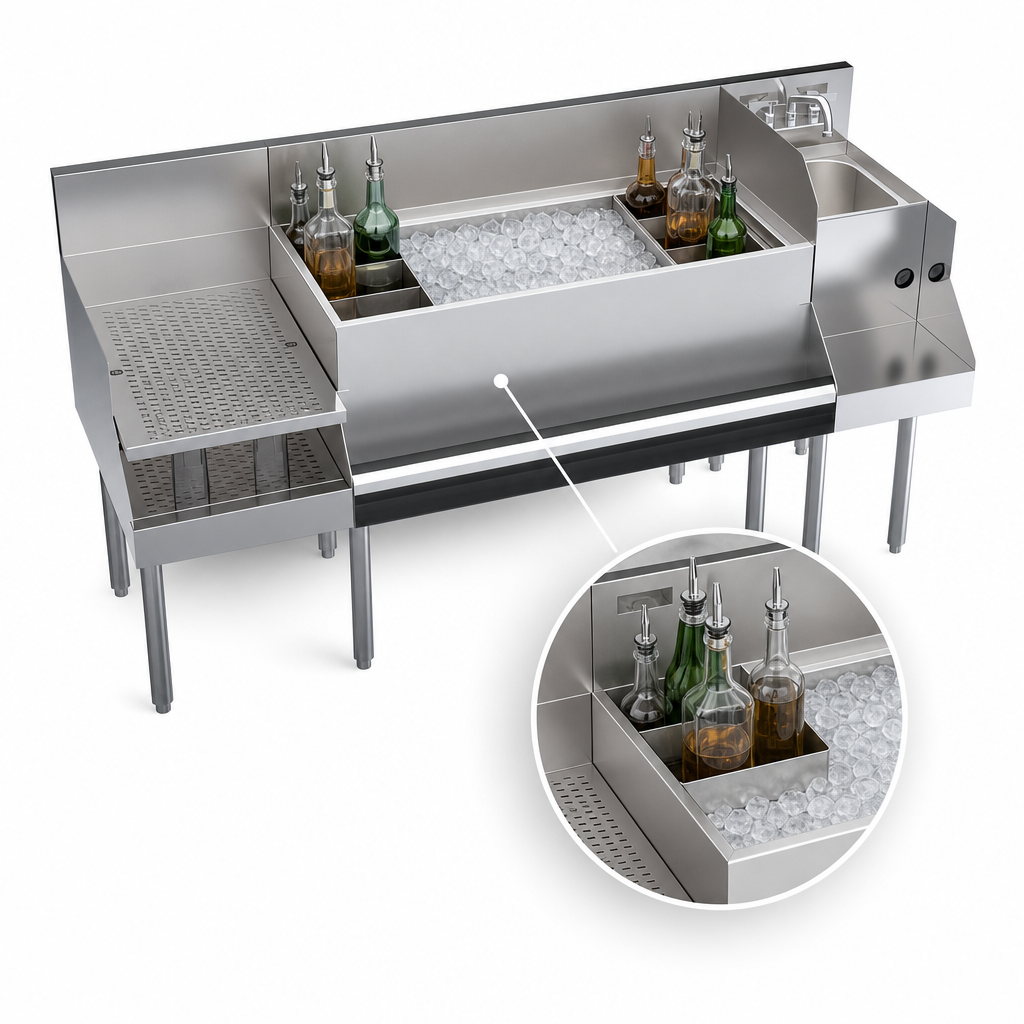

- 36" ice bin with built-in 10-circuit cast-aluminum cold plate keeps beverage lines ice-cold.
- Foamed-in-place insulation stores up to 110 lbs of ice for peak-hour demand.
- Removable bottle wells for quick product rotation and thorough nightly cleaning.

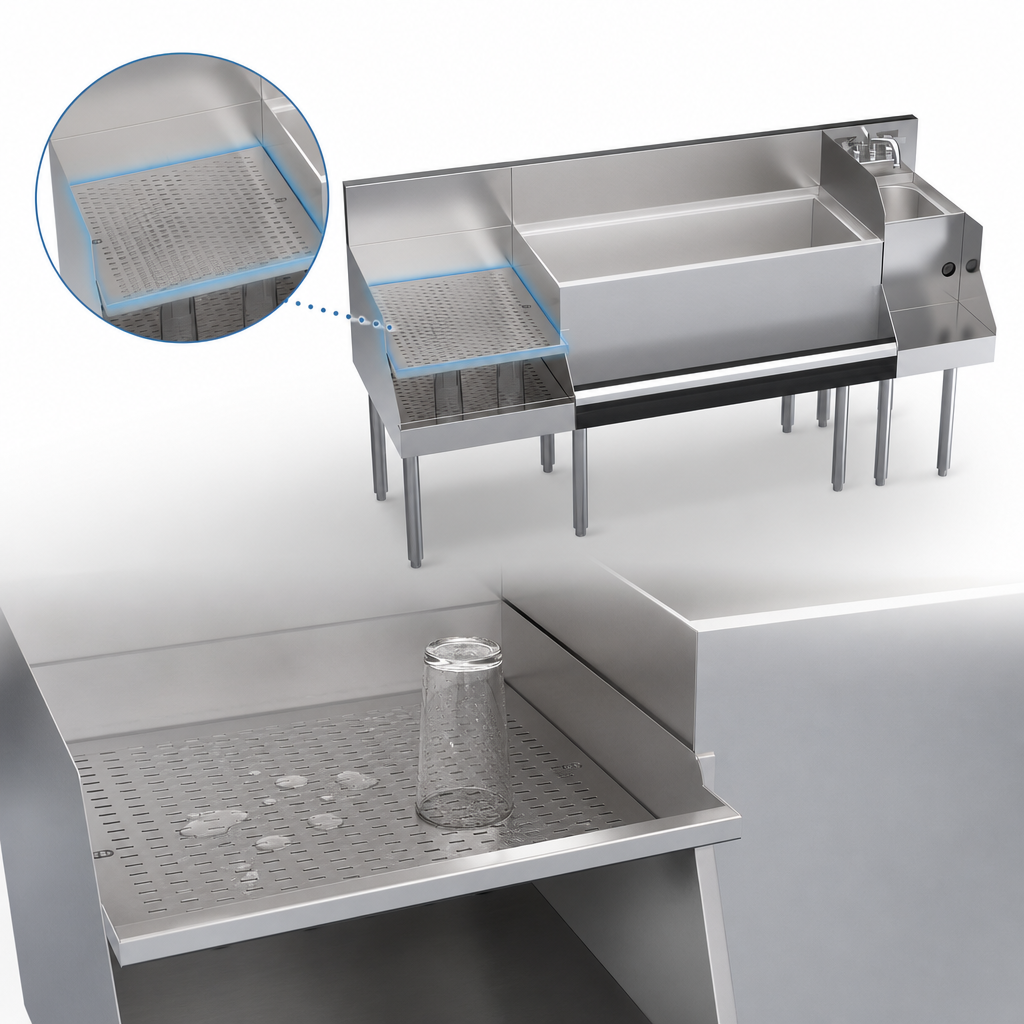

- 18" recessed drainboard allows glassware to drip-dry without eating up counter space.
- 12" blender station with dump sink, 4" center splash-mount Royal Series faucet and factory-wired duplex outlet.
- Sound-deadened single speed rail keeps most-used bottles perfectly within reach.
- Factory side splash (left) prevents overspray between ice bin and sink area.
- 20 ga stainless interior & 20 ga stainless-clad apron over galvanized back/bottom for maximum corrosion resistance.
- 1-5/8" 16 ga stainless legs with adjustable thermoplastic bullet feet for fast, rock-solid leveling.
- NSF listed for open-bar installation.
Technical Specifications
| Model | KR24-W66B-10 |
|---|---|
| Overall Dimensions | 66" W × 24" D × 30" H (36 ½" H to top of backsplash) |
| Ice Bin | 36" L × 12" D • 110 lb capacity • ½" IPS drain with 4" PVC tailpiece |
| Cold Plate | 10 circuits • 5/16" O.D. stainless tubing • sealed cast aluminum |
| Drainboard | 18" W recessed style • 1" IPS drain |
| Blender Station | 12" W shelf with dump sink (10" × 12" × 7") • 1-½" IPS drain |
| Faucet | 4" center splash-mount, ¼-turn ceramic valves |
| Plumbing | ½" IPS hot & cold water connections |
| Electrical | Duplex 120 V outlet mounted beneath blender shelf |
| Speed Rail | Single, sound-deadened, removable |
| Legs / Feet | 1-5/8" Ø 16 ga stainless legs • adjustable thermoplastic bullet feet |
| Ship Weight | Approx. 250 lbs |
| Certifications | NSF |
Looking for right-hand splash guards, sliding ice-bin covers or other custom options? Contact us for factory-installed accessories to build the perfect station for your bar.
