Krowne Royal Series KR24-W60E-10 60-Inch Underbar Ice Bin/Cocktail Station with Blender Station, Liquor Display & 10-Circuit Cold Plate

SKU: KR24-W60E-10
$6,530.70
/each Configurable
Free Shipping

Alternative products
KR24-W60E-10 Current product Current
KR24-W60C-10 Loading live product details…
KR24-W66C-10 Loading live product details…
KR24-W72C-10 Loading live product details…
KR24-W60D-10 Loading live product details…
KR24-W66D-10 Loading live product details…
KR24-W72D-10 Loading live product details…
KR24-W66E-10 Loading live product details…
KR24-W72E-10 Loading live product details…
Enter ZIP for a shipping estimate

Want to speak to an expert?

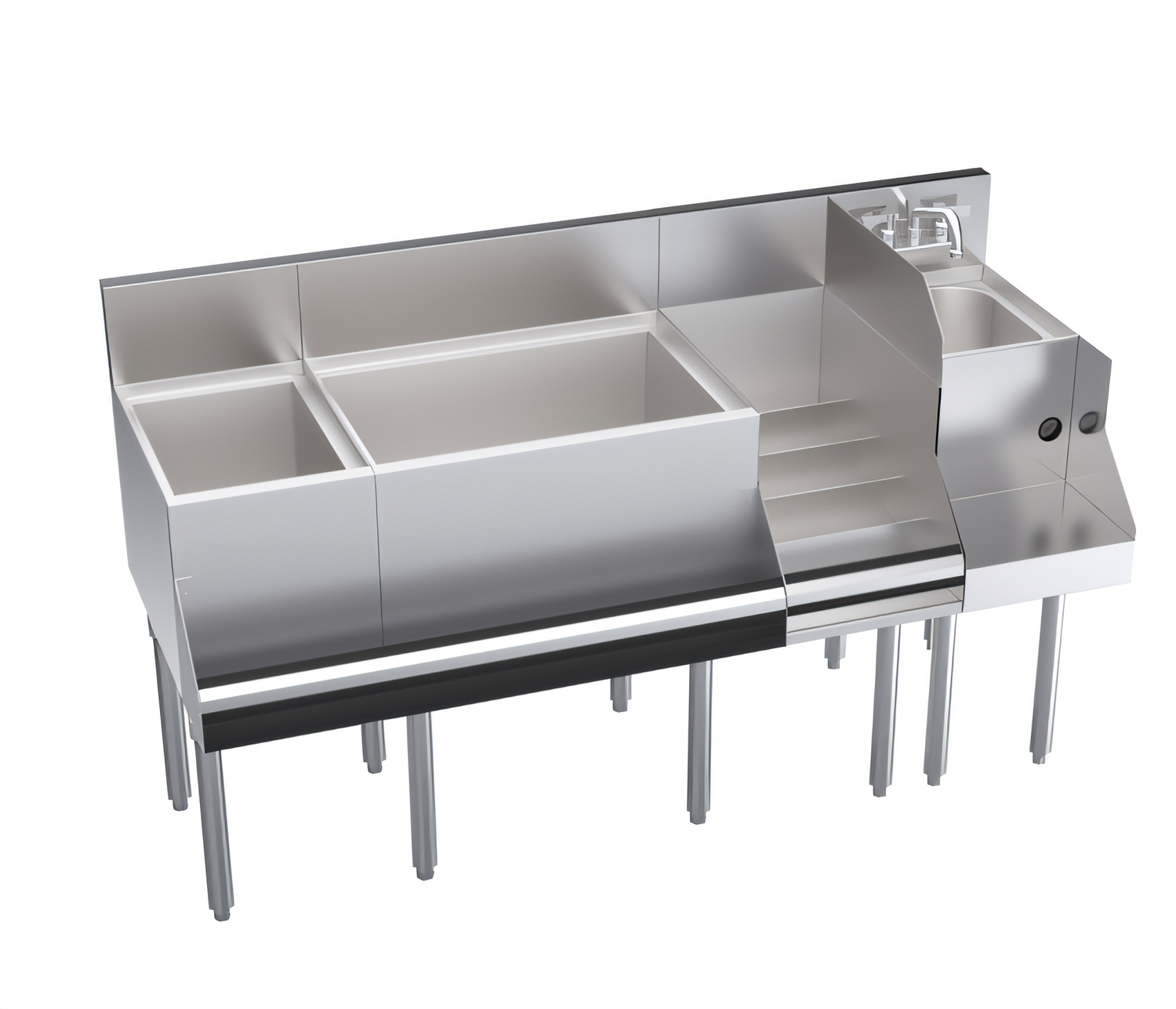

Krowne Royal Series 60-Inch Underbar Ice Bin/Cocktail Station with Blender Station, Liquor Display, and 10-Circuit Cold Plate

24-Inch Center Ice Bin, 10-Circuit Cold Plate, 92-Lb. Ice Capacity

This compact all-in-one bar workstation streamlines ice, bottle storage, blending, and liquor service in a durable stainless steel footprint.

  • All-in-one 60-inch underbar workstation combines ice storage, bottle storage, blending, and liquor display in one footprint.
  • 24-inch center ice bin holds up to 92 lb. of ice and includes removable bottle wells.
  • Built-in 10-circuit cold plate helps keep beverage ingredients chilled at the bar.
  • 12-inch blender station includes a dump sink and duplex outlet for fast prep and cleanup.
  • Stainless steel construction, sound-deadened speed rail, and adjustable bullet feet support commercial durability.
  • NSF certified to NSF/ANSI 2.

Overall Dimensions:

60.0"W x 24.0"D x 36.5"H

Product Weight:

304.0 lb

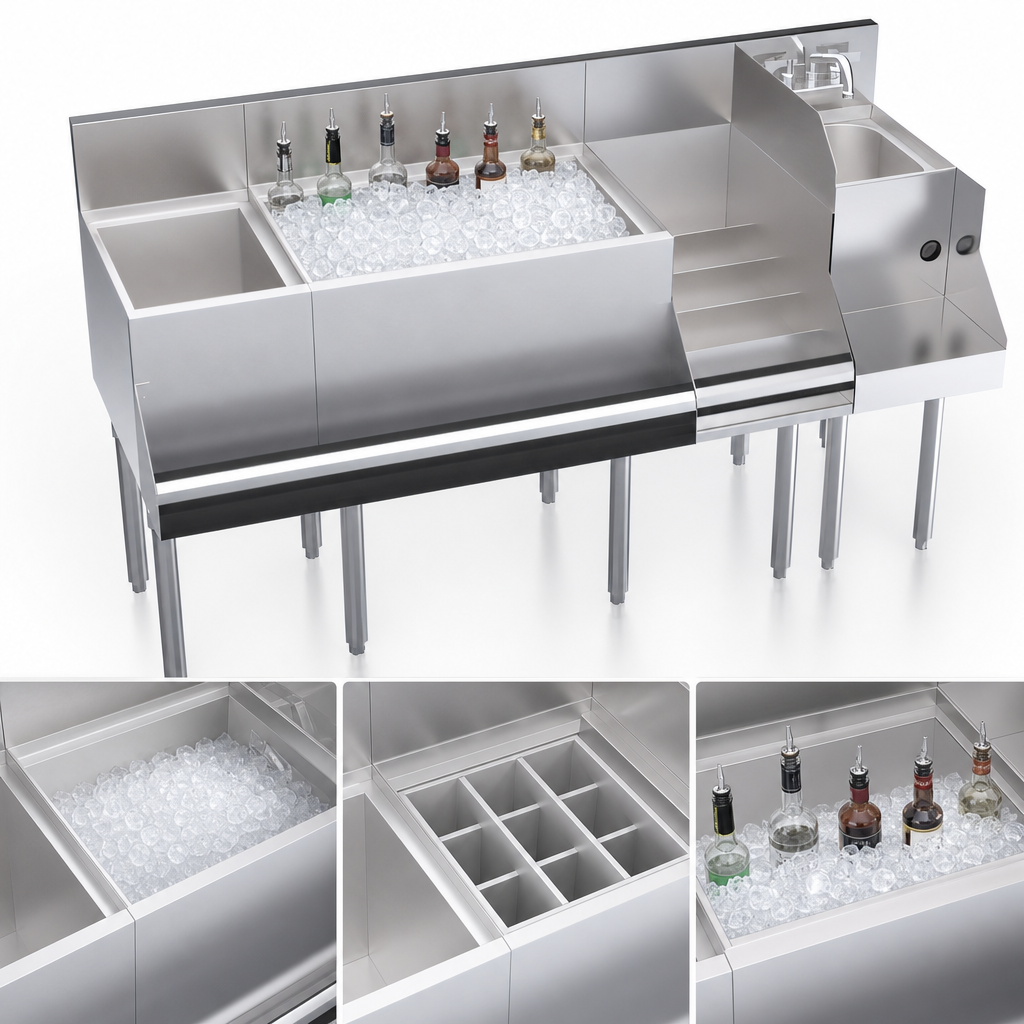

Center Ice Bin

24-inch ice bin section with 92-lb. ice capacity and removable bottle wells for organized service.

Center Ice Bin

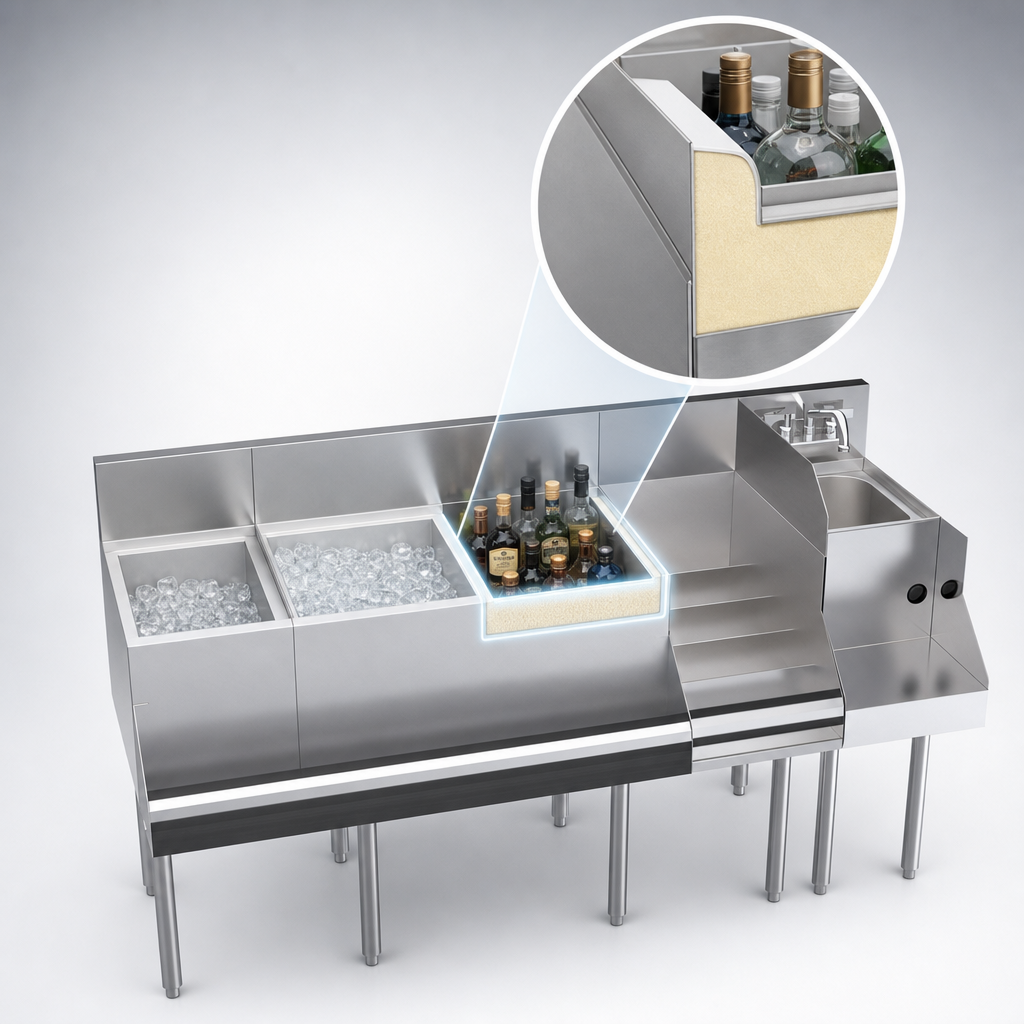

Insulated Bottle Section

Foamed-in-place polyurethane insulation helps retain cold temperature in the bottle storage area.

Insulated Bottle Section

Built-In 10-Circuit Cold Plate

Cast aluminum post-mix plate is sealed into the base to support chilled beverage service.

Blender Station with Dump Sink

12-inch blender shelf includes a dump sink and duplex outlet located underneath the shelf.

Raised Liquor Display

12-inch raised display keeps bottles organized and within easy reach.

Single Speed Rail

Sound-deadened speed rail keeps frequently used liquor close at hand.

Stainless Steel Construction

Stainless steel interior and exterior with galvanized steel reinforcement in non-food-contact areas for durability.

Faucet and Backsplash

Includes a splash-mount faucet, 6-1/2-inch backsplash, and stainless steel legs with thermoplastic bullet feet for leveling.

Type Ice Bin/Cocktail Station
Style Workstation with Liquor Display
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 92 lbs.
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1/2 Inch IPS (Ice Bin); 1-1/2 Inch IPS (Dump Sink)
Water Connection Required
Drain Connection Required
Width 60 Inches
Depth 24 Inches
Height 37 Inches
Weight 304 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

The unit measures 60 inches wide, 24 inches deep, and 36.5 inches high.
This model has a 92 lb. ice capacity.
Yes. It includes a built-in 10-circuit cast aluminum cold plate sealed into the base.
Yes. The blender station includes a duplex outlet under the shelf, and the unit includes a splash-mount faucet.
Hot and cold water use 1/2 inch IPS connections. The ice bin uses a 1/2 inch IPS drain connection, and the dump sink uses a 1-1/2 inch IPS drain connection.
Yes. It is certified to NSF/ANSI 2.
