Krowne  |  Royal Series  |  SKU: KR24-W60D-10

Krowne KR24-W60D-10 Royal Series Bar Equipment

$5,655.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

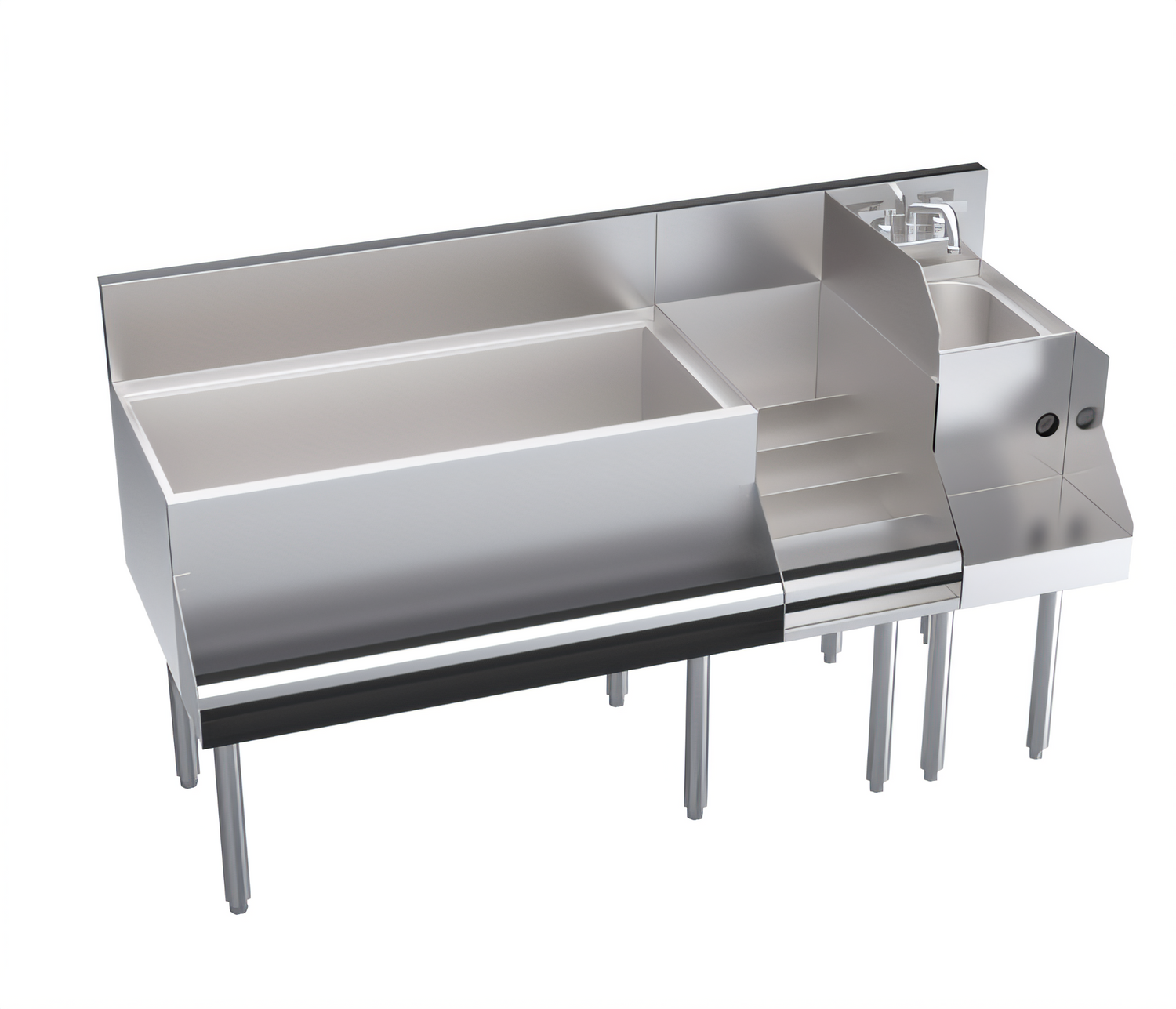

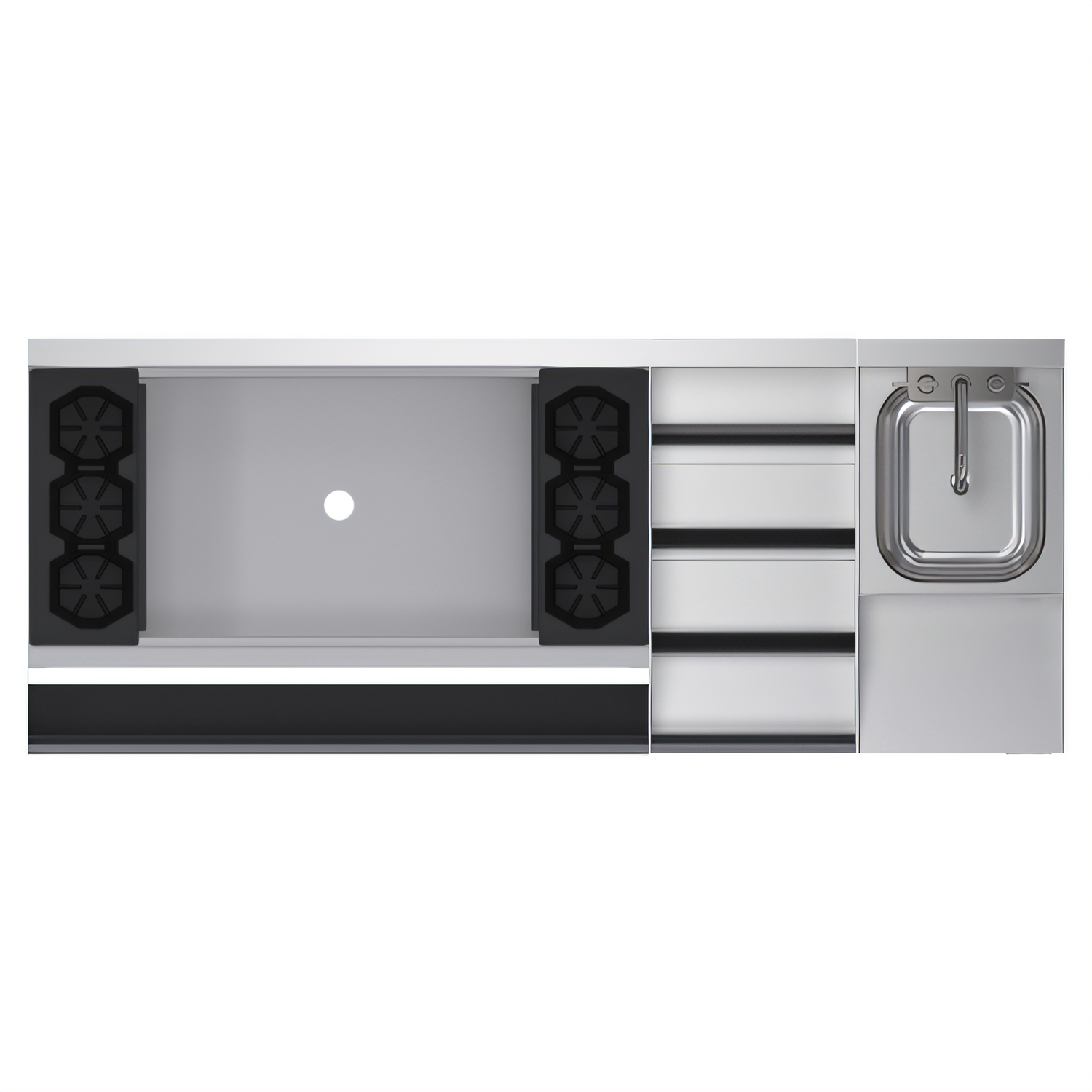

Krowne Royal Series 60" Underbar Ice Bin & Cocktail Station

36" Ice Bin • 10-Circuit Cold Plate • NSF Listed

Created for busy cocktail bars that demand maximum output in minimum space, this 60" Royal Series workstation rolls your ice bin, liquor display, blender dump sink and speedrail into one rock-solid, stainless-steel unit.

Why you’ll love it

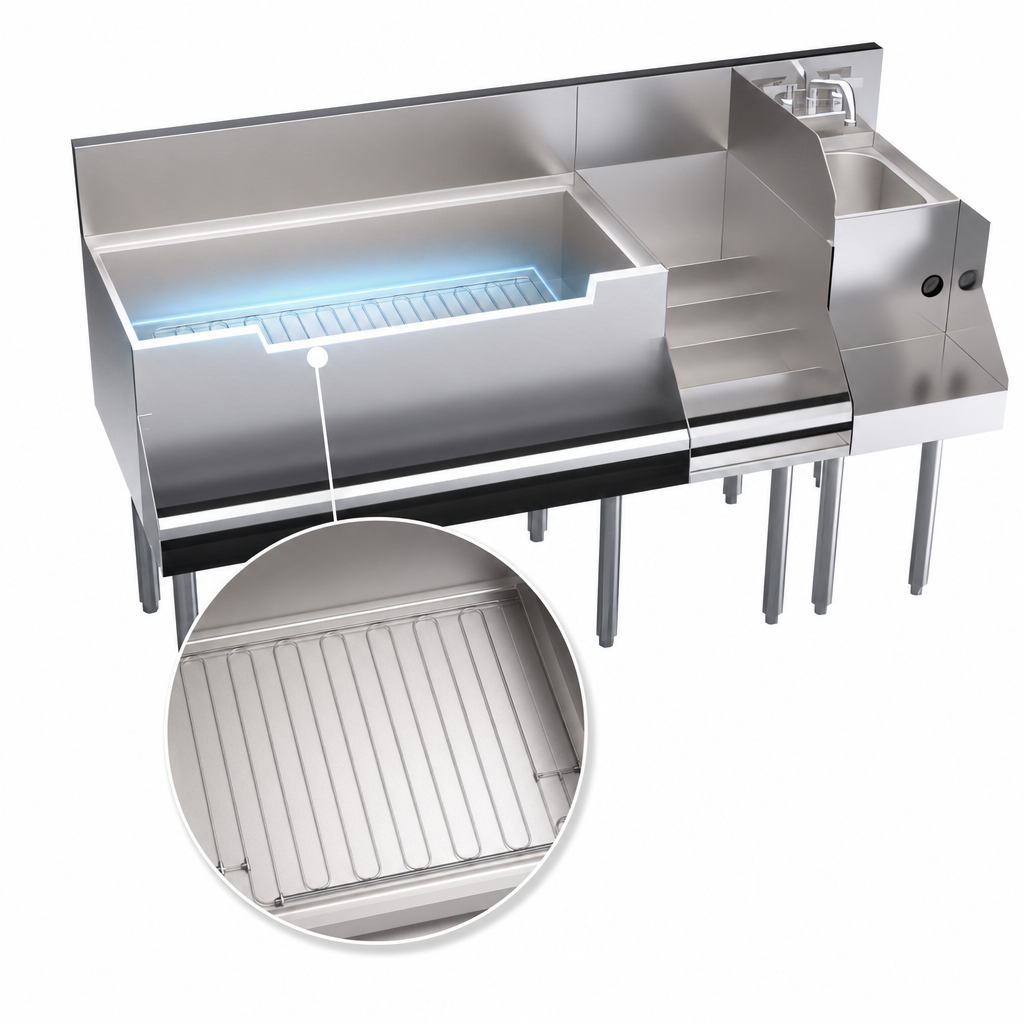

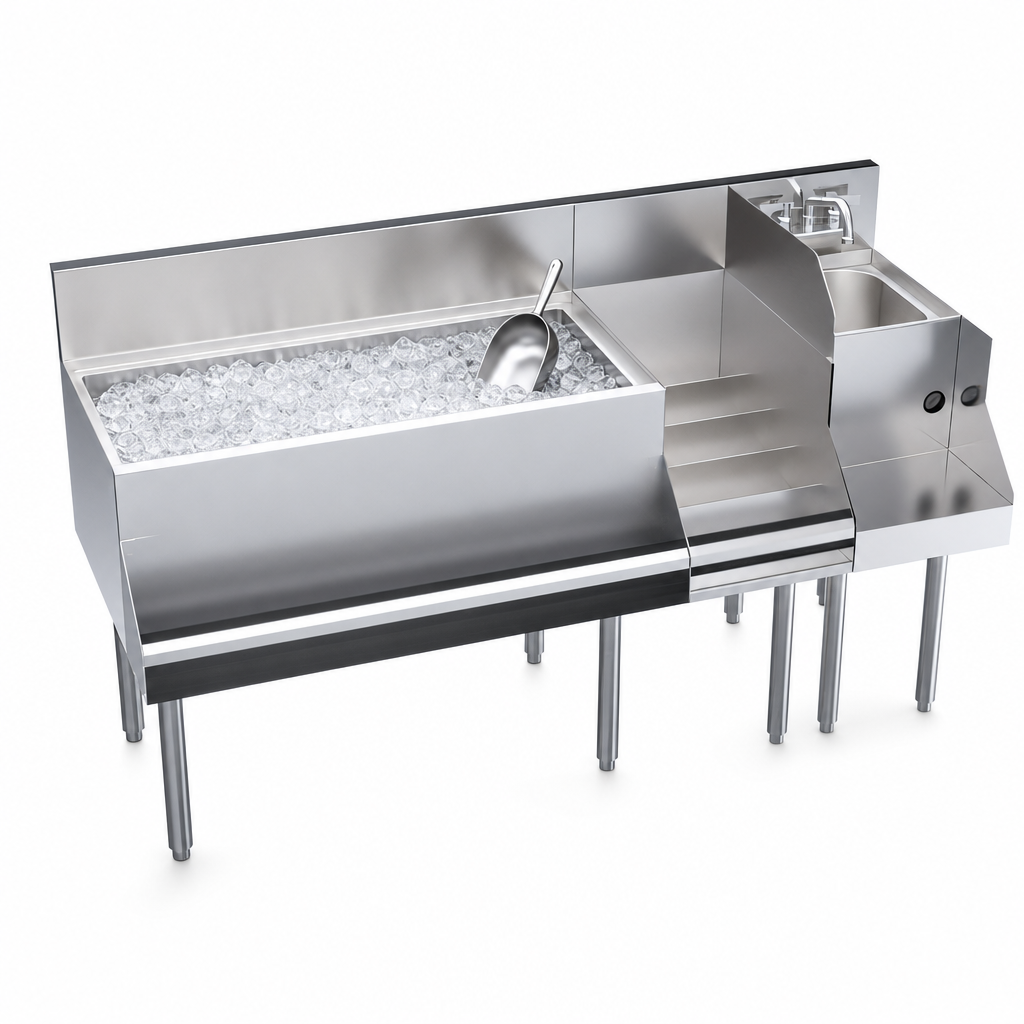

  • 36" insulated ice bin holds 110 lbs of ice and features a factory-sealed 10-circuit cold plate.
  • Removable bottle wells keep juices, mixers and garnishes chilled and organized.
  • 12" raised liquor display brings top-sellers to eye level for faster access.
  • Dedicated 12" blender station with 20-ga stainless dump sink, side splash and built-in GFCI duplex outlet.
  • Sound-deadened single speedrail reduces noise during peak service.
  • Splash-mount Royal Series faucet with ¼-turn ceramic valves for leak-free operation.
  • All-stainless interior with stainless & galvanized exterior panels for unmatched durability.
  • 1⅝" tubular stainless legs with adjustable thermoplastic bullet feet for perfect leveling.
At-a-glance specifications
Overall width 60" (1524 mm)
Overall depth 24" (610 mm)
Working height 36 ½" plus 6 ½" backsplash
Ice bin length 36" (914 mm)
Ice capacity 110 lbs (50 kg)
Cold plate Cast-aluminum, 10 circuits, 5⁄16" OD stainless tubing
Liquor display width 12"
Blender station width 12" (dump sink bowl 10" × 12" × 7")
Speedrail Single, sound-deadened
Water connections ½" IPS hot & cold
Drain connections ½" IPS (cold-plate ice bin) with 4" PVC tailpiece; 1½" IPS (dump sink)
Electrical 115 V / 15 A duplex outlet under blender shelf
Legs 1⅝" Ø, 16-ga stainless with adjustable thermoplastic feet
Certifications NSF listed
Optional accessories
  • Partial or full sliding ice-bin covers (SC-Series)
  • Condiment trays & stainless divider kits
  • Left/right end or side splash guards
  • Perforated dump baskets
  • 6" leg height upgrade (KR-806)

Looking for a different length, additional speedrails, or dual blender bays? Ask about custom Royal Series configurations built to fit your exact bar layout.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

60.0in

Depth

24.0in

Shipping Weight

273.0lbs

Width (side - side) OA

55" - 60"

Splash

6" splash

Blender Unit Type

with sink

Depth (front - back) OA

24"

Ice Bin Location

ice bin - center

Working Height

30" working height

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Ice Capacity

110 lbs.

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, with blender & liquor stations, 60"W x 24"D OA, 36"W ice bin with 10-circuit cold plate & bottle wells, 110 lbs. ice capacity, single speedrail, 12"W raised liquor display, 12"W blender station with dump sink & duplex outlet, splash mount Royal Series faucet, stainless steel interior, stainless steel & galvanized exterior, stainless steel legs with adjustable thermoplastic bullet feet, NSF
