Krowne KR24-W60B-10 Royal Series Bar Equipment
$5,655.10
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Krowne KR24-W60B-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-W60B-10 Royal Series Bar Equipment
$5,655.10
Unit price
/
Unavailable
Description

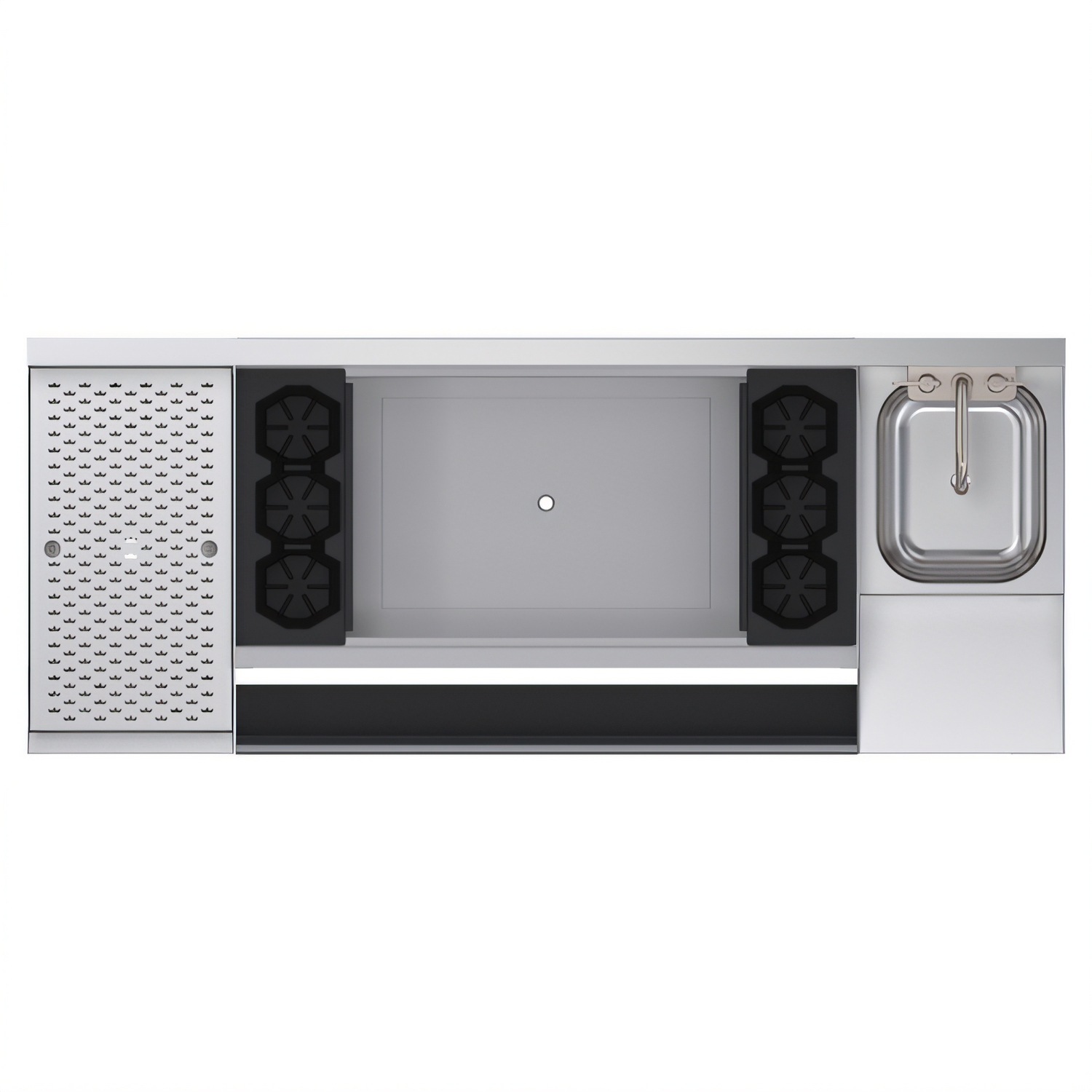

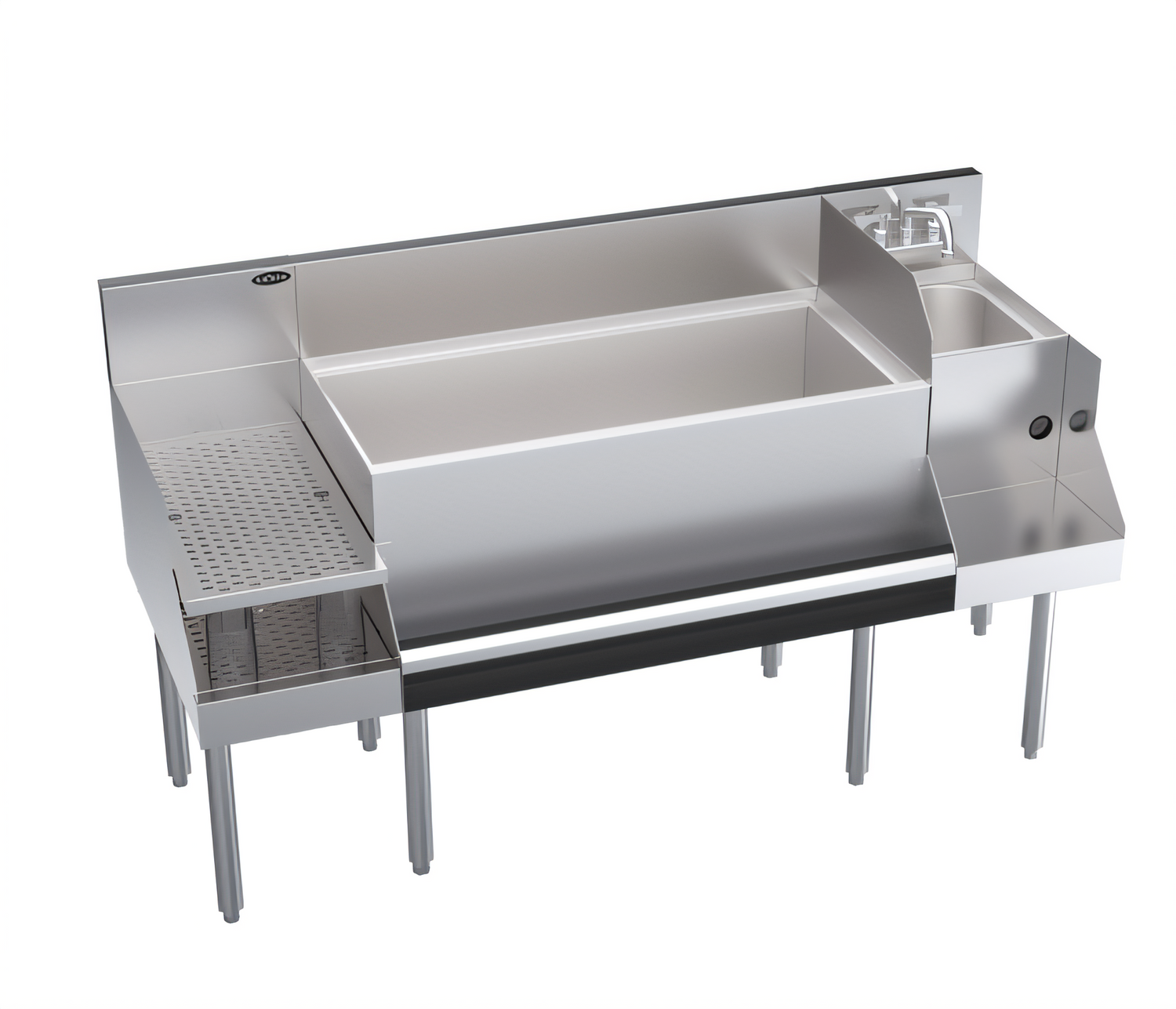

Krowne Royal Series 60" Underbar Cocktail Workstation
Model KR24-W60B-10 | Recessed Drainboard with Blender StationTransform any bar into a high-efficiency service hub. This all-in-one workstation combines a 36" ice bin with a built-in 10-circuit cold plate, a recessed drainboard, and a dedicated blender dump sink—delivering everything your bartenders need within a compact 60" footprint.
Why You’ll Love It
- Built-for-speed layout: ice, dump sink, and drainboard are positioned for seamless drink assembly.

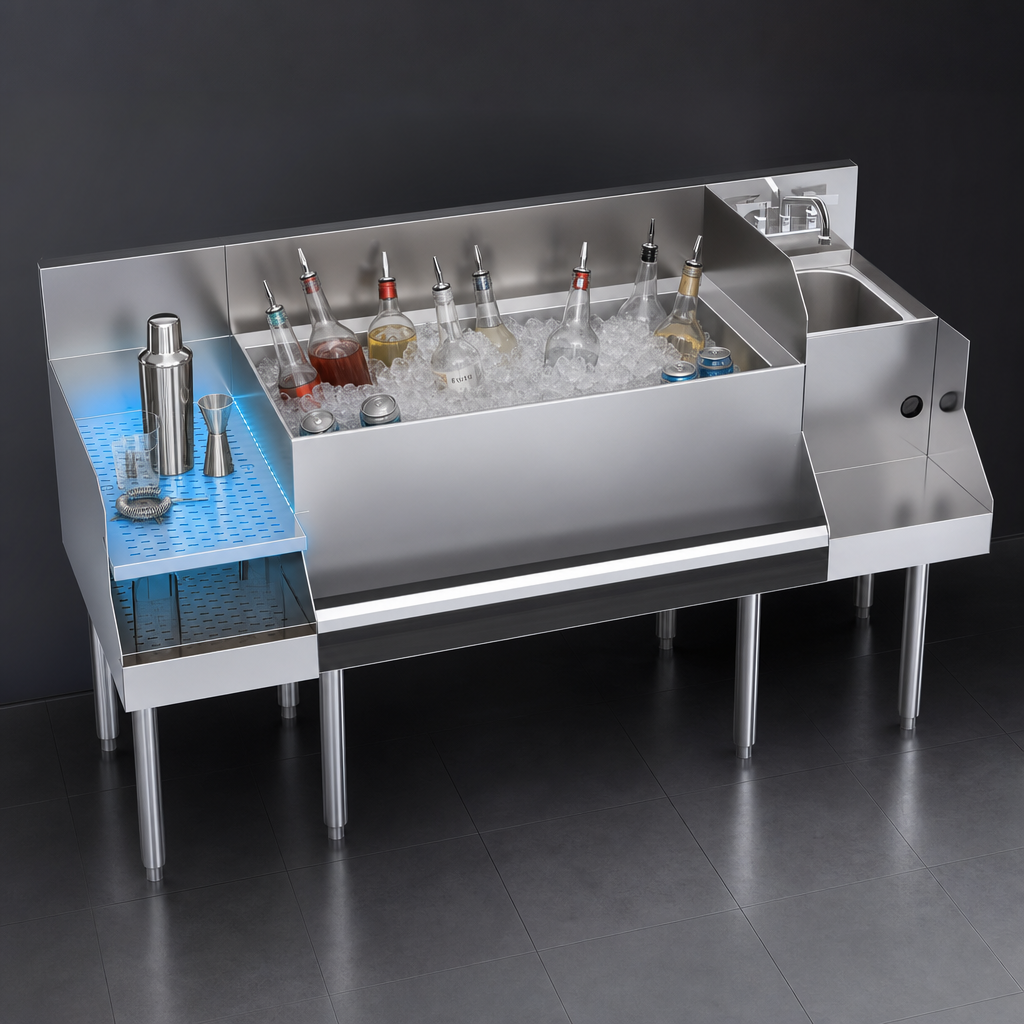

- 10-circuit cold plate: cast-aluminum plate with stainless tubing keeps post-mix beverages ice-cold from keg to glass.
- 110 lb ice capacity: 12"-deep, foamed-in-place insulated bin holds plenty for peak rushes.

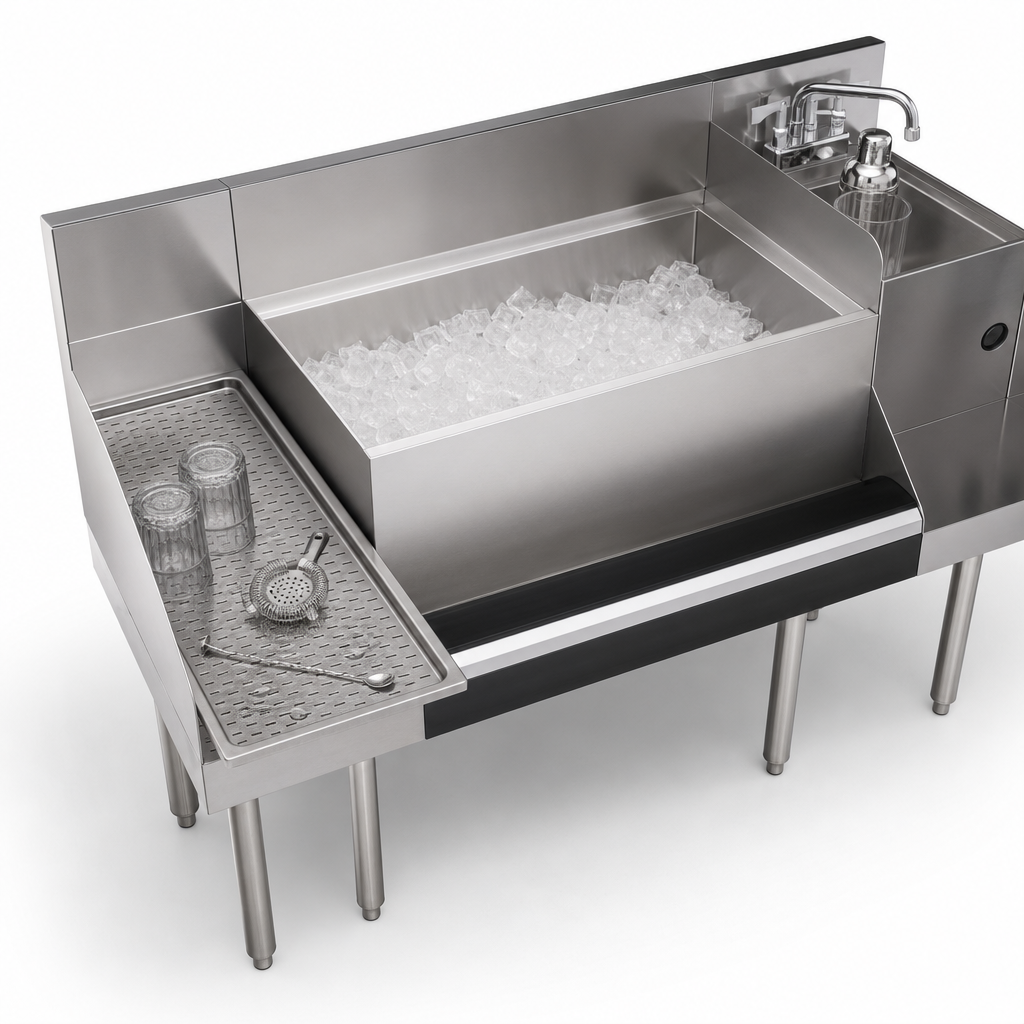

- Recessed 12" drainboard: allows glass staging without sacrificing work surface depth.
- Integrated blender station: 12" dump sink with Royal Series splash-mount faucet & duplex outlet under the 22 ga. blender shelf.
- Sound-deadened single speed rail: keeps top-shelf bottles within arm’s reach—quietly.
- Stainless & galvanized construction: 20 ga. stainless interior, stainless-clad apron over galvanized exterior for long-term durability.
- NSF listed and designed for fast, code-compliant installation.
At-a-Glance Specs
| Overall Dimensions | 60" W × 24" D × 36 1⁄2" H (to top of backsplash) |
|---|---|
| Ice Bin | 36" L × 12" D (110 lb capacity) • Foamed-in-place insulation • Removable bottle wells |
| Cold Plate | 10 circuits, 5⁄16" OD stainless tubing |
| Drainboard | 12" recessed style, 1" IPS drain connection |
| Blender Dump Sink | 10" × 12" × 7" bowl • 1 1⁄2" IPS drain • 4"-center Royal Series faucet |
| Electrical (Blender) | Duplex outlet (120 V) located beneath blender shelf |
| Plumbing Connections | ½" IPS hot & cold water • ½" IPS drain (ice bin/cold plate) |
| Backsplash | 6 1⁄2" H × 1 1⁄2" D with ¾" × 3 1⁄2" tubing access cut-out |
| Legs / Feet | 1 5⁄8" Ø 16 ga stainless tubular legs with adjustable thermoplastic bullet feet |
| Shipping Weight | Approx. 220 lbs |
| Certifications | NSF |
Installation Reminder:
Use the supplied 4" PVC tailpiece on the cold-plate drain to prevent condensation caused by metal-to-metal contact.
Optional Upgrades
- Sliding ice-bin covers (partial or full)
- Condiment tray or stainless dividers
- Perforated drop-in drainboard top
- End or side splashes for custom configurations
- 6" taller stainless steel legs
Need a different length or sink size? The Royal Series offers additional models from 60"–72" to match any bar layout.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
60.0in
Depth
24.0in
Shipping Weight
220.0lbs
Width (side - side) OA
55" - 60"
Splash
6" splash
Blender Unit Type
with sink
Depth (front - back) OA
24"
Ice Bin Location
ice bin - center
Working Height
30" working height
Cold Plate
(10) circuit
Construction
stainless steel & galvanized
Ice Capacity
110 lbs.
Specifications
Royal Series Underbar Ice Bin/Cocktail Station with blender station & recessed drainboard, 60"W x 24"D OA, 12"W recessed drainboard, 36"W ice bin with 10-circuit cold plate & bottle wells, 110 lbs. ice capacity, single speedrail, 12"W blender station with dump sink & duplex outlet, splash mount Royal Series faucet, stainless steel interior, stainless steel & galvanized exterior, stainless steel legs with adjustable thermoplastic bullet feet, NSF
