Krowne KR24-W60A-10 Royal Series Bar Equipment
Description

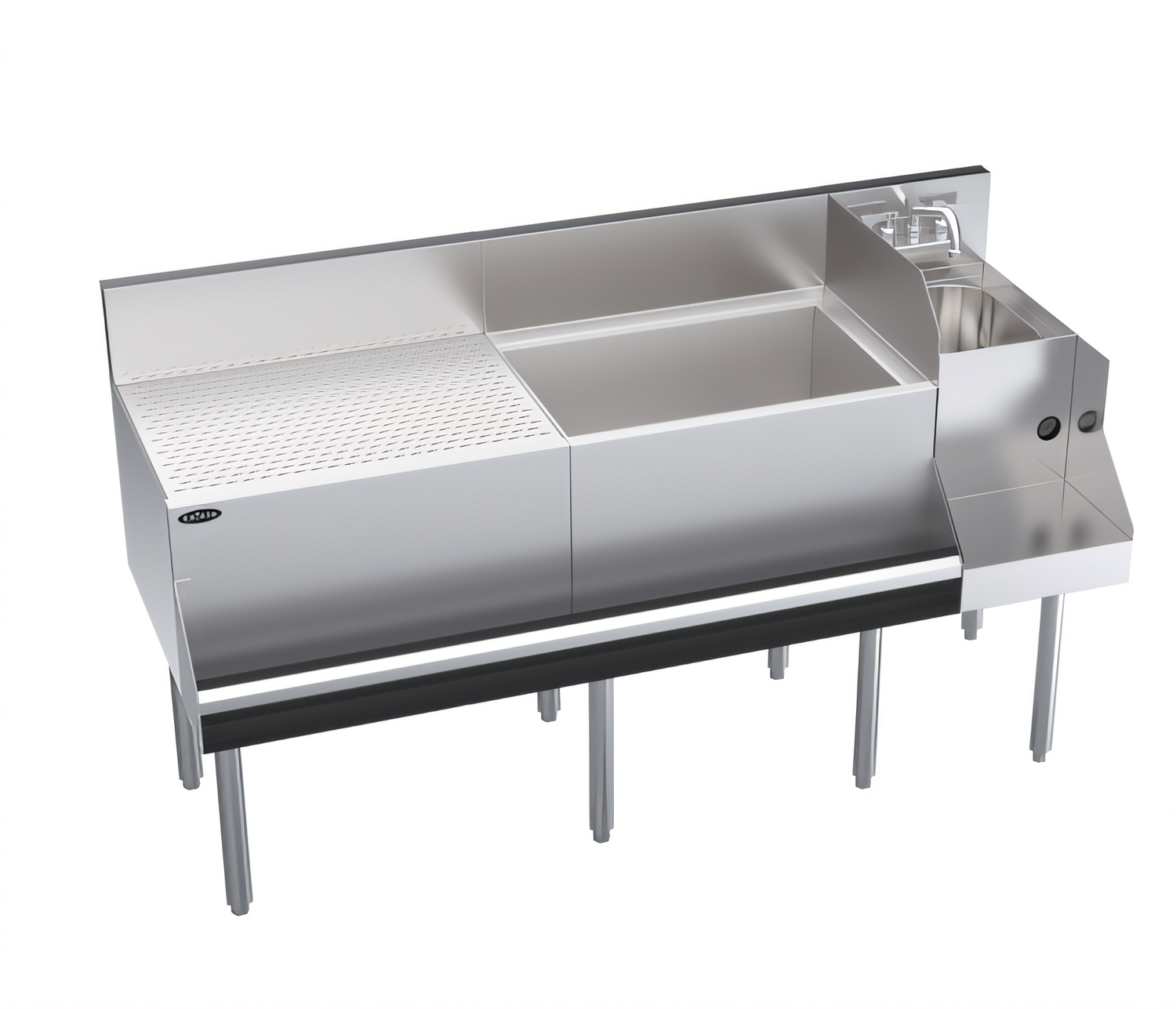

Krowne Royal Series 60" Underbar Cocktail Workstation
Model KR24-W60A-10 | NSF ListedStreamline your bar service with a single, purpose-built station that keeps ice, mixers, glassware and a blender exactly where your bartenders need them. 100 % stainless contact surfaces, heavy-duty construction and a 10-circuit cold plate make the Royal Series Workstation a long-term investment in speed and sanitation.
Key Features

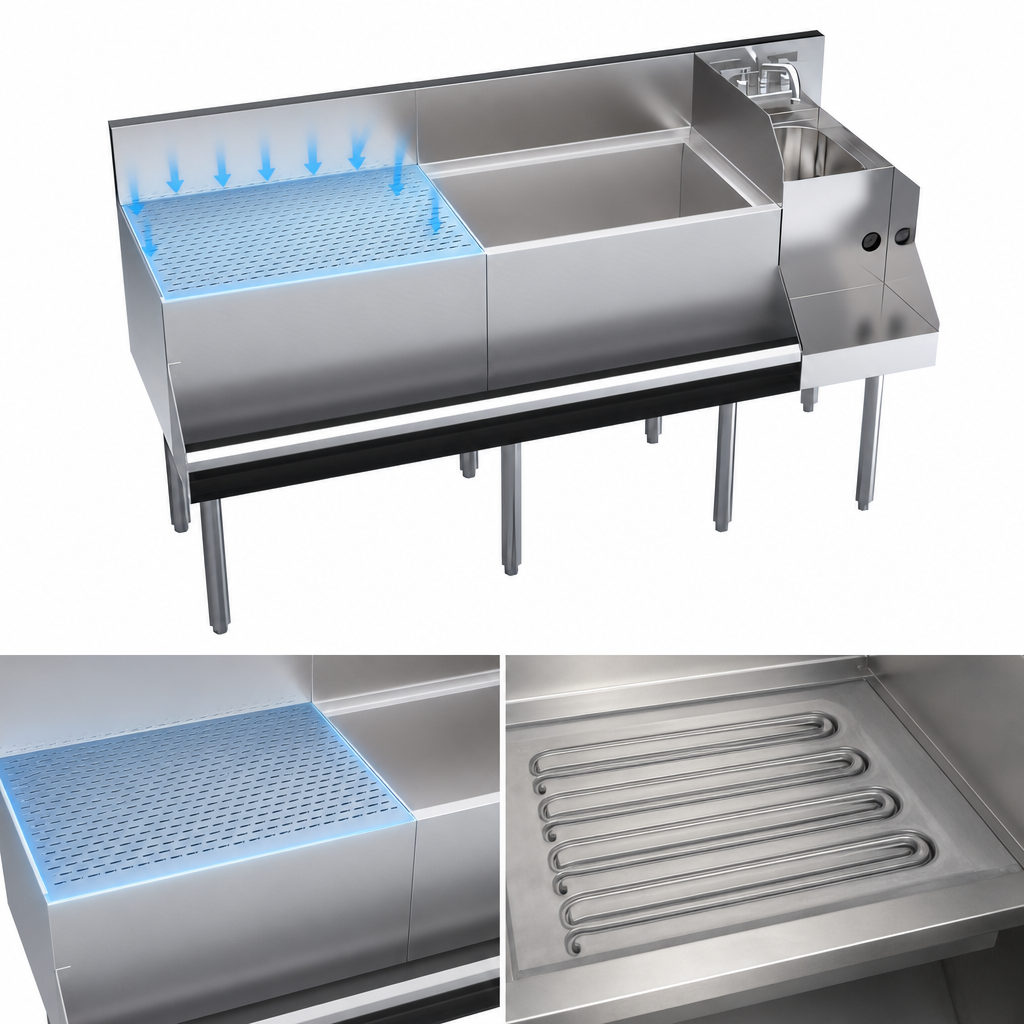

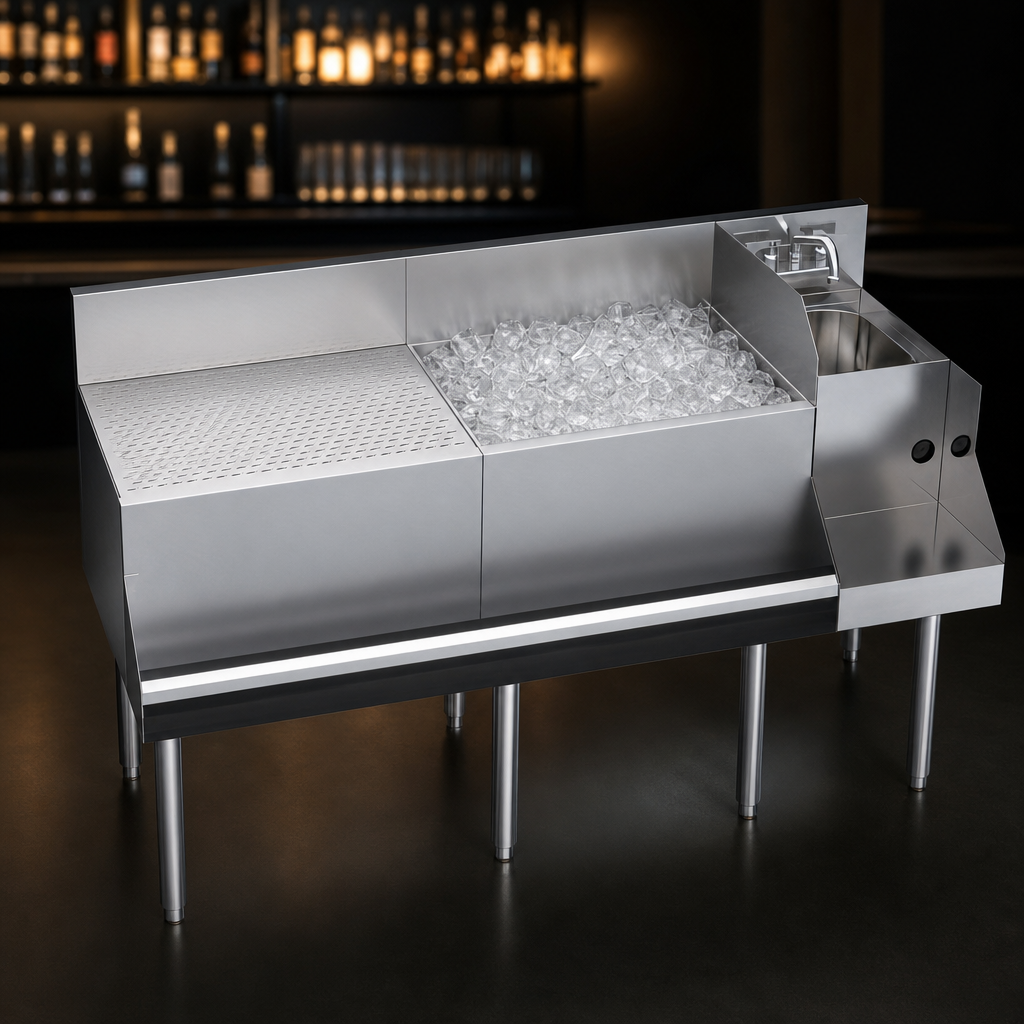

- 24" ice bin (12" deep) holds 74 lb of ice and includes a built-in 10-circuit post-mix cold plate.
- Sound-deadened single speed rail keeps primary bottles ready for service.
- 12" blender station with 10" × 12" × 7" dump sink and splash-mount Royal Series faucet.
- 24" drainboard with perforated top for fast drying and glass turnover.
- Removable bottle wells for high-volume mixers and juices.
- Side splash between ice bin and sink plus left-side end splash to protect adjacent equipment.
- Factory-installed duplex GFCI outlet beneath blender shelf—just plug in and pour.
- Foamed-in-place polyurethane insulation maximizes ice retention.
- 20-gauge stainless steel interior with galvanized steel reinforcement for unbeatable durability.
- 1-5/8" stainless steel legs with adjustable thermoplastic bullet feet for quick leveling.
At-a-Glance Specifications
| Overall Dimensions | 60" W × 24" D × 36-1/2" H (work surface) |
|---|---|
| Ice Bin Capacity | 74 lb | 12" deep |
| Cold Plate | Cast aluminum, 10 circuits, 5/16" OD stainless tubing |
| Dump Sink Bowl | 10" × 12" × 7" | 1-1/2" IPS drain |
| Drainboard Length | 24" |
| Plumbing Connections | 1/2" IPS hot & cold • 1/2" IPS drain (cold plate) • 1" IPS drainboard |
| Electrical | 15 A duplex outlet under blender shelf (120 V) |
| Materials | 20-ga stainless interior & apron • Galvanized back & bottom panels |
| Shipping Weight | Approx. 220 lb |
| Certifications | NSF |
Perfect For
- Craft cocktail bars & lounges
- Nightclubs and music venues
- Hotel, casino & resort pool bars
- High-volume banquet and event service
Optional Accessories (Sold Separately)
- Partial or full sliding ice-bin covers
- Perforated dump basket
- Left or right end splash kits
- 6" stainless leg extensions
- Towel ring & condiment caddies
Images may show accessories not included with the base model. Contact us for lead times, CAD drawings or help configuring a complete underbar layout.
