Krowne KR24-W54R-10 Royal Series Bar Equipment
Description

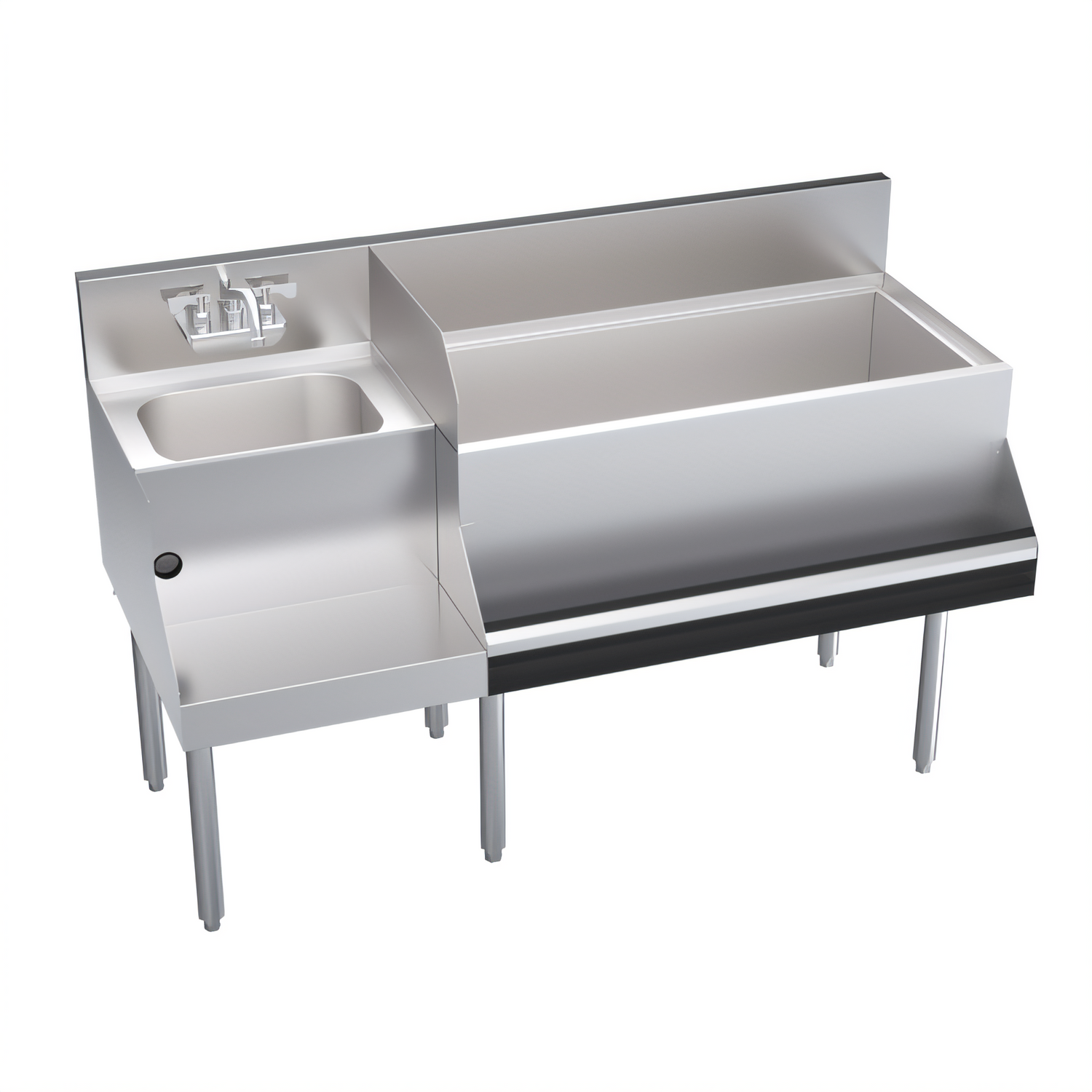

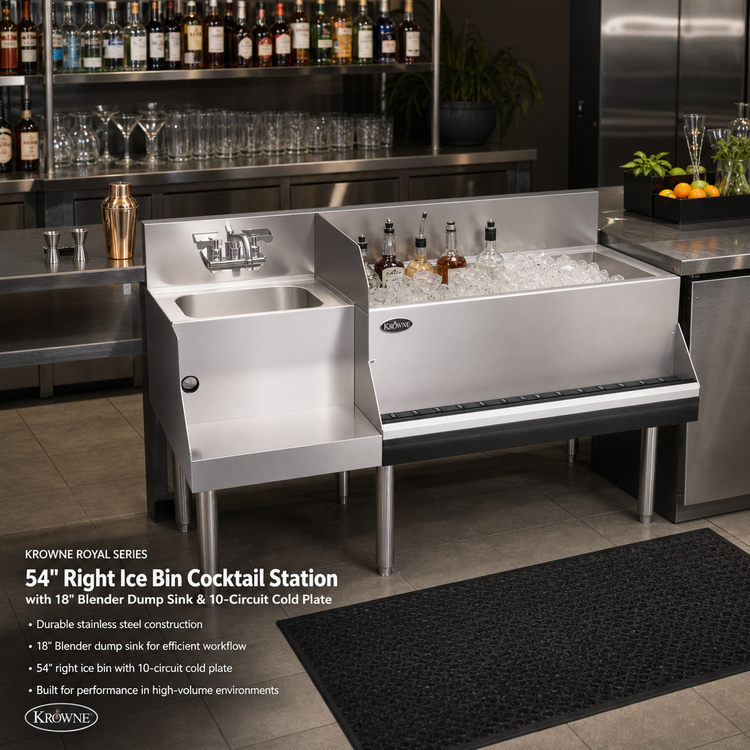

Krowne Royal Series 54" Underbar Ice Bin / Cocktail Workstation
Model KR24-W54R-10 • Right-Side Ice Bin • NSF ListedDesign the ultimate service cockpit behind your bar. This 54-inch Royal Series workstation combines a high-capacity ice bin, cast-in cold plate and a dedicated blender / dump sink station—everything a busy bartender needs, within one compact footprint.
Key Features
- Overall size: 54" W × 24" D — fits standard underbar lines.

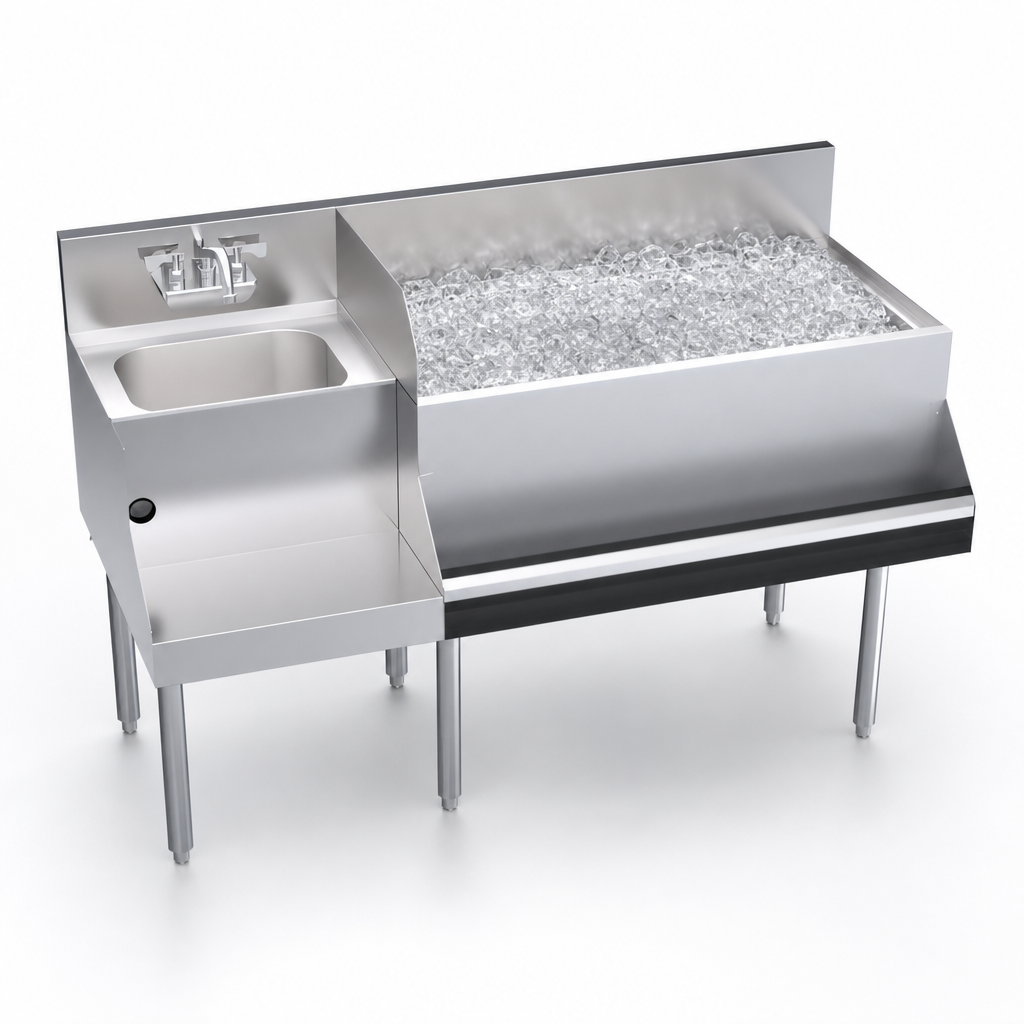

- 36" right-hand ice bin holds 110 lb of ice.

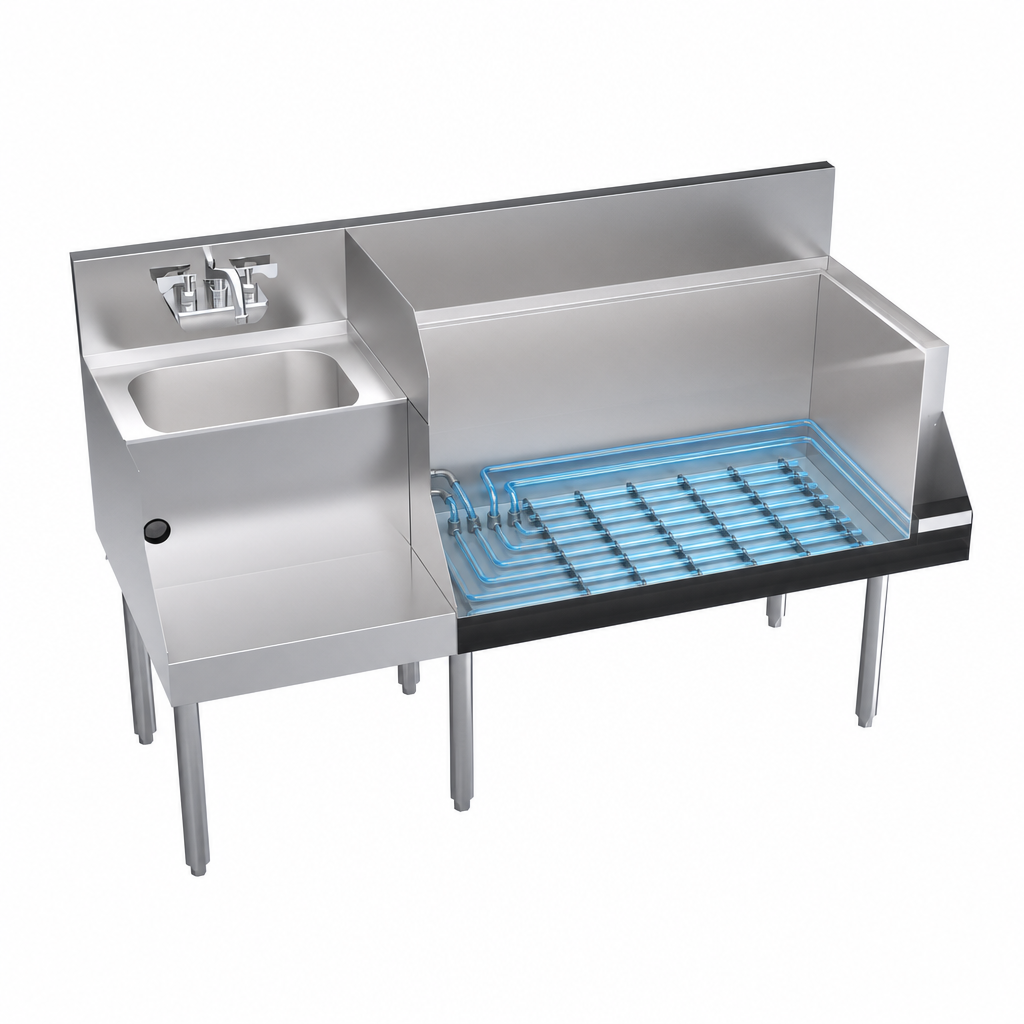

- Built-in 10-circuit cast-aluminum cold plate with 5/16" OD stainless tubing.
- Removable bottle wells keep juices and modifiers ice-cold & within reach.
- Sound-deadened single speed rail for fast, quiet bottle access.
- 18" left-hand blender shelf with deep dump sink (14" × 10" × 7").
- Splash-mount Royal Series faucet, 4" centers, ¼-turn ceramic cartridges.
- Duplex GFCI outlet tucked under blender shelf—just plug in the blender and go.
- 6½" backsplash plus side splash between ice bin & sink contain the mess.
- Foamed-in-place polyurethane insulation maximizes ice retention.
- 1-5⁄8" 16-ga stainless legs with adjustable thermoplastic bullet feet.
- All stainless interior; stainless-clad front apron over galvanized back & bottom for longevity.
- NSF certified for open-food use.
At-a-Glance Specs
| Overall Dimensions | 54" W × 24" D × 36" H (working height) |
|---|---|
| Ice Bin | 36" section, 12" deep, 110 lb capacity, foamed-in-place insulation |
| Cold Plate | 10 circuits, cast aluminum, sealed; two full + eight half circuits |
| Blender / Dump Sink | 18" wide shelf; sink bowl 14" × 10" × 7" with 1½" IPS drain |
| Plumbing Connections | ½" IPS hot & cold water; ½" IPS ice-bin drain (cold-plate models) with 4" PVC tailpiece |
| Electrical | 15 A, 120 V duplex GFCI receptacle under blender shelf (field-wire) |
| Construction | 20 ga stainless interior & work surfaces; stainless-clad front apron; galvanized back/bottom |
| Legs / Feet | 1-5⁄8" Ø tubular stainless legs, adjustable thermoplastic bullet feet |
| Certifications | NSF/ANSI Standard 2, cETLus |
| Ship Weight | Approx. 251 lb |
Popular Add-Ons (Sold Separately)
- SC-36F full stainless sliding ice-bin cover
- KR-103 stainless ice-bin divider
- 30-160 perforated dump basket
- KR-501 towel ring
- KR-806 6" leg height upgrade
Need a different configuration? Royal Series workstations are available in additional lengths, ice-bin orientations and accessories. Contact us for custom quotes.
