Krowne KR24-W54L-10 Royal Series Bar Equipment
Description

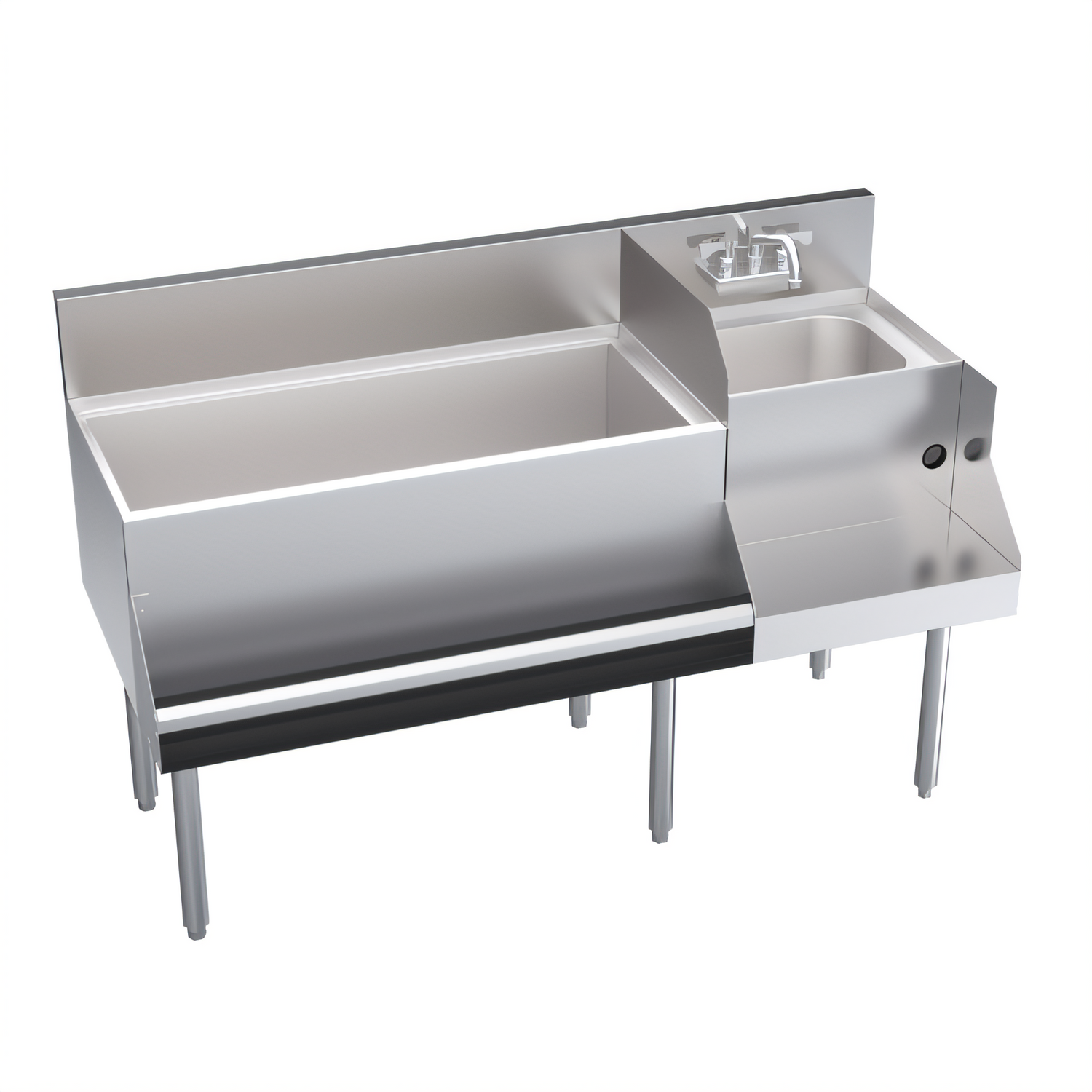

Krowne Royal Series 54" Underbar Ice Bin & Cocktail/Blender Station – Left Ice / Right Blender (KR24-W54L-10)
High-capacity cocktail workstation with integrated 10-circuit cold plateEngineered for speed, sanitation and rock-solid durability, the Royal Series KR24-W54L-10 combines a generous 110-lb ice bin, built-in cold plate and dedicated blender dump sink into one seamless 54-inch underbar unit—so bartenders can shake, blend and serve without missing a beat.
Key Features
- Overall footprint: 54" W × 24" D × 36 ½" H (work surface)

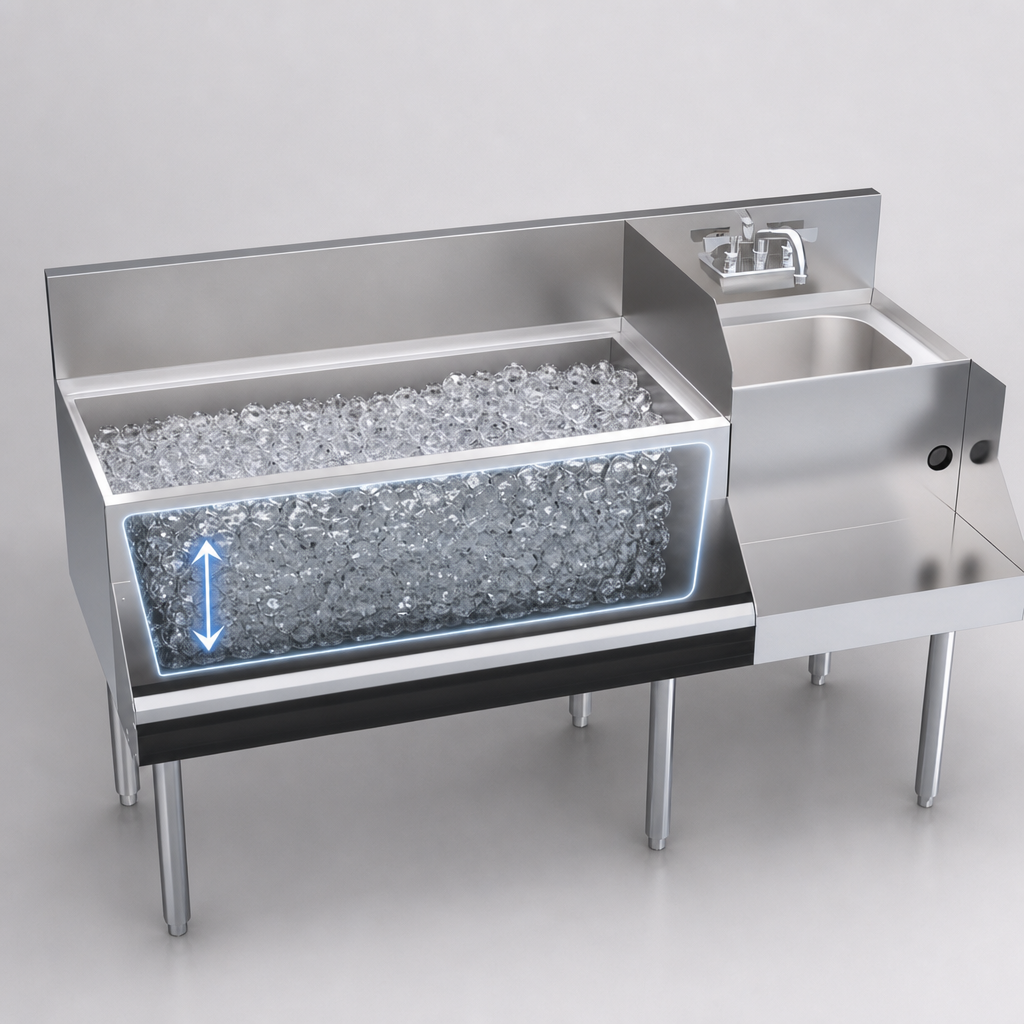

- 36" long, 12" deep ice bin (left) holds up to 110 lbs of ice

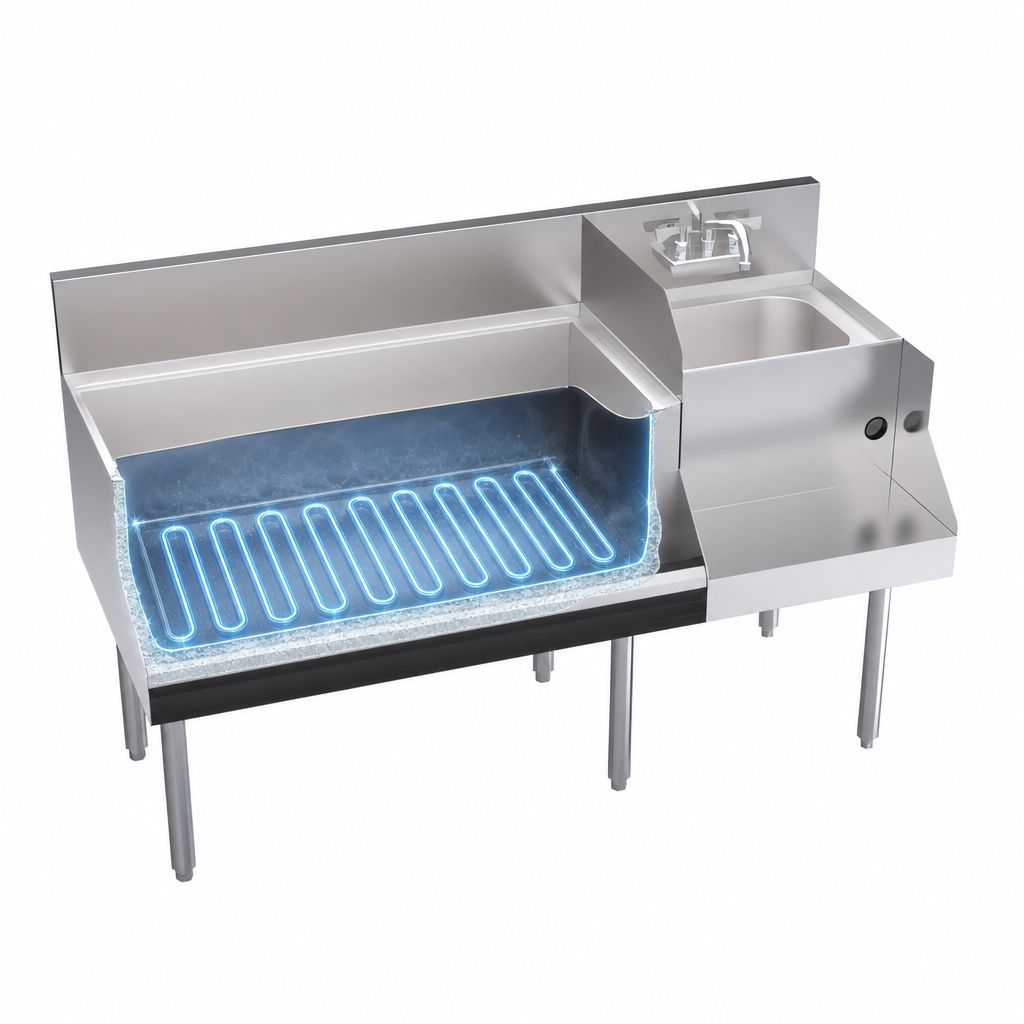

- Sealed cast-aluminum 10-circuit cold plate (5/16" stainless tubing) ready for post-mix lines
- Removable bottle wells keep juices & mixers ice-cold and organized
- Sound-deadened single speed rail for quick liquor access
- 18" blender station (right) with 14" × 10" × 7" dump sink & side splash
- Royal Series splash-mount faucet, 4" centers, 1/4-turn ceramic valves
- Pre-wired GFCI duplex outlet under blender shelf—just plug in your blender
- 6 ½" backsplash plus integral side splash contain mess and meet code
- 20-gauge stainless steel interior; stainless-clad apron & backsplash over galvanized body
- 1 ⅝" Ø 16-gauge stainless legs with adjustable thermoplastic bullet feet
- Foamed-in-place polyurethane insulation minimizes melt & condensation
- NSF listed for commercial food-service use
Technical Specifications
| Model | KR24-W54L-10 |
|---|---|
| Overall width | 54" (1372 mm) |
| Overall depth | 24" (610 mm) |
| Ice bin location / length | Left / 36" (914 mm) |
| Ice capacity | 110 lbs (49.9 kg) |
| Cold plate | 10 circuits, cast aluminum, sealed-in |
| Dump sink bowl | 14" × 10" × 7" (356 mm × 254 mm × 178 mm) |
| Water inlets | ½" IPS hot & cold |
| Drain connections | Ice bin: ½" IPS w/ 4" PVC tailpiece | Dump sink: 1 ½" IPS |
| Electrical | 120 V GFCI duplex outlet (beneath blender shelf) |
| Shipping weight | ≈ 251 lbs (114 kg) |
| Certifications | NSF |
Recommended Accessories
- SC36H or SC36F – Partial or full sliding ice-bin covers
- KR-101 – Garnish condiment tray
- KR-103 – Stainless steel ice-bin divider kit
- 30-160 – Perforated dump basket for rapid rinsing
- KR-501 – Towel ring keeps bar towels within reach
Need a mirror-image layout or extra height? Ask about model KR24-W54R-10 (right-hand ice) or 6" leg extensions (KR-806).
