Krowne KR24-W48R-10 Royal Series Bar Equipment
Krowne KR24-W48R-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-W48R-10 Royal Series Bar Equipment
Description

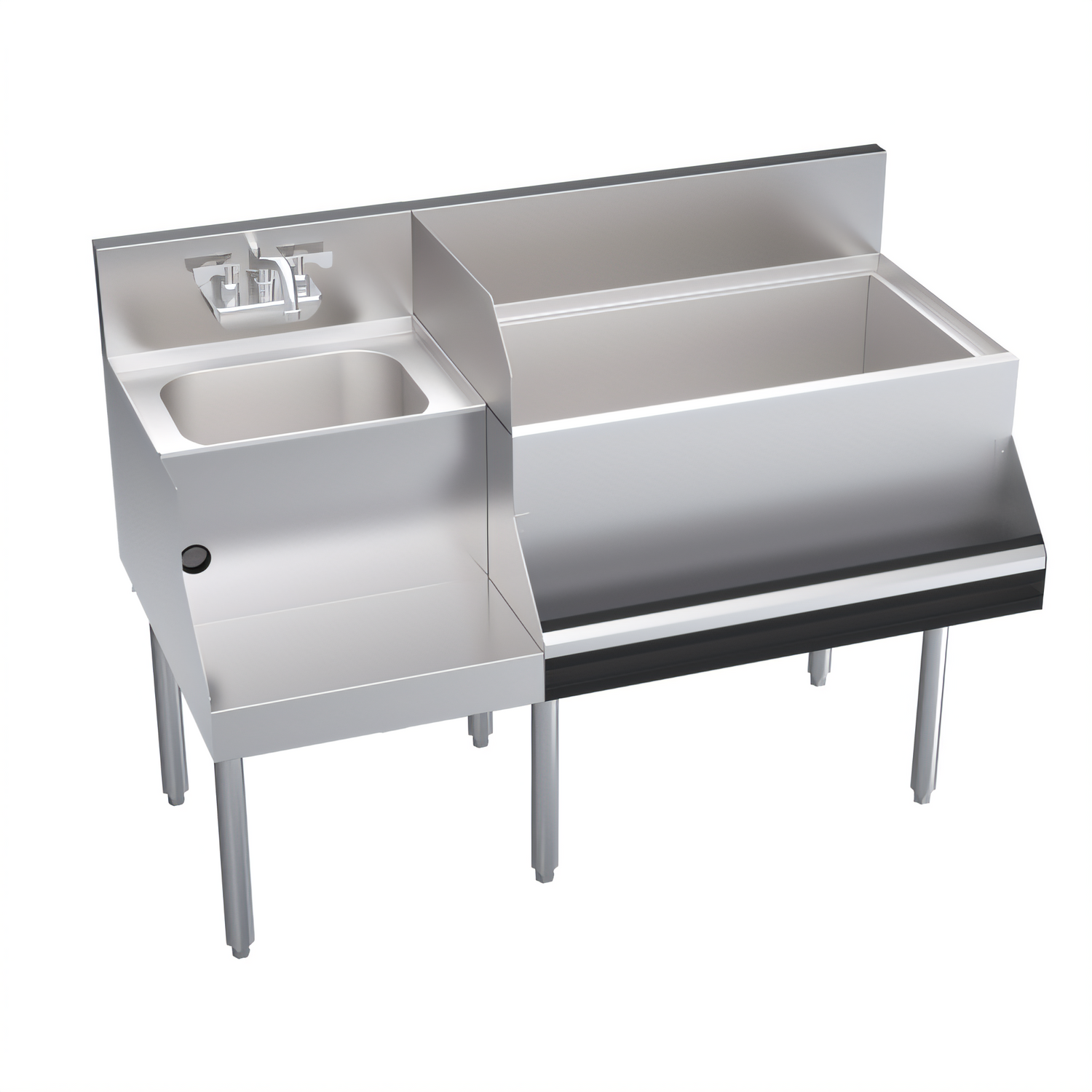

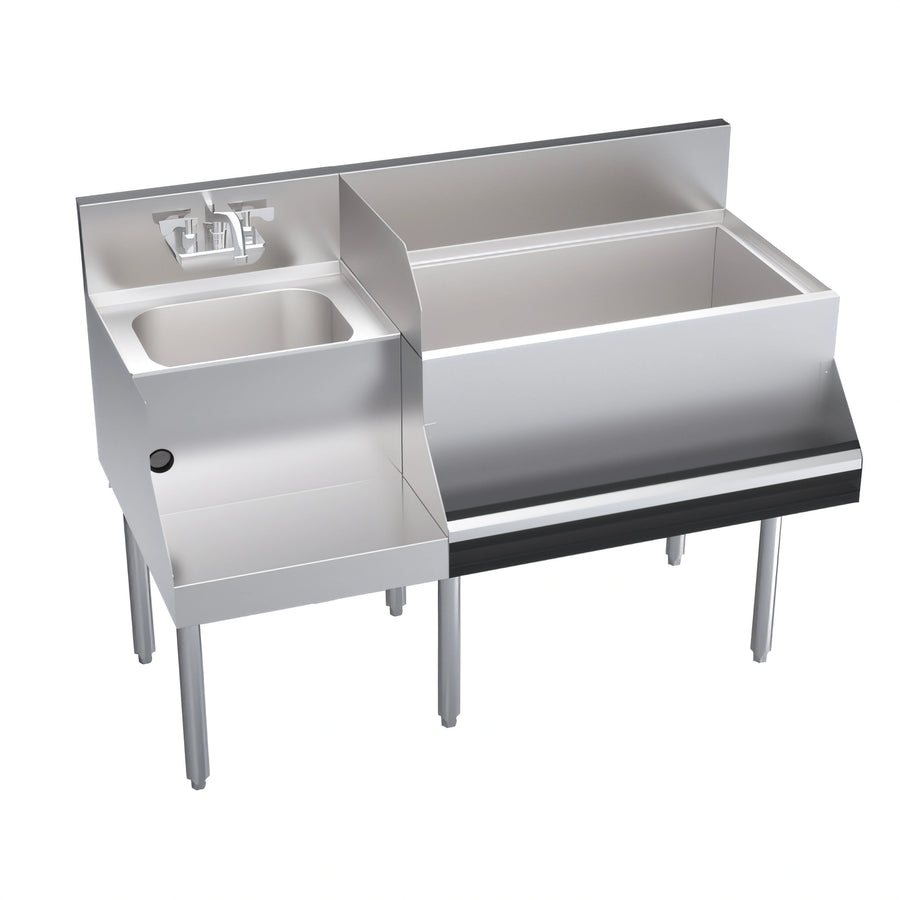

Krowne Royal Series 48" Underbar Ice Bin & Cocktail Station
Model KR24-W48R-10 – Right Ice Bin, Left Blender StationGive your bartenders a compact, all-in-one workstation that keeps ice, mixers, and power for your blender all within arm’s reach. Built from heavy-duty stainless steel and insulated for superior ice retention, the Royal Series 48" unit delivers the speed, sanitation, and durability today’s high-volume bars demand.
Key Features

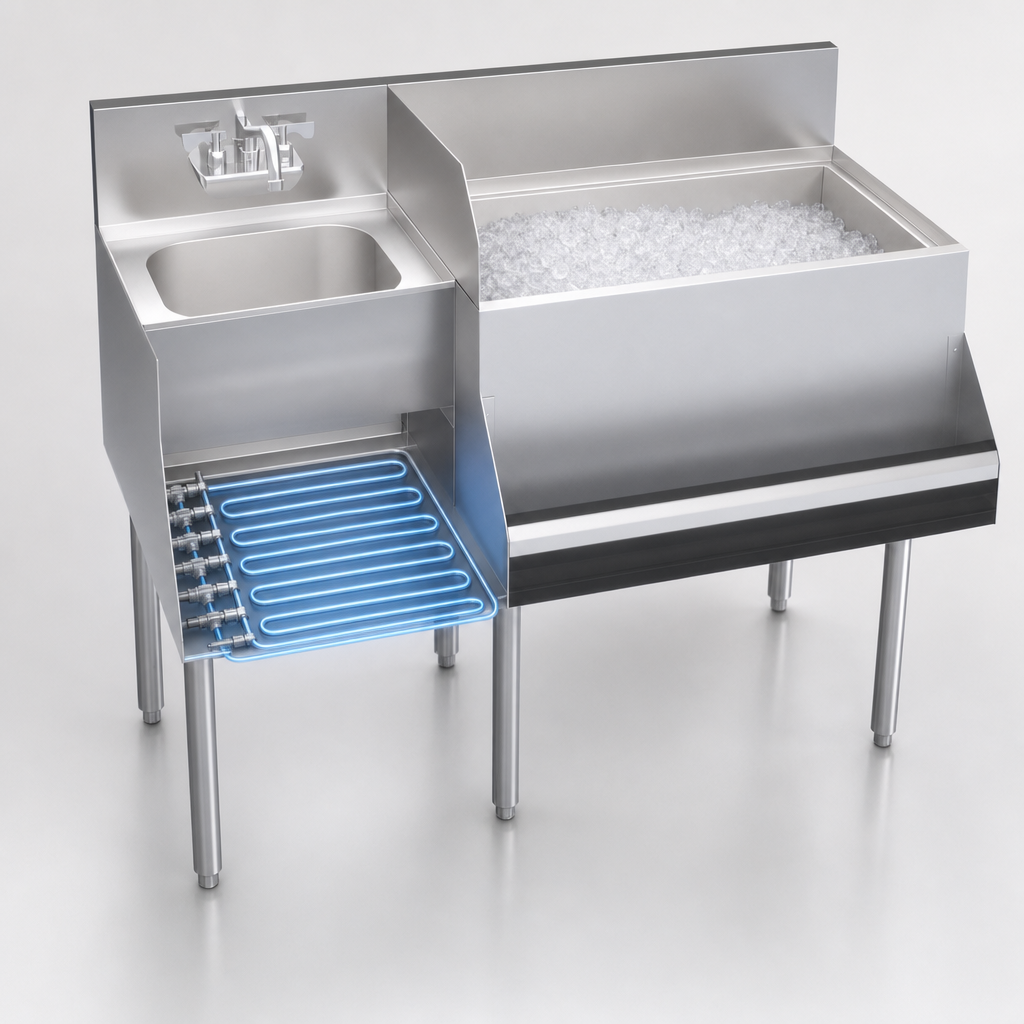

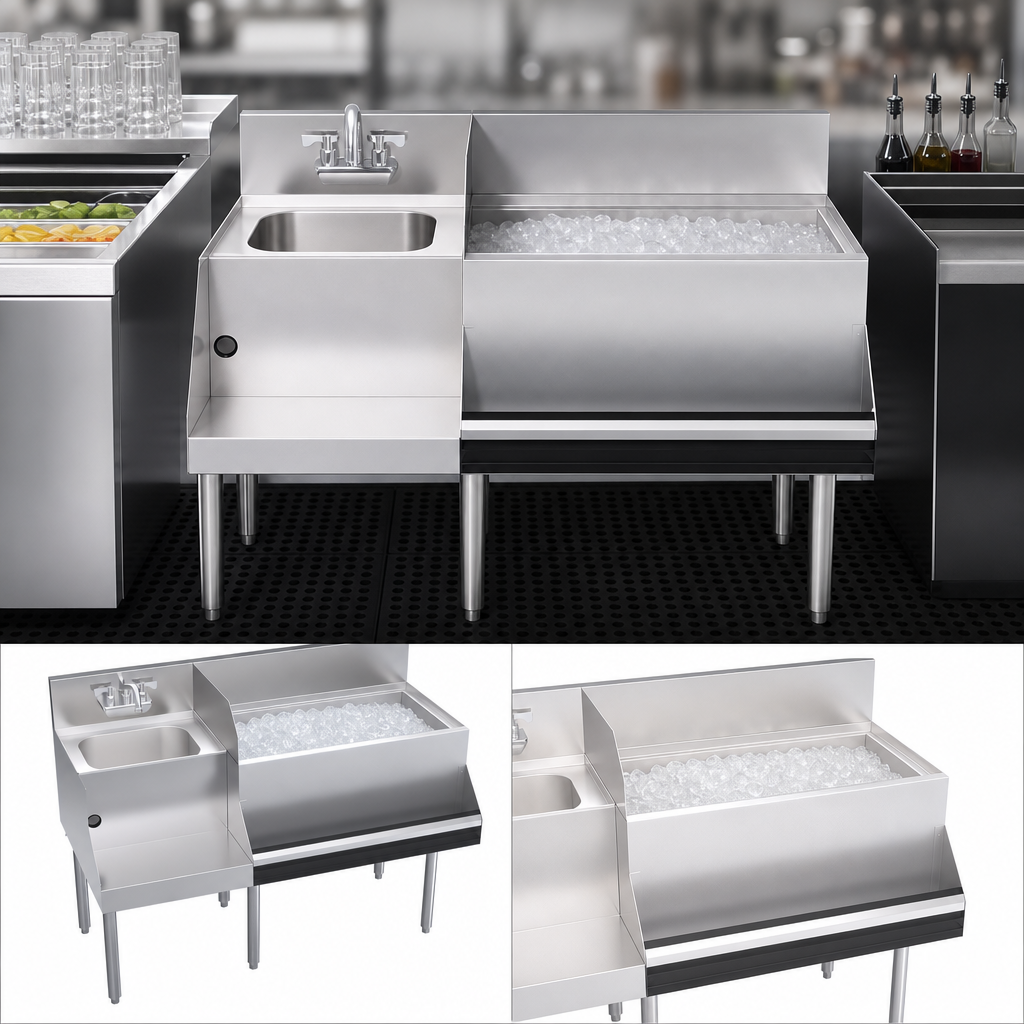

- 30" right-side ice bin with 10-circuit built-in cold plate; holds up to 92 lbs. of ice
- Removable bottle wells keep juices and mixers perfectly chilled and organized
- 18" left-hand blender station with deep 14" × 10" × 7" dump sink
- Splash-mount Royal Series faucet with 4" centers & ¼-turn ceramic valves
- Duplex GFCI outlet beneath blender shelf powers blenders, immersion mixers & more
- Sound-deadened single speedrail for quick access to your most-poured bottles
- Foamed-in-place polyurethane insulation and side splash for maximum ice retention & cleanliness
- All-stainless interior, stainless & galvanized exterior, and 1-5/8" 16-ga. stainless legs
- Adjustable thermoplastic bullet feet ensure steady, wobble-free installation
- NSF listed for safe, sanitary beverage service
Built for Service Speed
The KR24-W48R-10 packs an ice bin, cold-plate soda lines, dump sink, and power outlet into just four feet of bar space—freeing bartenders to build and blend drinks without leaving their station. Less movement, faster service, happier guests.
Specifications
| Manufacturer / Model | Krowne Royal Series KR24-W48R-10 |
|---|---|
| Overall Dimensions (W × D × H) | 48" × 24" × 36 1/2" to work surface 42 15/16" overall height with 6 1/2" backsplash |
| Ice Bin | Right-side, 30" wide × 12" deep; 92 lb capacity |
| Cold Plate | Cast aluminum, 10 circuits, 5/16" OD stainless tubing |
| Blender Dump Sink Bowl | 14" × 10" × 7" |
| Materials – Interior | 20-ga. stainless steel, foamed-in-place insulation |
| Materials – Exterior | Stainless steel front & backsplash, galvanized back & bottom |
| Plumbing Connections | ½" IPS hot & cold water ½" IPS ice bin drain (PVC tailpiece supplied) 1 ½" IPS dump sink drain |
| Electrical | Duplex GFCI outlet (120 V) under blender shelf |
| Legs & Feet | 1-5/8" 16-ga. stainless legs with adjustable thermoplastic bullet feet |
| Shipping Weight | Approx. 236 lbs |
| Certifications | NSF |
Optional Accessories (sold separately)
- Partial or full sliding ice-bin covers (SC30H / SC30F)
- Condiment tray (KR-101) & stainless divider (KR-103)
- Left or right end splashes (KR-310 / KR-311)
- Perforated dump basket (30-160) for fast draining
- Towel ring (KR-501)
- 6" leg extensions for raised bar installations (KR-806)
Need a different size or left-hand ice bin? Royal Series workstations are also available in 42" and 54" lengths. Chat with our equipment experts for a custom quote.
