Krowne KR24-W48L-10 Royal Series Bar Equipment
Description

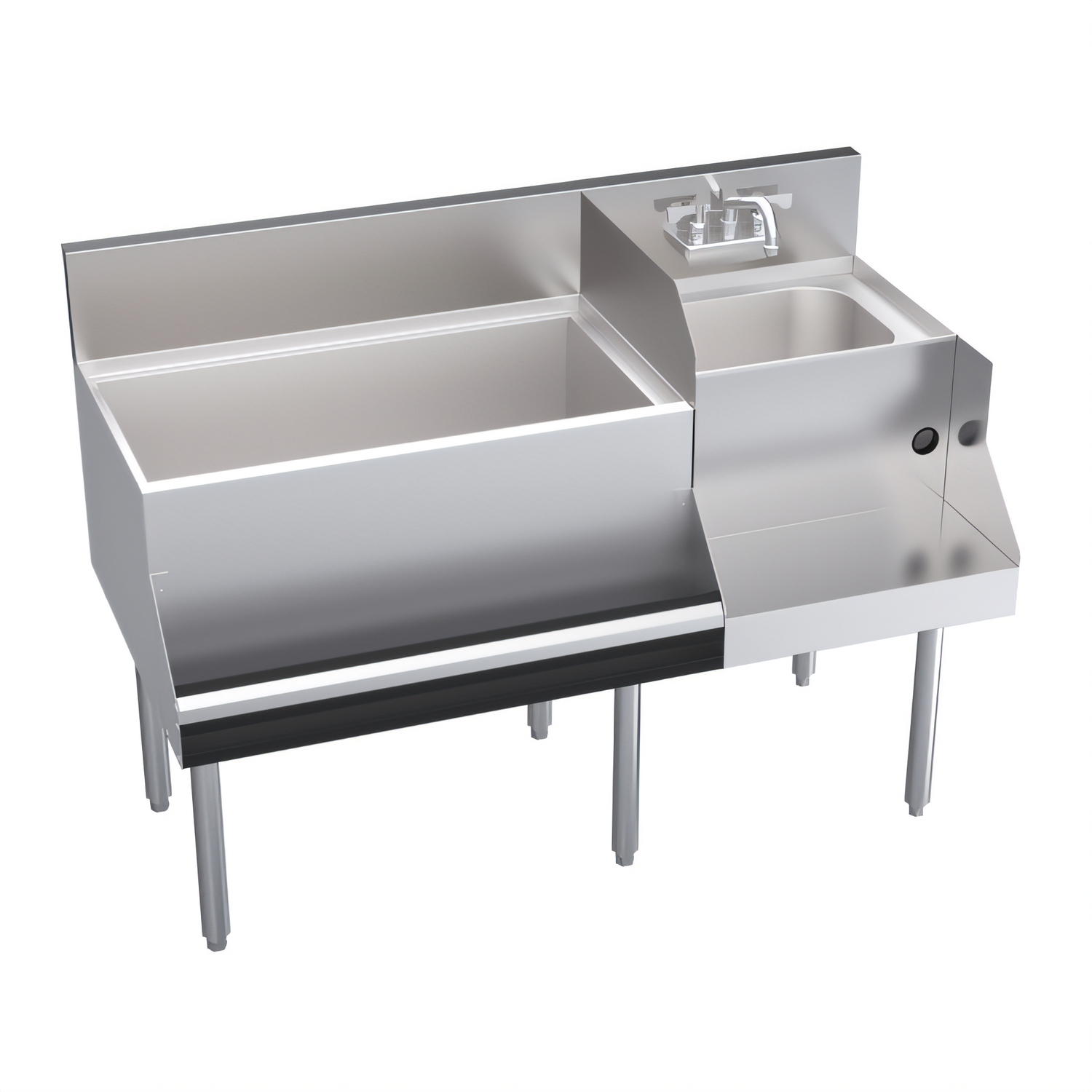

Royal Series Underbar Ice Bin & Cocktail Station w/ Blender Shelf
Model KR24-W48L-10 · 48" W x 24" D · NSF ListedDesigned for high-volume bars that refuse to compromise on speed or sanitation, the Krowne Royal Series KR24-W48L-10 combines a 30" ice bin with an 18" blender/dump sink station in one 48" footprint. A built-in 10-circuit cold plate, sound-deadened speed rail and heavy-duty stainless steel construction keep drinks flowing and bartenders happy—shift after shift.
Highlights

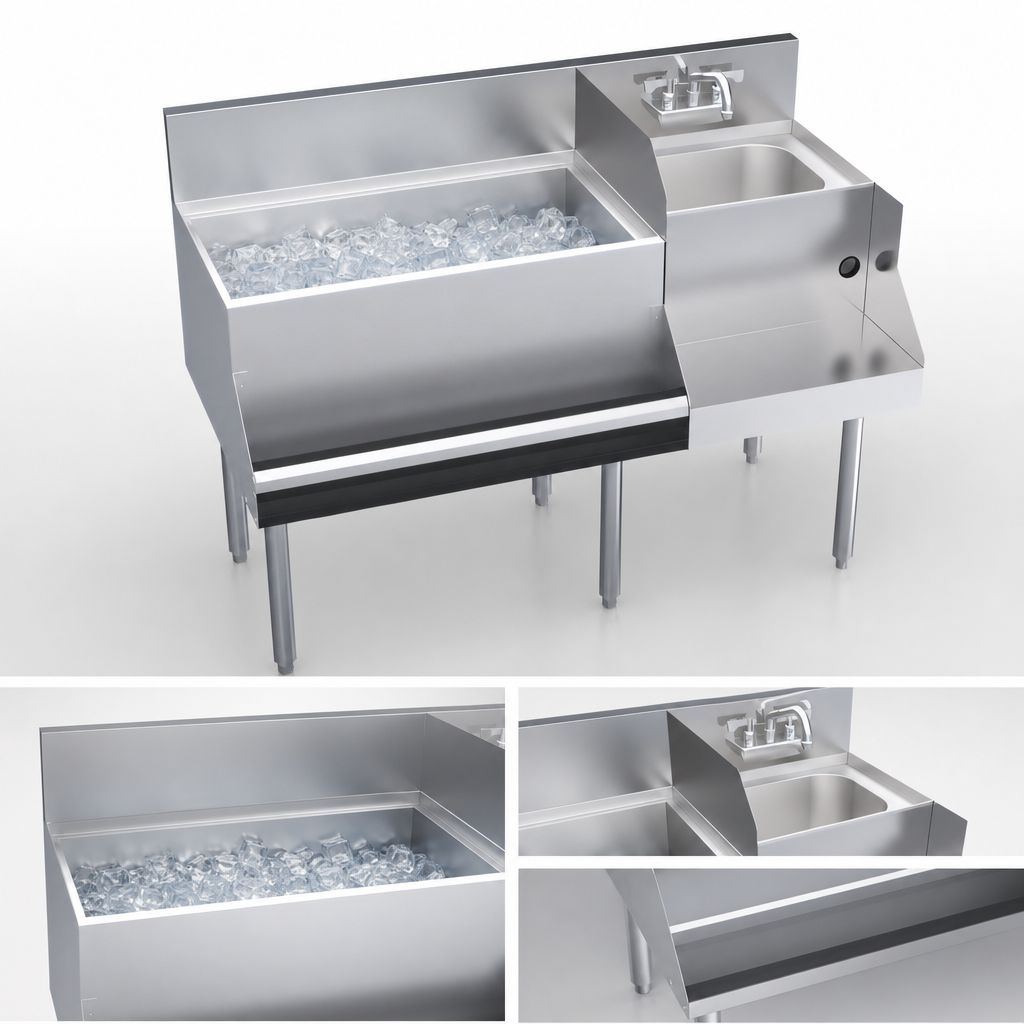

- 30" left-side ice bin holds up to 92 lbs. of ice; 12" deep for optimal scoop access

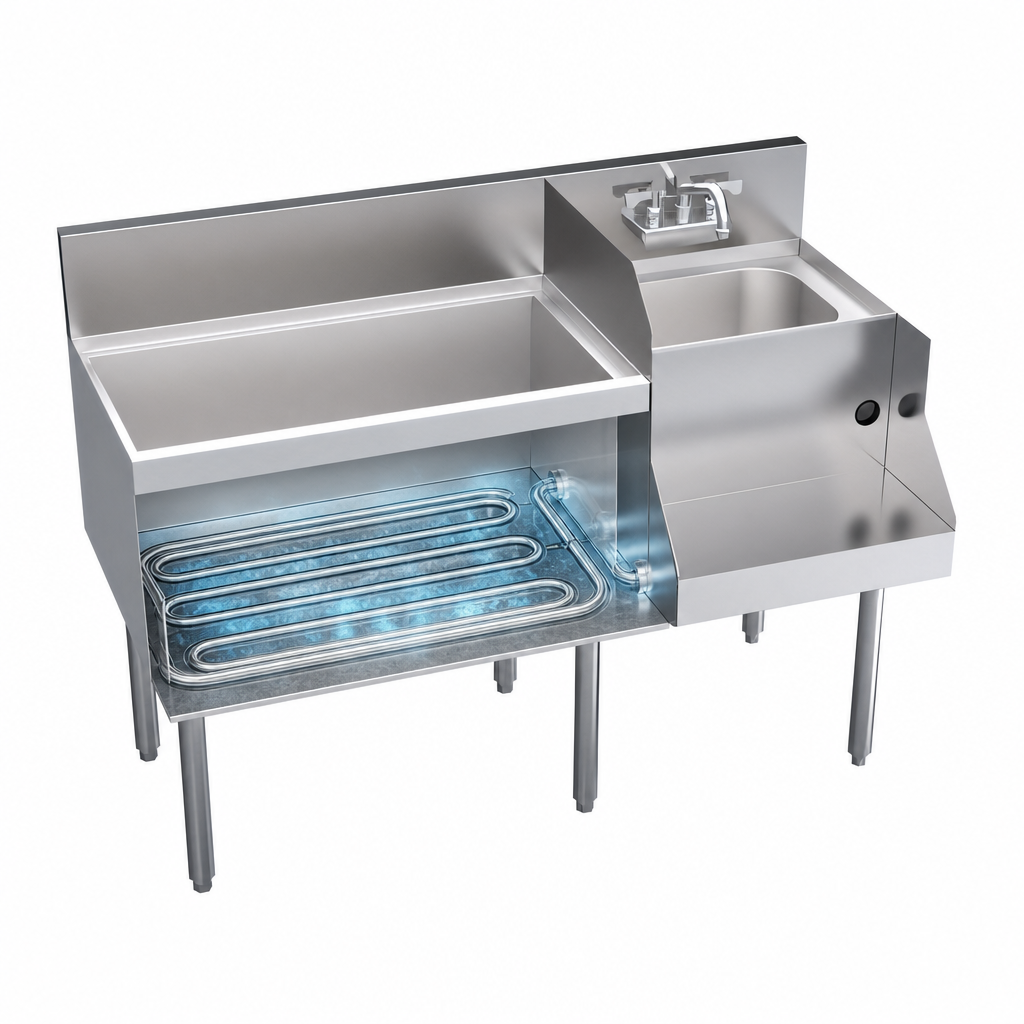

- Integrated 10-circuit cold plate with stainless tubing & cast-aluminum post-mix plate—perfect for soda gun service
- 18" right-side blender station with deep 14" × 10" × 7" dump sink & removable utility shelf
- Duplex 115 V outlet tucked beneath the blender shelf—no dangling cords
- Sound-deadened single speed rail plus removable bottle wells for efficient bottle management
- 6½" backsplash & factory-installed side splash keep surrounding areas dry
- Royal Series splash-mount faucet with ¼-turn ceramic valves (4" centers)
- Fully foamed-in-place polyurethane insulation for maximum ice retention
- 20 ga. stainless steel interior & 20 ga. stainless-clad apron over galvanized back/bottom
- 1⅝" OD, 16 ga. stainless steel legs with adjustable thermoplastic bullet feet
At-a-Glance Specs
| Overall Dimensions | 48" W × 24" D × 36½" H (to work deck) |
|---|---|
| Ice Bin Size | 30" W × 12" D (vertical) 92 lb. ice capacity |
| Cold Plate | 10 circuits, cast-in, 5/16" OD stainless tubing |
| Dump Sink Bowl | 14" L × 10" W × 7" D |
| Plumbing Connections |
• ½" IPS hot & cold water • ½" IPS ice bin drain (w/ 4" PVC tailpiece) • 1½" IPS dump sink drain |
| Electrical (Blender Shelf) | 115 V duplex GFCI receptacle |
| Shipping Weight | 236 lbs. |
| Certifications | NSF / ANSI Standard 2 |
Popular Add-Ons (Sold Separately)
- SCxxH / SCxxF Sliding Ice Bin Covers (partial or full)
- KR-101 Six-Compartment Condiment Tray
- KR-103 Stainless Steel Ice Bin Divider
- KR-303 Side Splash Kit (LH/RH)
- 30-160 Perforated Dump Basket
- KR-806 6" Taller Stainless Steel Legs
Need a mirror-image layout or extra length? 42" and 54" Royal Series workstations are also available—search KR24-W42 or KR24-W54 models.
