Krowne KR24-W42R-10 Royal Series Bar Equipment
Description

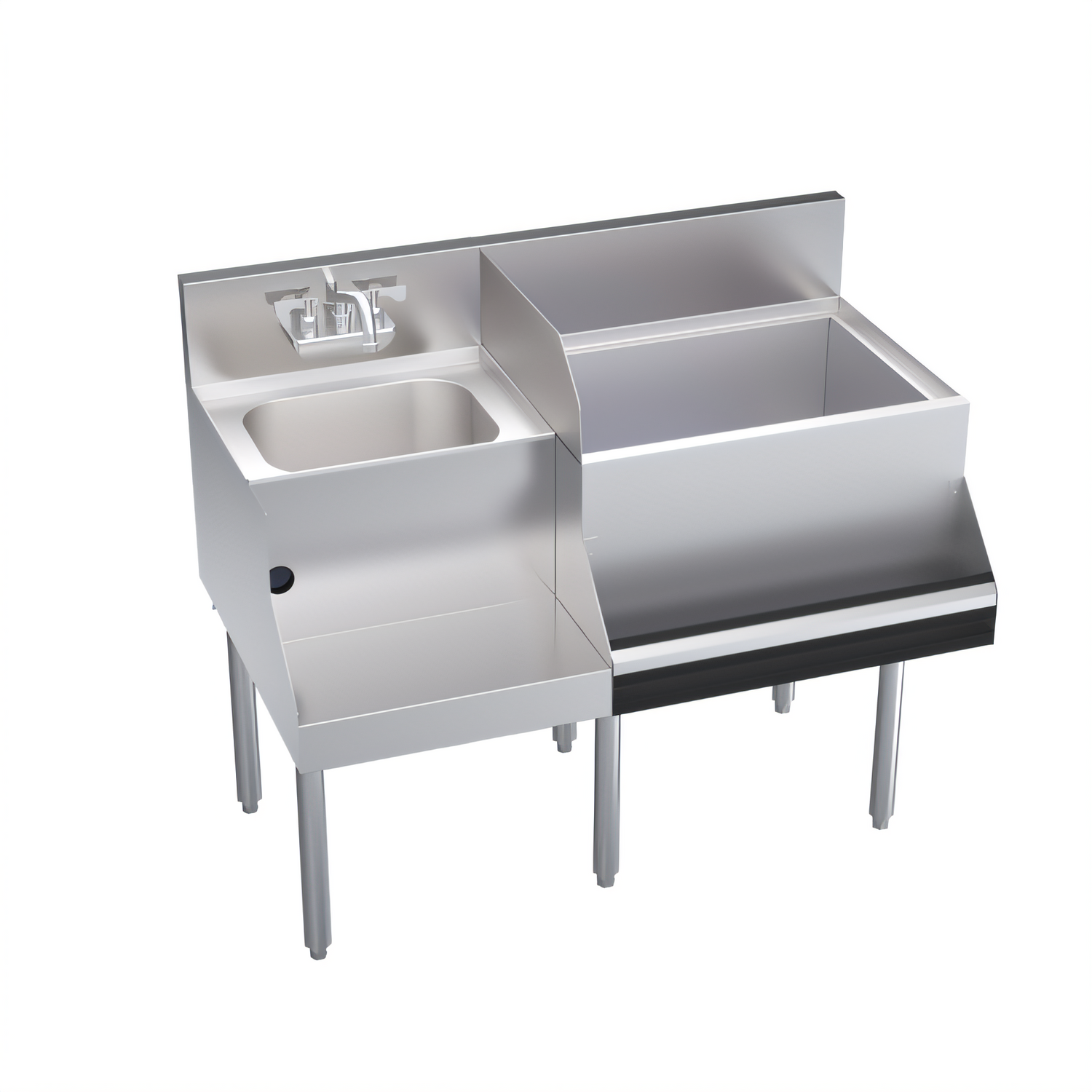

Krowne Royal Series 42" Underbar Ice Bin & Cocktail Workstation
Model KR24-W42R-10 • NSF CertifiedBuild faster, cleaner and more profitable cocktail service with Krowne’s Royal Series 42-inch workstation. The right-side 74 lb. ice bin with 10-circuit cold plate keeps beverages perfectly chilled, while the left-side blender/dump sink station streamlines frozen drink prep and glass rinsing— all in a compact 24" deep footprint built to thrive in high-volume bars.
Why You’ll Love It

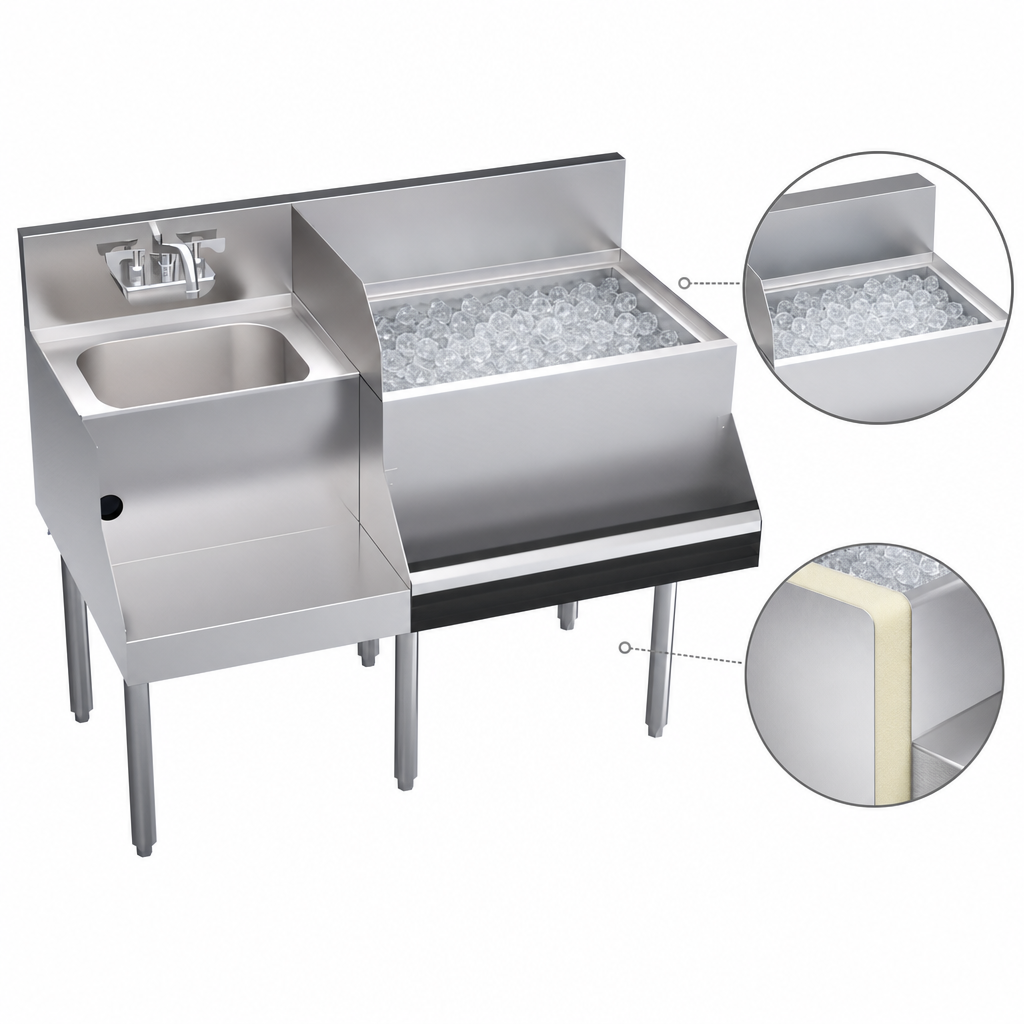

- High-Capacity Ice Bin: 24" wide, 12" deep insulated bin holds 74 lbs. of ice and includes removable bottle wells.

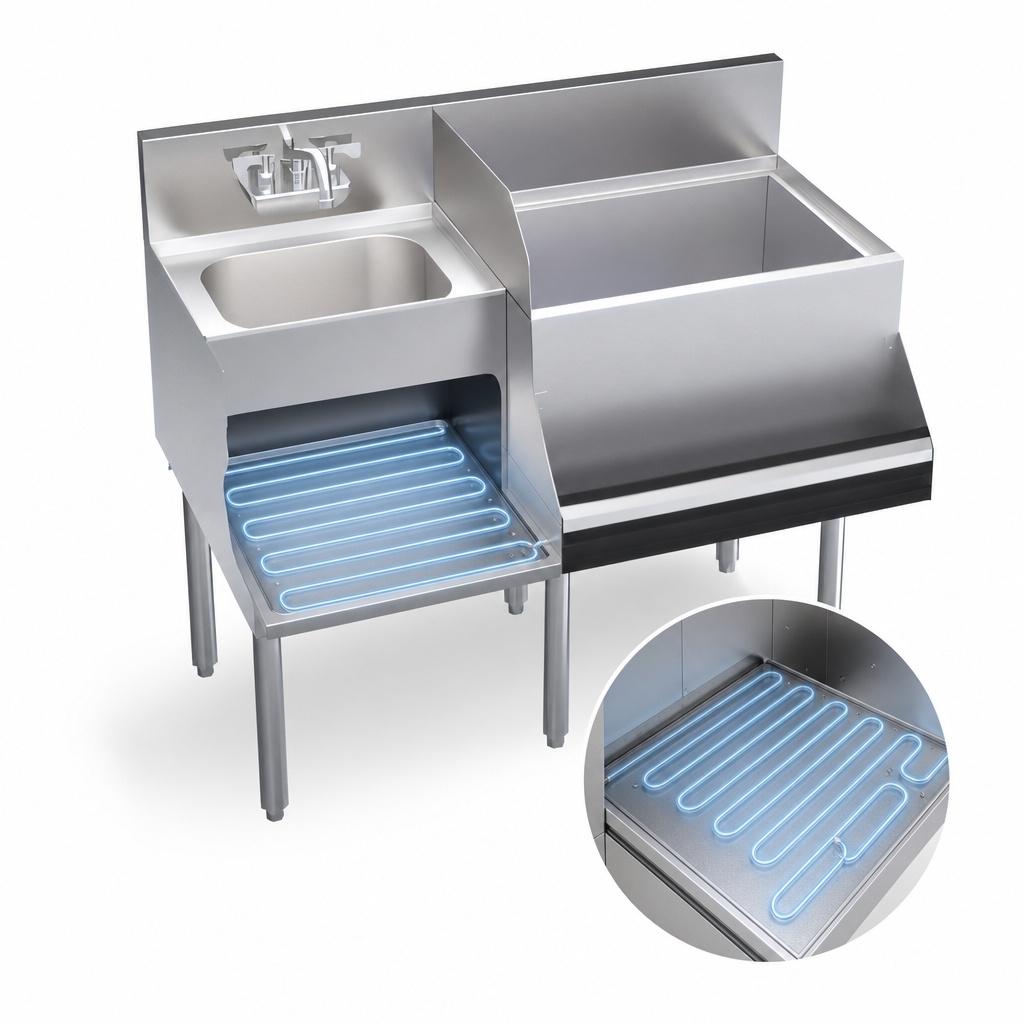

- 10-Circuit Cast Aluminum Cold Plate: Sealed into the bin bottom with 5/16" stainless tubing for consistent post-mix cooling.
- Integrated Blender Station: 18" wide shelf plus a 14" × 10" × 7" deep dump sink—perfect for rinsing pitchers & glassware.
- Royal Series Faucet: Splash-mount, 4" centers, quarter-turn ceramic cartridges for long-life, drip-free operation.
- Built-In Duplex Outlet: GFCI-ready electrical under the blender shelf powers blenders or other small appliances.
- Sound-Deadened Speed Rail: Single tier rail keeps your most-used bottles organized and within arm’s reach.
- All Stainless Contact Surfaces: 20 & 22 ga. stainless steel interior components withstand daily commercial abuse.
- Rock-Solid Foundation: 1-5/8" 16 ga. stainless legs with adjustable thermoplastic bullet feet for quick leveling on uneven floors.
- Smart Splash Protection: 6-1/2" backsplash plus factory-installed side splash between ice bin and sink minimize mess.
Technical Specs
| Overall Dimensions | 42" W × 24" D × 36-1/2" H (to work surface) |
|---|---|
| Ice Bin Location | Right side, 24" wide × 12" deep |
| Ice Capacity | 74 lbs. |
| Cold Plate | 10 circuits, cast aluminum, 5/16" O.D. stainless tubing |
| Dump Sink Bowl | 14" W × 10" F-B × 7" D |
| Water Connections | 1/2" IPS hot & cold |
| Drain Connections |
Ice bin with cold plate: 1/2" IPS + 4" PVC tailpiece Dump sink: 1-1/2" IPS |
| Electrical (Blender) | Duplex outlet (115 V, 15 A) under blender shelf |
| Backsplash Height | 6-1/2" H × 1-1/2" D |
| Shipping Weight | Approx. 216 lbs. |
| Certifications | NSF |
Popular Add-Ons (Sold Separately)
- Partial or full sliding ice bin covers
- Condiment tray (KR-101)
- Stainless steel ice bin dividers
- Perforated dump basket (30-160)
- 6" taller stainless legs (KR-806)
Need a left-hand ice bin or longer workstation? Explore additional Royal Series configurations or reach out to our team for a custom quote.
