Krowne  |  Royal Series  |  SKU: KR24-W42L-10

Krowne KR24-W42L-10 Royal Series Bar Equipment

$4,656.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

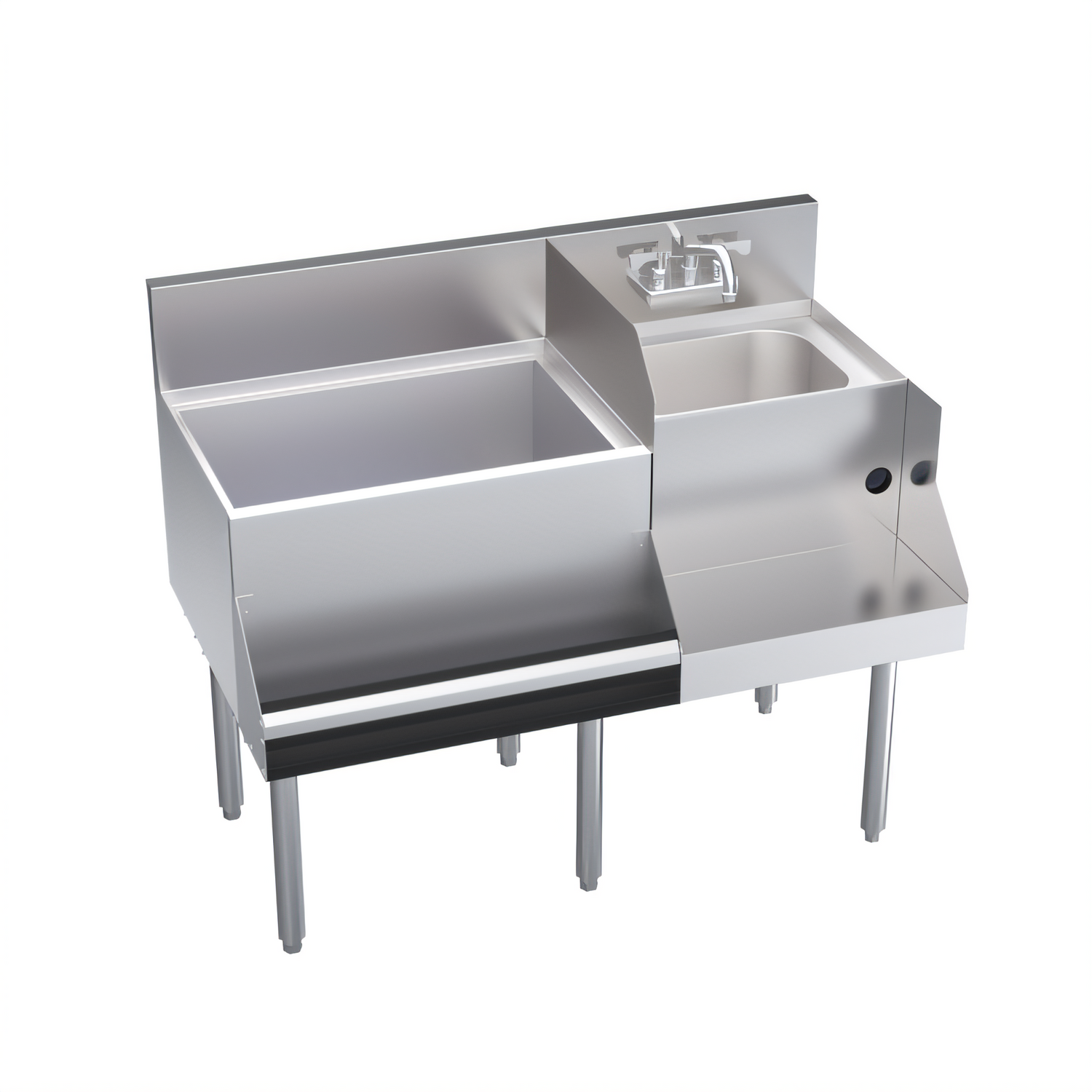

Krowne Royal Series 42" Underbar Ice Bin & Cocktail Workstation with Blender Station – Left Ice Bin, 10-Circuit Cold Plate

Model KR24-W42L-10 | NSF Certified

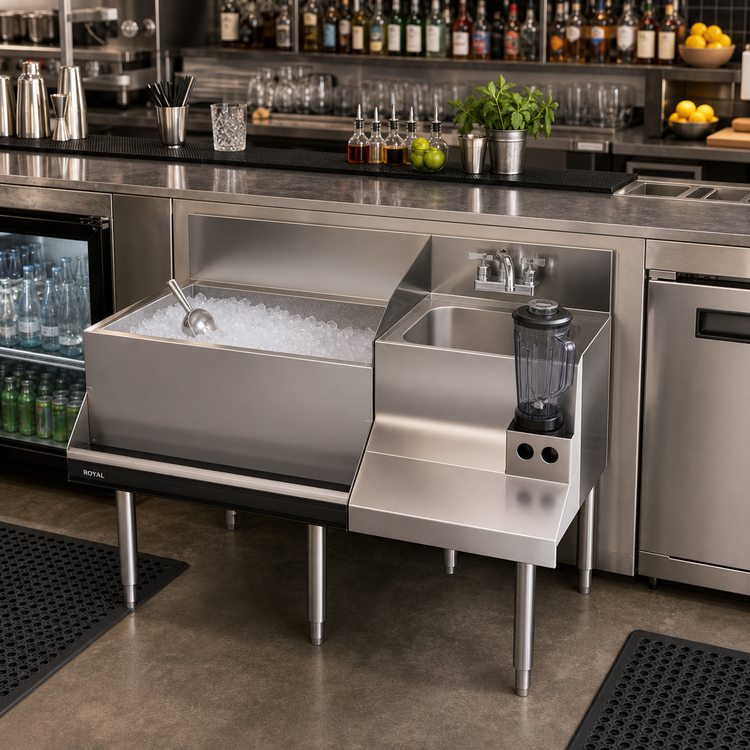

Transform 42 inches of back-bar real estate into a full-service cocktail command center. This Royal Series workstation delivers a high-capacity cold-plate ice chest, a dedicated blender dump sink with power, and a sound-deadened speed rail—all built from heavy-gauge stainless steel for years of dependable, code-compliant performance.

Key Features

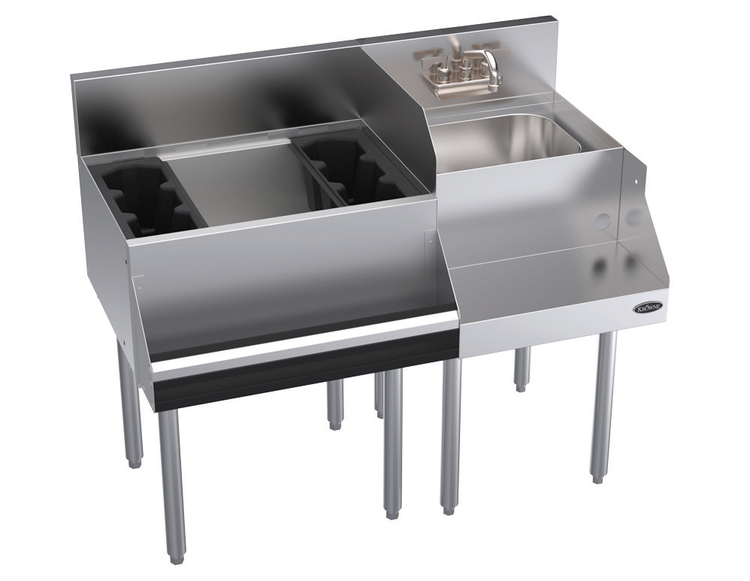

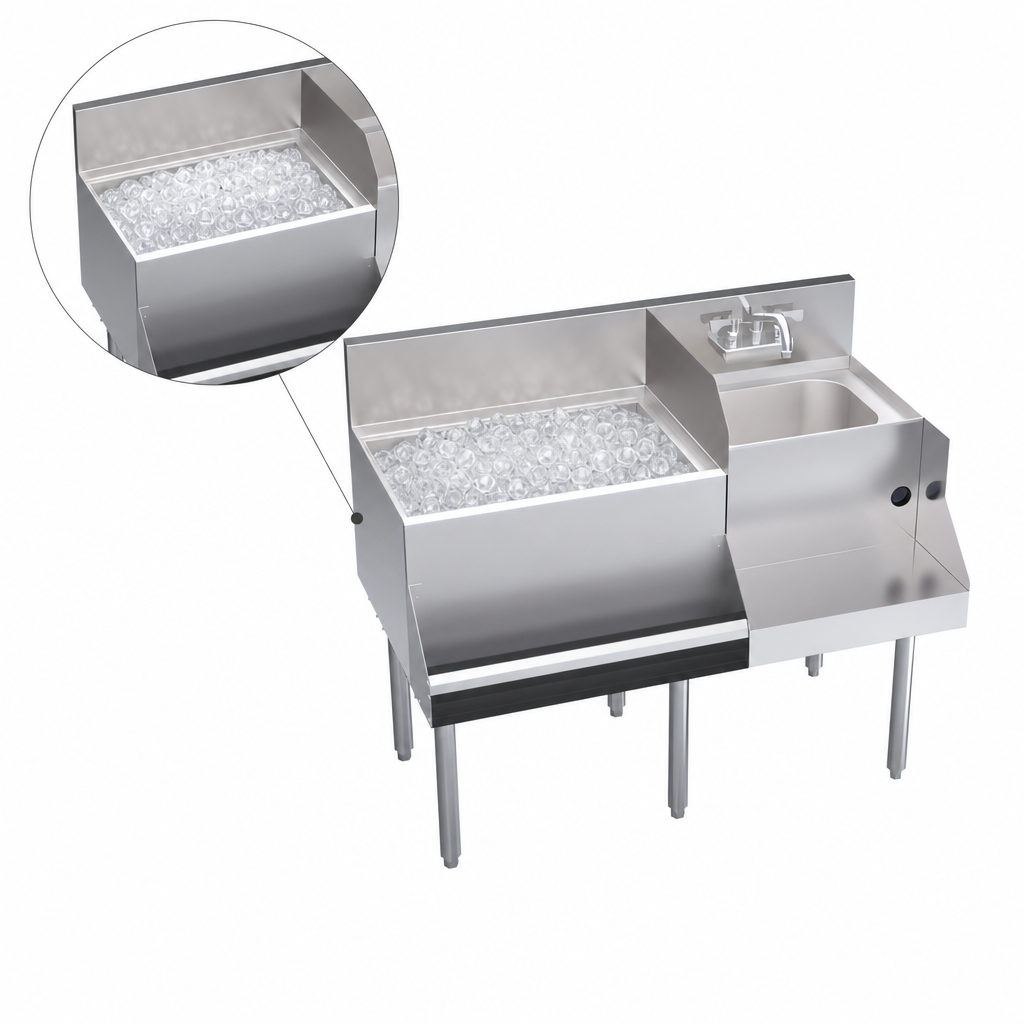

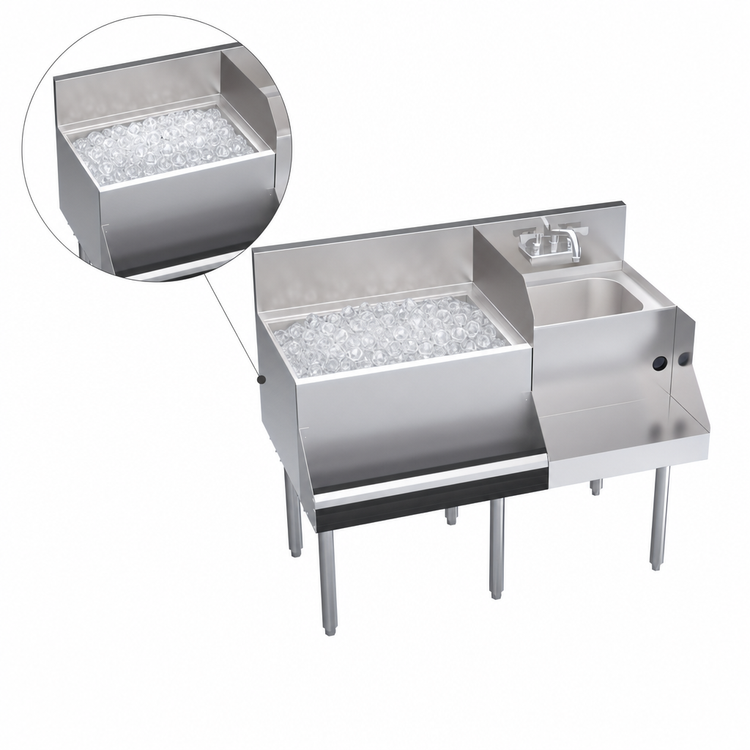

  • 24" wide, 12" deep insulated ice bin holds up to 74 lb of ice and includes removable bottle wells.

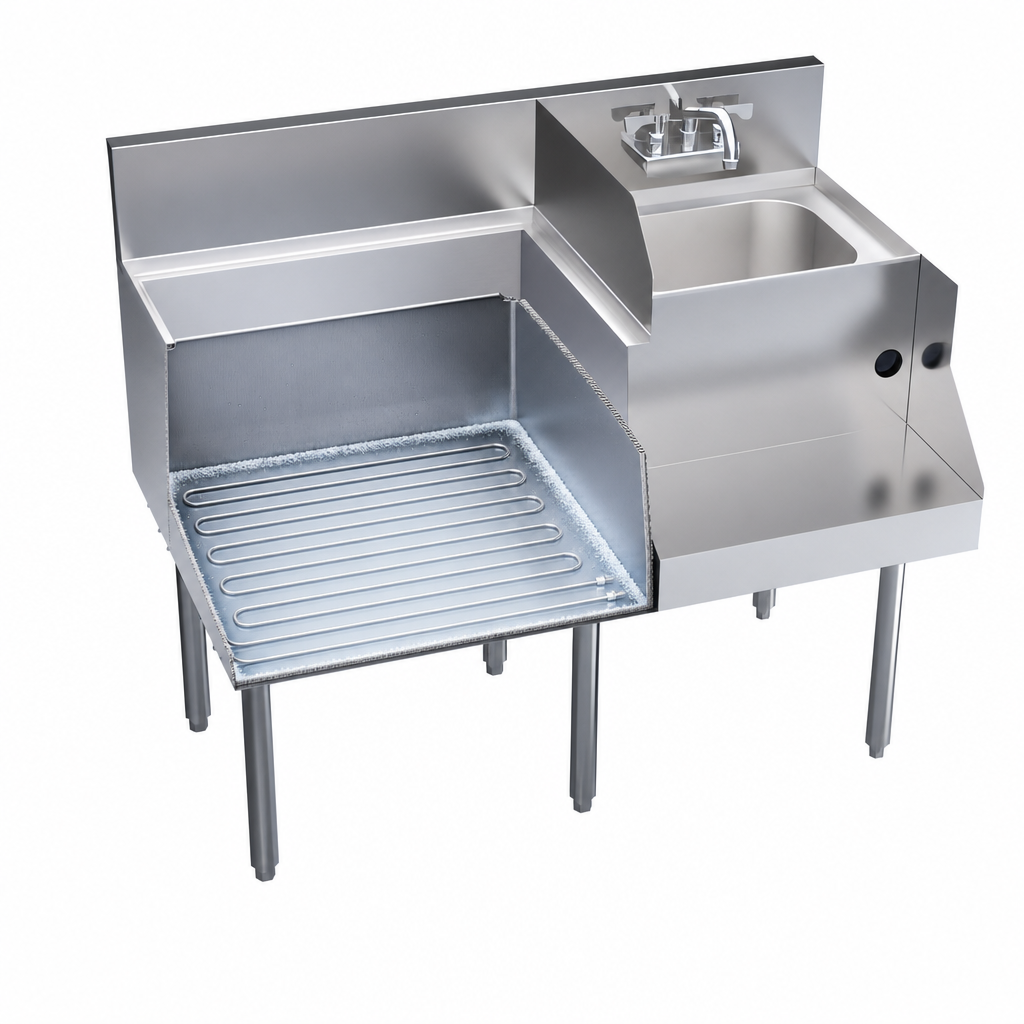

  • Factory-sealed 10-circuit cast-aluminum cold plate chills post-mix beverages right in the ice bin.
  • 18" wide right-hand blender station with 14" × 10" × 7" dump sink and pre-installed duplex GFCI outlet.
  • Single sound-deadened speed rail keeps your most-used bottles within easy reach.
  • Splash-mount Royal Series faucet (4" centers, ¼-turn ceramic valves) included.
  • 6½" backsplash and integrated side splash help contain spills and protect adjacent equipment.
  • 20-ga stainless work surfaces, ice chest, and backsplash over a galvanized sub-structure for maximum durability.
  • Foamed-in-place polyurethane insulation maximises ice retention and reduces condensation.
  • 1⅝" Ø, 16-ga stainless legs with adjustable thermoplastic bullet feet—level it quickly on any floor.
  • Completely NSF Listed for food-safe, bar-ready installation.
Specifications
Overall dimensions (W × D × H*) 42" × 24" × 36 ½"*
Working height (to deck) 30"
Ice bin capacity 74 lb · 12" deep
Cold plate 10 circuits, 5/16" OD stainless tubing, cast-aluminum plate
Blender dump-sink bowl 14" × 10" × 7"
Speed rail Single, sound-deadened
Construction 20-ga stainless (contact surfaces) / 20-ga galvanized (back & bottom)
Legs & feet 1⅝" Ø 16-ga stainless legs, adjustable grey thermoplastic bullet feet
Plumbing connections Ice bin drain: ½" IPS with 4" PVC tailpiece
Dump sink drain: 1½" IPS
Electrical 120 V duplex outlet under blender shelf (field-wired)
Net weight 216 lb
Certifications NSF

*Height measured to top of 6½" backsplash.

Ideal For
  • High-volume bars, nightclubs, and lounges
  • Hotel, casino, and resort beverage programs
  • Restaurant bars with limited back-bar space
  • Catering venues requiring NSF-listed equipment
Popular Accessories (sold separately)
  • Partial or full sliding ice-bin covers
  • Condiment tray and stainless ice-bin dividers
  • Perforated dump basket for waste separation
  • Left or right end splash kits
  • 6" leg extenders for raised working height
  • Stainless towel ring

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

42.0in

Depth

24.0in

Shipping Weight

216.0lbs

Depth (front - back) OA

24"

Width (side - side) OA

37" - 42"

Ice Bin Location

ice bin - left side

Cold Plate

(10) circuit

Ice Capacity

75 lbs.

Blender Unit Type

with sink

Working Height

30" working height

Construction

stainless steel & galvanized

Splash

6" splash

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, with blender station, 42"W x 24"D OA, 24"W ice bin on left with 10-circuit cold plate & bottle wells, 74 lbs. ice capacity, single speedrail, 18"W blender station on right with deep dump sink & duplex outlet, splash mount Royal Series faucet, stainless steel interior, stainless steel & galvanized exterior, stainless steel legs with adjustable thermoplastic bullet feet, NSF
