Krowne  |  SKU: KR24-TCS76B-10

Krowne KR24-TCS76B-10 Bar Equipment

$12,021.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

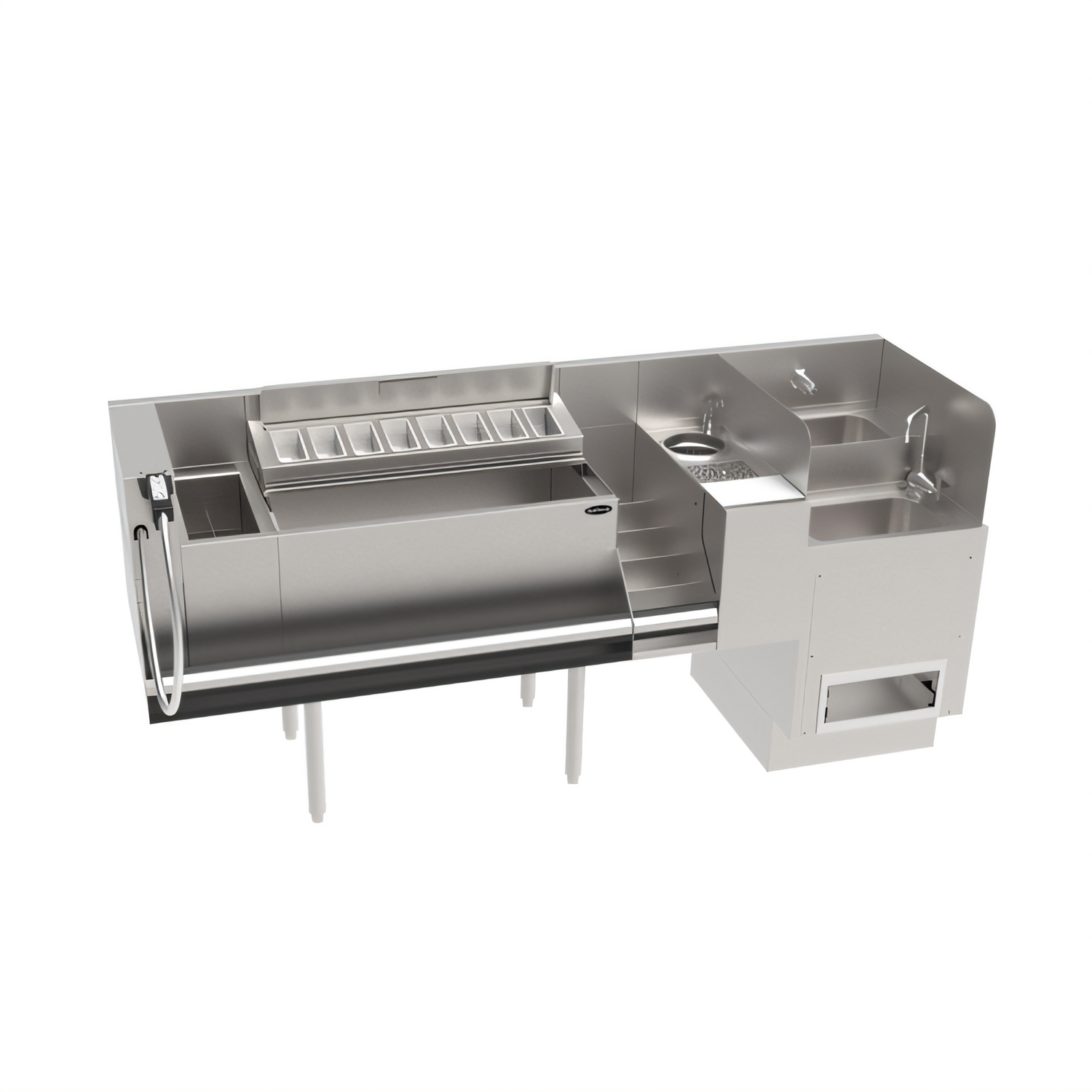

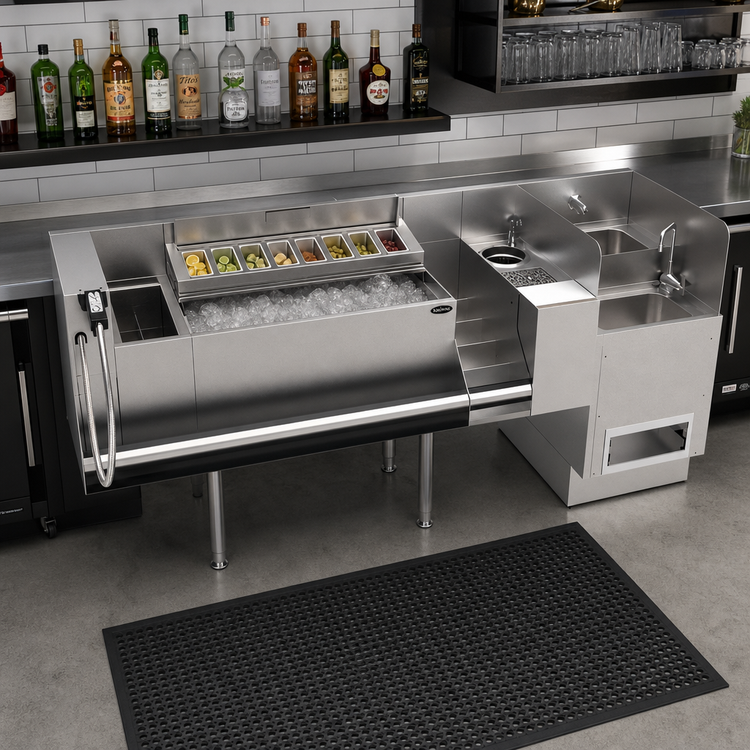

Krowne x Jon Taffer “Command Station” – 76" Royal Series Underbar with Cold-Plate

Model KR24-TCS76B-10  |  NSF Listed

Designed by legendary bar-rescue expert Jon Taffer and engineered by Krowne, the 76" Command Station condenses every essential bar task—pouring, rinsing, handwashing, ice management and garnish prep—into one seamless, 24"-deep workstation. Speed of service up; wasted motion down.

Why Your Bartenders Will Love It

  • 10-circuit cast-aluminum cold plate sealed inside a 30" insulated ice bin—serves ice-cold sodas & draft cocktails.
  • Hybrid 18" Hand / Dump Sink with sensor faucet, soap and paper-towel dispensers for true hand-wash compliance.
  • 4" soda-gun holder plus a high-performance speed rinser keep glasses moving during rushes.
  • 8" insulated elixir station holds up to 10 prep bottles; perforated bottom keeps product above melt water.
  • Removable garnish tray with stainless cover and (8) pint cups for rapid cocktail finishing.
  • Space-saving five-step liquor display (8" wide) showcases 10–12 top-sellers at eye level.
  • Integrated 8" speed station featuring non-slip cutting board, tool well and faucet with pressure regulator.
  • 42" sound-deadened single speedrail included—no clanging bottles.
  • Rugged 18/20-ga. stainless steel top, front & sides with 16-ga. backs; adjustable thermoplastic bullet feet.

Component Layout (Left ➜ Right)

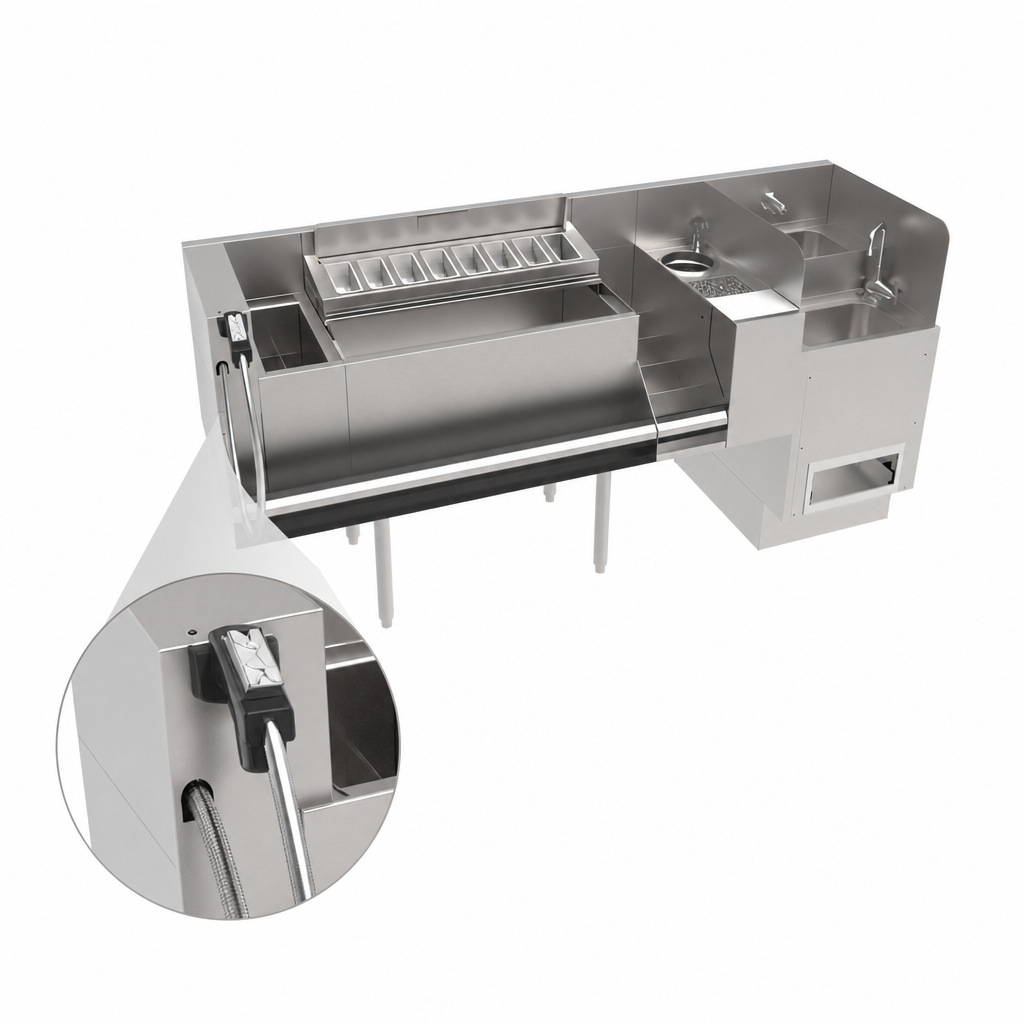

  • 4" Soda Gun / Jetter Holder

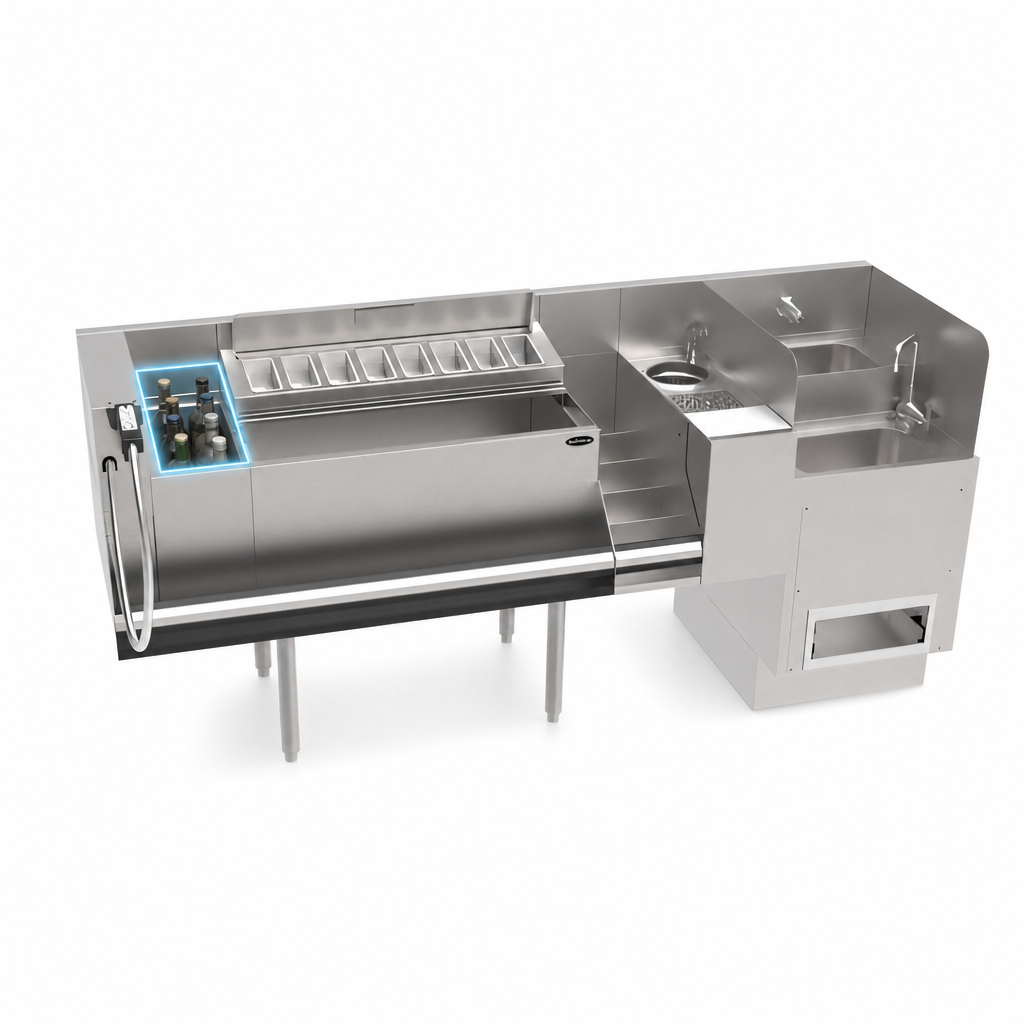

  • 8" Insulated Elixir/Bottle Section
  • 30" Ice Bin (15" D) w/ Cold Plate, Divider & Garnish Tray
  • 8" Five-Step Liquor Display
  • 8" Speed Station (Cutting Board • Rinser • Tool Well • Faucet)
  • 18" Hybrid Hand / Dump Sink
  • 42" Single Speedrail (front-mounted)

Technical Specifications

Overall Width 76"  (1930 mm)
Front-to-Back Depth 24"  (610 mm)
Working Height 36-1/2"  (927 mm)
Ice Bin Capacity 30" W × 15" D liner, includes (1) divider
Cold Plate 10-circuit cast aluminum, 5/16" O.D. stainless tubing
Sinks Hybrid dual-bowl 10" W × 12" L × 7" D each
Faucets Hands-free sensor faucet & dipperwell faucet  •  1/2" IPS inlets
Drains 1-1/2" IPS (hand sink)  •  1/2" NPS (dipperwell)  •  1" IPS (ice bin)
Construction 18/20-ga. stainless steel; 1-5/8" Ø legs with adjustable bullet feet
Certifications NSF, Royal Series
Installation Note: Cold-plate models ship with a 1/2" × 6" PVC tailpiece to prevent condensation. Use the provided PVC tailpiece—do not connect metal-to-metal.

Need a craft-ice freezer or CO2 glass froster? Ask us about compatible drop-ins and accessories to build your perfect underbar lineup.

Features & Specs

Manufacturer

Krowne

Height

36.5in

Width

76.0in

Depth

24.0in

Specifications

The Taffer Command Station by Krowne - 76"W x 24" deep, 36-1/2" overall height, from left to right: 4" soda gun holder, 8"W insulated bottle section, 30"W ice bin, 15" deep liner with built in 10 circuit cold plate, (1) ice bin divider, garnish tray/sliding cover, 8"W five-step liquor display, 8" speed station with non-slip cutting board, rinser, and tool well with faucet (pressure regulator included), 18" Hybrid Hand/Dump Sink with Soap and Paper Towel Dispenser, 42" sound deadened single speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
