Description

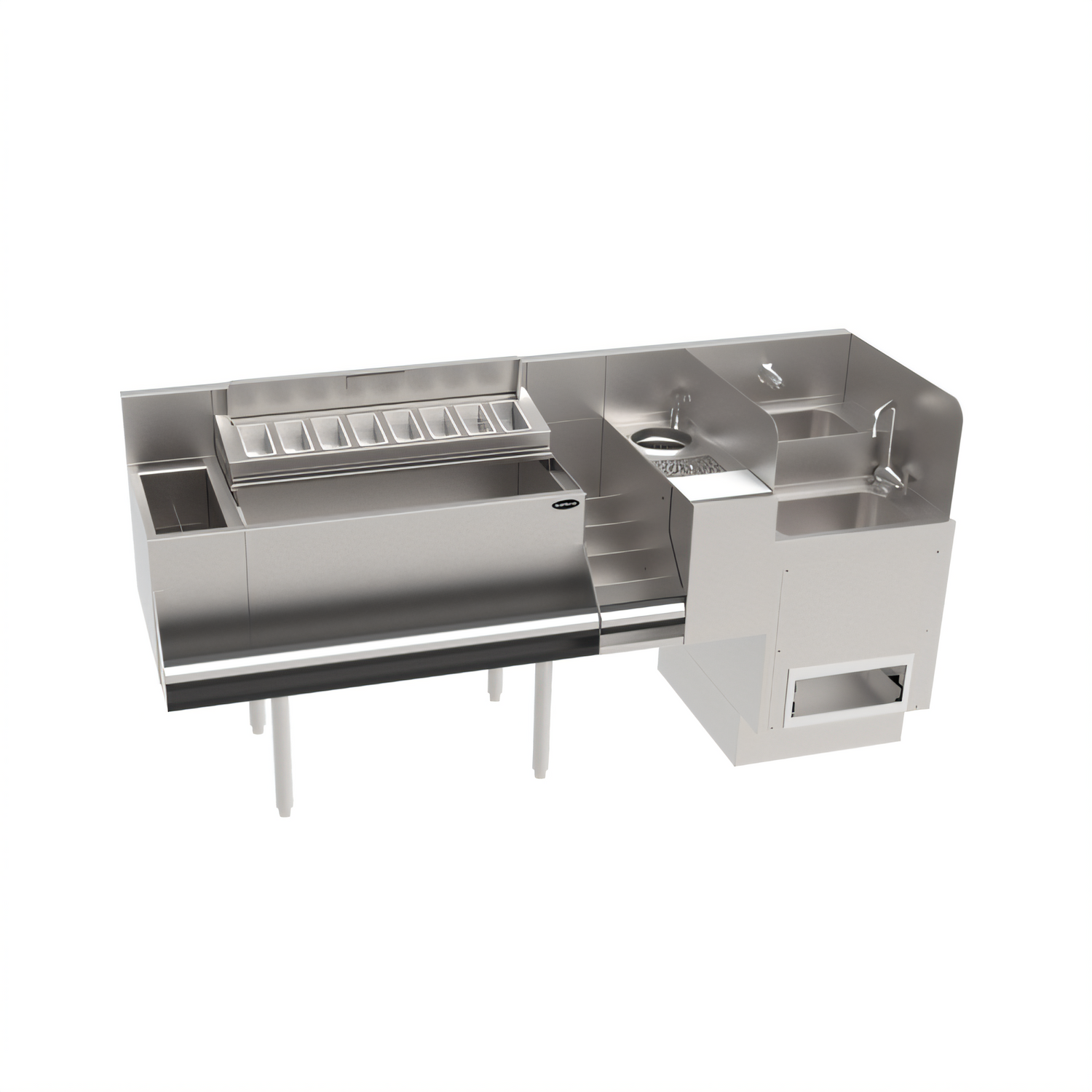

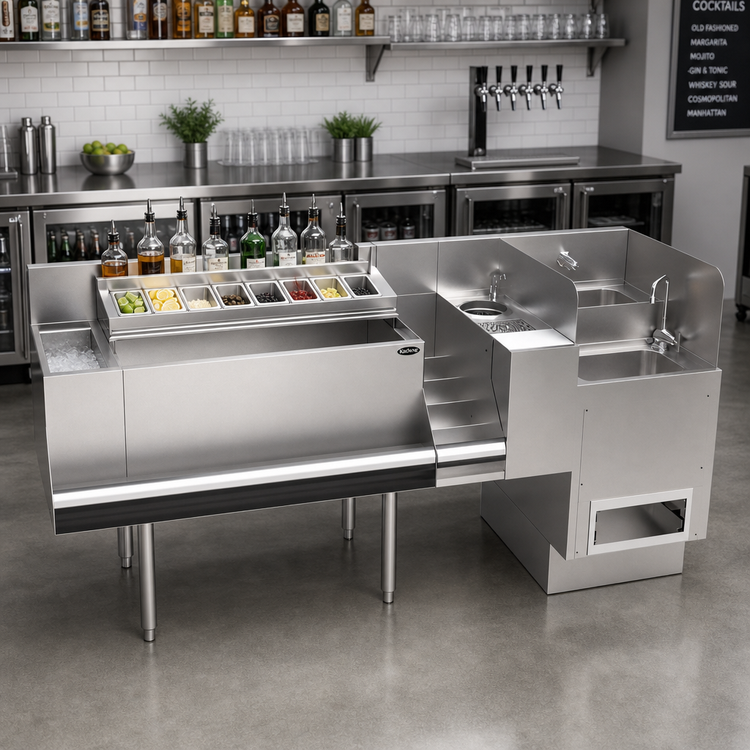

Krowne Taffer Command Station – 72" Royal Series Underbar Workstation
Model KR24-TCS72E | 72"W × 24"D × 36-1/2"HCo-engineered by Jon Taffer and Krowne, this 72-inch Command Station condenses every critical bar function into one sleek, NSF-listed unit. Faster service, tighter quality control and a cleaner work zone—all in just 24 inches of depth.
Integrated Work Zones (left ➜ right)

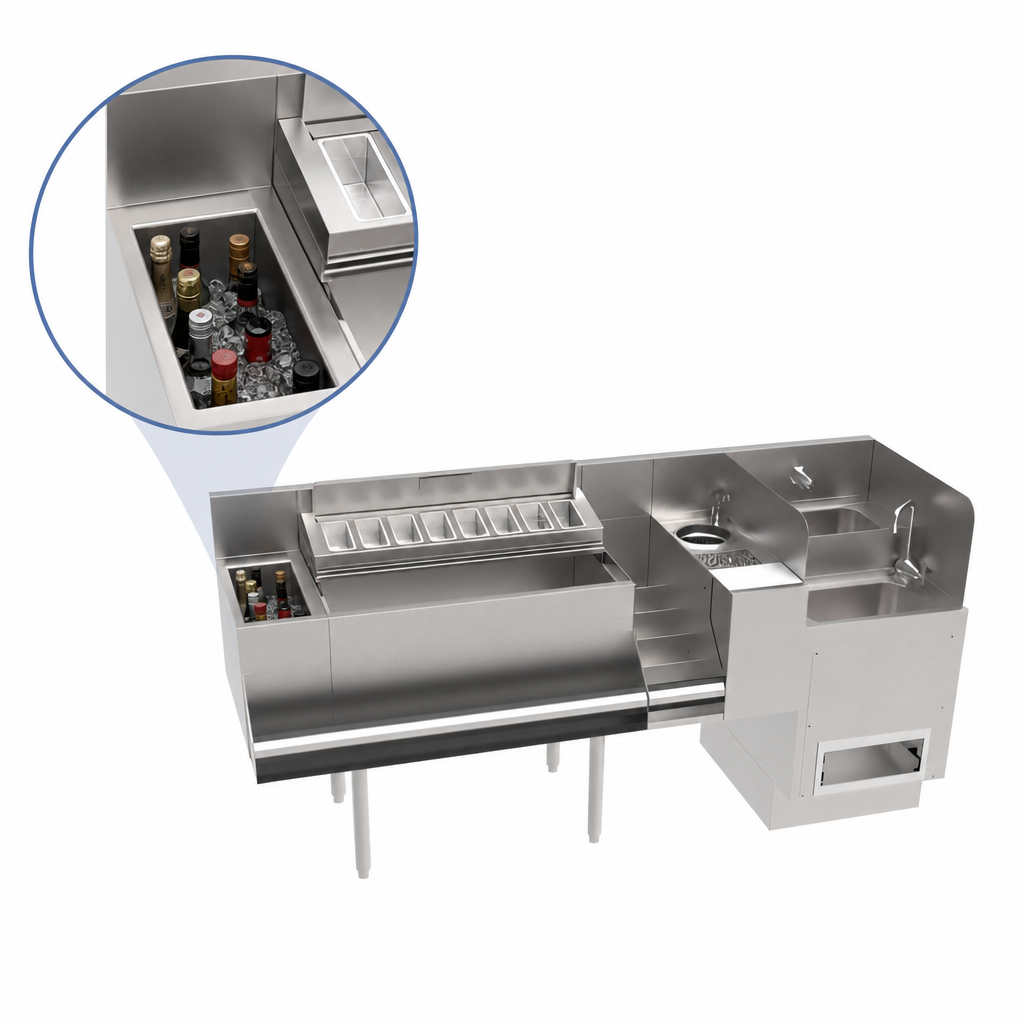

- 8" Insulated Elixir/Bottle Station with stainless dividers and perforated bottom for melt-water drainage.
- 30" Ice Bin with 15" deep liner, removable divider and sliding stainless cover.
- Removable Garnish Station with cover and eight 1-pint cups.
- 5-Step Liquor Display (8" wide) holds up to 10 bottles within arm’s reach.
- 8" Speed Station including:
- Non-slip flush-mount cutting board (11-1/2" × 10")
- High-performance glass rinser
- Tool well with dipperwell faucet (pressure regulator included)
- 18" Hybrid Hand/Dump Sink with dual bowls, Diamond Series sensor faucet, soap dispenser and paper towel dispenser.
- 38" Sound-deadened single speedrail for backup bottles.
Key Advantages
- Workflow perfected by Jon Taffer for rapid cocktail production.
- 24" front-to-back footprint fits virtually any underbar line.
- 18 & 20 ga. 304 stainless steel top, front and sides resist corrosion and simplify sanitation.
- 1-5/8" stainless steel legs with adjustable thermoplastic bullet feet for quick leveling.
- NSF certified to meet the industry’s toughest health standards.
Technical Specifications

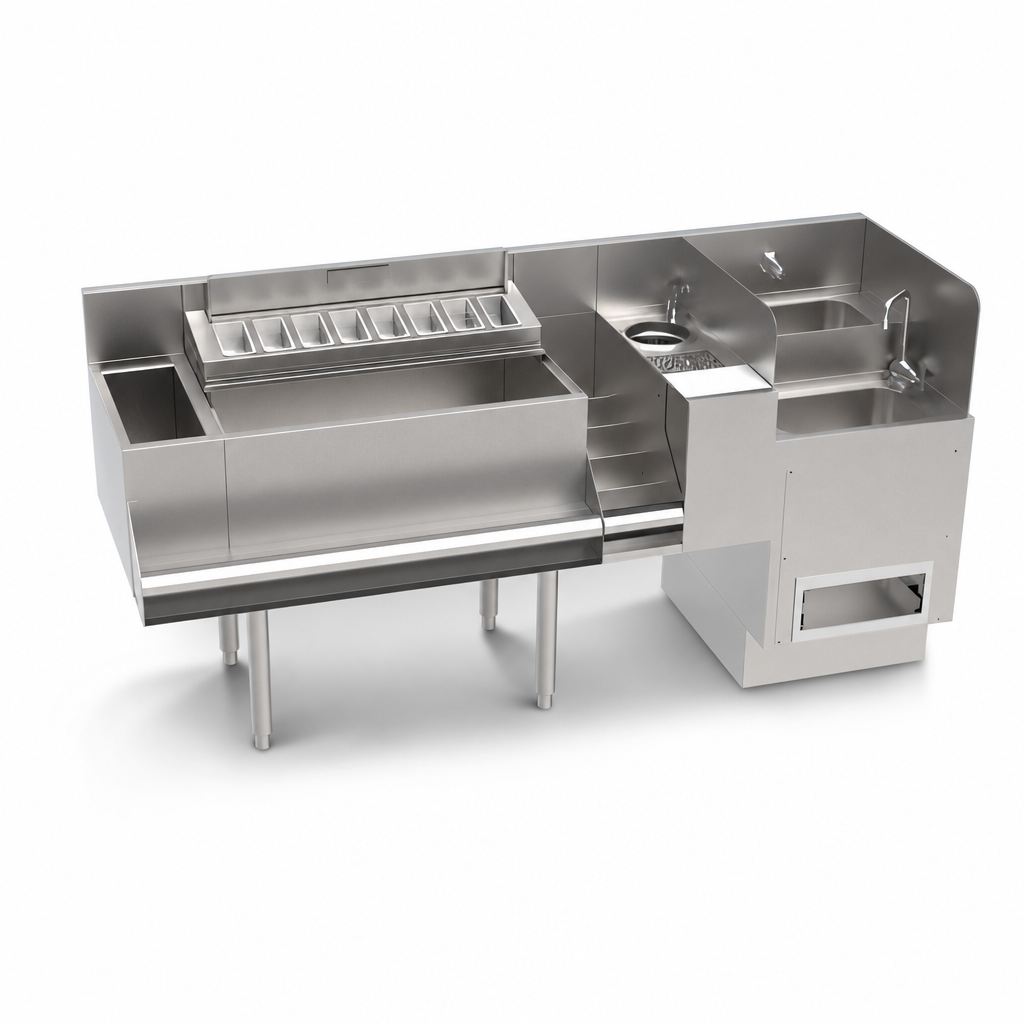

| Model | KR24-TCS72E (No Cold Plate) |
|---|---|
| Overall Dimensions | 72" W × 24" D × 36-1/2" H |
| Ice Bin | 30" W liner, 15" D • Includes 1 divider |
| Garnish Capacity | 8 × 1-pint cups |
| Liquor Capacity | 10 bottles on display + 10 in speedrail |
| Sinks | Dual-bowl hybrid hand/dump sink |
| Main Sink Bowl Size | 10" W × 12" L × 7" D |
| Drain Connections |
• 1-1/2" IPS (main sink) • 1/2" NPS (dipperwell) • 1" NPS (elixir station) • 1" IPS (ice bin) |
| Water Connections | 1/2" IPS Hot & Cold (sensor faucet) • 1/2" IPS Cold (dipperwell & rinser) |
| Construction | Combination of 18 & 20 ga. stainless steel body with 16 ga. backs |
| Certifications | NSF |
Optional add-ons such as craft-ice freezer, soda-gun jetter and CO2 froster are available and mount seamlessly to the right end of the station.
Installation Note: Unit ships fully assembled. All water and drain hookups must be
completed by a licensed professional to maintain NSF compliance.
Features & Specs
Features & Specs
Manufacturer
Krowne
Height
36.5in
Width
72.0in
Depth
24.0in
Specifications
The Taffer Command Station by Krowne - 72"W x 24" deep, 36-1/2" overall height, from left to right: 8"W insulated bottle section, 30"W ice bin, 15" deep liner, (1) ice bin divider, garnish tray/sliding cover, 8"W five-step liquor display, 8" speed station with non-slip cutting board, rinser, and tool well with faucet (pressure regulator included), 18" Hybrid Hand/Dump Sink with Soap and Paper Towel Dispenser, 38" sound deadened single speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
