Krowne KR24-SD18C Royal Series Bar Equipment
Description

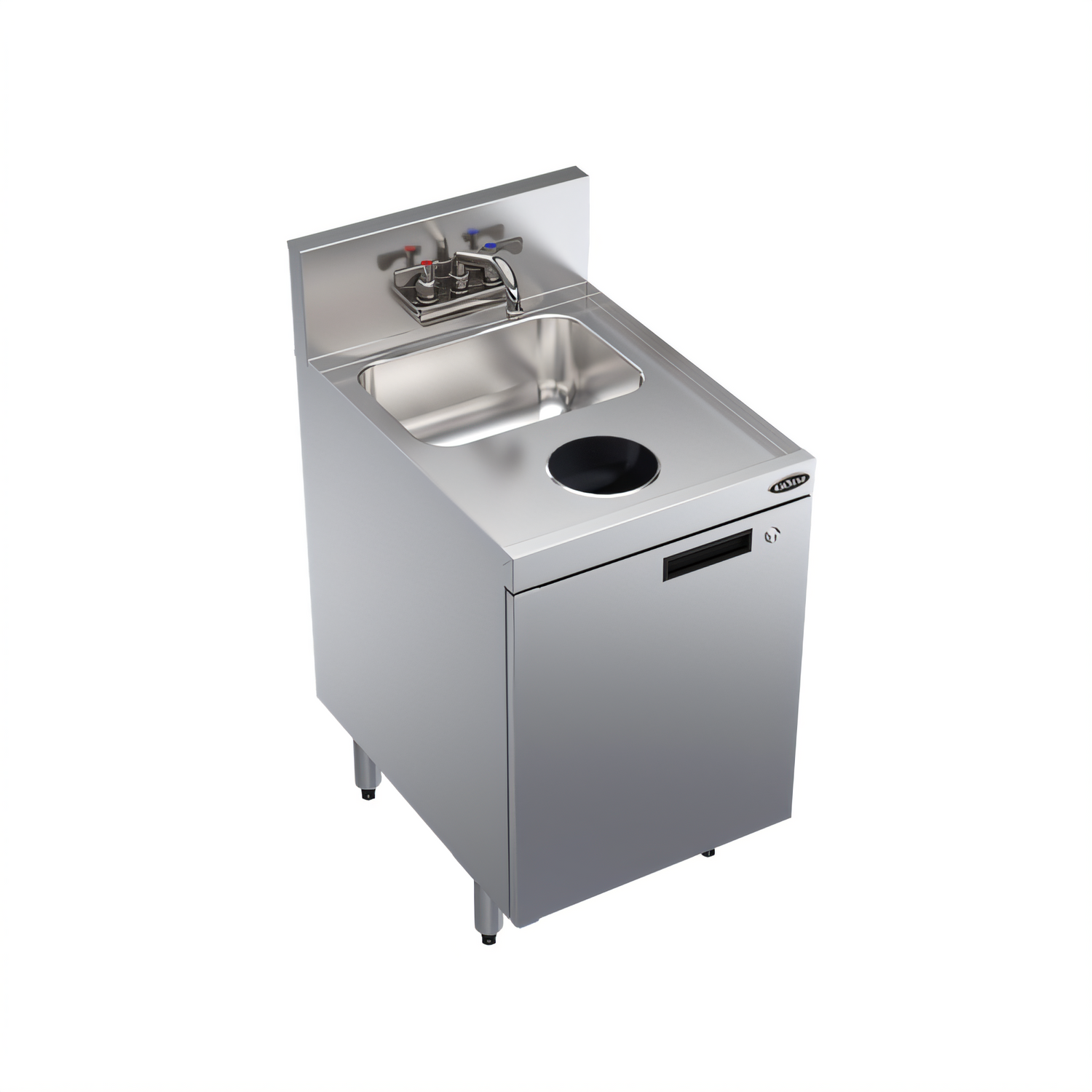

Krowne Royal Series Underbar Waste Sink Unit – 18" W x 24" D
Model KR24-SD18C-10 (with 10" deep bowl)Engineered for busy bars that need a compact, code-compliant dump station, the Royal Series Waste Sink delivers rugged stainless-steel construction, a locking storage cabinet for chemicals, and a generous 10-inch-deep sink bowl—everything you need to keep your beverage program running smoothly and safely.
Key Features
- Integral 14" W x 10" F/B x 10" D dump sink with 9" overflow standpipe to prevent spills
- Splash-mount Royal Series faucet, 4" centers, 1.8 GPM aerator (NSF 14-406L)
- 6" waste chute directs refuse to your trash receptacle without removing the speed rail

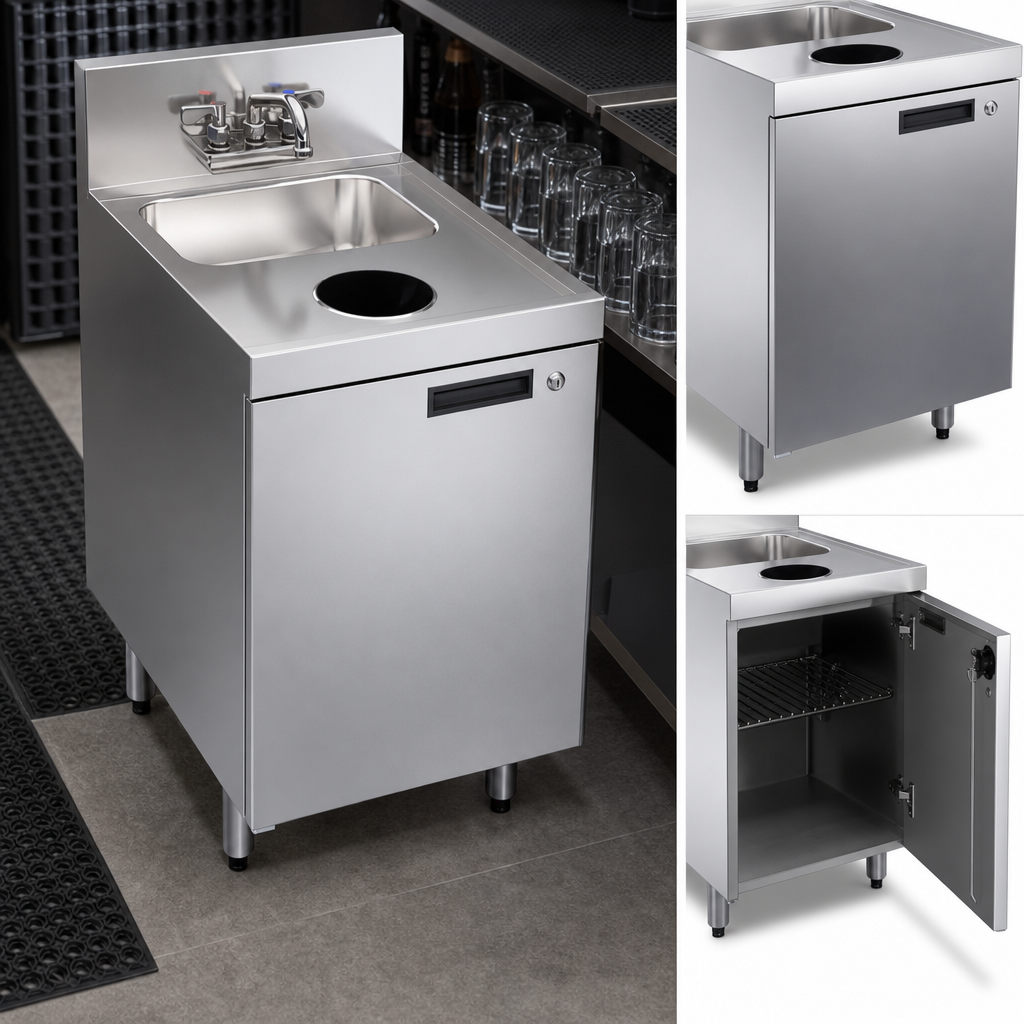

- Locking hinged cabinet door keeps cleaning chemicals secure and out of sight

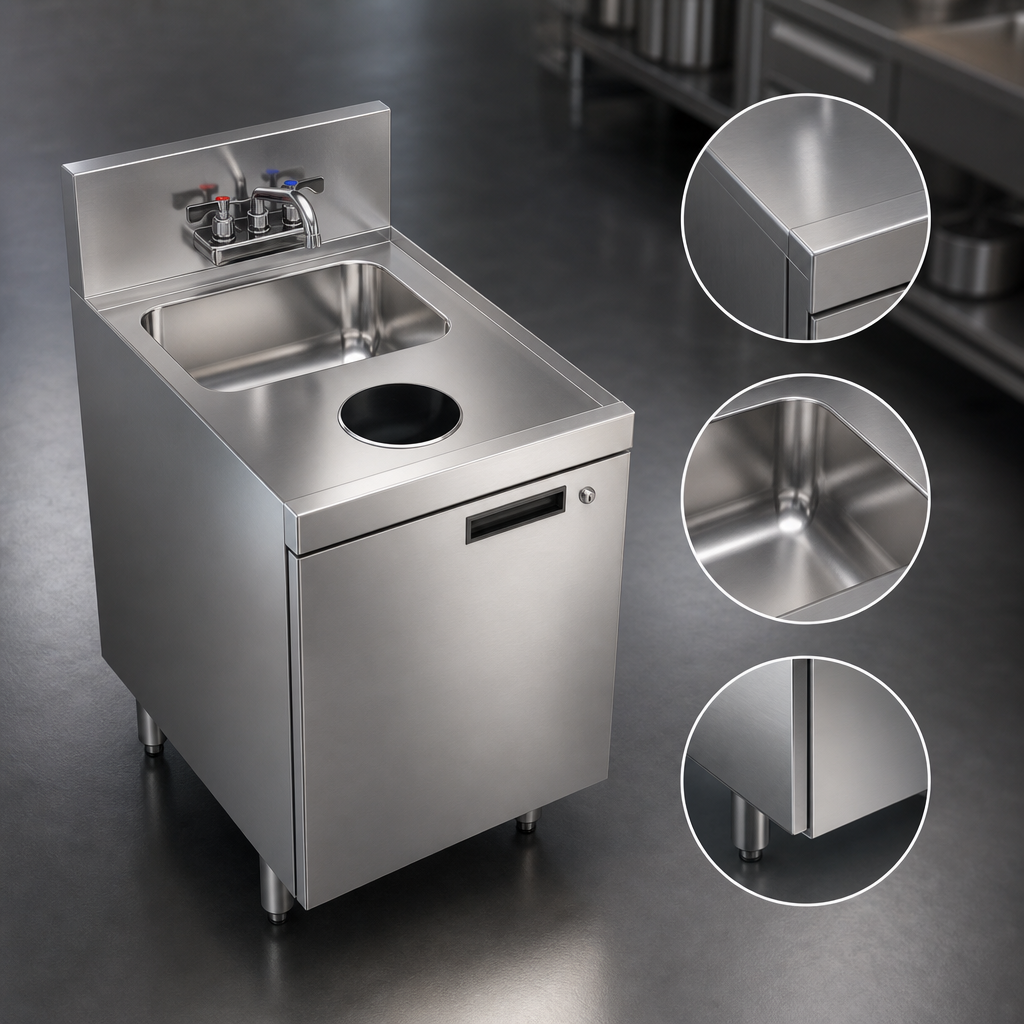

- 20-gauge stainless steel top, front & sides; 16-gauge stainless tubular legs
- Adjustable thermoplastic bullet feet for fast, tool-free leveling on uneven floors
- Open rear for easy access to water supply and drain connections
- 6 ½" high backsplash with 1 ½" return protects adjacent equipment & walls
- Matches standard 24" speed-rail depth for a seamless underbar line-up
- NSF listed for foodservice sanitation compliance
Specifications
| Overall Width | 18 in / 457 mm |
|---|---|
| Overall Depth | 24 in / 610 mm |
| Overall Height | 36 ½ in / 927 mm (to deck) | 43 in / 1092 mm (to top of backsplash) |
| Sink Bowl (W × F/B × D) | 14" × 10" × 10" (356 × 254 × 254 mm) |
| Material | 20 ga 304 stainless (body) | 16 ga stainless legs |
| Plumbing Connections | 1/2" NPT hot & cold, 1" IPS drain w/ 9" standpipe |
| Faucet | Royal Series 4" center wall mount, 1.8 GPM aerator |
| Compliance | NSF, ANSI/NSF 2 |
Need a different width or electronic faucet? The Royal Series family offers additional sizes and options. Contact our team for personalized assistance.
