Krowne  |  Royal Series  |  SKU: KR24-SD18C-E

Krowne KR24-SD18C-E Royal Series Bar Equipment

$2,452.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

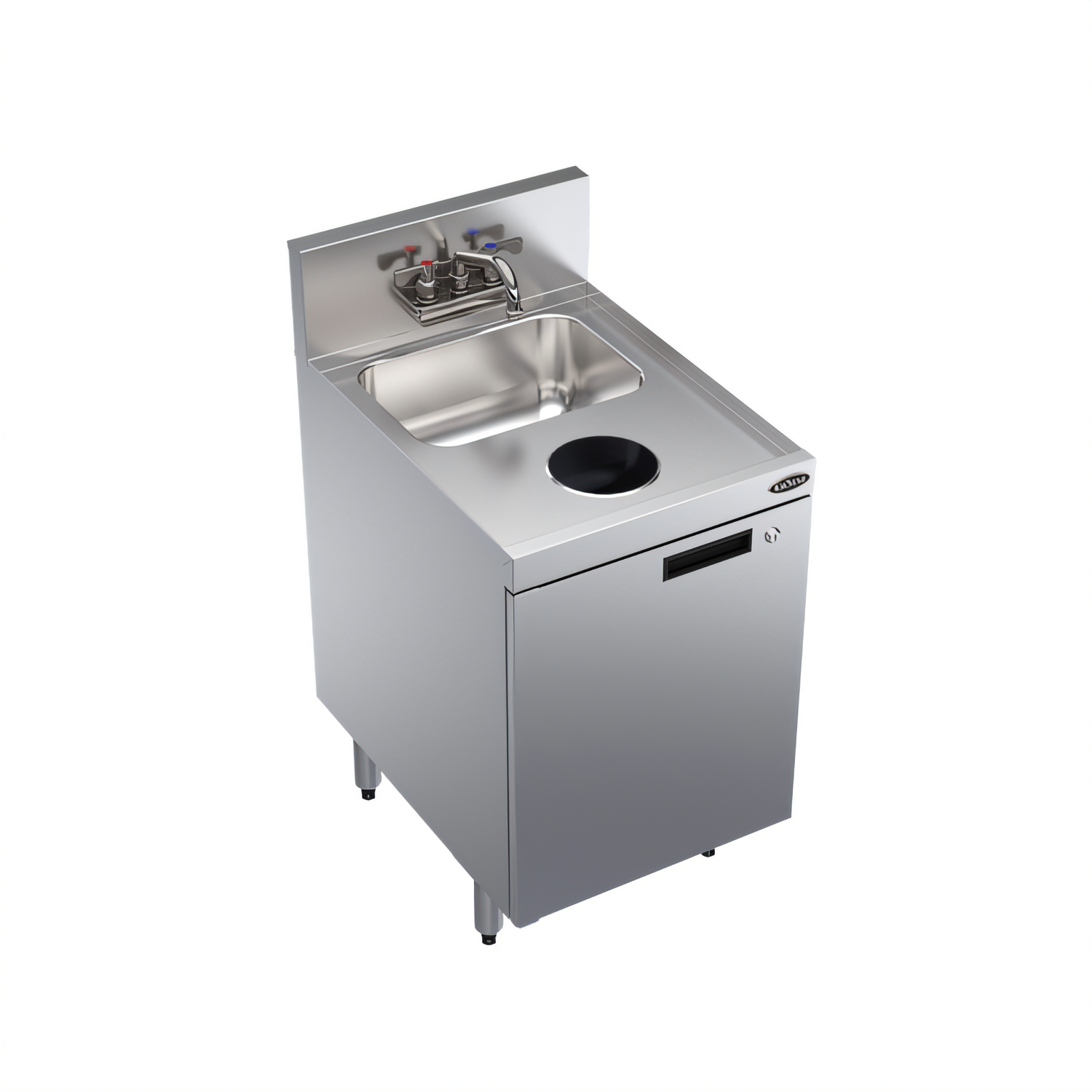

Krowne Royal Series 18" Underbar Waste Sink Cabinet w/ Electronic Faucet

Model KR24-SD18C-E — NSF Listed Dump Sink Unit

Built for high-volume bars, restaurants and tasting rooms, this Royal Series unit combines a 10-inch-deep dump sink, integrated waste chute and lockable storage cabinet in a compact 18" footprint—keeping your beverage station clean, safe and efficient.

Key Features

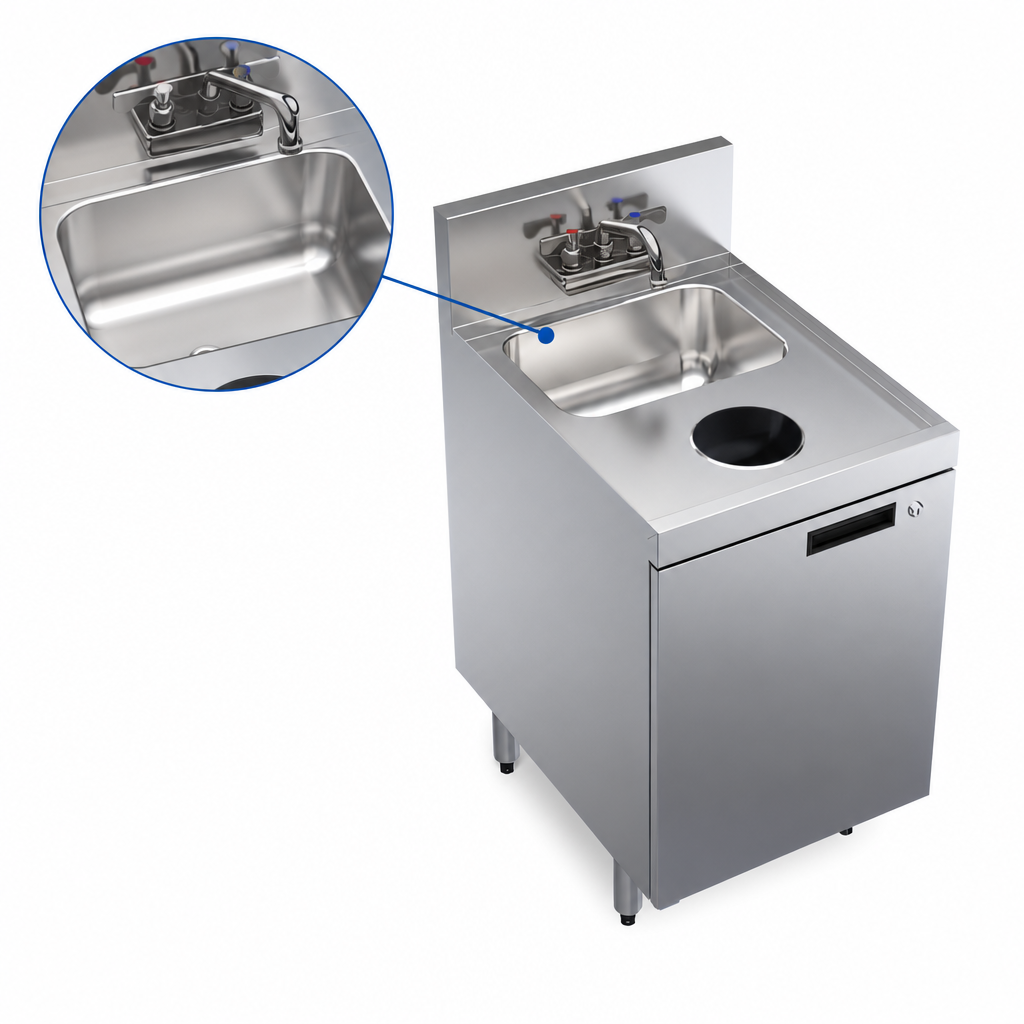

  • 14" W x 10" F-B x 10" D dump sink handles large volumes of ice & liquid waste
  • Splash-mount Royal Series hands-free electronic faucet with 1.8 GPM aerator
  • 6" stainless steel waste chute for quick disposal of cups & garnishes
  • 9" removable overflow standpipe prevents messy overflows

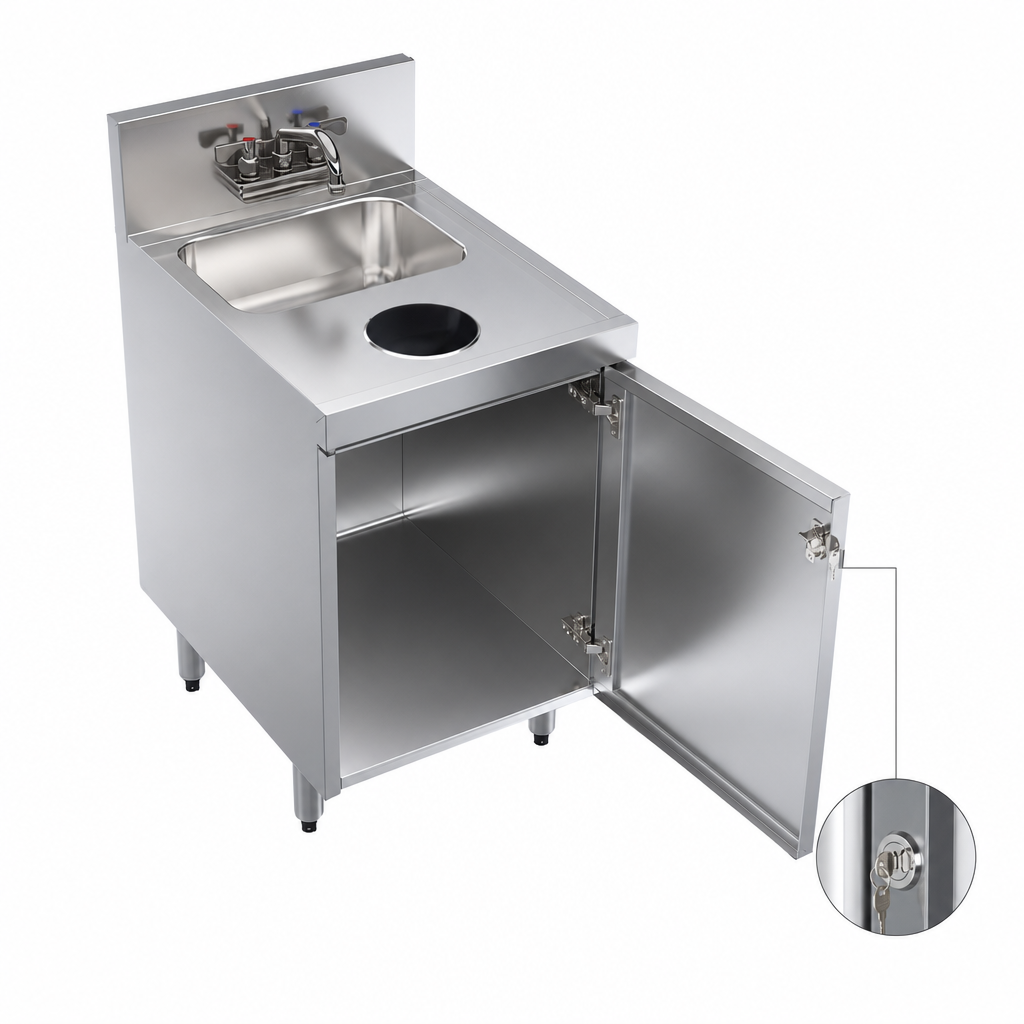

  • Locking hinged door secures chemicals and cleaning supplies
  • 20 ga. stainless steel top, front & sides resist corrosion and dents
  • 16 ga. 1-5/8" Ø stainless legs with adjustable thermoplastic bullet feet
  • Open rear panel for fast, hassle-free plumbing hookups
  • NSF certified for food-service sanitation compliance

Specifications

Overall width 18" (457 mm)
Overall depth 24" (610 mm) — matches 24-series speed rails
Work height 30" deck, 36-1/2" to top of 6-1/2" backsplash
Sink bowl 14" W x 10" F-B x 10" D, 20 ga. stainless, 1" center drain
Faucet Krowne 14-406L-E electronic, 4" centers, 1.8 GPM
Overflow 9" removable standpipe
Waste chute 6" diameter, stainless steel
Cabinet Locking door, open rear for utilities
Material 20 ga. 304 stainless (top/body) & 16 ga. stainless legs
Feet Adjustable thermoplastic bullet feet
Water inlets 1/2" NPT hot & cold
Drain outlet 1" IPS
Shipping weight ≈ 75 lb / 34 kg
Certifications NSF, California Prop 65

Pair this unit with matching Royal Series speed rails, ice bins or hand sinks to create a fully integrated underbar system.

California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

18.0in

Depth

24.0in

Shipping Weight

75.0lbs

Type

free standing

Overall Depth (front - back)

24" - 30"

Overall Width (side - side)

15" - 18"

Bowl Size

14" x 10" front-to-back

Bowl Height

10" deep

Specifications

Royal Series Underbar Waste Sink Unit, cabinet base with locking hinged door, 18"W x 24"D (to match speed rail depth), 14" wide x 10" front-to-back x 10" deep sink, splash mount Royal Series electronic faucet, (1) 9" overflow standpipe, 6" waste chute, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
