Krowne KR24-SD12 Royal Series Bar Equipment
Krowne KR24-SD12 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-SD12 Royal Series Bar Equipment
Description

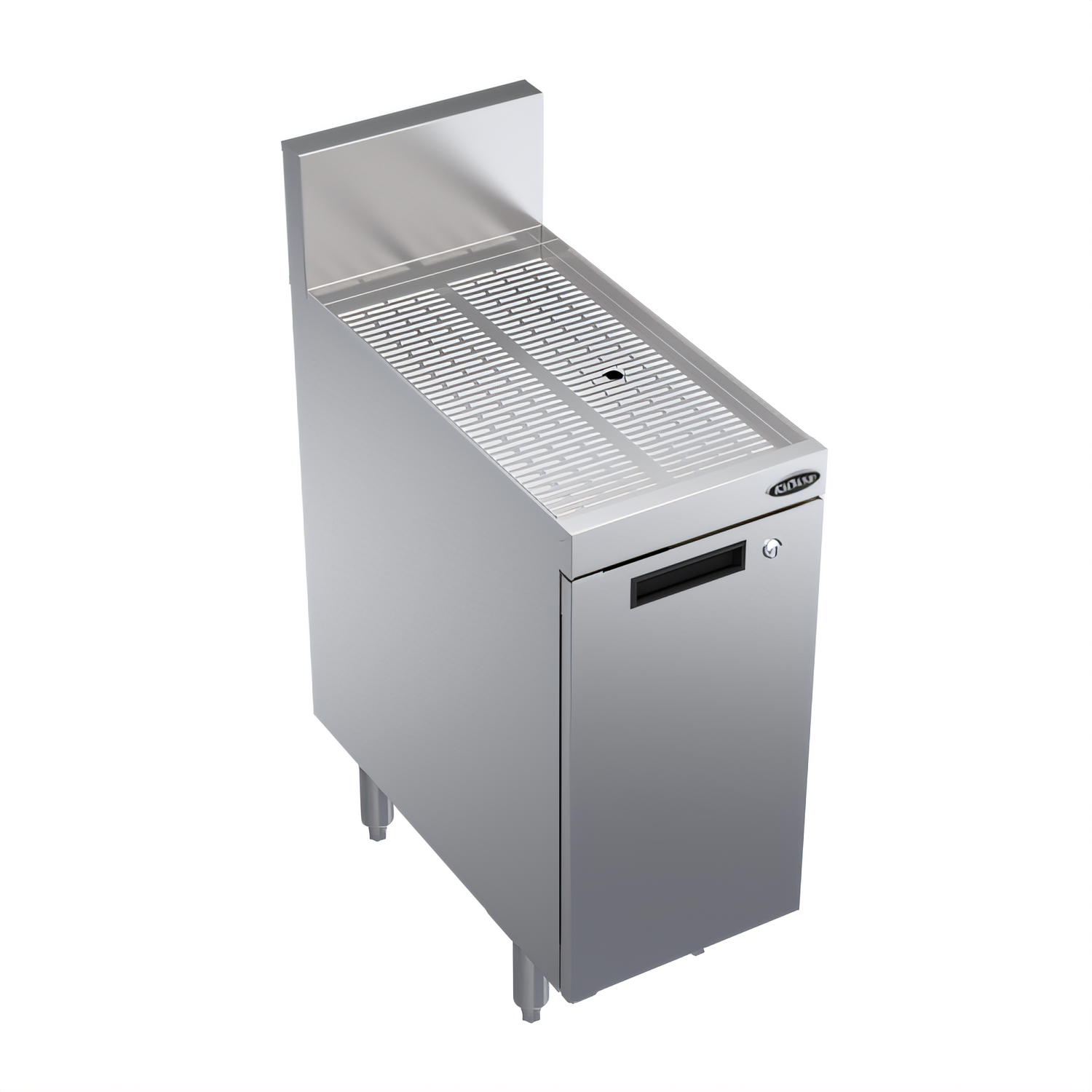

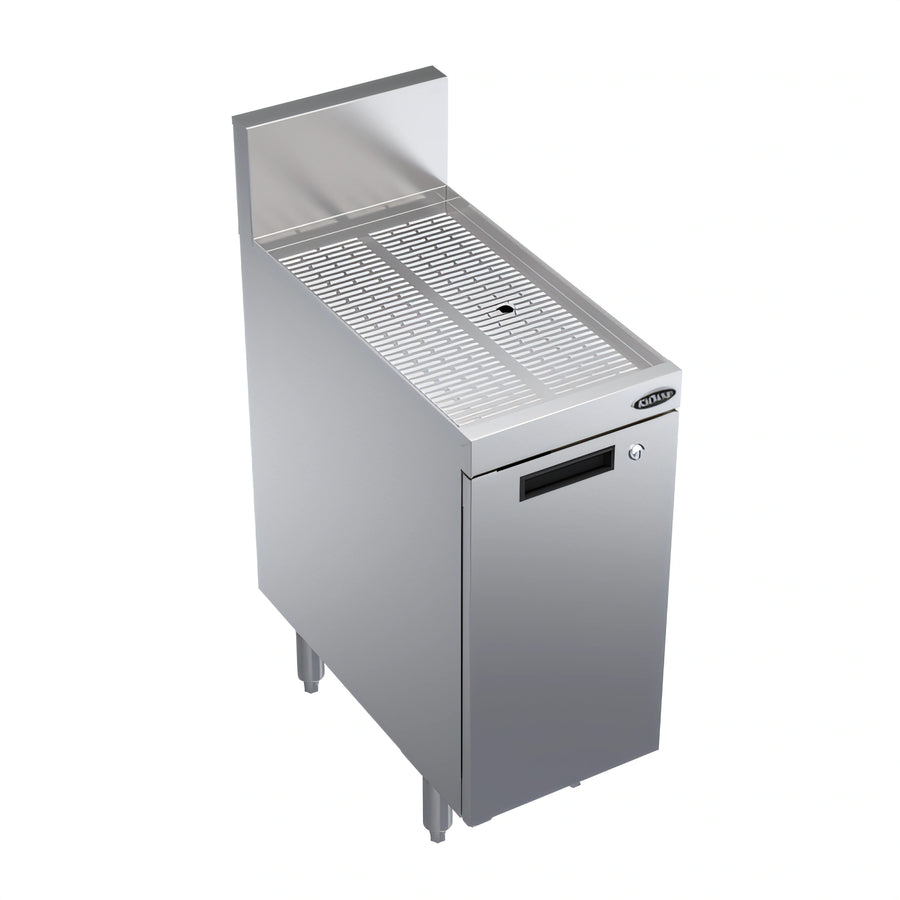

Krowne Royal Series 12" Underbar Drainboard Cabinet
Model KR24-SD12 • NSF ListedBuilt for busy beverage programs that can’t spare an inch of wasted space, the KR24-SD12 combines Krowne’s legendary Royal Series durability with a compact 12" footprint. A fully welded, embossed stainless drainboard top lets glassware air-dry fast, while the locking cabinet base keeps bar tools and chemicals secure and out of sight.
Key Features

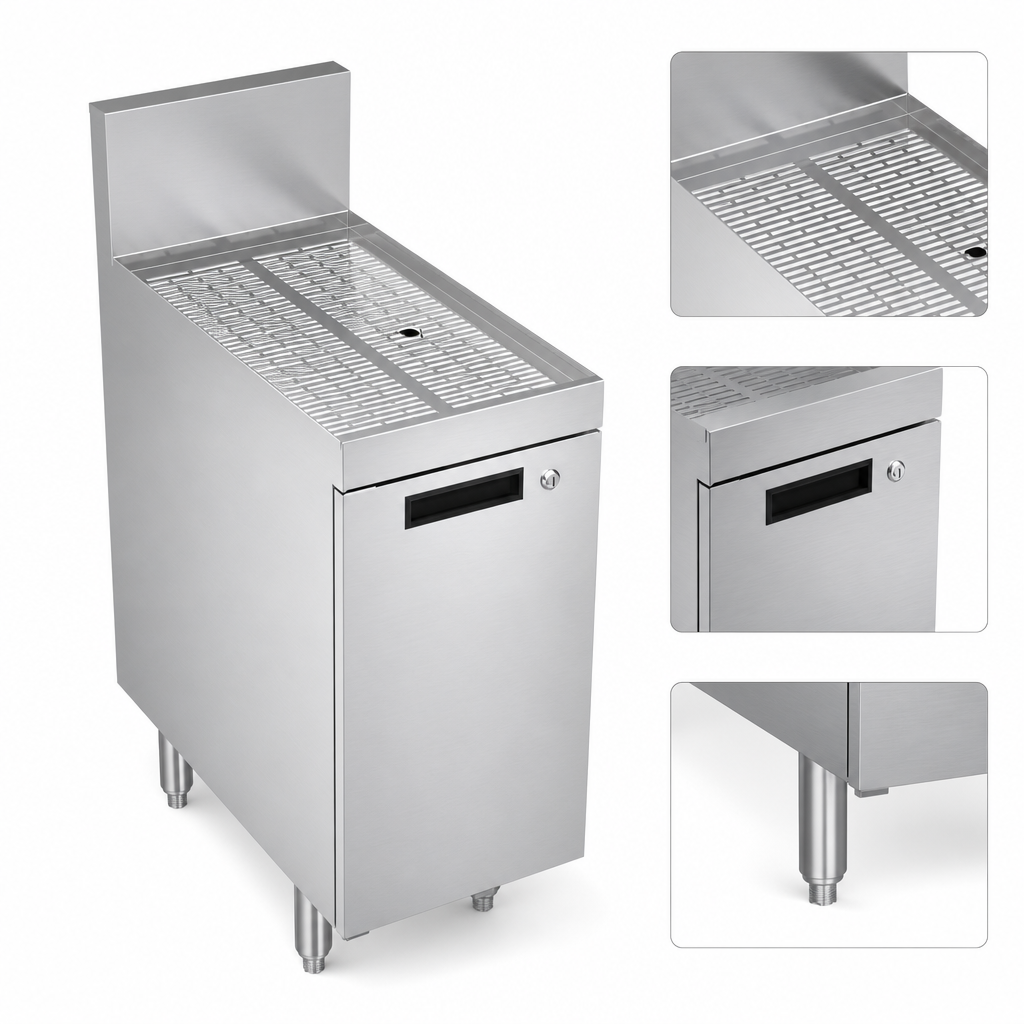

- 20-gauge embossed stainless steel drainboard reinforced with welded braces every 6"
- Stainless steel top, front, sides, back, bottom & 4" backsplash for a seamless, sanitary work surface
- Locking, hinged door (included) keeps contents secure—no add-on kit required
- 1-5/8" dia. 16-gauge stainless legs with adjustable thermoplastic bullet feet for quick leveling
- 3/4" radius front & side edges reduce glassware chipping and speed clean-up
- 1" IPS drain connection simplifies plumbing into your existing bar line
- NSF certification for food-service compliance
Specifications
| Model | KR24-SD12 |
|---|---|
| Overall Length | 12" (305 mm) |
| Overall Depth | 24" (610 mm) |
| Overall Height* | ≈36 1/2" to top of backsplash |
| Cabinet Door(s) | 1 locking, hinged |
| Unit Weight | 60 lb (27 kg) |
| Drain Connection | 1" IPS (female) |
| Material Thickness | 20-ga. body / 16-ga. legs |
*Drawings show nominal height; field-verify as required.
Popular Add-Ons (Sold Separately)
- KR-SS12 stainless middle shelf for added internal storage
- KR24-PE12 perforated insert to turn the drainboard into a handy drying rack
- KR-313, KR-314, KR-315 end splashes to contain water on one or both sides
Upgrade your underbar lineup with the compact power of the Krowne Royal Series—engineered for long life, effortless sanitation, and the fastest ROI in the industry.
