Description

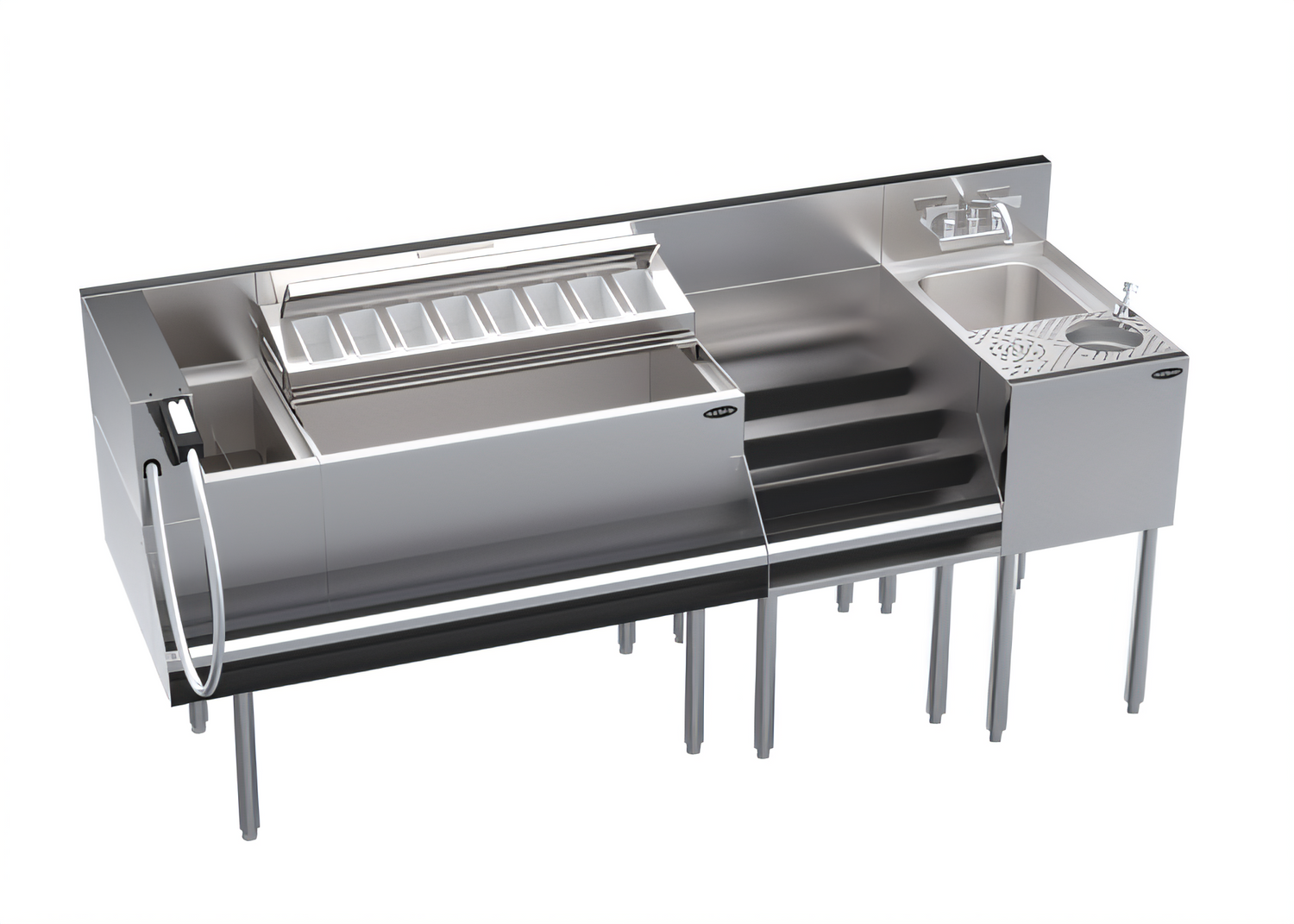

Krowne Royal Series Underbar Workstation – 74"W

All-Inclusive Beverage Production Station

Bring relentless speed and organization to your bar service with this 74-inch Krowne Royal Series Underbar Workstation. Thoughtfully arranged from left to right, every critical task—pouring, rinsing, icing, and displaying—is covered in one seamlessly integrated unit.

Key Features & Workflow

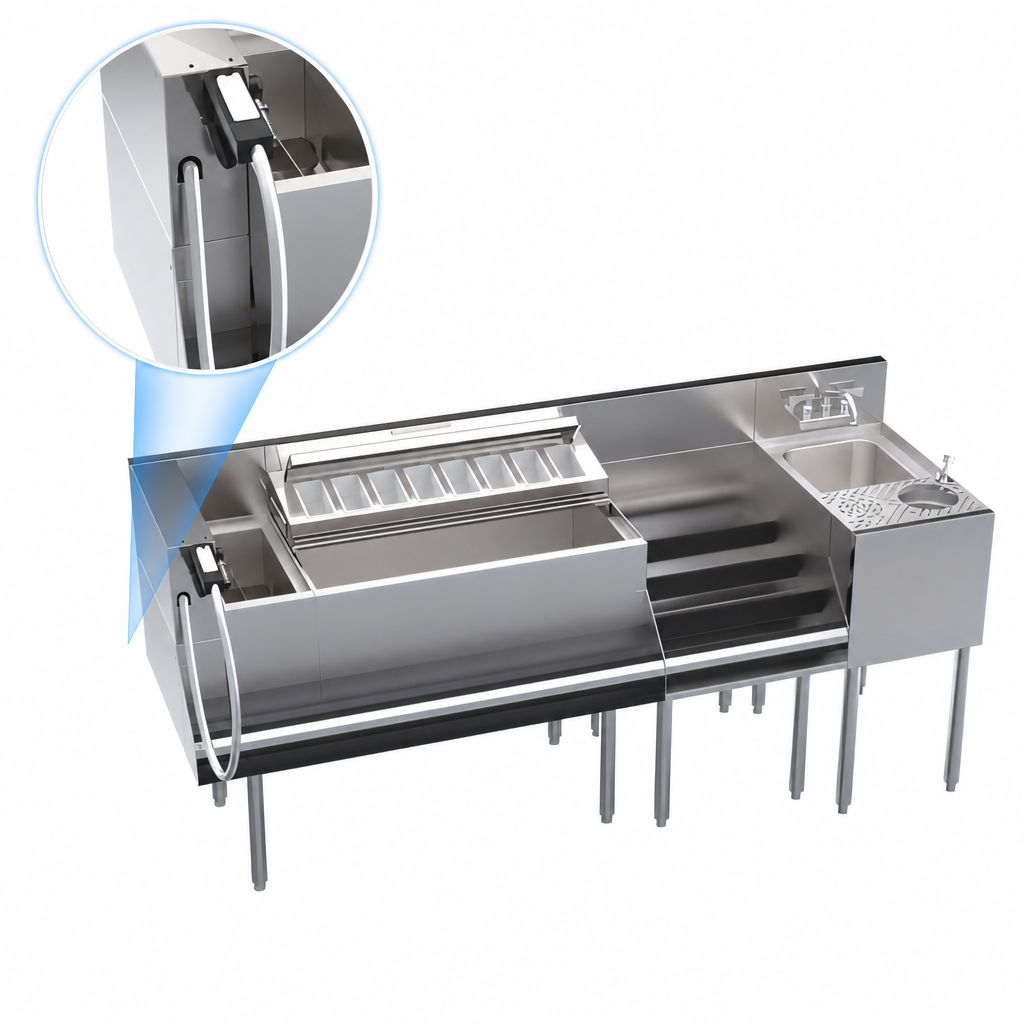

  • 4" soda gun holder keeps dispensers upright and sanitary.

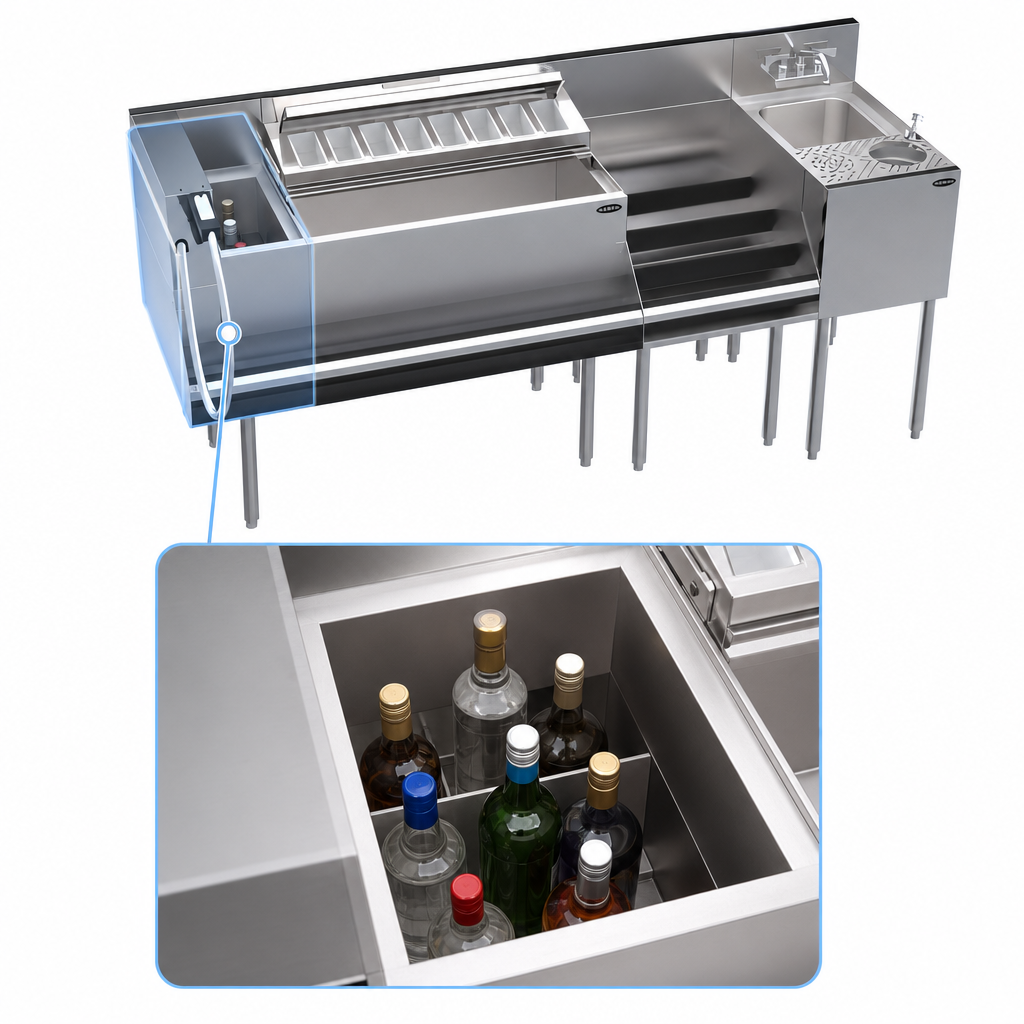

  • 8" insulated bottle section with elixir divider holds juices, mixers, or purées at ideal temperature.
  • 30" wide ice bin with 15" deep liner and 10-circuit cold plate for chilled beverage supply.
  • Sliding garnish tray cover protects fresh fruit and herbs.
  • 18" four-step liquor display puts top-sellers in quick view and reach.
  • 14" speed station/dump sink includes rinser, tool well, faucet, and pressure regulator.
  • 42" sound-deadened speed rail prevents bottle rattle during rush hours.
Built to Last
  • 300-series stainless steel top, front & sides resist corrosion and daily wear.
  • Fully welded construction for long-term structural integrity.
  • Stainless steel legs with adjustable thermoplastic bullet feet for perfect leveling.
  • Sound-deadening treatment in ice bin and speed rail reduces ambient noise.
Specifications
Overall Width 74" / 1880 mm
Overall Depth 24" / 610 mm
Overall Height 36-1/2" / 927 mm
Ice Bin 30"W, 15" deep liner, 10-circuit cold plate
Insulated Bottle Section 8"W with elixir divider
Liquor Display 4-step, 18"W
Dump Sink 14"W with rinser, tool well & faucet (pressure regulator included)
Speed Rail 42" sound-deadened stainless rail
Materials Stainless steel top, front, sides & legs
Feet Adjustable thermoplastic bullet feet
Installation Note: Unit requires connection to cold-water supply and drain. Ensure local plumbing codes are met and backflow prevention devices are installed where required.

Images may show accessories or configurations sold separately. Contact our team for custom layouts or additional Royal Series components.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

37.0in

Width

74.0in

Depth

24.0in

Shipping Weight

300.0lbs

Sink Compartments

(1)

Components (left to right)

soda manifold, ice bin, sink

Depth (front - back) OA

24" - 27"

Construction

stainless steel

Width (side - side) OA

73" - 78"

Specifications

Royal Series Underbar Workstation, 74"W x 24"D, 36-1/2" overall height, from left to right: 4" soda gun holder, 8"W insulated bottle section with elixir bottle divider, 30"W ice bin with 10-cicuit cold plate and 15" deep liner, garnish tray/sliding cover, 18"W 4-step liquor display, 14" speed station/dump sink with rinser and tool well with faucet (pressure regulator included), 42" sound deadened speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet
