Krowne  |  Royal Series  |  SKU: KR24-S30

Krowne KR24-S30 Royal Series Bar Equipment

$1,187.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

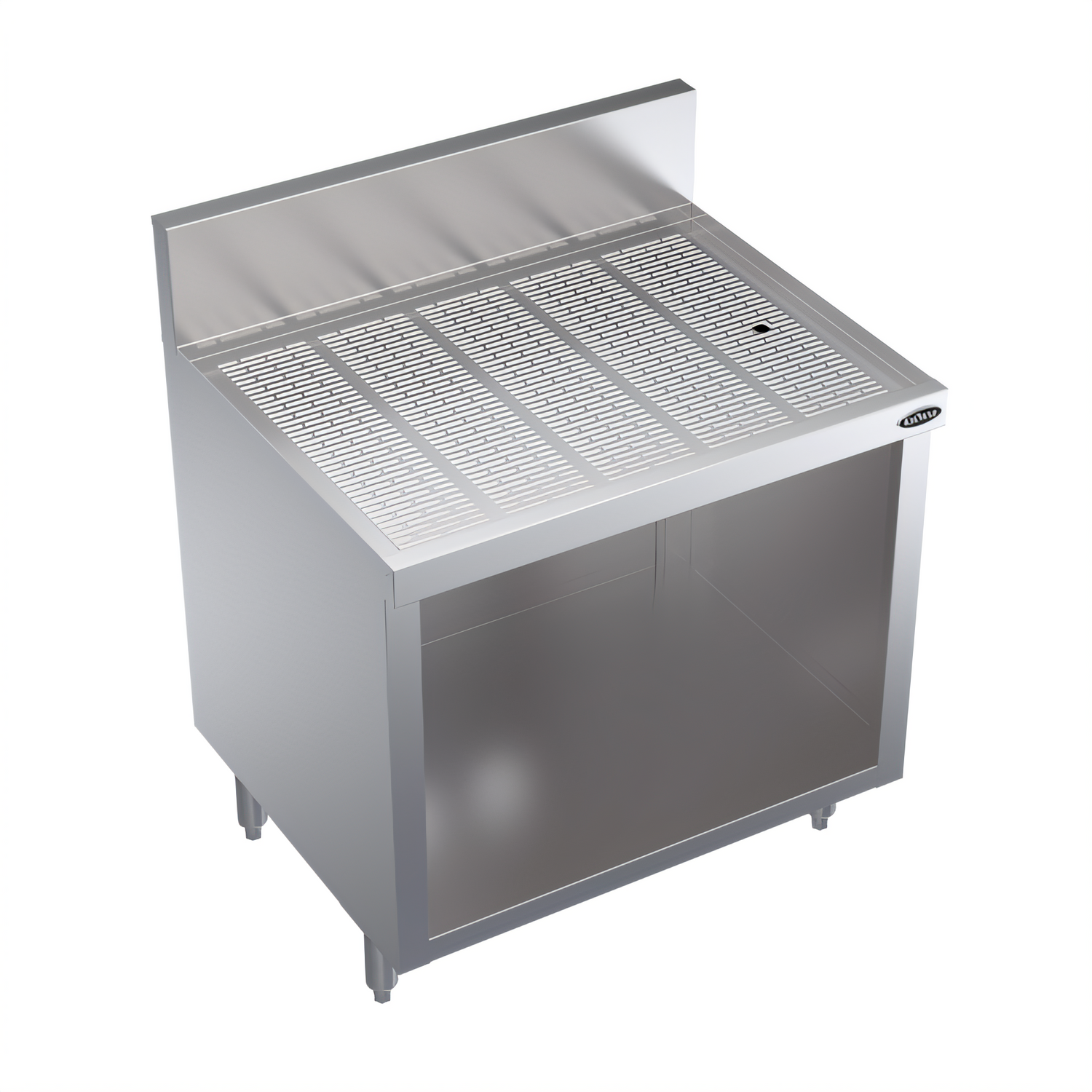

Krowne Royal Series™ 30" Underbar Drainboard Cabinet – Open Base

Model KR24-S30 | 30" W × 24" D | NSF Certified

Ideal for high-volume bars, restaurants and event venues, this Royal Series underbar drainboard delivers dependable drying space plus open-front storage in one compact, all-stainless-steel unit.

Key Advantages

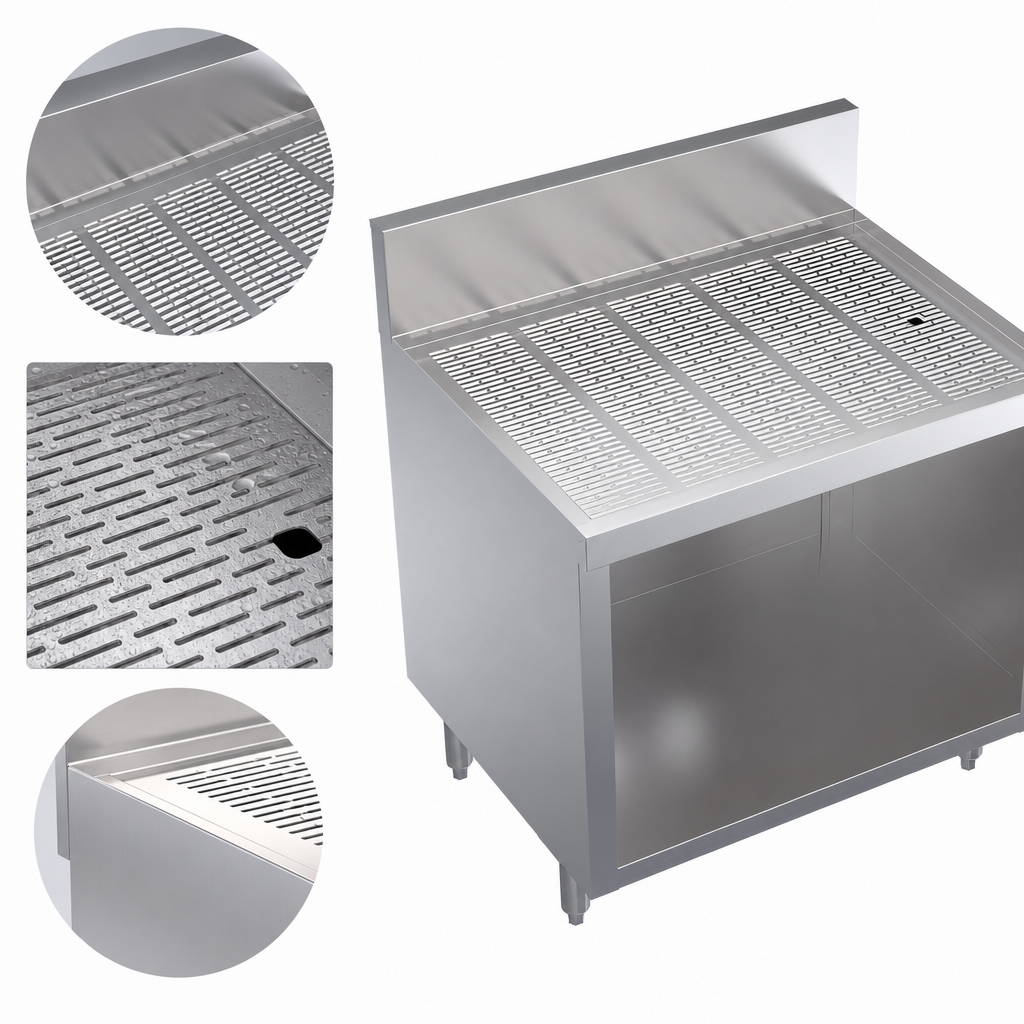

  • 20-gauge embossed stainless steel drainboard reinforced with welded braces every 6".
  • Smooth ¾" radius on all horizontal and vertical edges for safer handling and quick wipe-downs.
  • Open cabinet base keeps bus tubs, chemicals and bar supplies within instant reach.
  • 1-5/8" Ø, 16-gauge stainless steel legs with adjustable thermoplastic bullet feet for rock-solid stability on uneven floors.
  • 1" IPS center drain connection for straightforward plumbing hook-up.
  • NSF listing assures full compliance with food-service sanitation standards.
Specifications
Model KR24-S30 (Open Base)
Overall Width 30" / 762 mm
Overall Depth 24" / 610 mm
Material 20-ga. stainless steel top, front, sides, back & bottom
Legs & Feet 1-5/8" Ø, 16-ga. stainless steel legs with gray thermoplastic bullet feet (height adjustable)
Drain Connection 1" IPS
Approx. Weight 65 lb / 29.5 kg
Certifications NSF
Optional Accessories
  • KR-SS30 – Stainless steel middle shelf (adds an extra storage tier).
  • KR24-PE30 – Perforated drainboard insert for faster air-drying.
  • KR-313 – Left & right end splash kit.
  • KR-314 – Right end splash only.
  • KR-315 – Left end splash only.
Note: The middle shelf, perforated insert and end splashes are sold separately and are not included with the base unit.

Specifications are subject to change without notice as part of Krowne’s continuous product improvement program.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

30.0in

Depth

24.0in

Shipping Weight

65.0lbs

Base Type

open cabinet base

Type

free standing

Width (side - side) OA

25" - 30"

Splash

6"

Depth (front - back) OA

24" - 27"

Specifications

Royal Series Underbar Drainboard with open cabinet base, 30"W x 24"D, embossed drainboard top, open front cabinet base, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF (Midshelf optional, not standard)
