Krowne  |  Royal Series  |  SKU: KR24-S24

Krowne KR24-S24 Royal Series Bar Equipment

$1,080.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

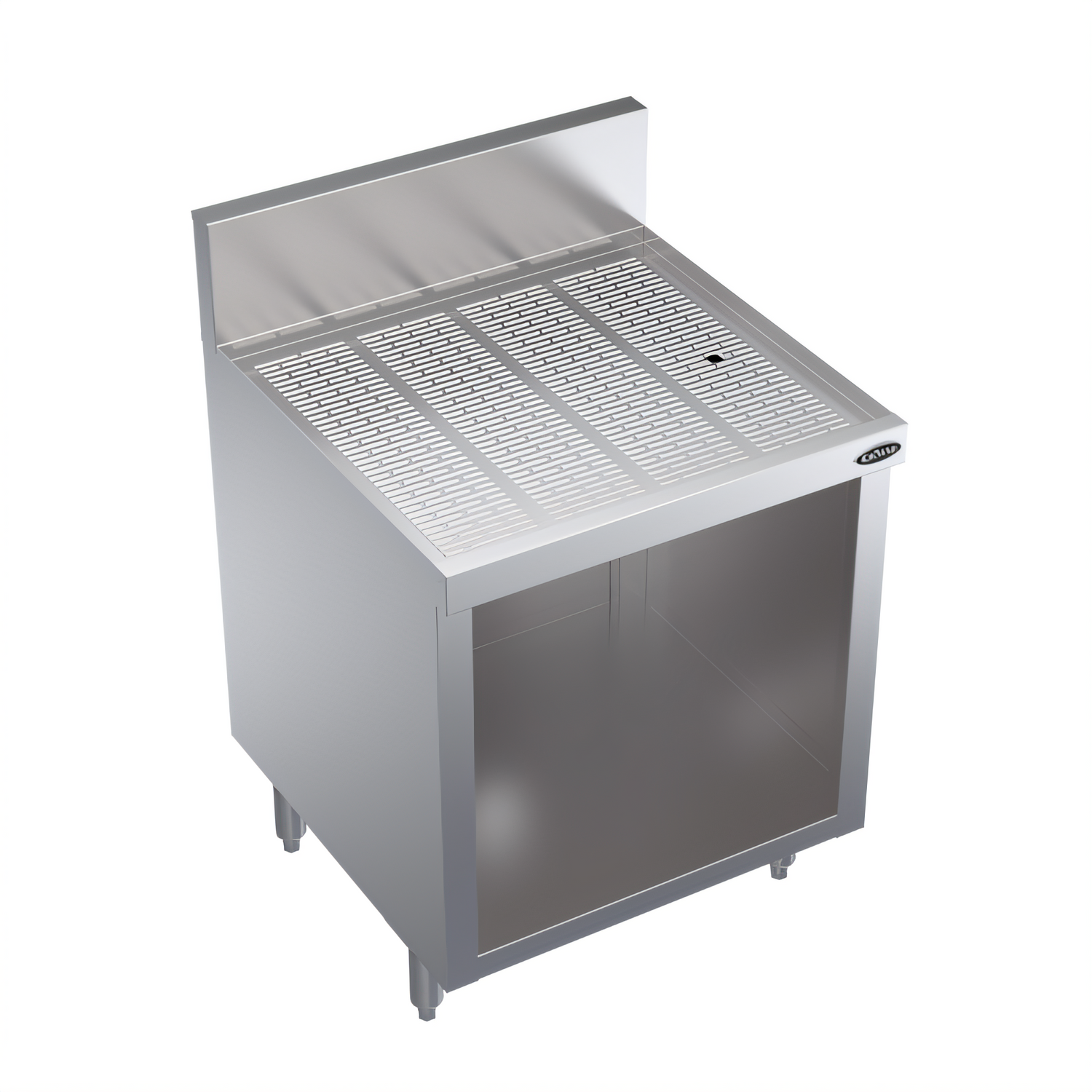

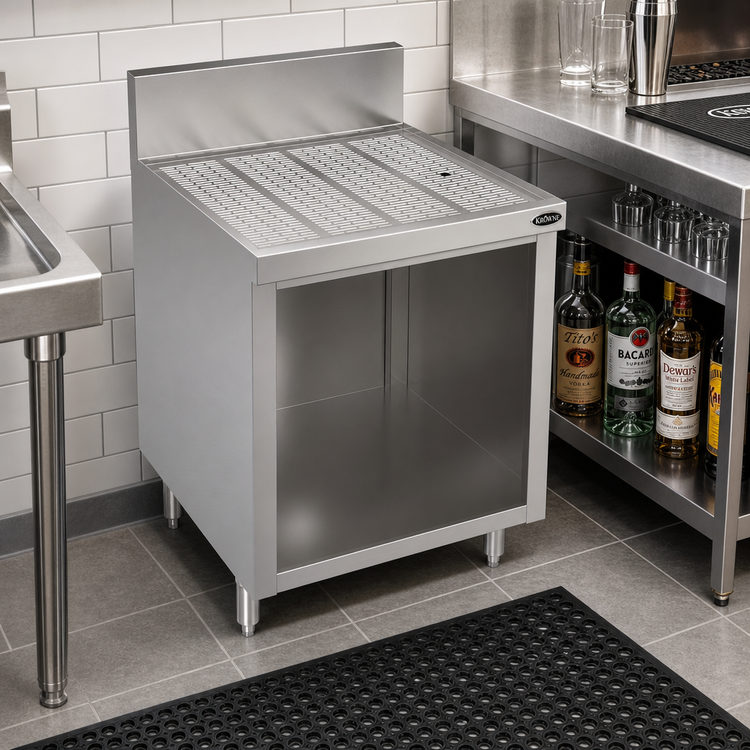

Krowne Royal Series 24" Underbar Drainboard Cabinet – Open Front

Model KR24-S24 | NSF Certified Stainless Steel

Perfectly sized for tight bar layouts, this 24" x 24" Krowne Royal Series drainboard keeps clean glassware draining while offering instant, open-front storage for bus tubs, glass racks, or backup supplies. Built entirely of corrosion-resistant stainless steel, it’s the durable, easy-clean workhorse every busy bar needs.

Key Features

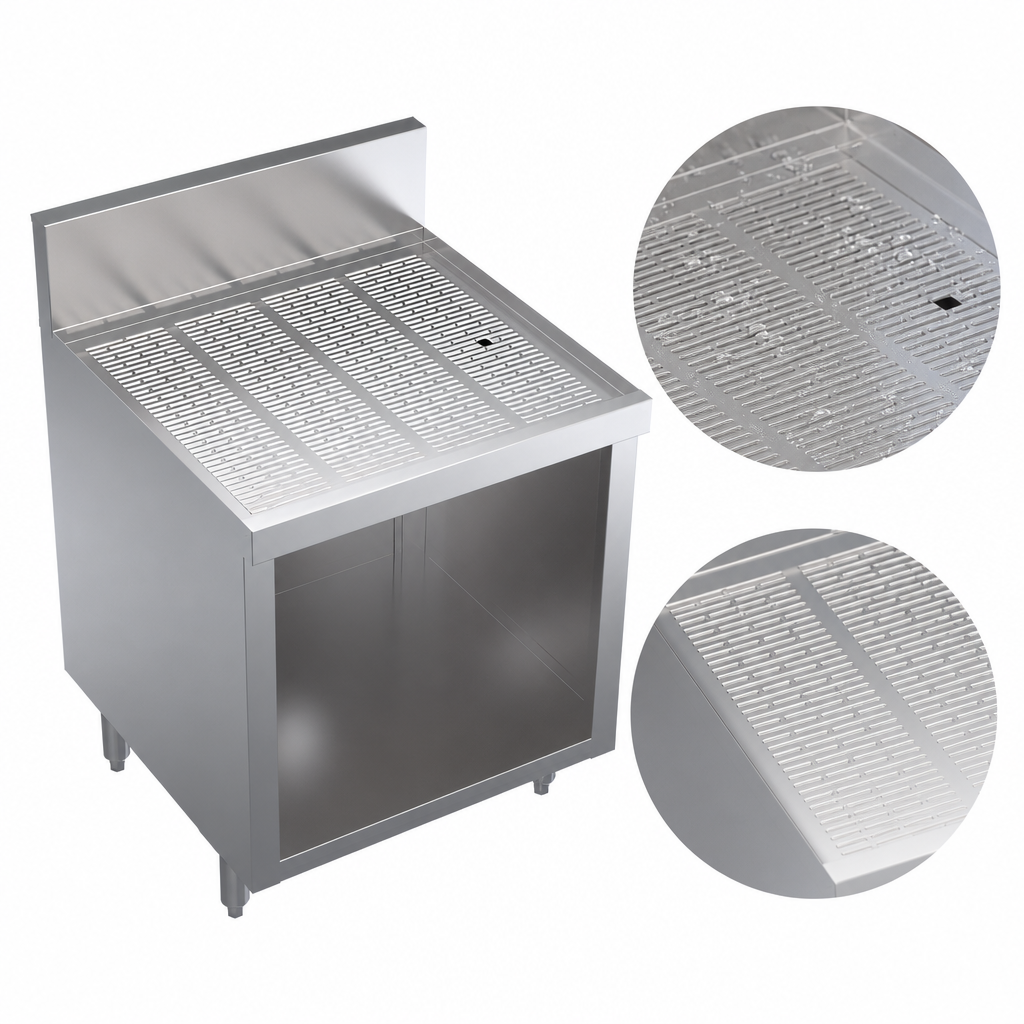

  • 20-gauge embossed stainless steel drainboard top reinforced with welded braces every 6"
  • 3/4" radius vertical & horizontal edges for quick, sanitary wipe-downs
  • Open front cabinet base for unrestricted access to stored items
  • All exposed surfaces—top, front & sides—are stainless steel
  • 1-5/8" Ø, 16-gauge stainless steel legs with adjustable gray thermoplastic bullet feet
  • 1" IPS drain connection for fast hook-up to your bar plumbing
  • NSF listed for assured food-service safety and cleanliness

Specifications

Series / Model Royal Series / KR24-S24
Overall Dimensions 24" W x 24" D x 36 1/2" H (work surface)
Cabinet Style Open front (no doors)
Drainboard Top Embossed 20-gauge stainless steel
Edge Profile 3/4" radius on all edges
Material Thickness Top / Front / Sides: 20-gauge stainless steel
Drain Connection 1" IPS
Legs / Feet 1-5/8" Ø, 16-gauge stainless legs with adjustable thermoplastic bullet feet
Approx. Weight 60 lb
Certifications NSF

Compatible Accessories (Sold Separately)

  • KR-SS24 – Stainless steel middle shelf for added vertical storage
  • KR24-PE24 – 24" perforated drainboard insert to elevate glassware
  • KR-313 / KR-314 / KR-315 – End splash kits (left, right, or both) to contain water spray
Heads-Up: The middle shelf, perforated insert and end splash kits are optional accessories and are not included with the base unit.

Need a different size or a full underbar line-up? Contact our team for expert configuration assistance with the complete Krowne Royal Series.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

24.0in

Depth

24.0in

Shipping Weight

60.0lbs

Type

free standing

Base Type

open cabinet base

Depth (front - back) OA

24" - 27"

Width (side - side) OA

19" - 24"

Splash

6"

Specifications

Royal Series Underbar Drainboard with open cabinet base, 24"W x 24"D, embossed drainboard top, open front cabinet base, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF (Midshelf optional, not standard)
