Description

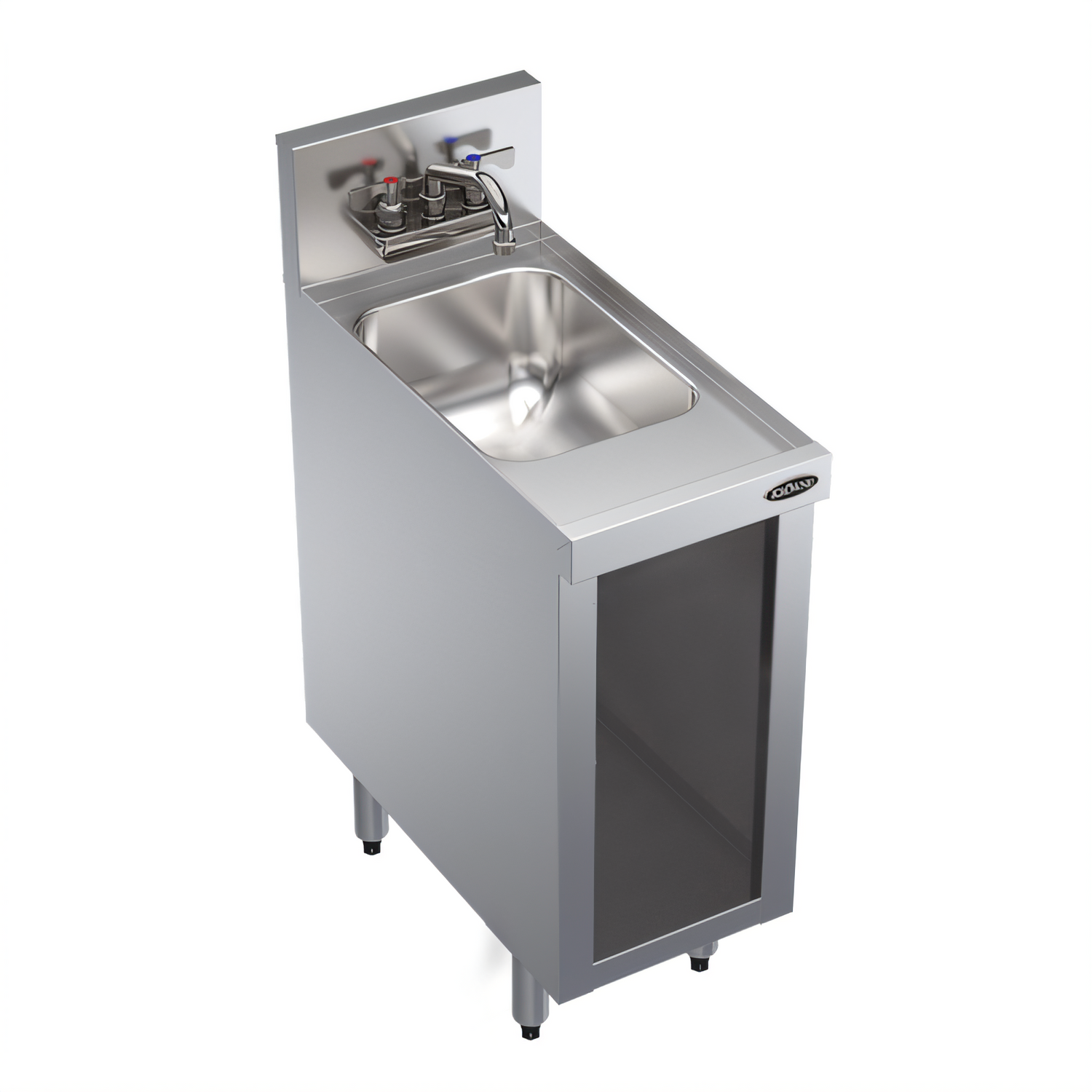

Krowne Royal Series 12" Underbar Hand Sink Unit

Model KR24-S12C • Open-Front Cabinet Base

Keep sanitation front and center—without surrendering precious bar space. The Krowne Royal Series underbar hand sink delivers a full-size wash station in a slim 12-inch footprint, matching the depth of standard speed rails for a seamless install.

Key Features
  • Space-saving 12" W x 24" D design aligns perfectly with 24" deep bar layouts.
  • Roomy 10" × 14" × 10" deep bowl supports thorough hand washing and quick glass rinsing.
  • Splash-mount Royal Series faucet on 4" centers with 1.8 GPM aerator.
  • Included 9" overflow standpipe safeguards against accidental over-fills.

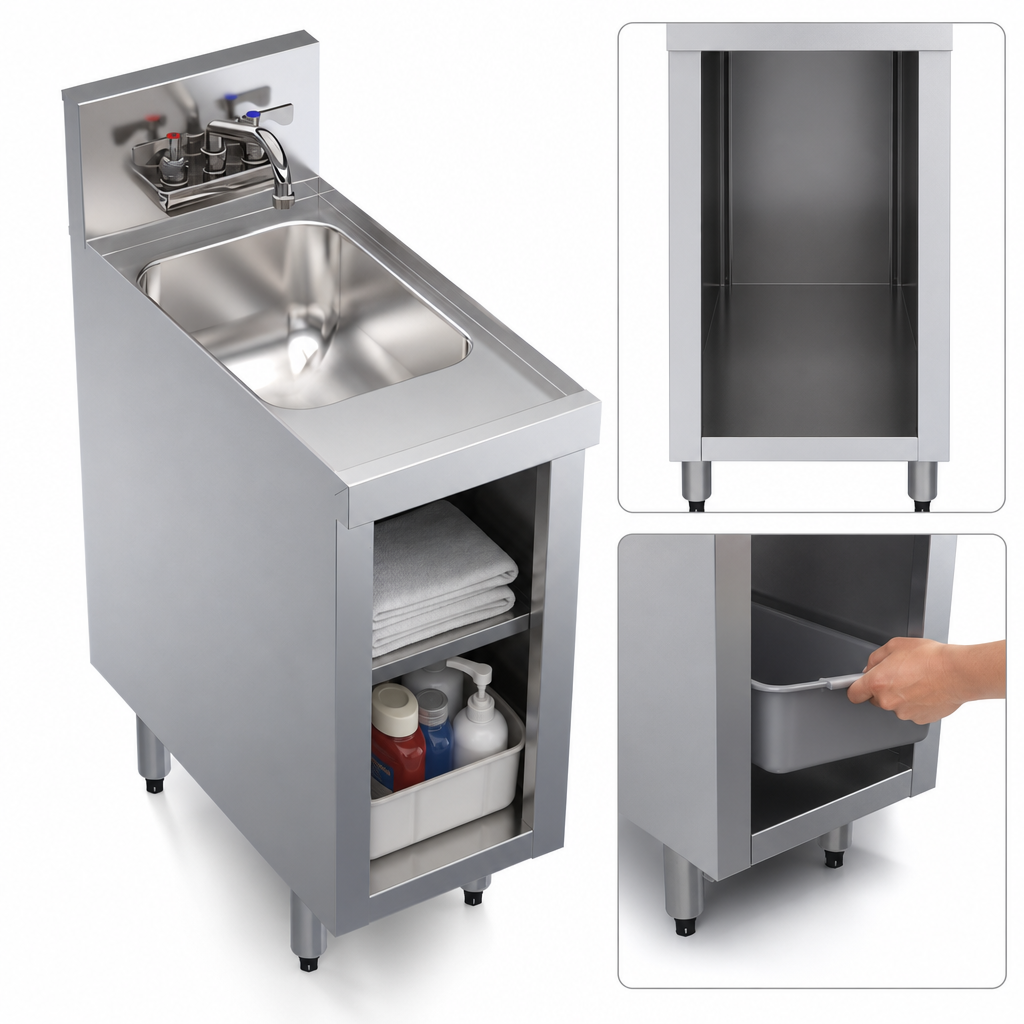

  • Open-front cabinet offers instant access to plumbing and convenient chemical storage.

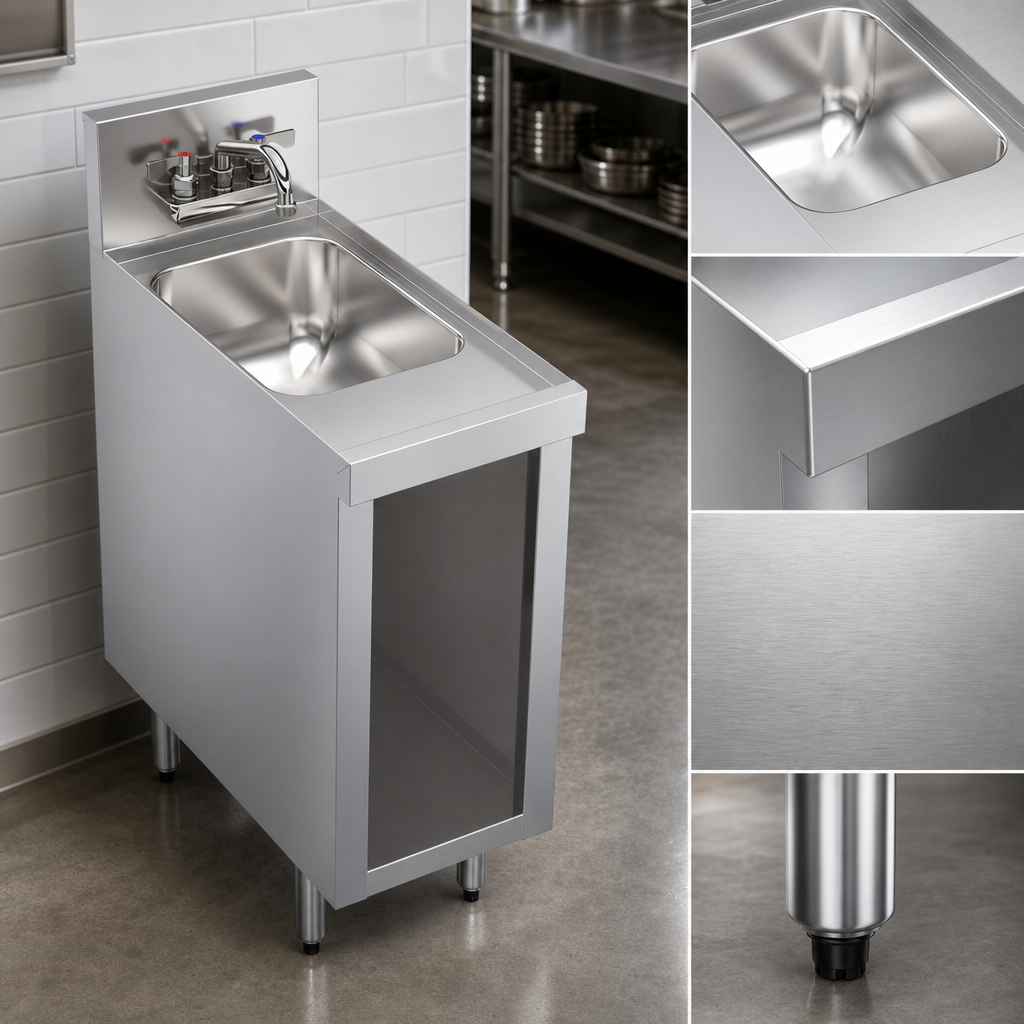

  • 20 ga. stainless steel top, front and sides resist corrosion in harsh bar environments.
  • 16 ga. tubular stainless steel legs with adjustable thermoplastic bullet feet for fast leveling.
  • 6-1/2" high, 1-1/2" deep backsplash keeps adjacent work areas dry.
  • NSF listed for safe, sanitary operation.
Specifications
Overall Width 12" (305 mm)
Overall Depth 24" (610 mm)
Overall Height 36" – 37" (adjustable)
Bowl Dimensions 10" W × 14" F-B × 10" D
Backsplash 6-1/2" H × 1-1/2" D
Faucet Royal Series 14-406L (4" centers, 1.8 GPM aerator)
Water Connections 1-1/2" hot & cold
Drain Connection 1" IPS with 9" standpipe
Material Thickness 20 ga. (top) / 16 ga. (legs)
Certifications NSF, California Prop 65
Approx. Ship Weight 50 lb (22.7 kg)
Ideal Applications

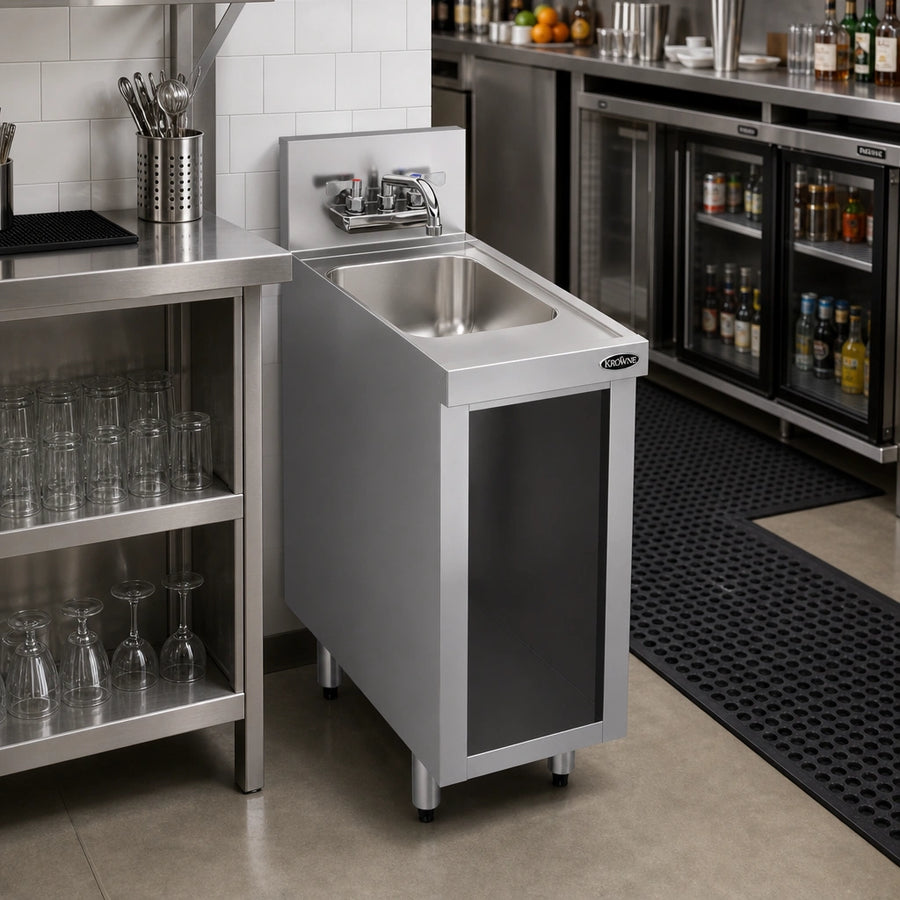

  • Behind-the-bar hand-wash station
  • Coffee bars and brewery taprooms
  • Food trucks & mobile concessions
  • Catering build-outs needing a narrow NSF sink
California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Specifications are subject to change without notice as part of Krowne’s commitment to continuous improvement.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

12.0in

Depth

24.0in

Shipping Weight

50.0lbs

Bowl Size

10" x 14" front-to-back

Type

free standing

Overall Depth (front - back)

24" - 30"

Bowl Height

10" deep

Overall Width (side - side)

12" - 14"

Specifications

Royal Series Underbar Hand Sink Unit, open front cabinet base, 12"W x 24"D (to match speed rail depth), 10" wide x 14" front-to-back x 10" deep sink compartment, splash mount Royal Series faucet, (1) 9" overflow standpipe, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
