Krowne  |  Royal Series  |  SKU: KR24-MX84

Krowne KR24-MX84 Royal Series Bar Equipment

$9,367.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

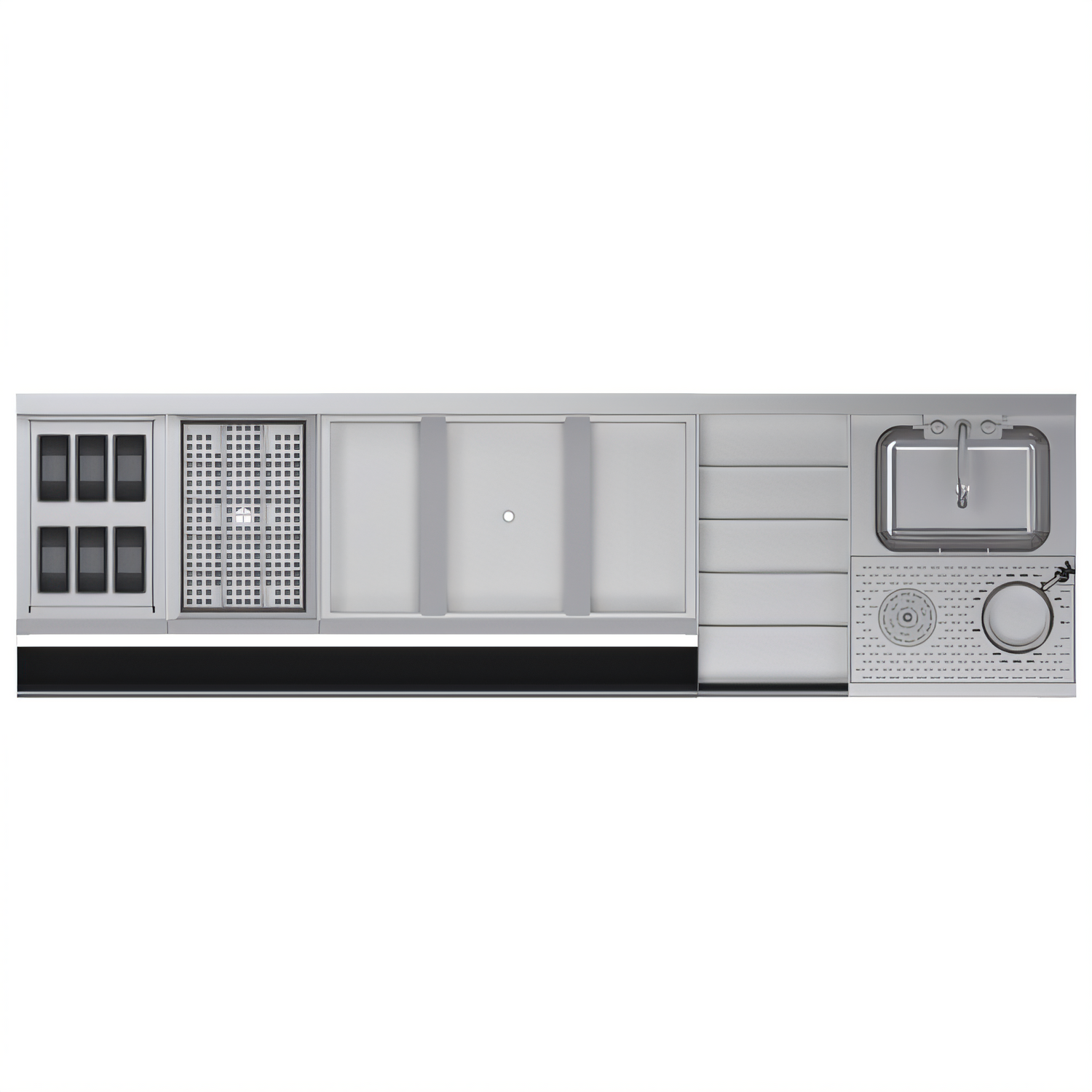

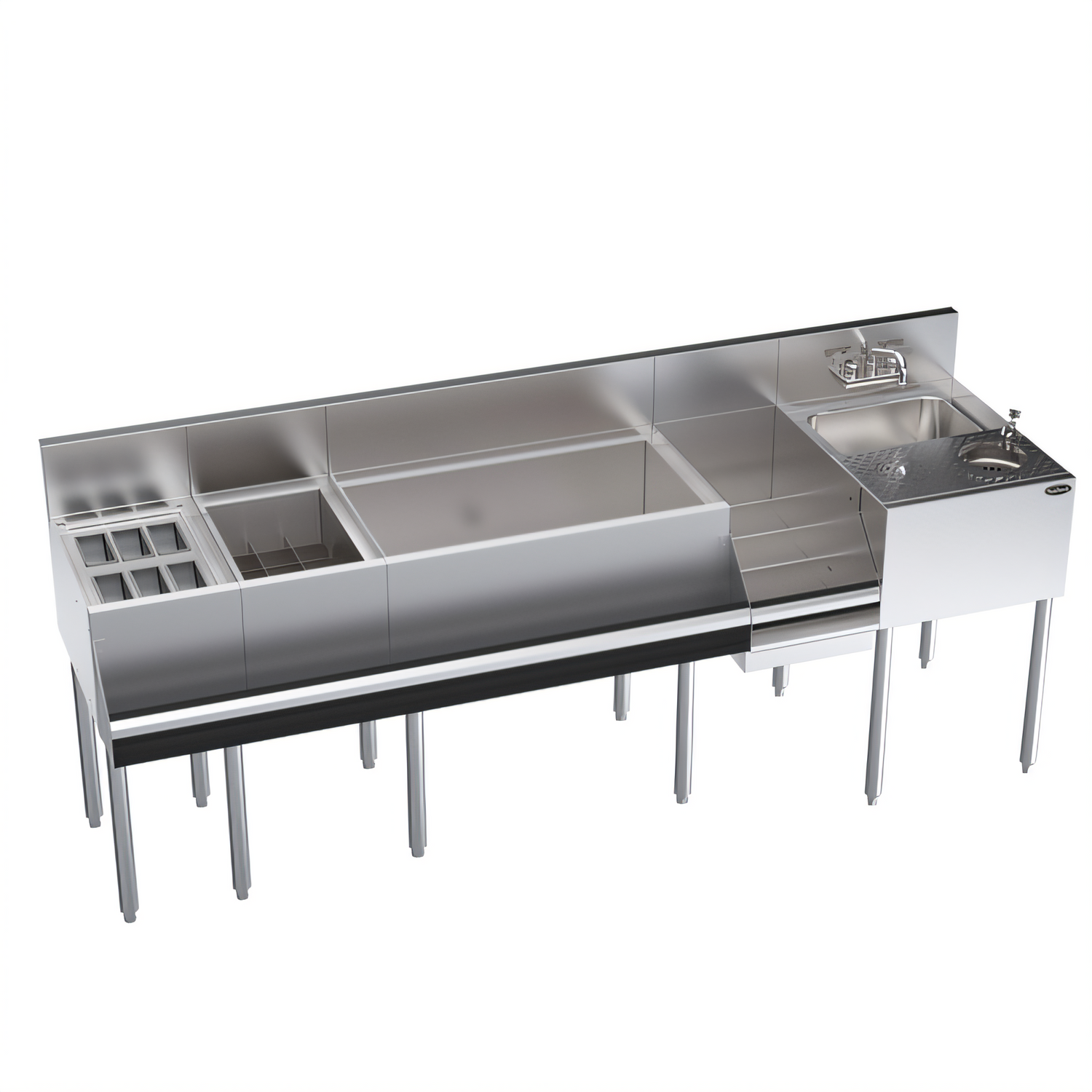

Krowne Royal Series 84″ Zero-Step Speed Station

Model KR24-MX84  |  NSF & ETL-Sanitation Listed

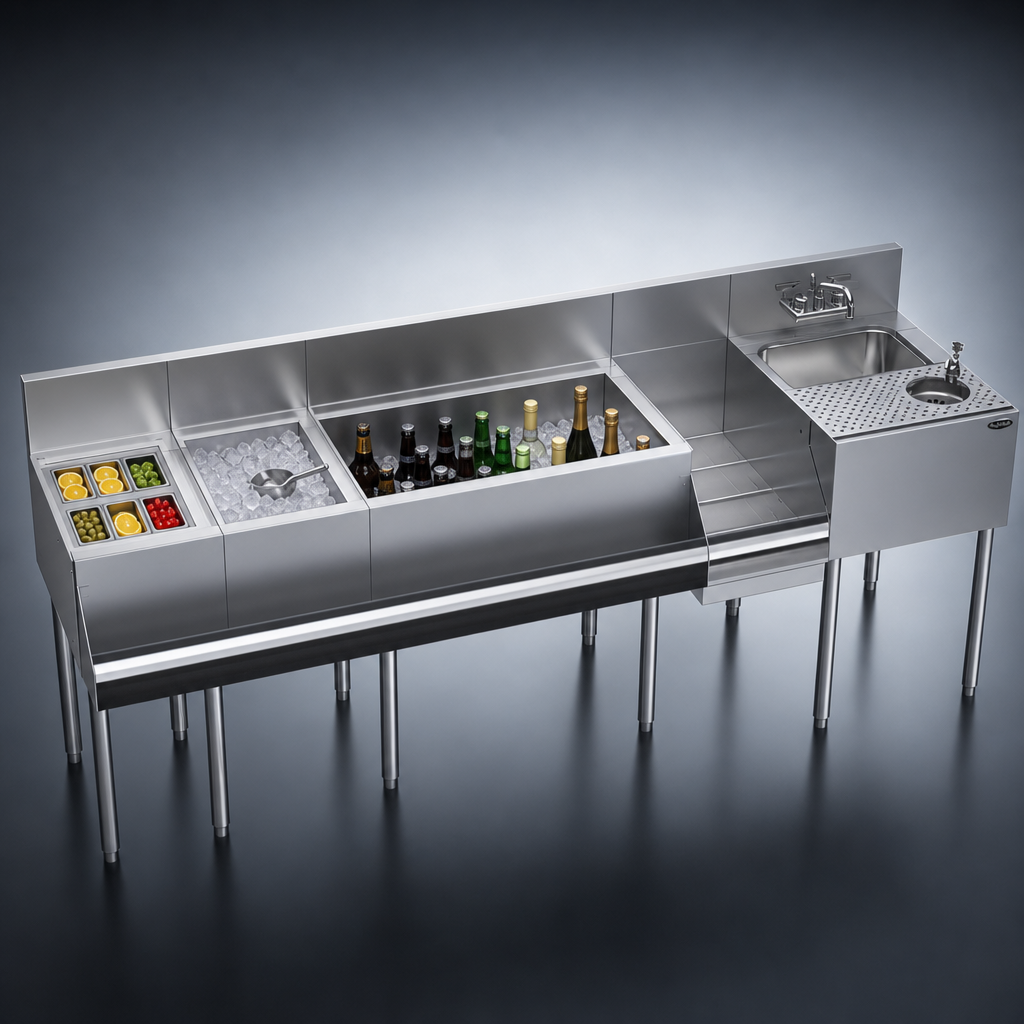

Engineered around the “zero-step” bartending philosophy, this 84-inch Krowne Royal Series workstation keeps ice, sinks, rinse tools, bottles and garnishes inside a single 24-inch-deep footprint—so bartenders never waste a step or drink-making momentum.

Performance-Driven Features

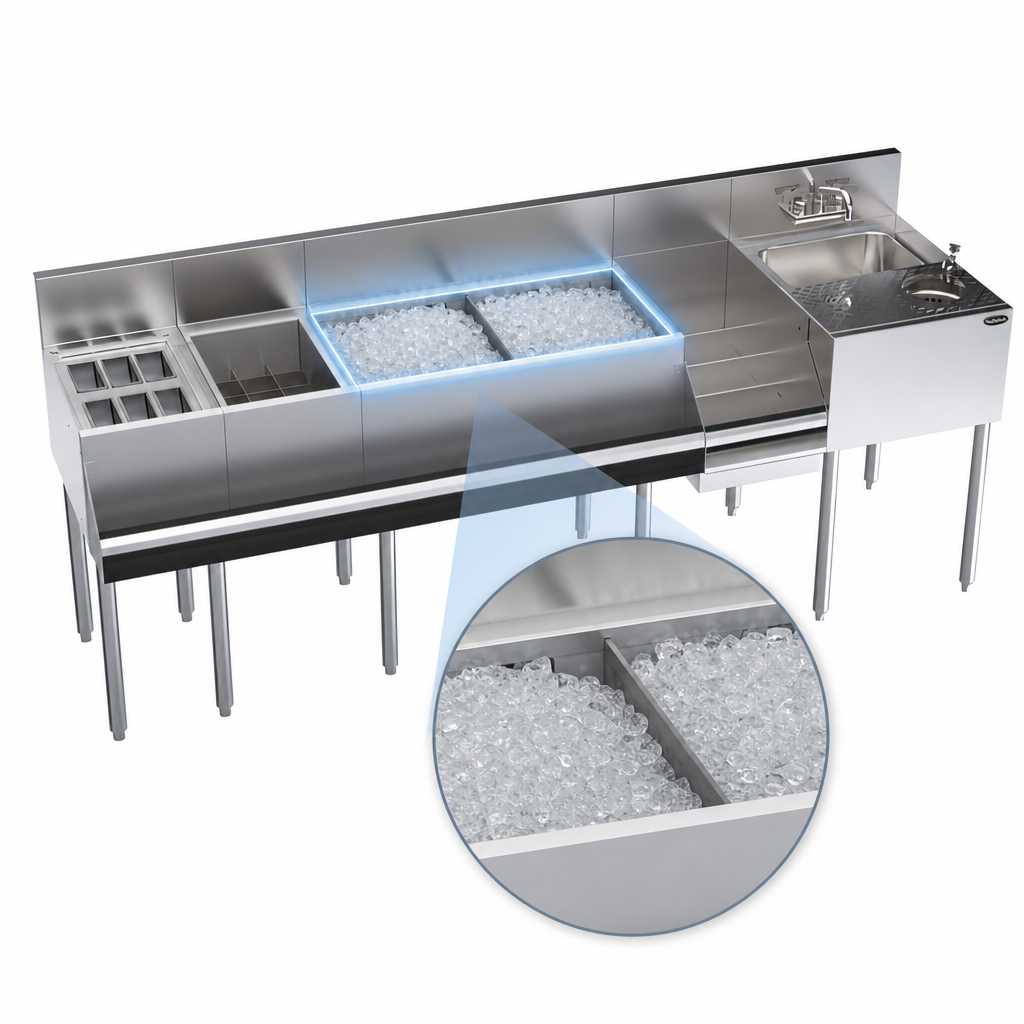

  • 30″ insulated ice bin stores 92 lb of ice and includes (2) removable dividers for different ice styles.
  • Push-down glass rinser with built-in pressure regulator instantly chills or rinses stemware.
  • Tool well with continuous-flow dipperwell faucet keeps utensils sanitary and ready.
  • Hand sink: 12″ × 10″ × 7″ deep, supplied with a splash-mount Royal Series faucet (4″ centers).
  • 12″ dump sink topped by a flush-mounted, non-slip cutting board for rapid garnish prep.
  • Removable garnish station holds (6) pint cups beneath an integrated cover.
  • Insulated elixir section with stainless dividers & perforated bottom chills up to 15 modifier bottles without dilution.
  • Five-tier liquor display presents up to 30 bottles with maximum label visibility.
  • Full-length single speedrail positions your fastest movers right at the bartender’s fingertips.
  • 20-ga stainless steel interior, apron & 6-1/2″ backsplash; galvanized back & bottom for extra rigidity.
  • 1-5/8″ stainless steel tubular legs with adjustable plastic bullet feet ensure stability on uneven floors.
  • Ships in sections under 7 ft for hassle-free delivery through tight doorways.
Specification Summary
Overall Width 84″ / 2134 mm
Front-to-Back Depth 24″ / 610 mm
Working Height 36-1/2″ / 927 mm (to deck)
Ice Bin Capacity 92 lb / 41.7 kg
Ice Bin Size 30″ W (with 2 dividers)
Hand Sink Bowl 12″ W × 10″ L × 7″ D
Garnish Cups 6 pint-size cups (removable)
Elixir Bottles 15-bottle capacity
Liquor Display 5 tiers / 30 bottles
Approvals NSF, ETL-Sanitation
Primary Materials Stainless steel interior, apron & backsplash; galvanized back & bottom

Looking for integrated post-mix cold plates? See model KR24-MX84-10.

Plumbing Requirements: 1/2″ IPS hot & cold water, 1-1/2″ IPS sink drain, 1″ IPS ice-bin drain and 1/2″ NPS dipperwell drain (supplied by others).

Upgrade your bar with the Krowne Royal Series Zero-Step Speed Station—where every component is exactly where your bartender needs it for unmatched speed and efficiency.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

84.0in

Depth

24.0in

Shipping Weight

286.0lbs

Working Height

30" working height

Width (side - side) OA

79" - 84"

Depth (front - back) OA

24"

Ice Bin Location

ice bin - center

Splash

6" splash

Cold Plate

without cold plate

Construction

stainless steel & galvanized

Ice Capacity

95 lbs.

Blender Unit Type

with sink

Specifications

Royal Series Single Zero-Step Speed Station, 84"W x 24"D, (1) 12" x 10" x 7" deep sink bowl, splash mount Royal Series faucet, 12" dump sink with flush mounted cutting board, high-performance push-down glass rinser with pressure regulator & dipperwell with faucet, single speedrail, 30" ice bin, 92 lbs. ice capacity, (2) ice bin dividers, removable garnish station with integrated cover & pint cups, (6) garnish cup capacity, insulated elixir section with stainless steel dividers & perforated bottom, (15) elixir bottle capacity, 5-tier liquor display, (30) liquor bottle capacity, stainless steel interior, stainless steel front apron & backsplash, galvanized steel back & bottom, stainless steel legs with plastic bullet feet, NSF, ETL-Sanitation
