Krowne KR24-MX84-10 Royal Series Bar Equipment
$10,936.20
Unit price
/
Unavailable
Description

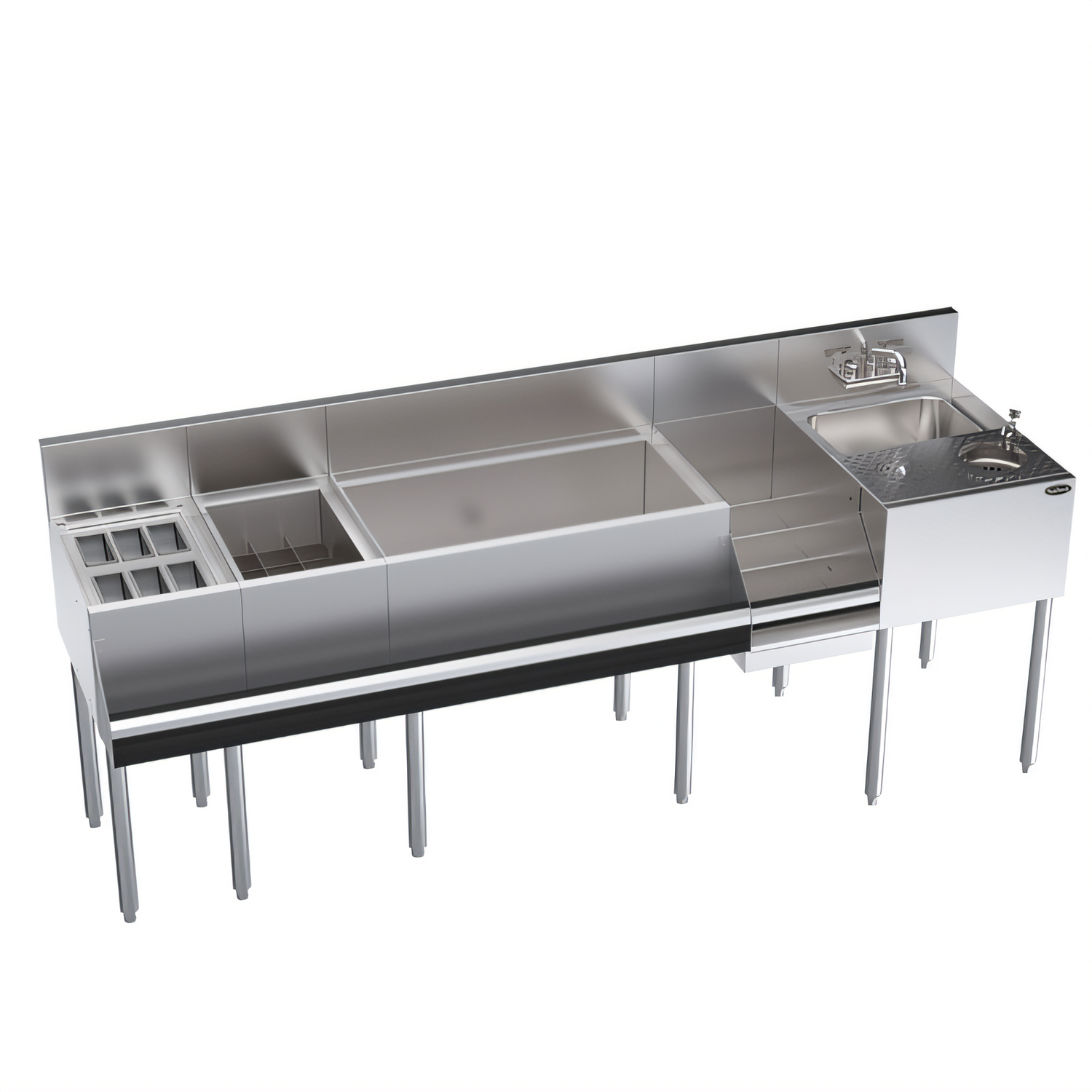

Krowne Royal Series Zero-Step Speed Station – 84" w/ 10-Circuit Cold Plate
Model KR24-MX84-10Give your bartenders everything they need within a single pivot. This 84" Royal Series Zero-Step workstation blends ice-cold beverage service, organized bottle storage, rapid rinsing and efficient waste management in one compact, NSF-listed station.
Why It Stands Out
- Zero-Step layout keeps garnish, liquor, ice, rinse and dump zones all within arm’s reach.

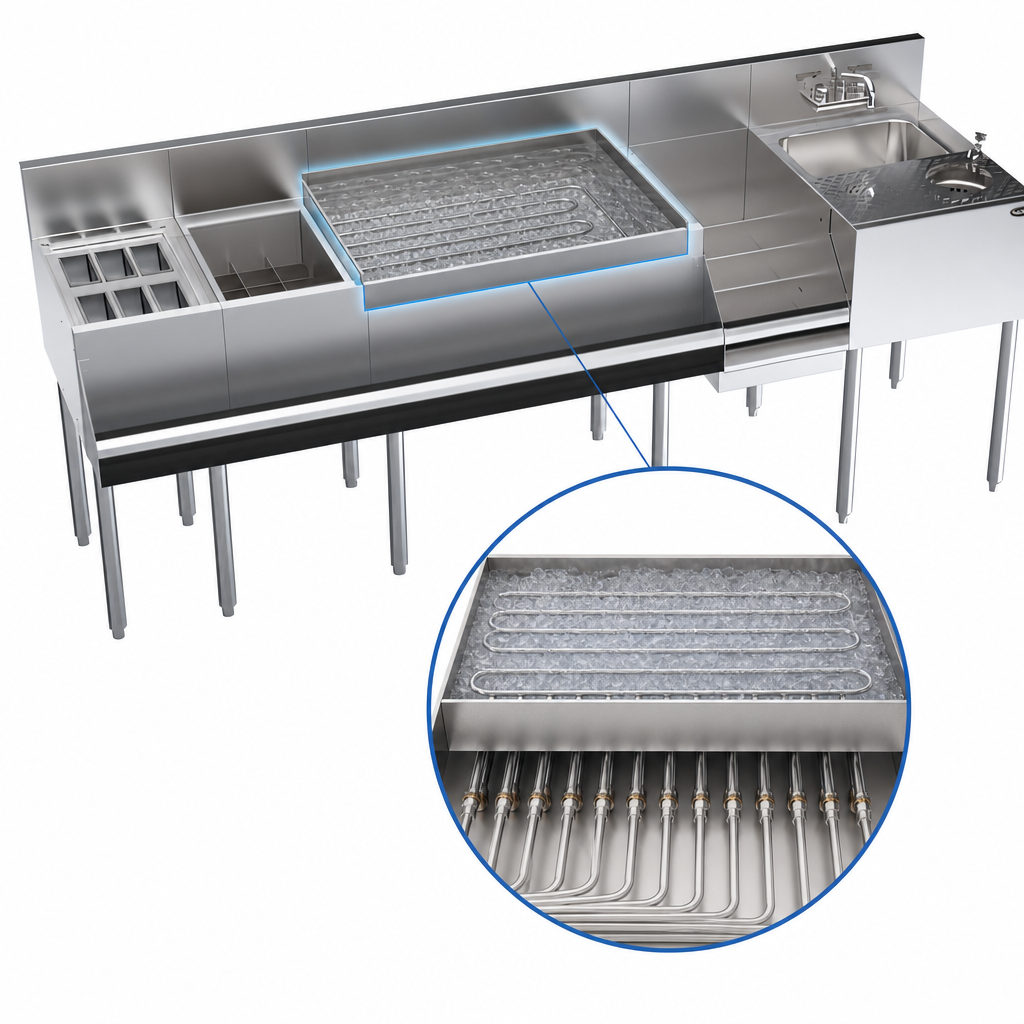

- 10-circuit cast-aluminum cold plate sealed into the ice bin for consistently chilled drinks.

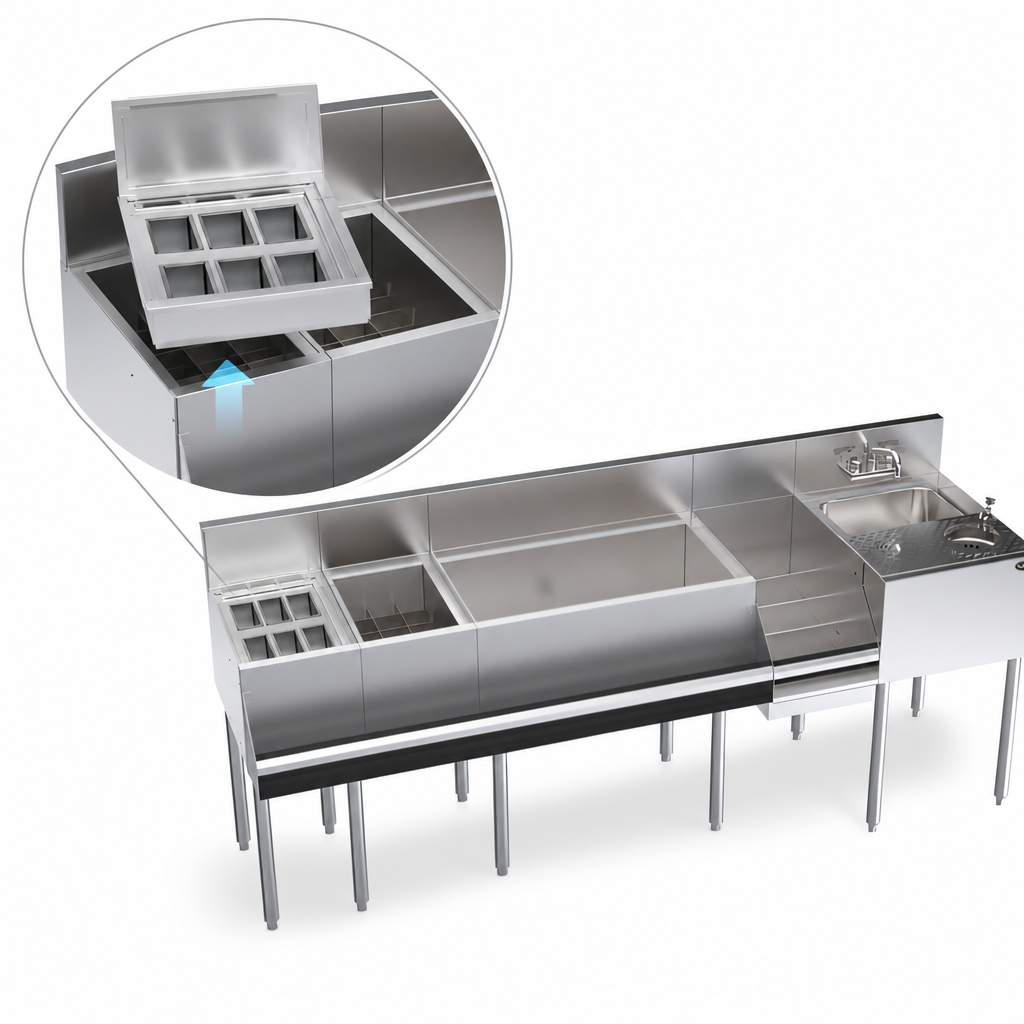

- 12" insulated garnish rail with removable pint cups and hinged cover.
- 12" insulated bottle/elixir section with stainless dividers & perforated bottom for melt separation.
- 30" ice bin (≈115 lb capacity) with two adjustable dividers for multiple ice styles.
- Five-tier 12" liquor display maximizes bottle visibility and speed of service.
- 18" dump sink featuring high-performance glass rinser, dipperwell faucet & tool caddy (pressure regulator included).
- 54" sound-deadened single speed rail keeps high-velocity pours right up front.
- All-stainless top, apron, backsplash & sides; stainless legs with adjustable thermoplastic bullet feet.
- Shipped in pre-assembled sections (up to 7 ft) for easy installation.
Technical Specifications
| Overall Width | 84" (2134 mm) |
|---|---|
| Depth | 24" (610 mm) |
| Working Height | 36-1/2" (927 mm) |

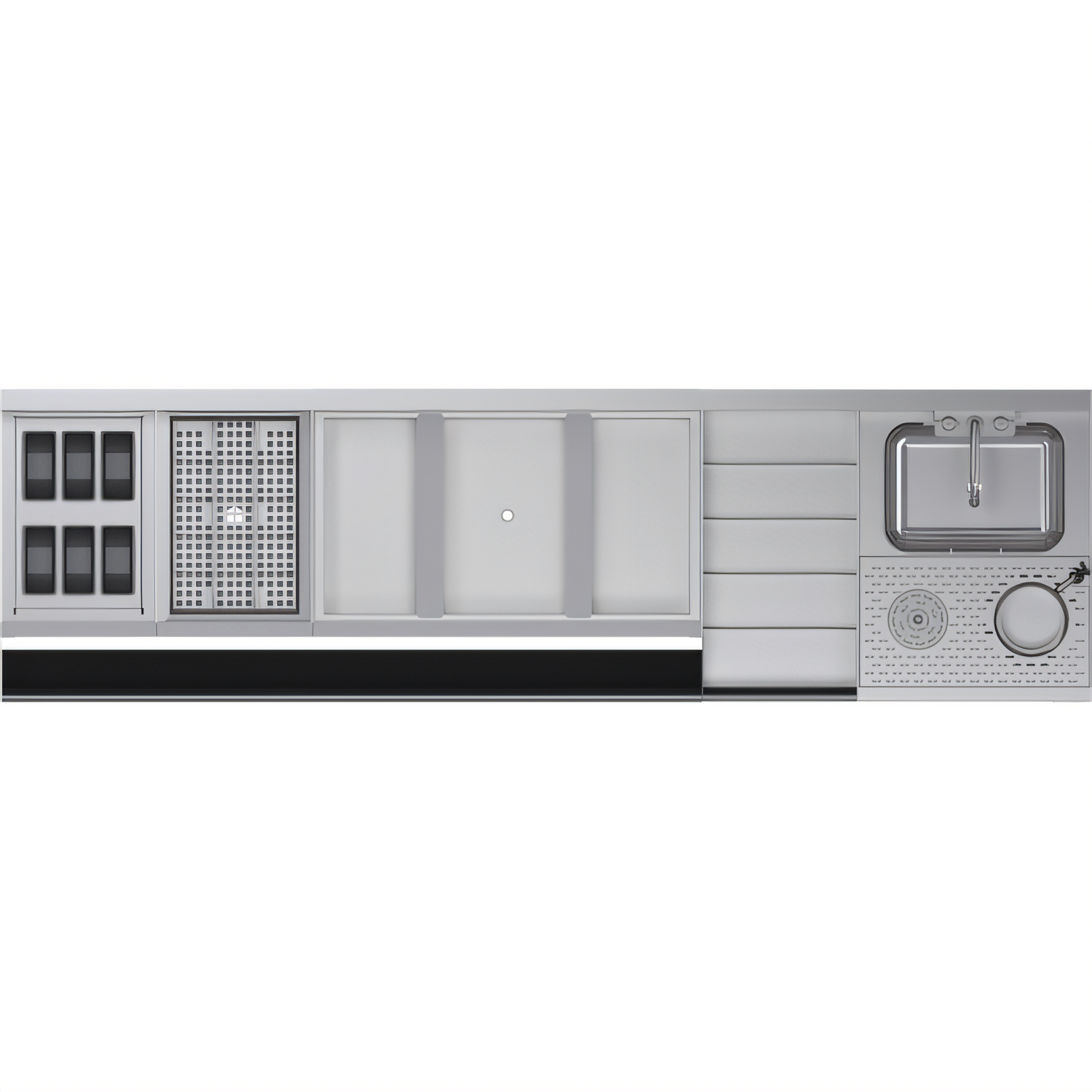

| Section Breakdown (L → R) | 12" Garnish • 12" Bottle • 30" Ice Bin • 12" Liquor Steps • 18" Dump Sink |
| Ice Bin Capacity | ≈115 lbs (52 kg) with two dividers |
| Cold Plate | 10-circuit cast aluminum, 5/16" OD stainless tubing (two full, eight half circuits) |
| Sink Bowl | 10"W × 12"L × 7"D |
| Faucets | 4" center Royal Series deck faucet (hot & cold) • Dipperwell & rinser 1/2" IPS cold |
| Drains | 1-1/2" IPS (sink) • 1" IPS (ice bin) • 1/2" IPS (ice bin w/ cold plate, PVC tailpiece supplied) |
| Construction | 20-ga stainless interior/apron • Galvanized back & bottom • 1-5/8" Ø stainless legs |
| Certifications | NSF, Intertek (ANSI/NSF 2) |
Cold-plate models require a 1/2" PVC tailpiece and proper insulation to prevent condensation.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
84.0in
Depth
24.0in
Shipping Weight
375.0lbs
Splash
6" splash
Width (side - side) OA
79" - 84"
Depth (front - back) OA
24"
Cold Plate
(10) circuit
Working Height
30" working height
Ice Bin Location
ice bin - center
Construction
stainless steel & galvanized
Ice Capacity
95 lbs.
Blender Unit Type
with sink
Specifications
Royal Series Single Zero-Step Speed Station, with 10-circuit cold plate, 84"W x 24"D, 36-1/2" overall height, from left to right: 12"W insulated garnish section, 12" insulated bottle section, 30"W ice bin with 10 circuit cold plate, (2) dividers, 12"W five step liquor display, 18" dump sink with glass rinser & tool caddy (pressure regulator included), 54" sound deadened single speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
