Krowne KR24-MX70 Royal Series Bar Equipment
Description

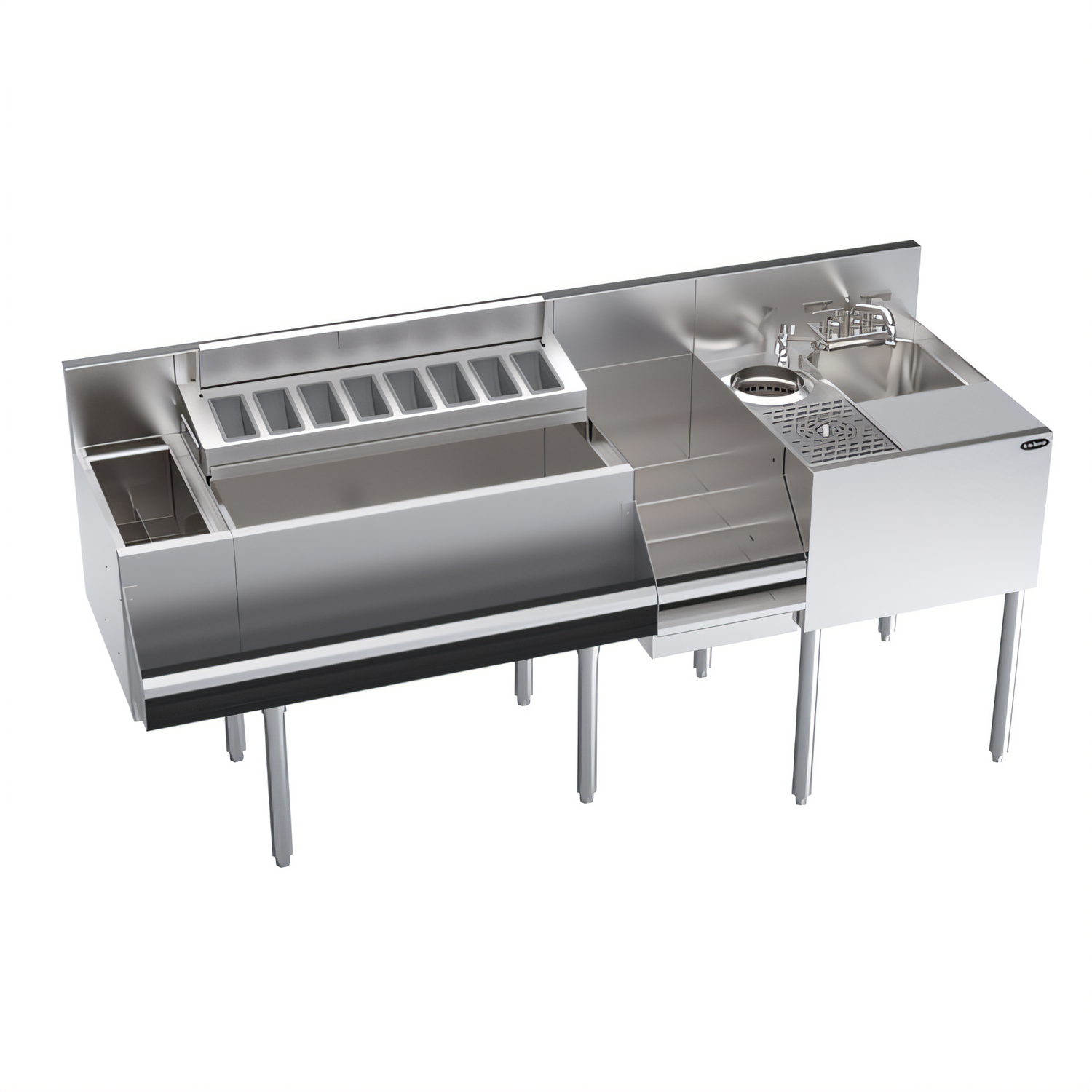

Royal Series Zero-Step Speed Station – 70"W
Krowne Model KR24-MX70 • Single-Station Cocktail Work CenterGive your bartenders every tool they need without taking a single step. The 70 inch Royal Series Zero-Step Speed Station combines ice, rinsing, bottle storage, dumping and prep in one ergonomic line-up that drives faster ticket times and cleaner workflow.

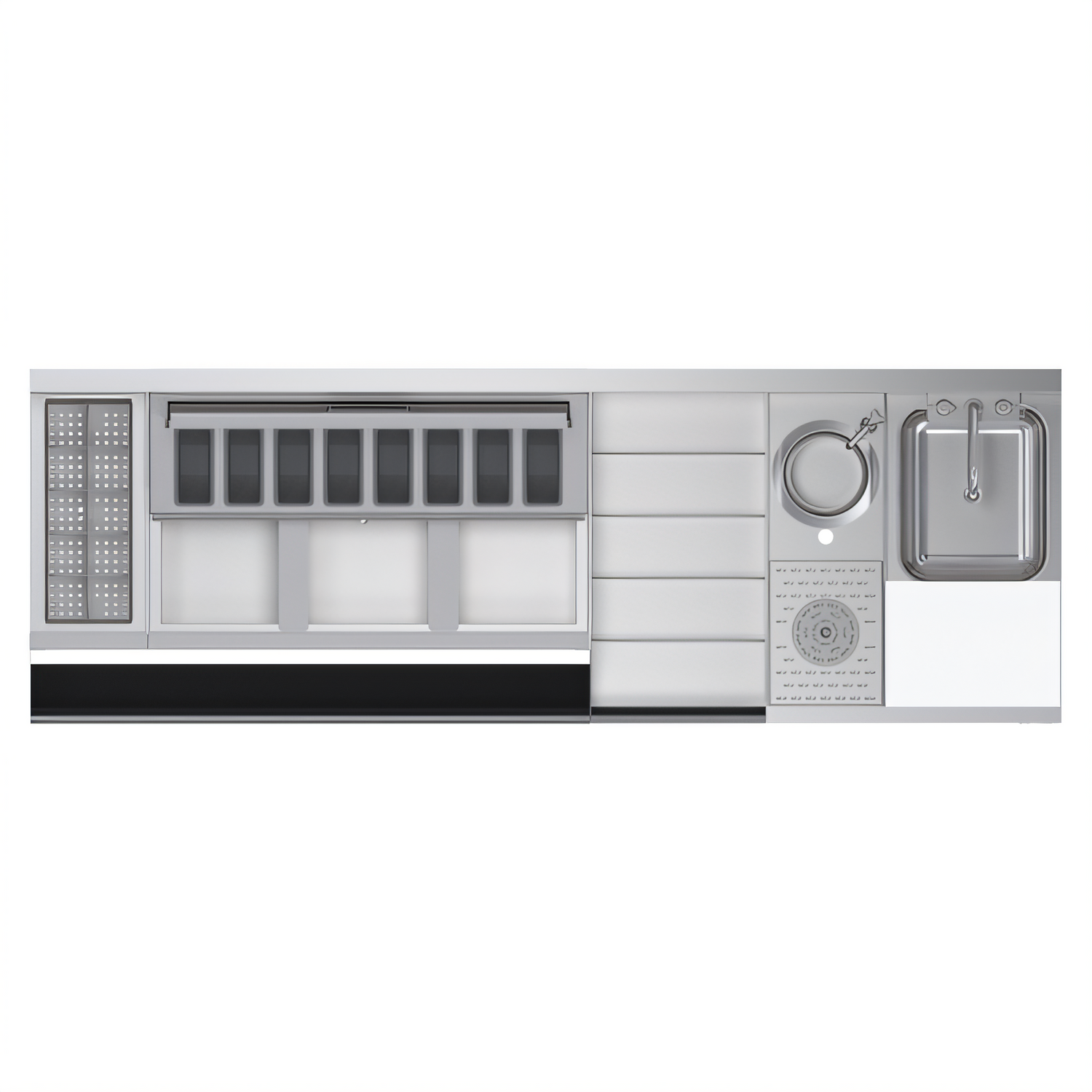

Built-in modules (left ➜ right)

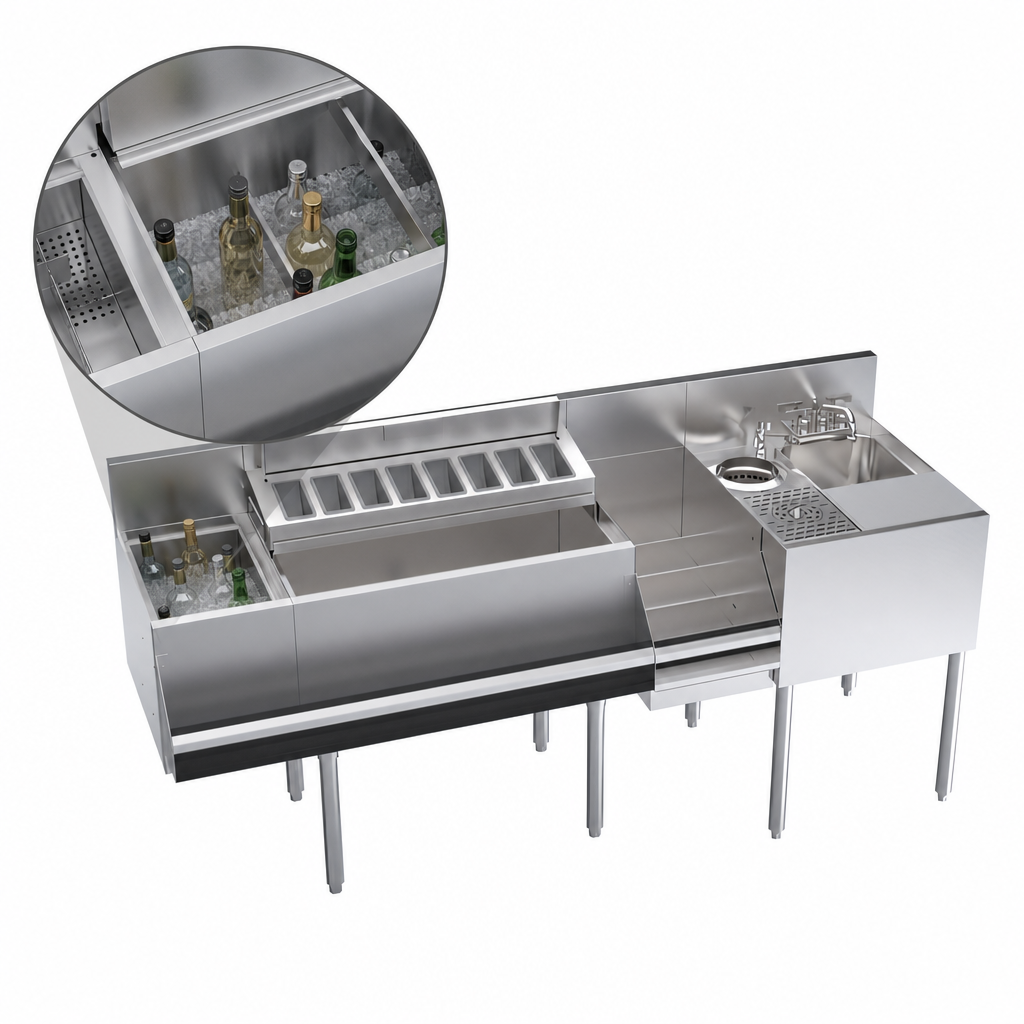

- 8" insulated elixir/bottle section with stainless dividers & perforated bottom
- 30" ice bin (115 lb capacity) with 2 removable dividers

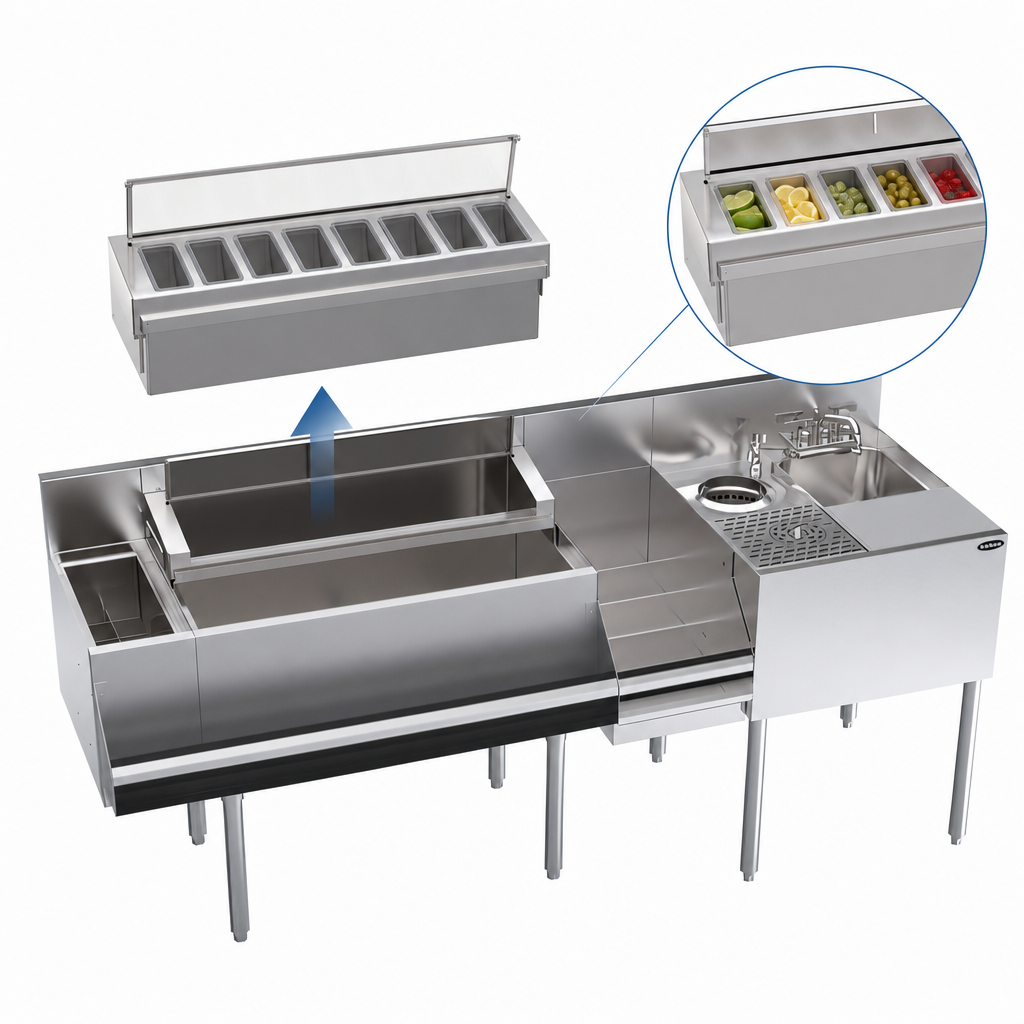

- Removable garnish station with sliding cover & (8) 1-pint cups
- 12" five-step liquor display – holds up to 27 bottles
- 20" dump sink featuring:
- 10"W × 12"L × 7"D stainless bowl
- High-performance glass rinser with included pressure regulator
- Tool caddy & continuous-flow dipperwell faucet
- Flush-mount 11.5" × 10" non-slip cutting board
- 32" sound-deadened single speed rail
Key advantages
- Zero-Step layout keeps every task inside a 70" footprint for maximum speed of service
- NSF listed & ETL Sanitation certified for an easier health-department sign-off
- Ships in easy-to-handle sections (all under 7 ft) to fit through standard doorways
- All stainless contact surfaces resist corrosion and wipe clean in seconds
- Adjustable thermoplastic bullet feet level the station on uneven floors
Technical specifications
| Overall dimensions | 70"W × 24"D × 36 ½"H |
|---|---|
| Shipping weight | Approx. 267 lb |
| Construction | 20 ga stainless top, front & sides; 18 ga stainless legs |
| Legs / feet | 1 5⁄8" tubular legs with adjustable grey thermoplastic bullet feet |
| Ice bin capacity | 115 lb • 1" IPS drain (PVC tailpiece recommended) |
| Garnish cups | (8) stainless 1-pint cups, removable |
| Bottle capacities | Elixir section – 10 bottles • 5-tier liquor step – 27 bottles |
| Plumbing connections | 1⁄2" IPS cold (rinser & dipperwell) • 1⁄2" IPS hot & cold (Royal faucet) |
| Certifications | NSF/ANSI 2 • ETL Sanitation |
| Included accessories | Pressure regulator, cutting board, (2) ice dividers, garnish cups |
Looking for cold-plate soda circuits or bar-die mounting? Ask our team about model KR24-MX70-10 and additional modular options.
