Krowne KR24-MX70-10 Royal Series Bar Equipment
Description

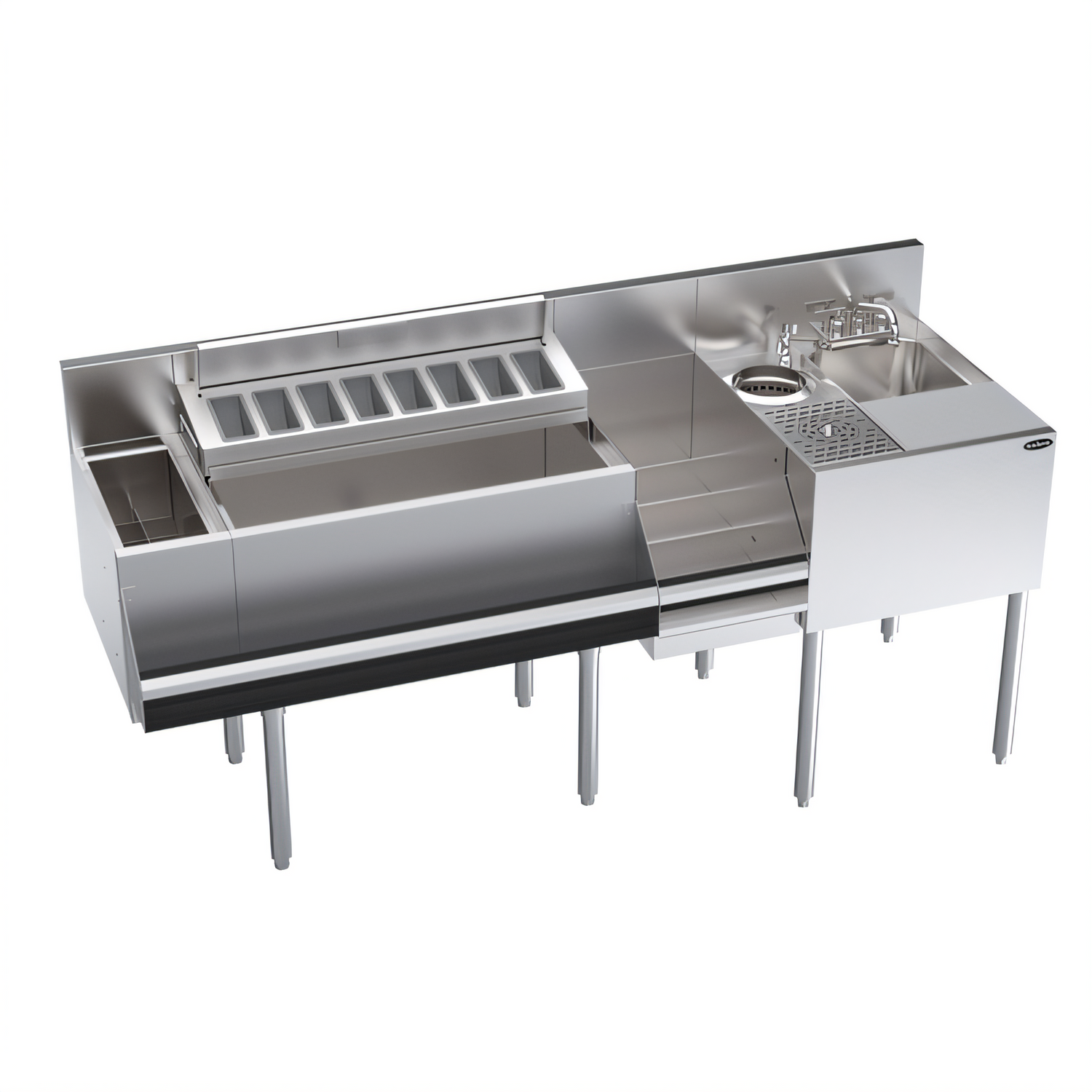

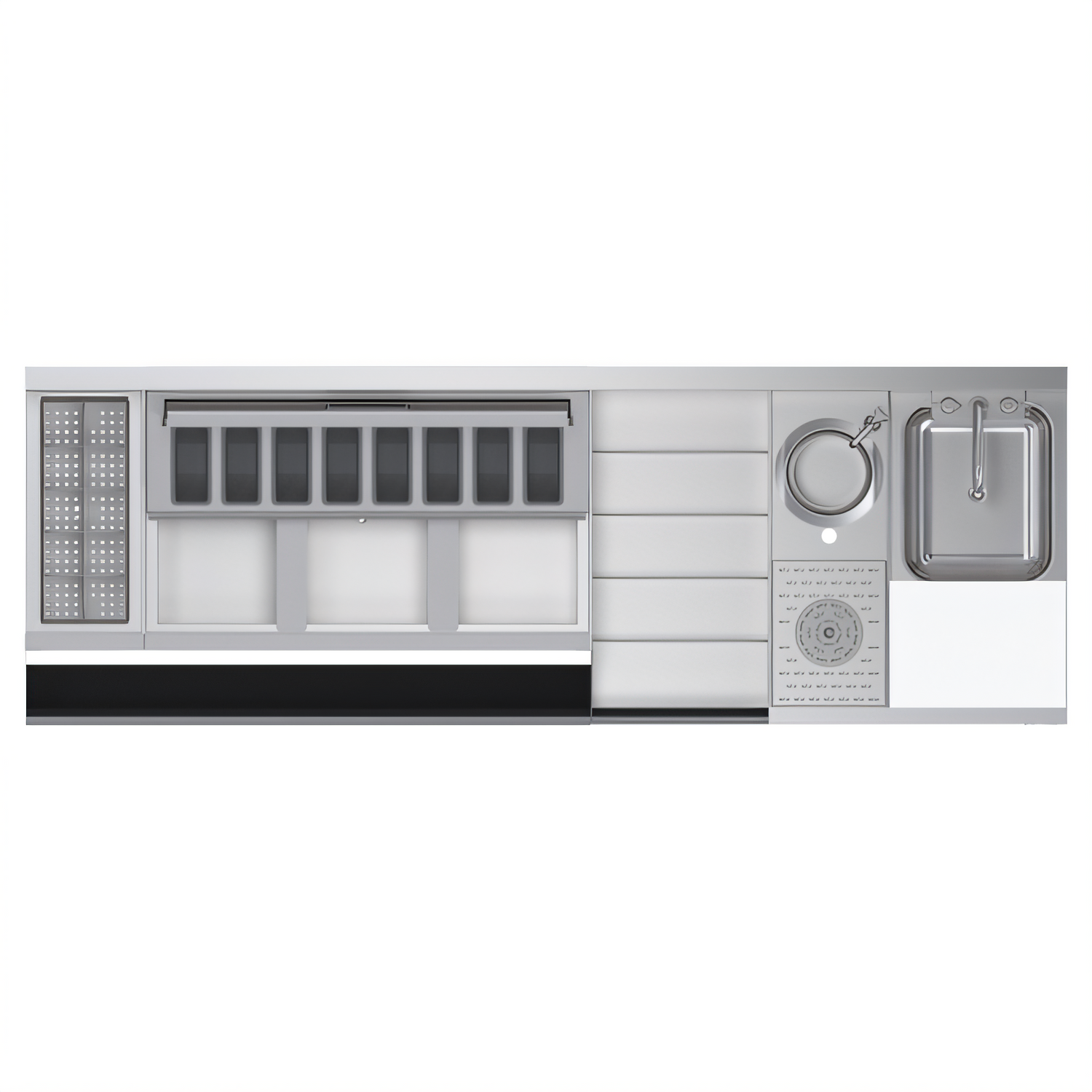

Krowne Royal Series 70" Zero-Step Speed Station
Model KR24-MX70-10 | 10-Circuit Cold Plate | NSF
Turn every inch behind the bar into high-profit real estate. The Royal Series Zero-Step workstation packs an ice-cold 10-circuit cold plate, five-tier liquor display, dump sink with glass rinser and more into a sleek 70 inch footprint—so bartenders never have to take a step away from the action.
Why You’ll Love It

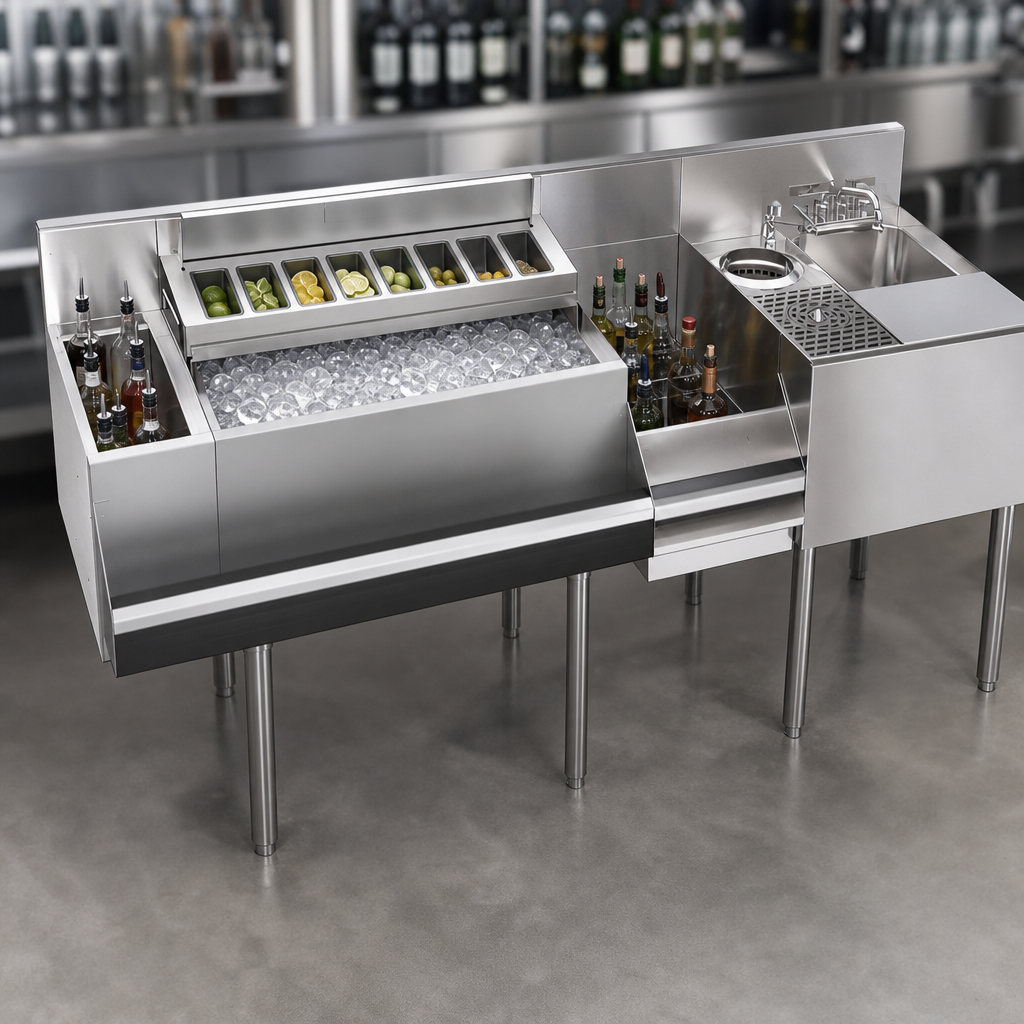

- 30" insulated ice bin (115 lb capacity) with cast-in 10-circuit cold plate & two removable dividers.
- 8" insulated elixir/bottle section with stainless dividers and perforated bottom for ice separation.
- Removable garnish station with sliding cover and eight 1-pint cups keeps fruit & herbs fresh.
- 12" five-tier liquor step display holds up to 27 bottles—maximize vertical storage and visibility.
- 20" dump sink featuring high-performance glass/speed rinser plus built-in tool well & dipperwell faucet.
- 32" sound-deadened single speed rail puts premium pours at arm’s reach.
- Integrated non-slip cutting board—flush mounted for effortless prep & cleaning.
- All 304 stainless steel top, front & sides; 18-gauge stainless tubular legs with adjustable thermoplastic bullet feet.
- Standard pressure regulator, PVC tailpiece and mounting hardware included.
- Ships in one section (under 7 ft) for easy freight handling.
At-a-Glance Specs
| Overall Dimensions | 70" W × 24" D × 36 1⁄2" H |
|---|---|
| Ice Bin Size / Capacity | 30" section | 115 lb |

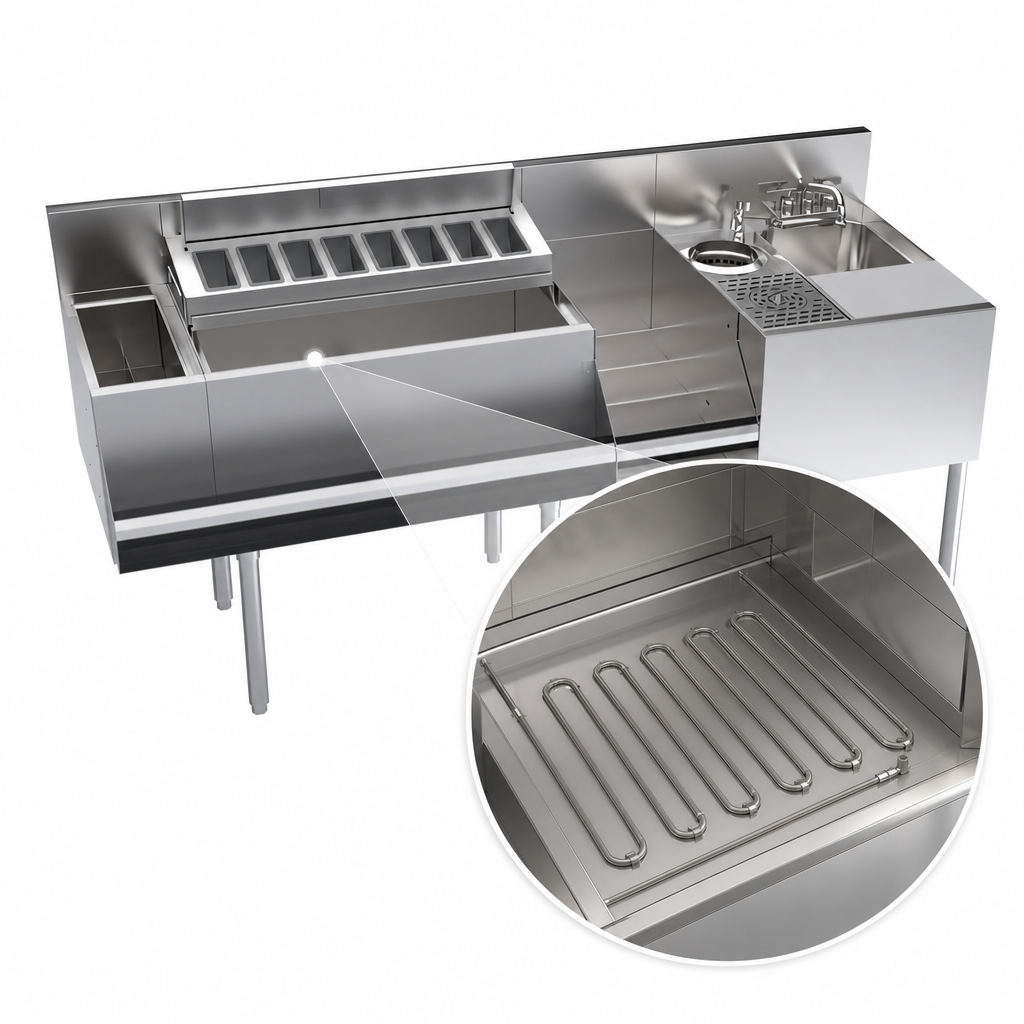

| Cold Plate | Cast aluminum, 10 circuits (5⁄16" OD stainless tubing), sealed in bin floor |
| Elixir / Bottle Section | 8" wide, insulated, stainless dividers & perforated base |
| Liquor Display | 5 tiers, 12" wide | up to 27 bottles |
| Dump Sink Bowl | 10" W × 12" L × 7" D | 1 1⁄2" IPS drain |
| Glass/SPEED Rinser | Built-in, 1⁄2" IPS cold water connection |
| Construction | 20-ga stainless interior/front/backsplash, 20-ga galvanized back & bottom |
| Legs / Feet | 18-ga stainless, 1 5⁄8" Ø, adjustable thermoplastic bullet feet |
| Certifications | NSF, Intertek (NSF/ANSI Std 2) |
Connections
- Water: 1⁄2" IPS hot & cold (faucet), 1⁄2" IPS cold (rinser & dipperwell)
- Drain: 1 1⁄2" IPS (sink) | 1" IPS (ice bin) | 1⁄2" IPS (cold-plate tailpiece provided)
- Cold-plate lines: 10 circuits w/ bump-and-swedge ends, pressure regulator included
All utilities are field-connection ready. Plumbing materials beyond supplied tailpieces by installer.
Built for the Fastest Service
Krowne’s Zero-Step design places every bottle, mixer and tool within a single ergonomic reach zone, cutting service time and boosting bar revenue—no wasted steps, just pure speed.
