Krowne  |  SKU: KR24-MX68B-10

Krowne KR24-MX68B-10 Bar Equipment

$10,507.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

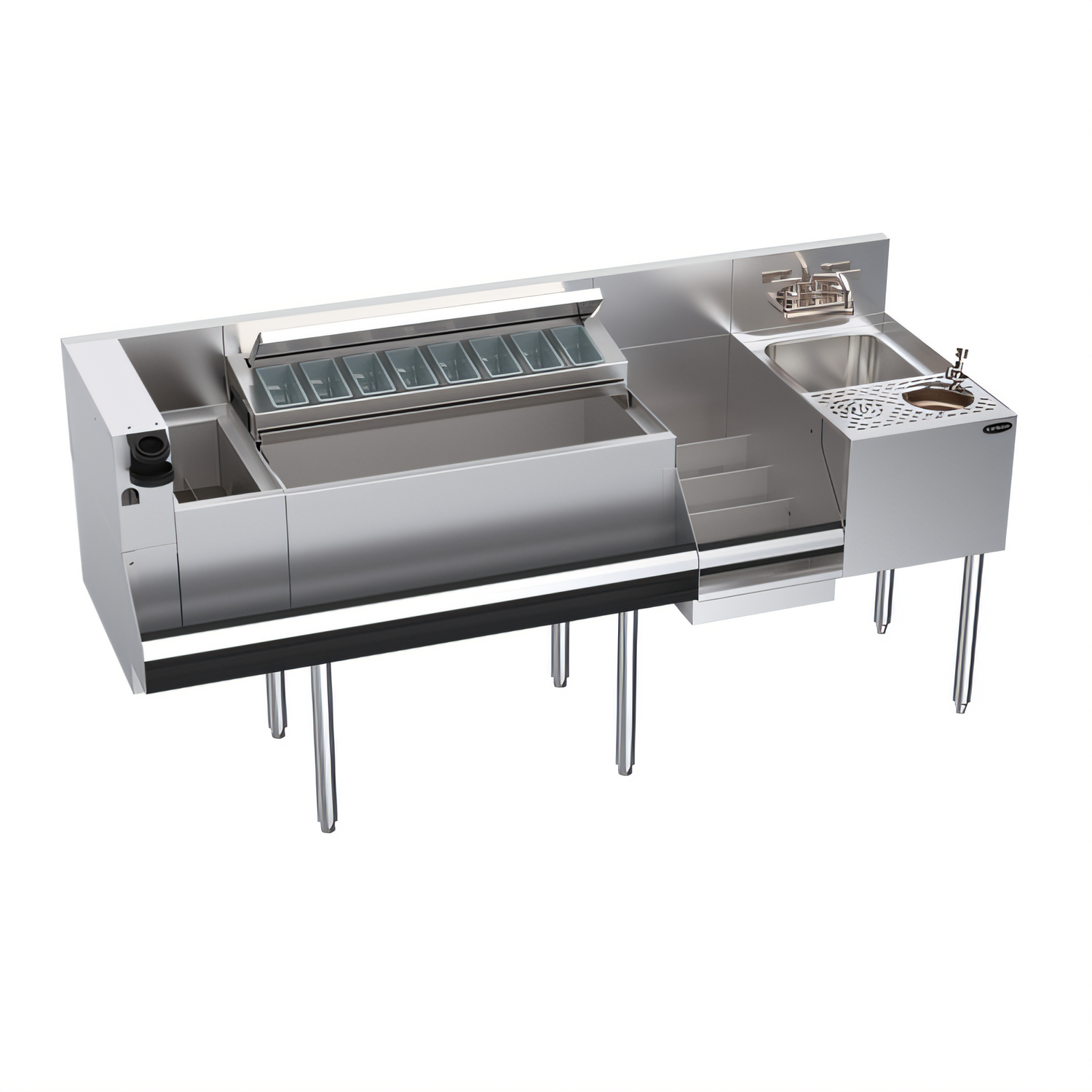

Krowne KR24-MX68A-10 Zero-Step Cocktail Workstation – 68" Wide

10-Circuit Cold Plate • 24" Depth • NSF Listed

Engineered for maximum speed and efficiency, the Krowne Zero-Step Workstation keeps every bartending essential within a single pivot. Model KR24-MX68A-10 combines a high-capacity ice bin, integrated cold plate, dedicated rinsing station and generous bottle, garnish & liquor storage into a sleek 68-inch footprint.

Key Benefits

  • Built-in 10-circuit cast-aluminum cold plate for ice-cold post-mix beverages
  • 115 lb ice capacity with two removable stainless steel dividers

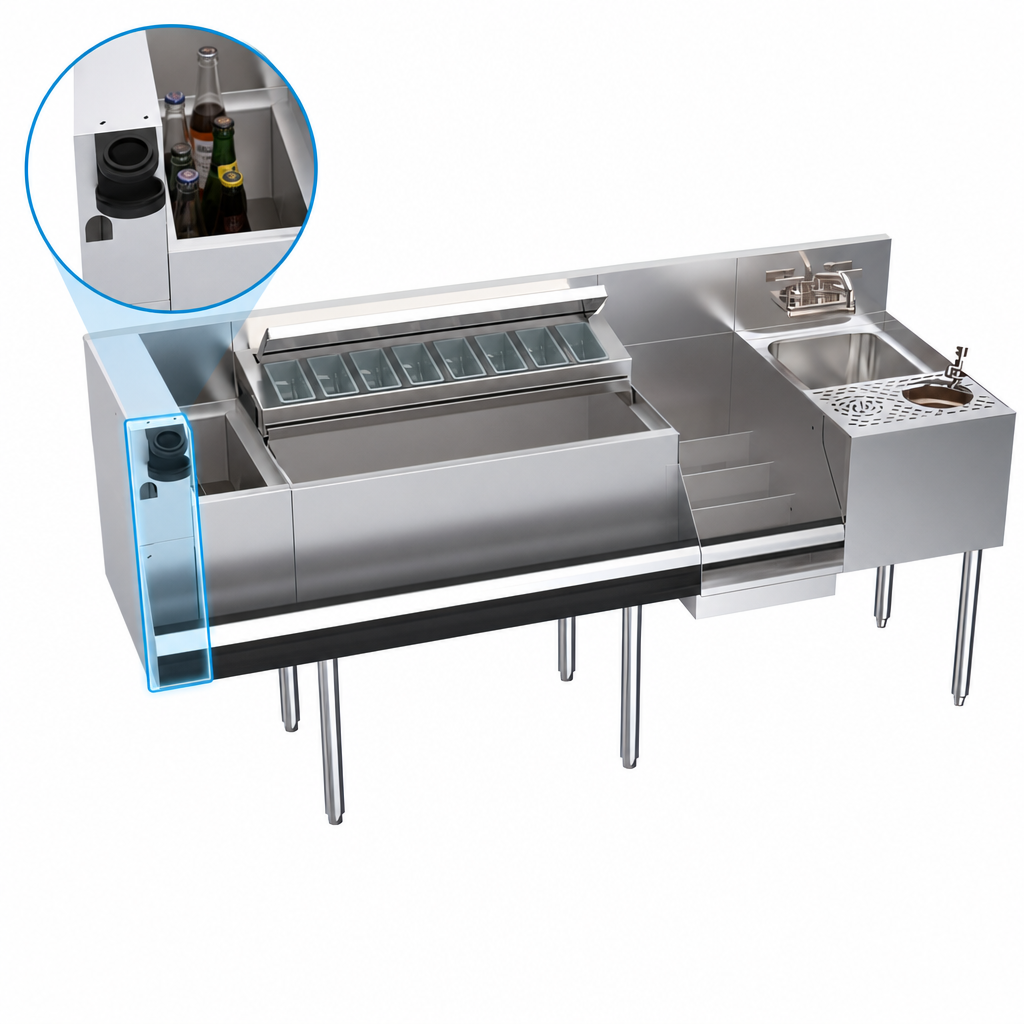

  • 8" insulated elixir/bottle section with perforated bottom for ice separation
  • Removable covered garnish station with eight 1-pint cups
  • 42" sound-deadened single speedrail keeps top bottles organized & quiet
  • 5-tier liquor display (12" wide) maximizes back-bar storage
  • 14" dump sink with high-performance glass rinser & tool caddy (pressure regulator included)
  • All 20 ga stainless steel top, apron & sides; 1-5/8" stainless legs with adjustable thermoplastic bullet feet
  • NSF & ETL Sanitation listed • Ships in sections under 7 ft for easy installation

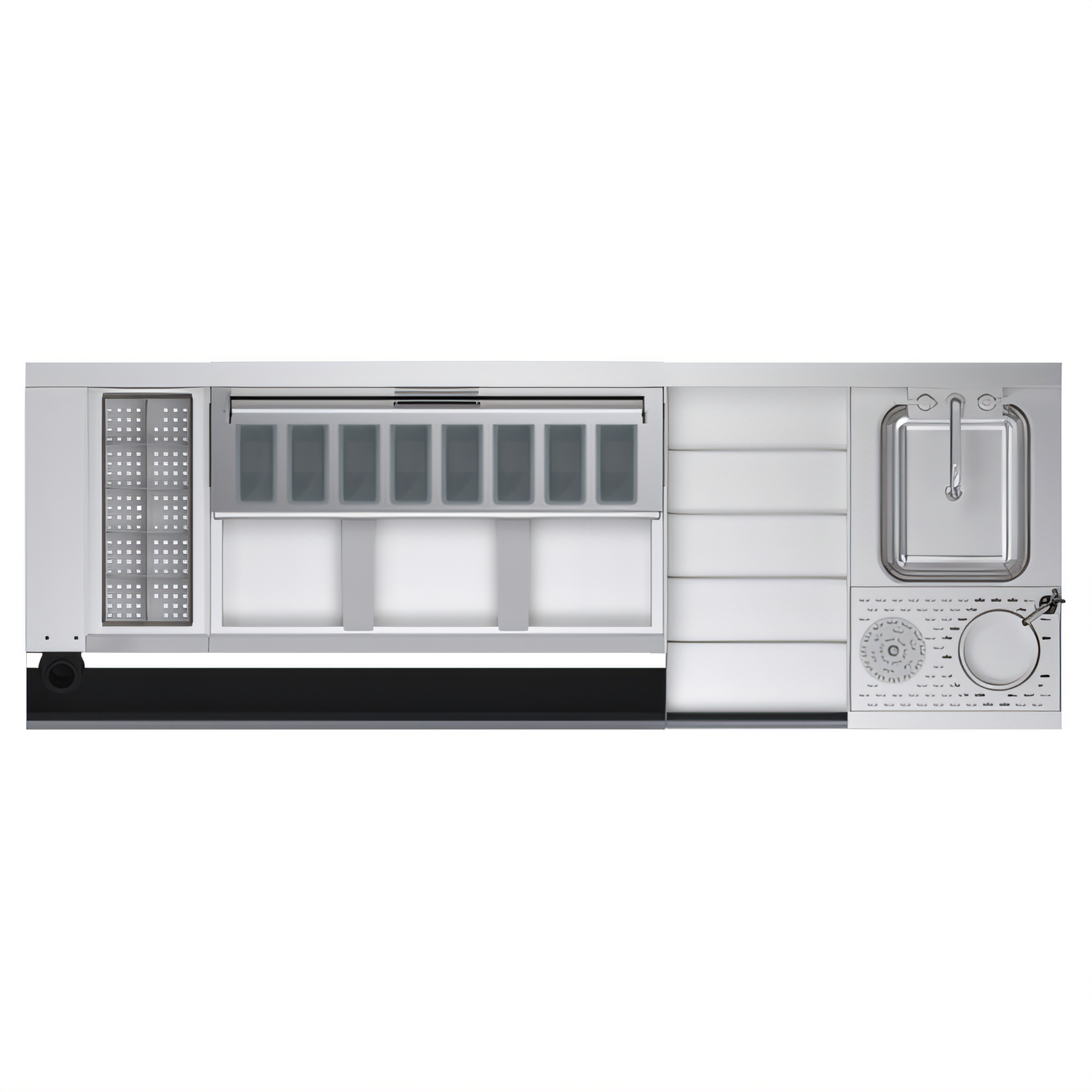

Left-to-Right Layout

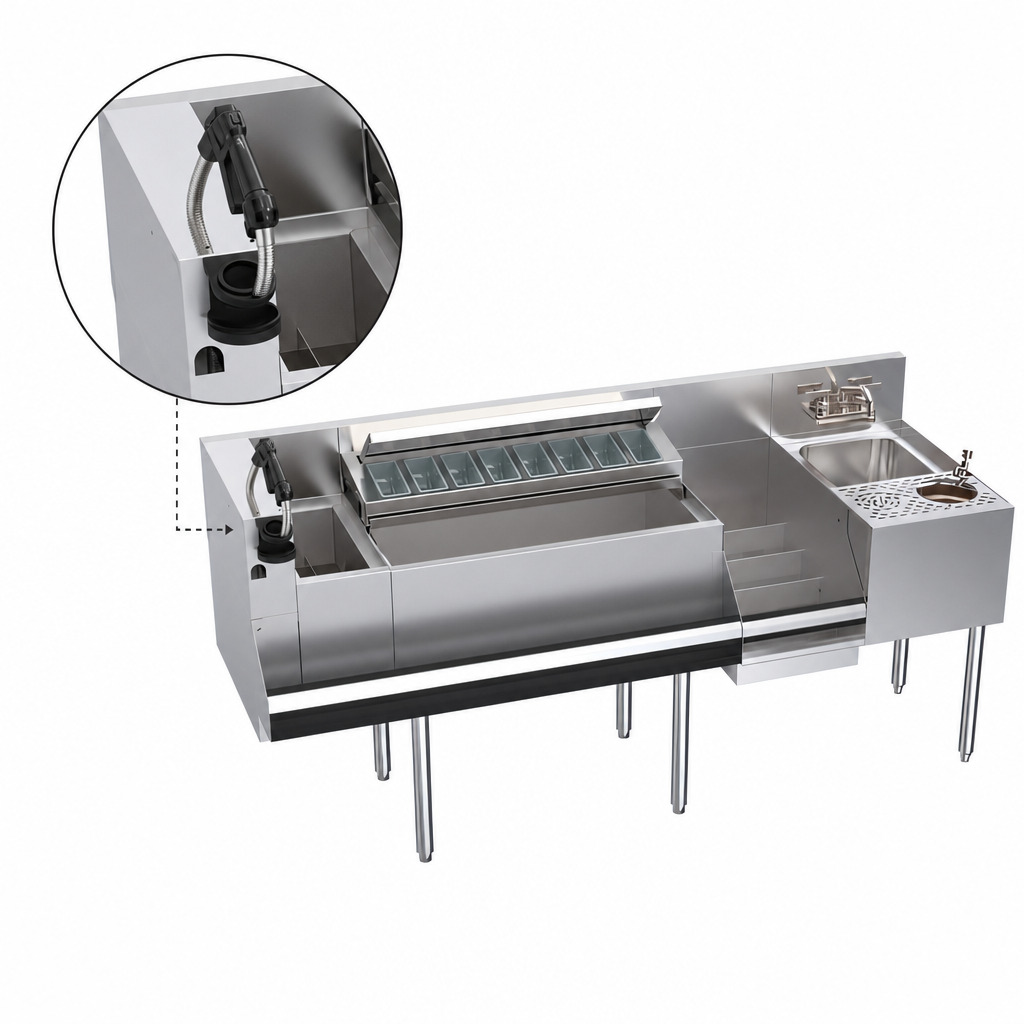

  • 4" Soda gun holder
  • 8" Insulated bottle/elixir section
  • 30" Ice bin (12" deep) with 10-circuit cold plate & 2 dividers
  • Garnish tray with sliding cover
  • 12" 5-step liquor display
  • 14" Dump sink with glass rinser & tool well

Specifications

Model KR24-MX68A-10
Overall width 68" (1727 mm)
Front-to-back depth 24" (610 mm)
Working height 36-1/2" (927 mm)
Ice capacity 115 lb (52 kg)
Cold plate 10 circuits, 5/16" OD stainless tubing, bump & swedge fittings
Sink bowl 10" W × 12" L × 7" D
Faucet connections 1/2" IPS Hot & Cold (Royal Series 4"-center wall-mount)
Drains 1-1/2" IPS (sink) • 1/2" IPS (ice bin w/ cold plate) • 1/2" NPS (dipperwell)
Construction 20 ga stainless interior, top & front; 20 ga galvanized back/bottom; 1-5/8" Ø stainless legs
Included accessories 42" speedrail, 2 ice dividers, 8-cup garnish caddy, pressure regulator
Certifications NSF, ETL Sanitation
Plumbing note: Cold-plate units ship with a 1/2" × 4" PVC tailpiece. Use PVC plumbing to prevent condensation caused by metal-to-metal contact.

Need a different size or custom features? Contact our team and we’ll configure a workstation that fits your bar perfectly.

Features & Specs

Manufacturer

Krowne

Certifications

NSF

Height

36.5in

Width

68.0in

Depth

24.0in

Shipping Weight

321.0lbs

Ice Bin Location

ice bin - center

Splash

6" splash

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Ice Capacity

95 lbs.

Working Height

30" working height

Width (side - side) OA

67" - 72"

Depth (front - back) OA

24"

Blender Unit Type

with sink

Specifications

Krowne Zero-Step Workstation, 68"W x 24" deep, 36-1/2" overall height, from left to right: 4" soda gun holder, 8"W insulated bottle section, 30"W ice bin, 12" deep with built in 10 circuit cold plate, (2) ice bin dividers, garnish tray/sliding cover, 12"W five step liquor display, 14" dump sink with glass rinser & tool caddy (pressure regulator included), 42" sound deadened single speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
