Krowne KR24-MX60-10 Royal Series Bar Equipment
Description

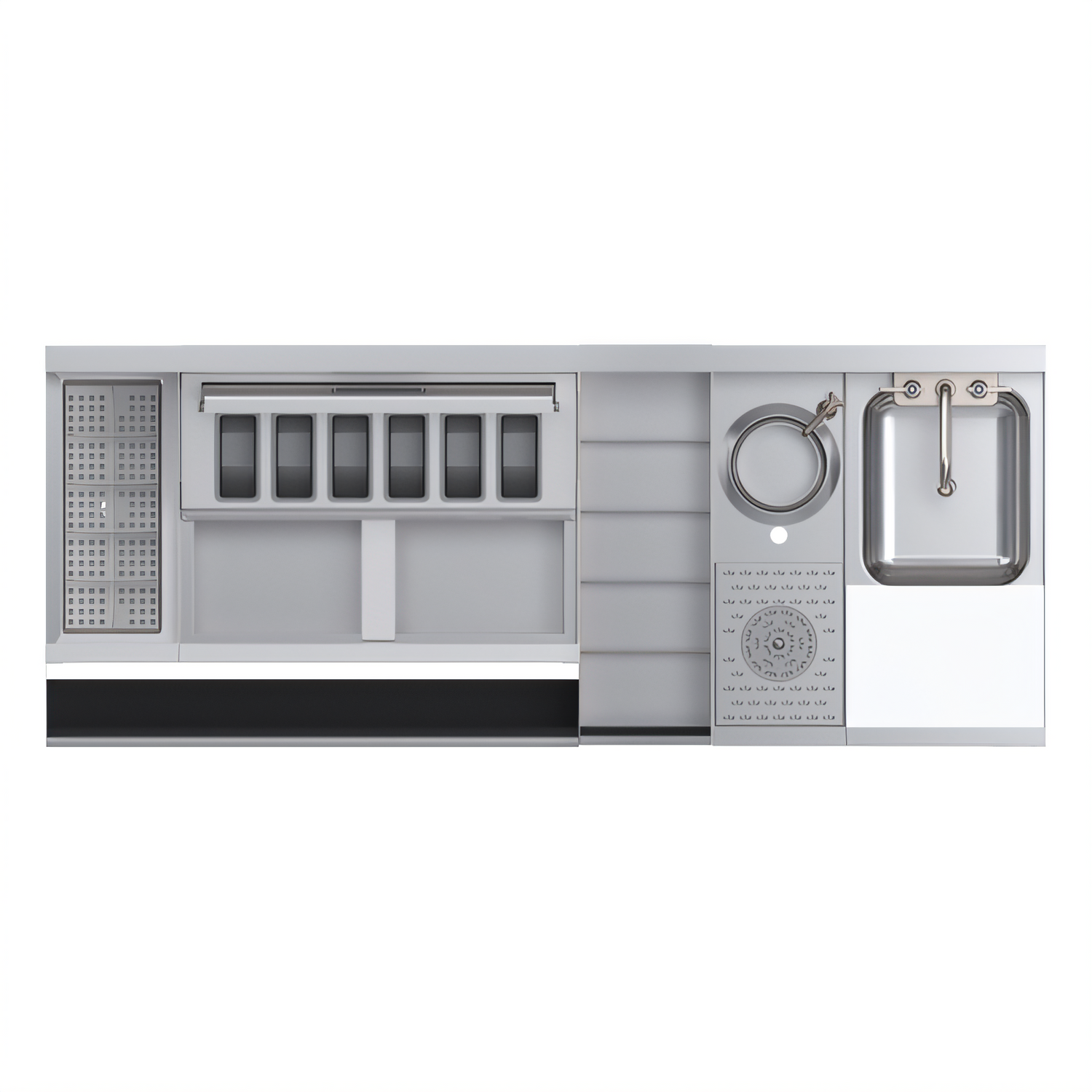

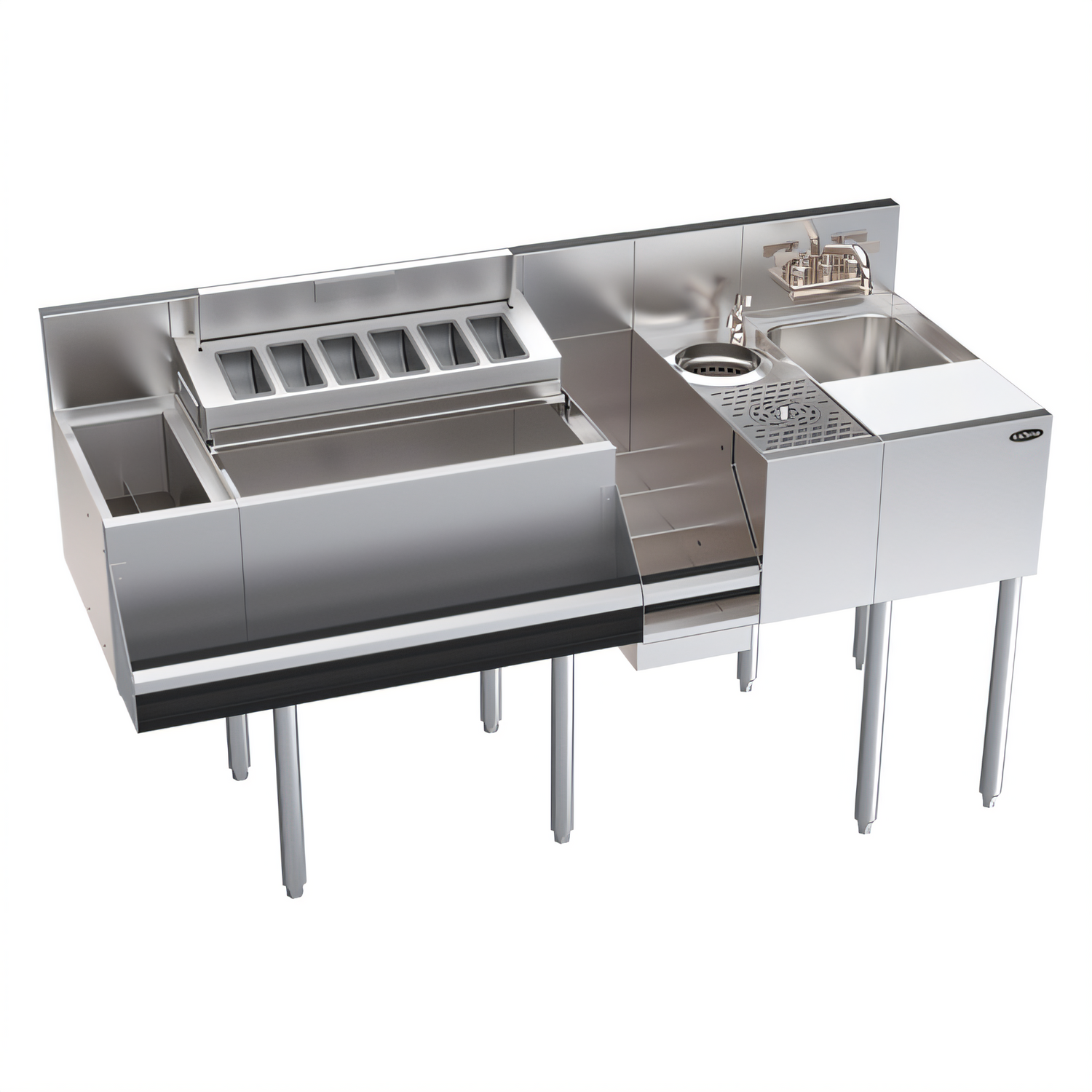

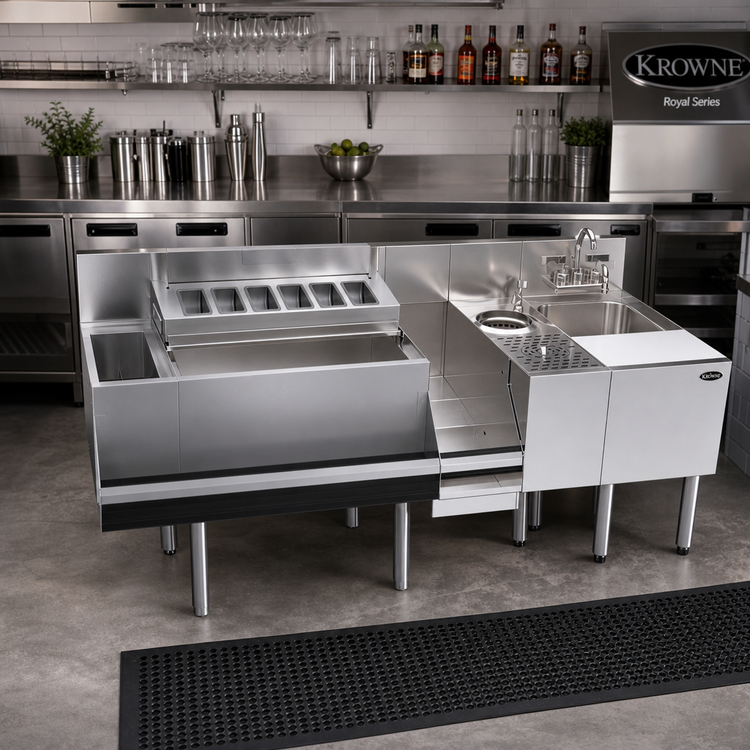

Krowne Royal Series 60" Single Zero-Step Speed Station w/ 10-Circuit Cold Plate
Model KR24-MX60-10 | NSF ListedGive your bartenders every tool they need—without ever taking a step. The Royal Series Zero-Step Speed Station keeps ice, spirits, mixers, garnishes and sanitation fixtures in one ultra-efficient 60" footprint, boosting throughput and guest satisfaction at even the busiest bar.
All-In-One Performance

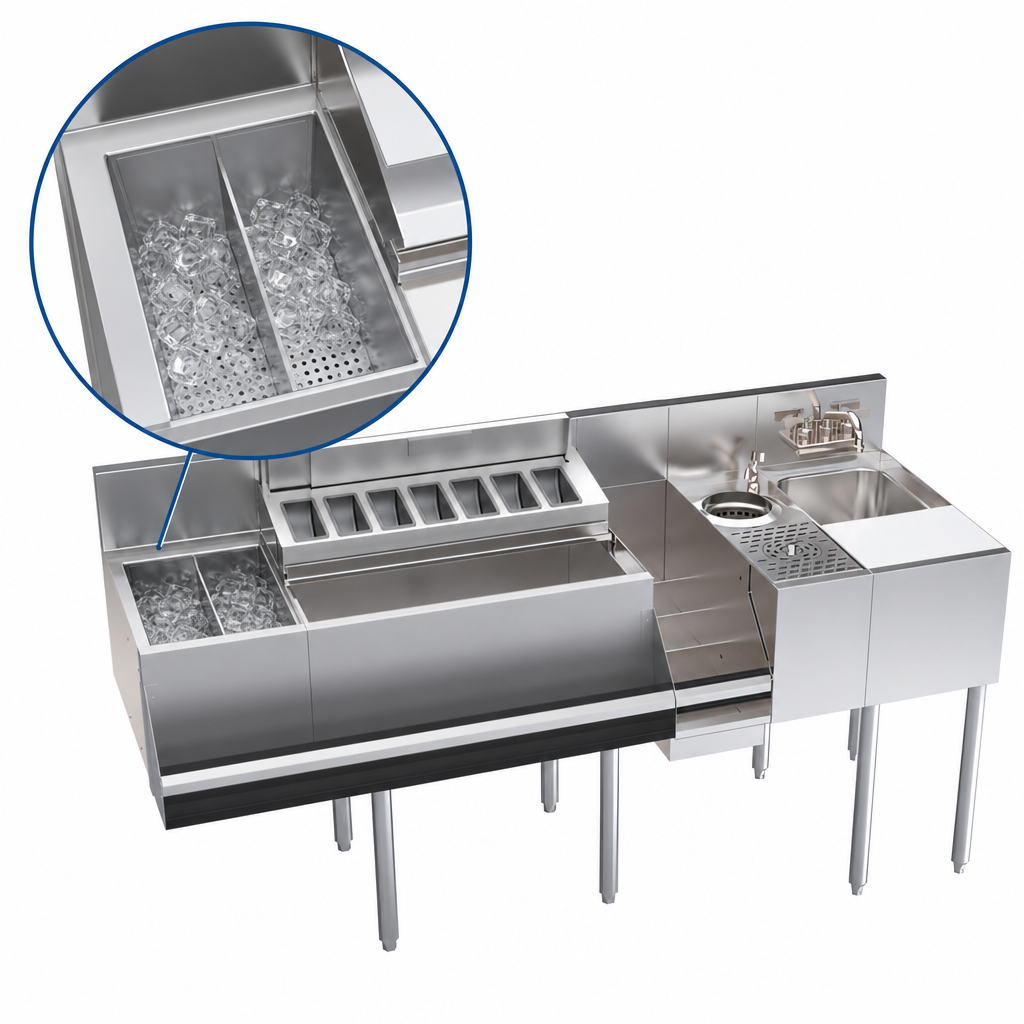

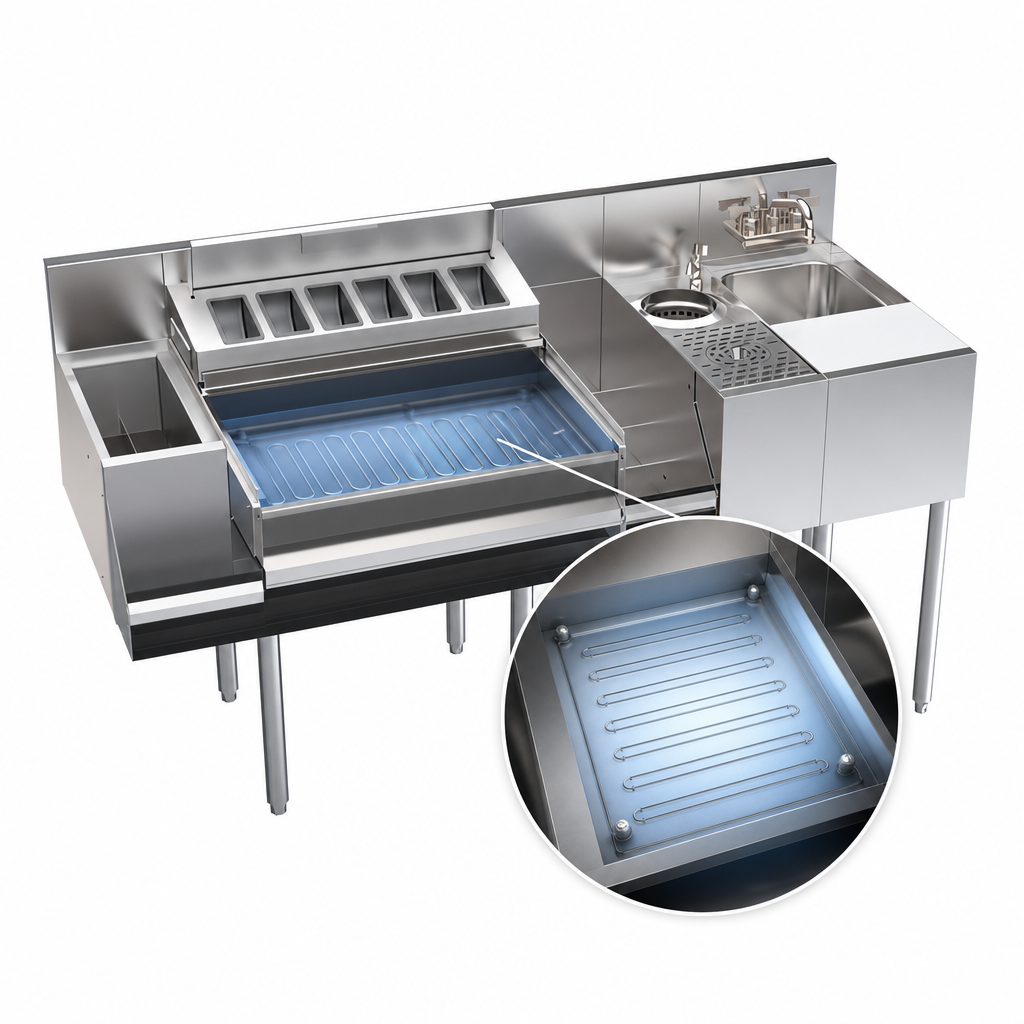

- Cast-aluminum 10-circuit cold plate integrated into the 24" ice bin (92 lb capacity) for frosty post-mix beverages.
- 8" insulated elixir section with stainless dividers & perforated bottom—keeps up to 10 mixers at perfect serving temp.
- Removable garnish station with sliding cover and six 1-pint cups.
- 8" five-tier liquor display holds up to 19 bottles within fingertip reach.
- 20" dump sink with high-performance glass rinser, dipperwell faucet, tool caddy and non-slip 11½" × 10" cutting board.
- 32" sound-deadened single speedrail reduces bar noise and fits standard 750 ml bottles.
- Pressure regulator for beverage lines included.
Built to Last
- 20-gauge stainless steel top, front & sides; 18-gauge stainless tubular legs.
- Adjustable thermoplastic bullet feet level the unit on uneven floors.
- 6½" backsplash with 4" center Royal Series faucet (¼-turn ceramic valves).
- NSF & ETL Sanitation certified for commercial food-service environments.
Dimensions & Utilities
| Overall width | 60" (1524 mm) |
|---|---|
| Front-to-back depth | 24" (610 mm) |
| Working height | 36½" (927 mm) to countertop |
| Ice bin size / capacity | 24" wide • 92 lb ice |
| Cold plate | 10 stainless circuits, 5/16" OD tubing |
| Garnish cups | 6 × 1-pint |
| Elixir bottle capacity | 10 |
| Liquor bottle capacity | 19 (five tiers) |
| Sink bowl | 10" W × 12" L × 7" D |
| Plumbing connections | 1½" IPS drain (sink) • ½" IPS hot & cold • ½" NPS dipperwell • ½" IPS cold (rinser) |
| Shipping weight | Approx. 347 lb (158 kg) |
Perfect For
- High-volume cocktail bars & nightclubs
- Hotel lobby or rooftop bars
- Stadium, arena or theatre concessions
- Event venues & catering operations needing compact speed service
Unit ships in two sections (under 7 ft) for easier delivery and on-site assembly. Use the supplied ½" × 4" PVC tailpiece on the cold-plate drain to prevent condensation.
