Krowne  |  Royal Series  |  SKU: KR24-MX54-7

Krowne KR24-MX54-7 Royal Series Bar Equipment

$9,283.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

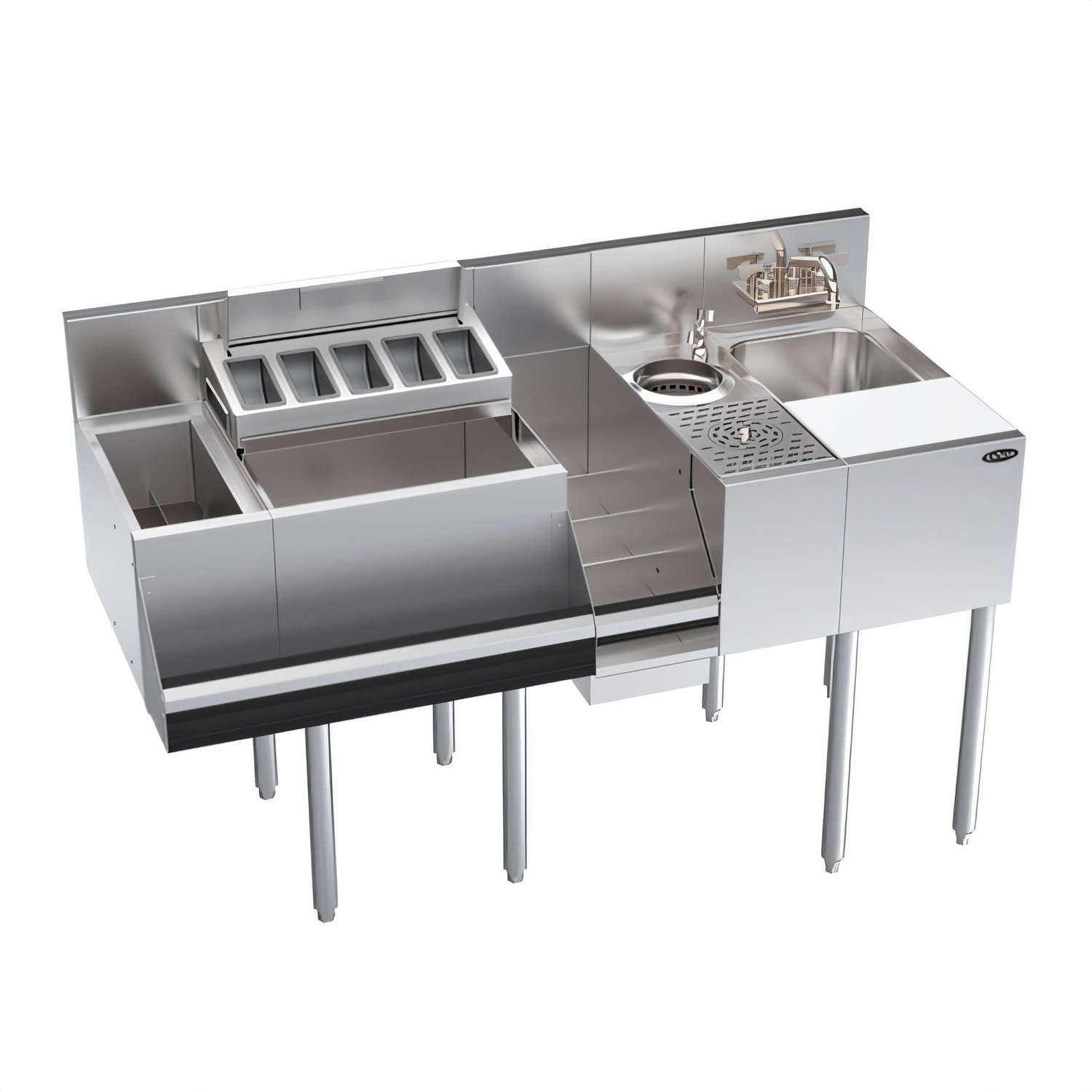

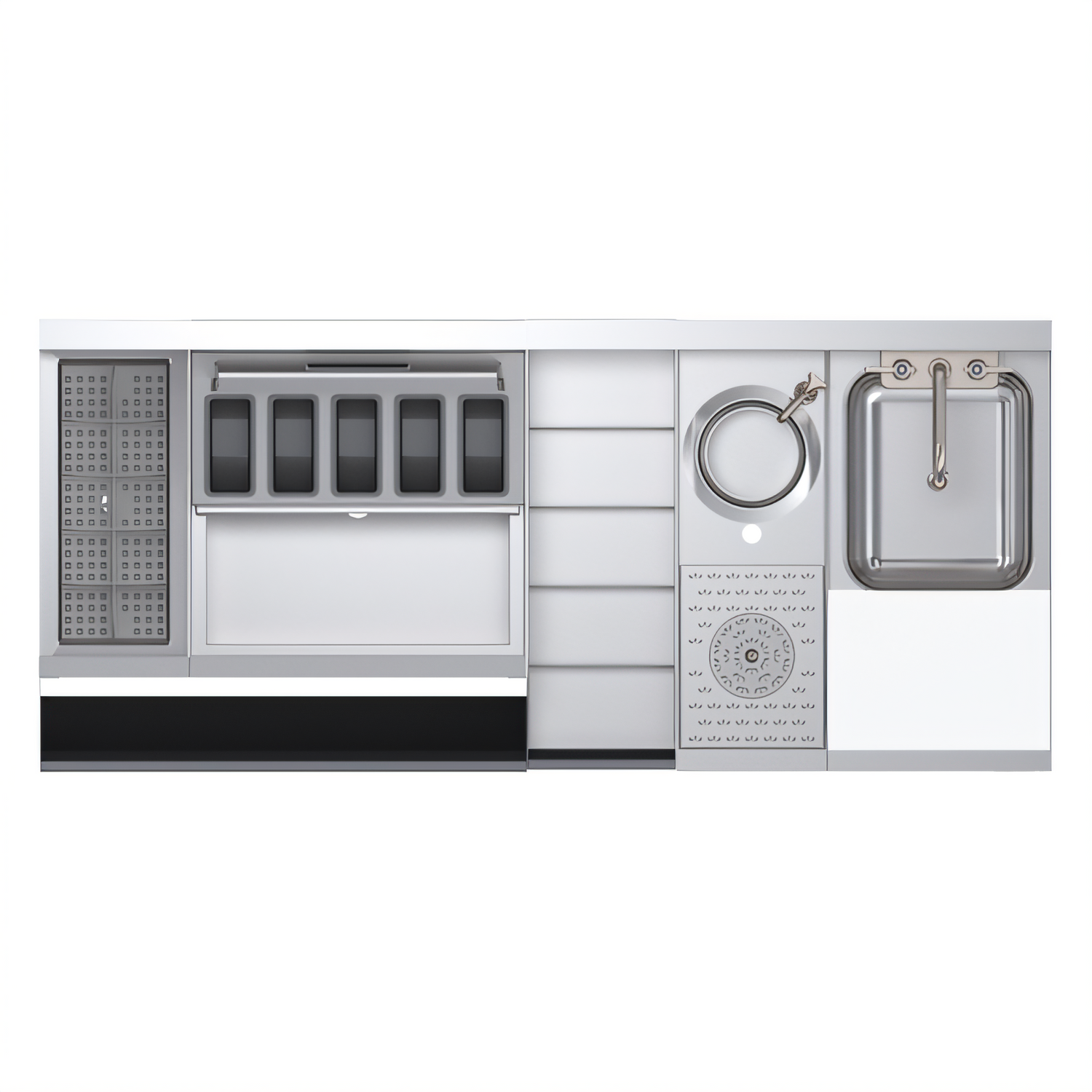

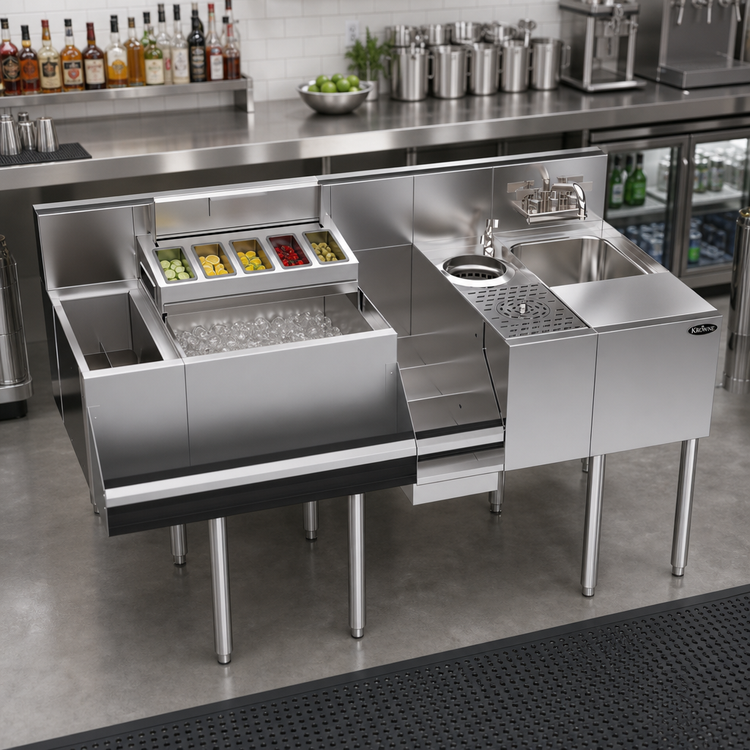

Krowne Royal Series Zero-Step Speed Station – 54"

Model KR24-MX54-7 | Integrated 7-Circuit Cold Plate

Designed so bartenders never take a step, the Royal Series Zero-Step workstation puts every essential tool directly in front of the mixologist. From a high-capacity ice bin with cold plate to a built-in glass rinser, this 54" speed station keeps service fast, organized and sanitary.

Why You'll Love It

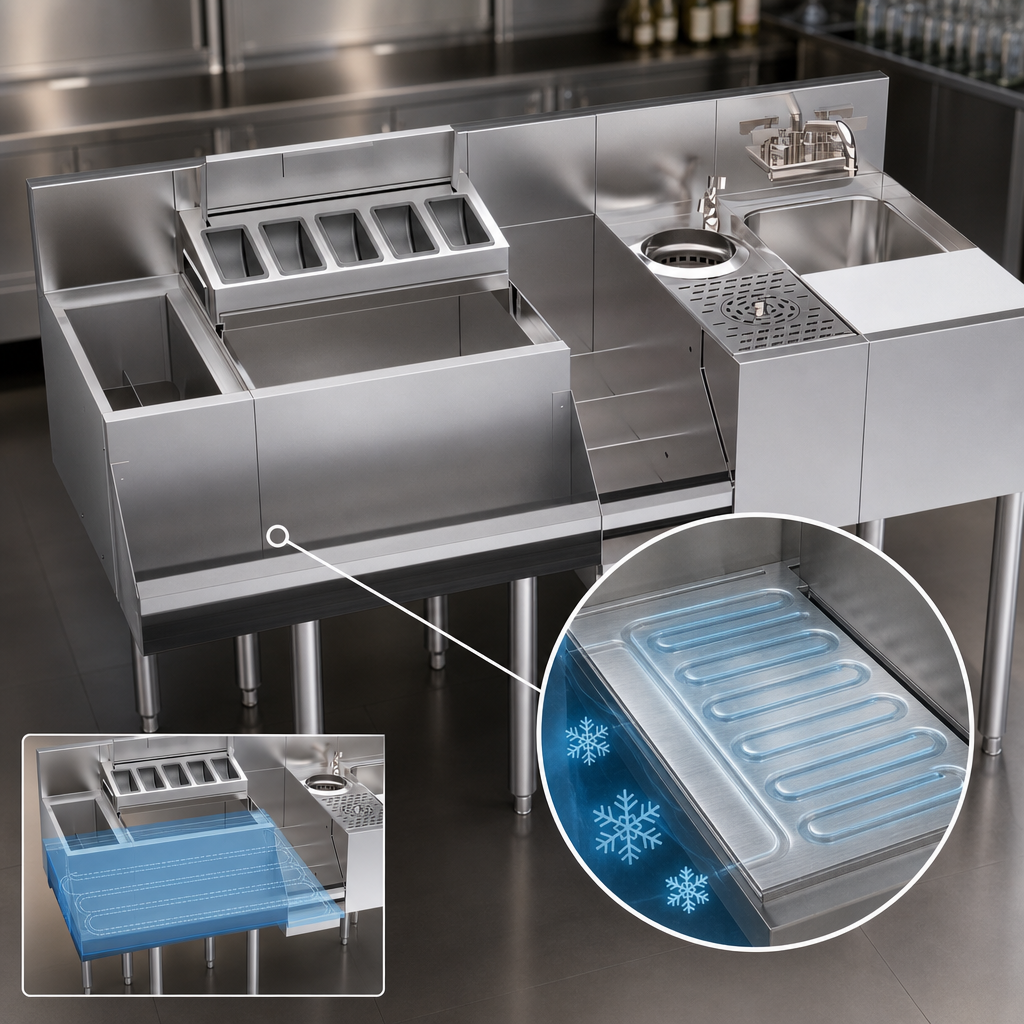

  • Factory-sealed 7-circuit cast-aluminum cold plate (pressure regulator included) chills post-mix beverages right in the 12"-deep ice bin.
  • 8" insulated bottle/elixir section with stainless dividers and perforated floor keeps premium mixers cold yet separated from ice melt.
  • 30" wide ice bin with removable dividers and sliding stainless cover maximizes ice storage and minimizes cross-contamination.
  • Removable garnish station with (8) pint cups and integrated cover protects fruit and herbs between rushes.
  • Five-tier, 8" wide liquor display holds up to 17 bottles for lightning-fast bottle pulls.
  • 20" dump sink with dipperwell faucet and high-performance glass rinser speeds glass turnover while saving water.
  • Sound-deadened 26" single speed rail keeps most-used spirits within easy reach.
  • Tool caddy & non-slip 11-1/2" × 10" cutting board let bartenders prep garnishes without leaving the station.
  • All 20 ga. stainless steel top, front & sides plus 18 ga. tubular legs with adjustable thermoplastic bullet feet.
  • Ships NSF-listed and arrives fully welded for drop-in installation.

Technical Specifications

Model KR24-MX54-7
Overall Dimensions 54" W × 24" D × 36-1/2" H
Ice Bin Interior 30" W × 12" D, 12" Deep
Approx. Ice Capacity 69 lb / 31 kg
Cold Plate 7-Circuit cast aluminum, 5/16" OD stainless tubing
Garnish Cups (8) Standard pint cups
Liquor Display 5 Tiers – up to 17 one-liter bottles
Sink Bowl 10" W × 12" L × 7" D, 1-1/2" IPS drain
Water Connections 1/2" IPS hot & cold | 1/2" IPS cold (glass rinser)
Shipping Weight Approx. 281 lb
Certifications NSF, cETLus

Perfect For

  • High-volume cocktail bars
  • Restaurant bar lines
  • Hotel & resort lounges
  • Event venues and stadium suites

Looking for custom electrical cut-outs or LED lighting? Ask our team about factory-installed options to match your exact bar program.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

54.0in

Depth

24.0in

Shipping Weight

281.0lbs

Working Height

30" working height

Width (side - side) OA

49" - 54"

Construction

stainless steel & galvanized

Blender Unit Type

with sink

Cold Plate

(7) circuit

Depth (front - back) OA

24"

Splash

6" splash

Ice Capacity

63 lbs.

Specifications

Royal Series Single Zero-Step Speed Station, with 7-circuit cold plate, 54"W x 24"D, 36-1/2" overall height, from left to right: 8"W insulated bottle section, 18"W ice bin, 12" deep with 7-circuit cold plate, garnish tray/sliding cover, 8"W five step liquor display, 20" dump sink with glass rinser, tool caddy & cutting board (pressure regulator included), 26" sound deadened single speedrail, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
