Description

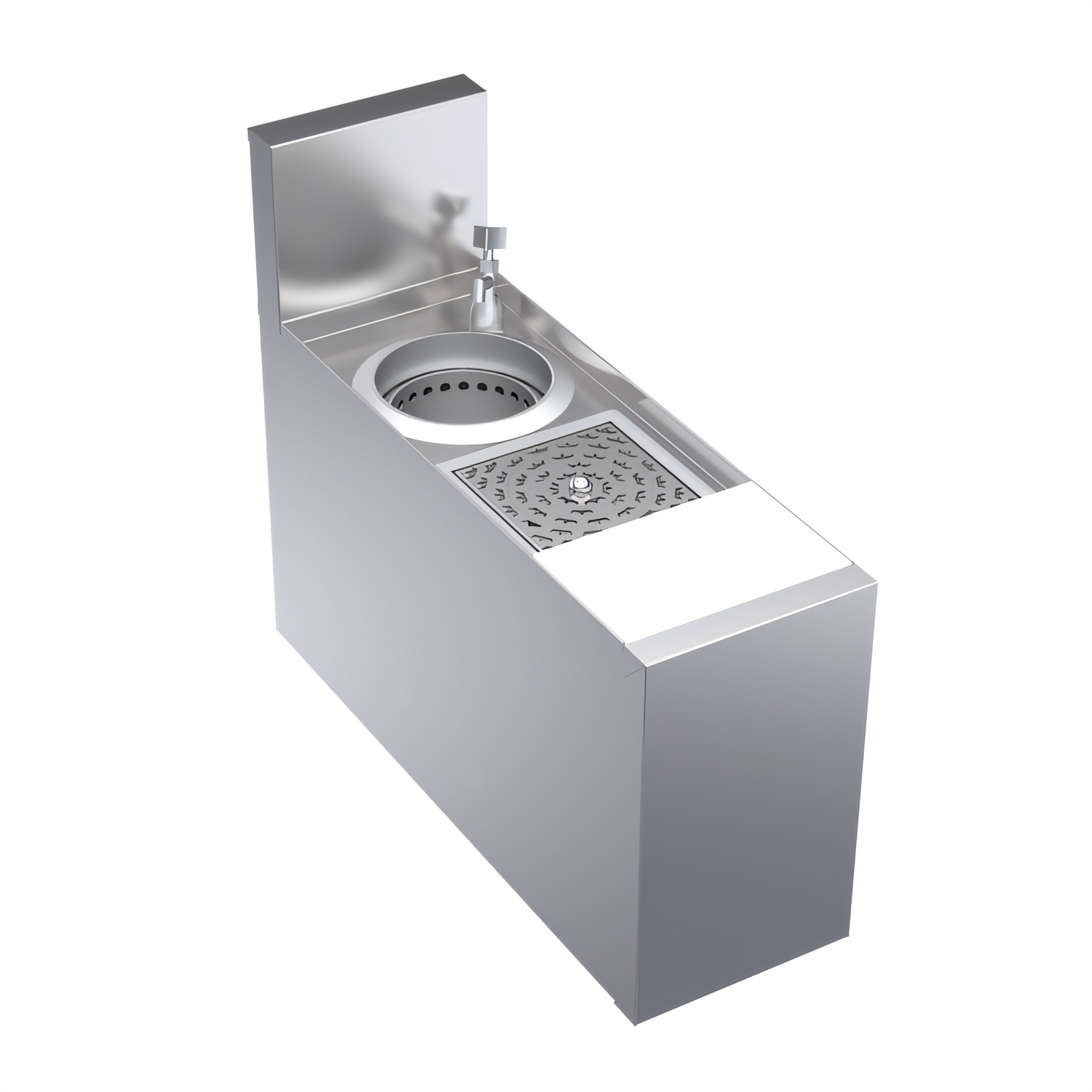

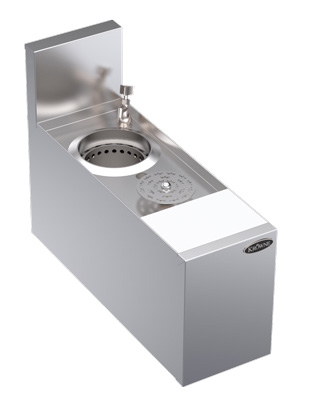

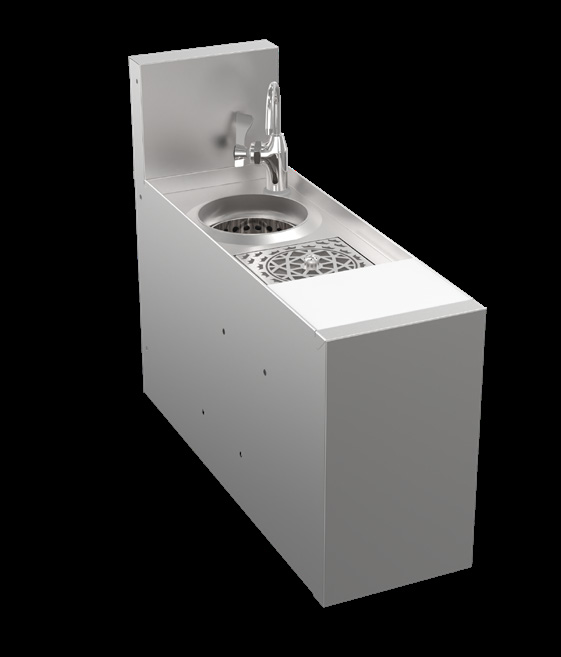

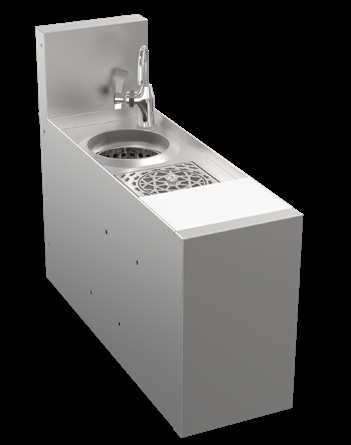

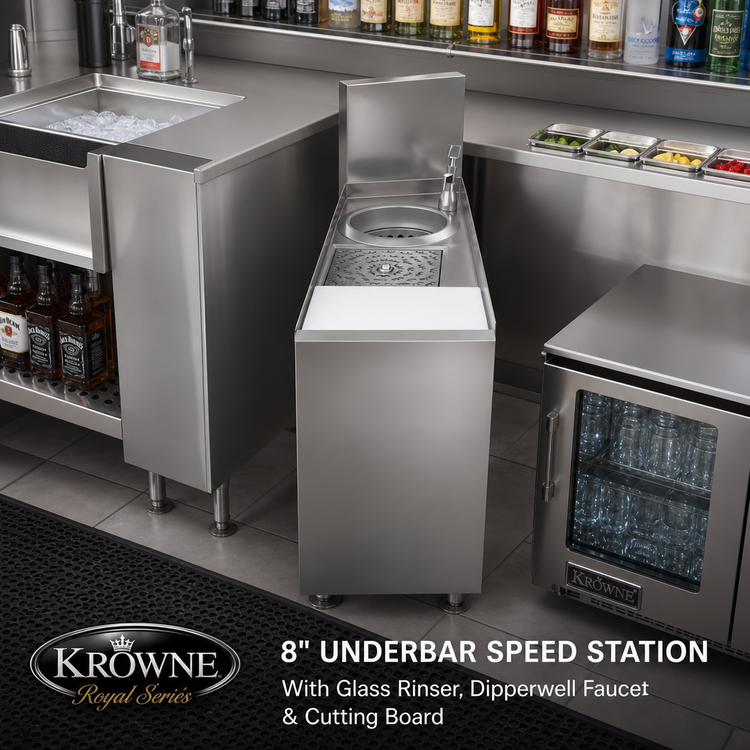

Krowne Royal Series 8" Underbar Speed Station – KR24-MS8

Compact 24"-deep speed unit with glass rinser, dipperwell & cutting board

Engineered for peak efficiency behind the bar, the KR24-MS8 packs a high-performance push-down glass rinser, a tool well with constant-flow dipperwell faucet, and a non-slip flush-mounted cutting board into just 8" of bar run. Stainless steel construction, NSF certification and a built-in pressure regulator ensure it performs shift after shift without compromise.

Key Features

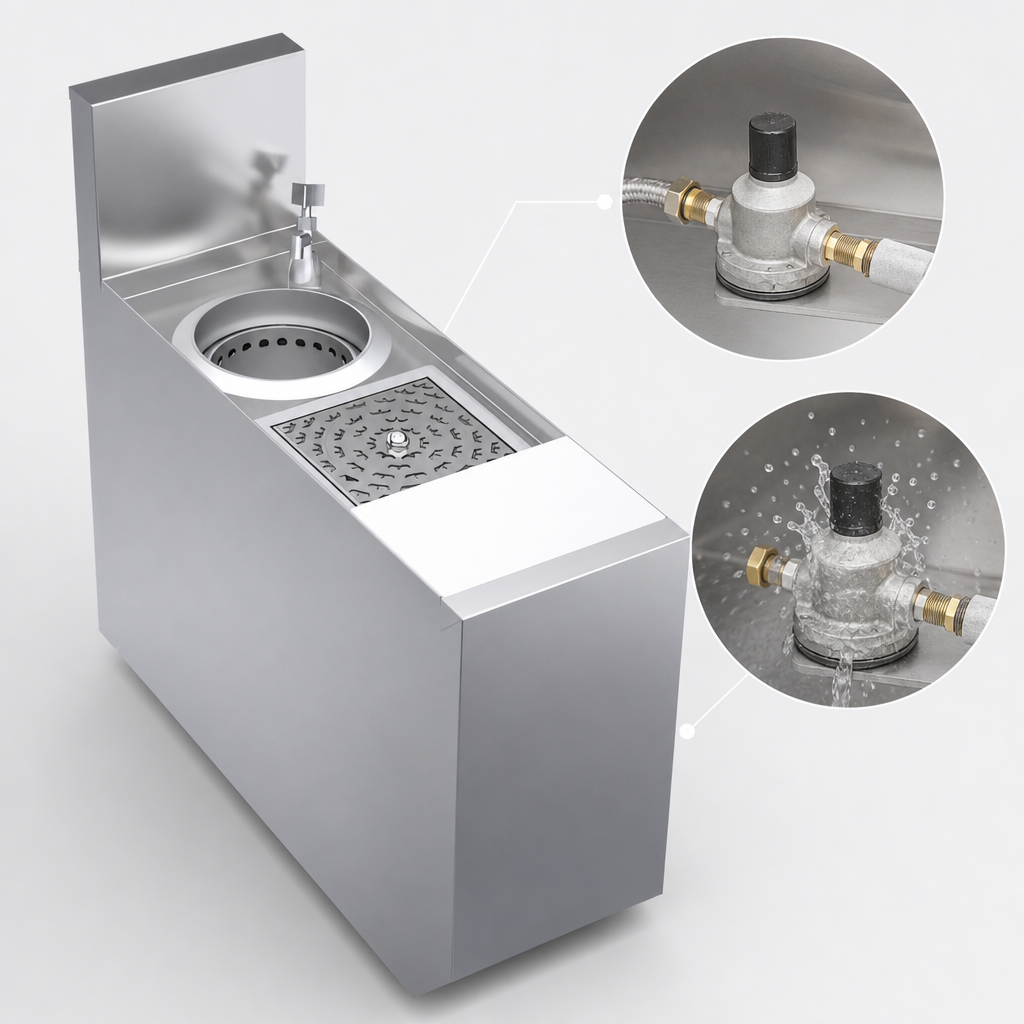

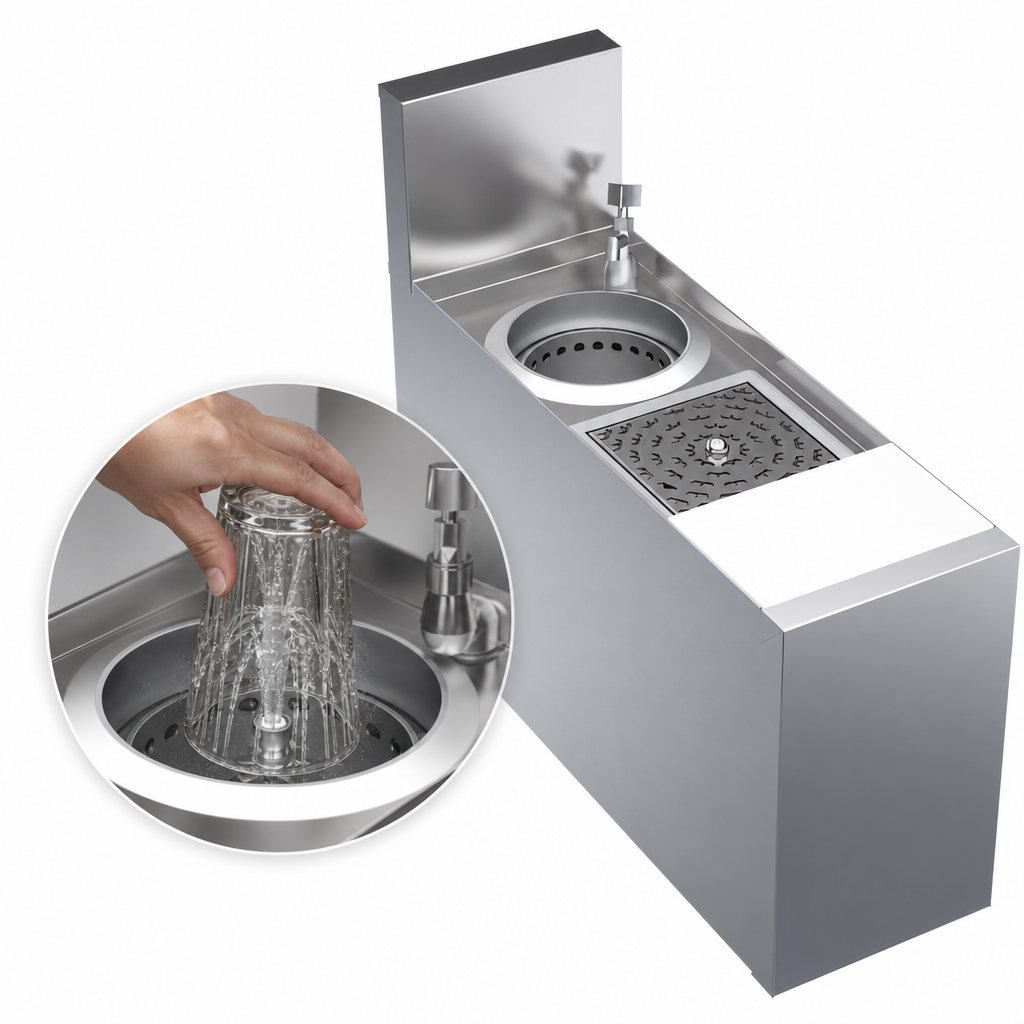

  • High-performance push-down glass rinser with in-line pressure regulator for consistently clean, chilled glassware.
  • Integrated tool well & dipperwell faucet keep bar utensils continuously rinsed in fresh, running water.
  • Non-slip, flush-mounted cutting board (7 ½" × 5") creates a stable prep surface without stealing counter space.
  • 6 ½" high backsplash protects surrounding walls and helps maintain a sanitary work zone.
  • Royal Series 20-gauge stainless steel front, sides, interior & backsplash for superior durability and easy clean-up.
  • Galvanized steel back and bottom (optional stainless upgrade) reduce weight while maintaining strength.
  • Compact 8" width slips between ice bins, sinks or speed rails to optimize every inch of your underbar layout.
  • NSF listed for safe, code-compliant installation in commercial foodservice environments.

Specifications

Model KR24-MS8
Overall Dimensions 8" W × 24" D × 11 ½" H (to deck) – 6 ½" backsplash height
Cutting Board Size 7 ½" W × 5" D (flush-mount, non-slip)
Dipperwell Diameter 6"
Plumbing Connections • 1" IPS drain (dipperwell)
• ½" IPS cold water (glass rinser)
• ½" IPS cold water (dipperwell faucet)
Materials 20-ga. stainless steel interior, front apron, sides & backsplash
20-ga. galvanized steel back & bottom
Shipping Weight 41 lb
Certifications NSF

For optimal performance, Krowne recommends 30–60 psi incoming water pressure to the glass rinser. Field verify all utilities prior to installation.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Width

8.0in

Depth

24.0in

Shipping Weight

41.0lbs

Sink Compartments

(1)

Depth (front - back) OA

24" - 27"

Width (side - side) OA

7" - 12"

Construction

stainless steel top, front, ends & legs

Drainboards

without drainboards

Splash

6"

Specifications

Royal Series Underbar Speed Station, 8"W x 24" D, high performance push-down glass rinser faucet with pressure regulator, tool well with dipper well faucet, non-slip flush mounted cutting board, 6-1/2" backsplash, stainless steel front, sides & interior, galvanized steel back & bottom, NSF
