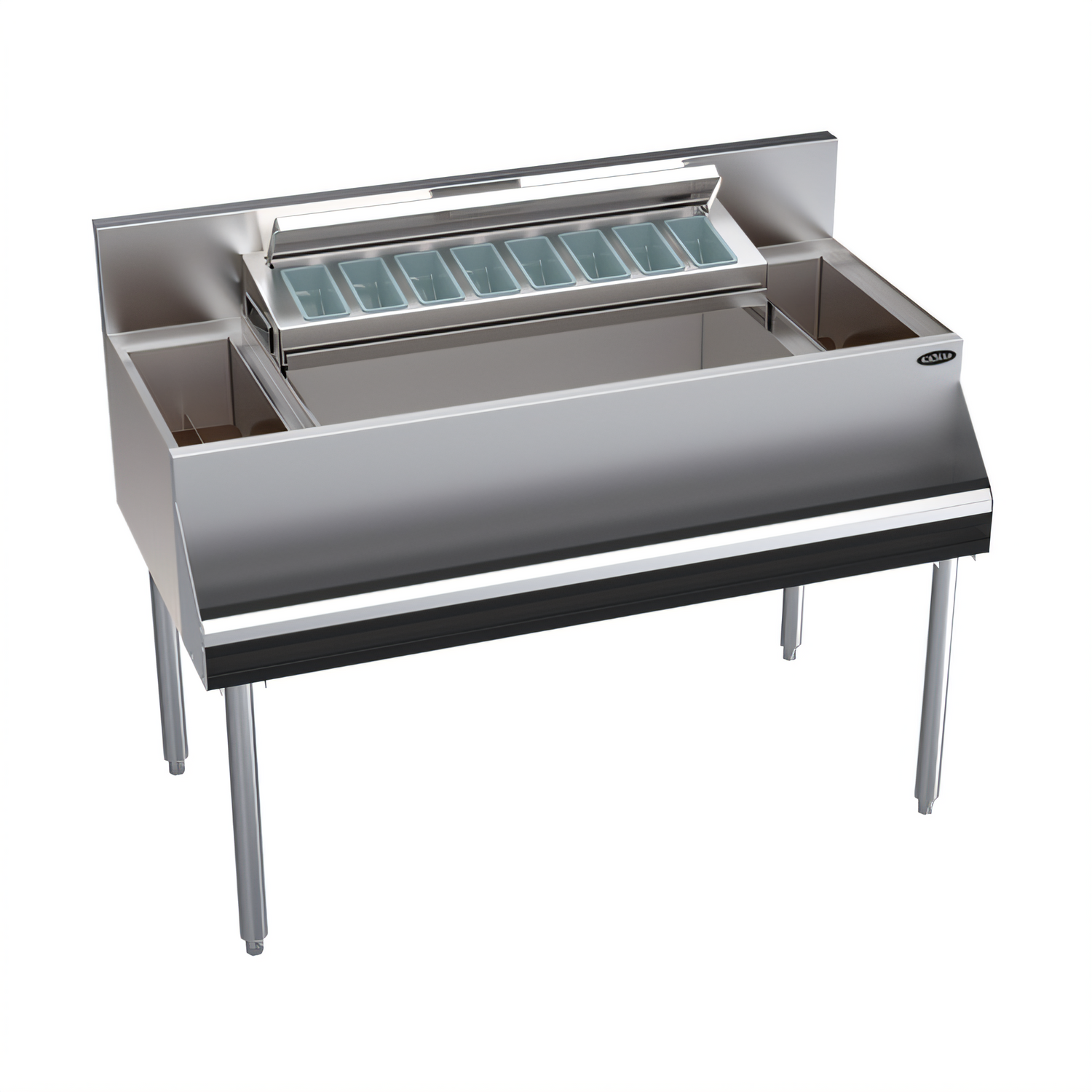

Royal Series 46" Elixir Mixology Multi-Station
Model KR24-MS46C • by Krowne MetalEngineered for high-volume cocktail programs, the Royal Series Elixir Mixology Multi-Station combines a generous 92 lb center ice bin with dedicated storage for every essential bartending ingredient—from fresh garnishes to house-made elixirs. Built on Krowne’s rugged 24"-deep underbar platform, this all-in-one station ships fully assembled, immediately upgrading any service line or modular bar die system.
Key Features
- 46" wide, 24" front-to-back footprint—fits standard underbar layouts.
- Center-mounted 30" ice bin holds up to 92 lbs of ice and includes 2 adjustable dividers for multiple ice types.
- Removable garnish station with integrated cover and 8 garnish cup capacity.
- Insulated 8" bottle well stores up to 20 elixir/cheater bottles (bottles not included).
- Dedicated shelf for 13 liquor bottles plus a built-in, full-length speed rail for fastest pours.
- 1" IPS drain on ice bin and elixir section for quick, code-compliant plumbing.
- Heavy-duty, fully welded 20 ga. stainless-steel interior, sides, apron, and backsplash.
- Foamed-in-place polyurethane insulation maximizes ice retention and reduces condensation.
- 1-5/8" tubular stainless legs with adjustable bullet feet ensure rock-solid stability.
- NSF & ETL-Sanitation listed for peace of mind and hassle-free inspections.
Technical Specifications
| Overall Width | 46 in / 116.8 cm |
|---|---|
| Depth (front → back) | 24 in / 61 cm |
| Backsplash Height | 6½ in / 16.5 cm |
| Ice Bin Size (W × D × H) | 30 in × 12 in × 12 in |
| Ice Capacity | 92 lbs / 41.7 kg |
| Garnish Cups | 8 included (removable station with lid) |
| Elixir Bottle Capacity | 20 (8" insulated bottle well) |
| Liquor Bottle Capacity | 13 (speed rail) |
| Ice Bin Dividers | 2 adjustable stainless dividers |
| Primary Drain | 1" IPS (ice bin & elixir section) |
| Unit Weight | 184 lbs / 83.5 kg |
| Construction | 20 ga. stainless steel interior, sides, apron & backsplash; 20 ga. galvanized bottom |
| Legs | 1-5/8" Ø stainless tubing with adjustable bullet feet |
| Certifications | NSF, ETL-Sanitation |
Optional Add-Ons (Sold Separately)
- Factory-installed 10-circuit cold plate (model KR24-MS46C-10) for post-mix soda lines.
- Modular bar die panels for seamless integration into custom bar builds.
- Additional speed rails, bottle racks, and cutting boards.
Need a different size? The Royal Series Multi-Station lineup ranges from 26" to 46" widths with left, right, or center ice bin configurations. Contact us for assistance finding the perfect fit.
Overall Dimensions:
46.0"W x 24.0"D x 36.5"HProduct Weight:
184.0 lbCertifications & Compliance
