Krowne  |  Royal Series  |  SKU: KR24-MS40C

Krowne KR24-MS40C Royal Series Bar Equipment

$4,459.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

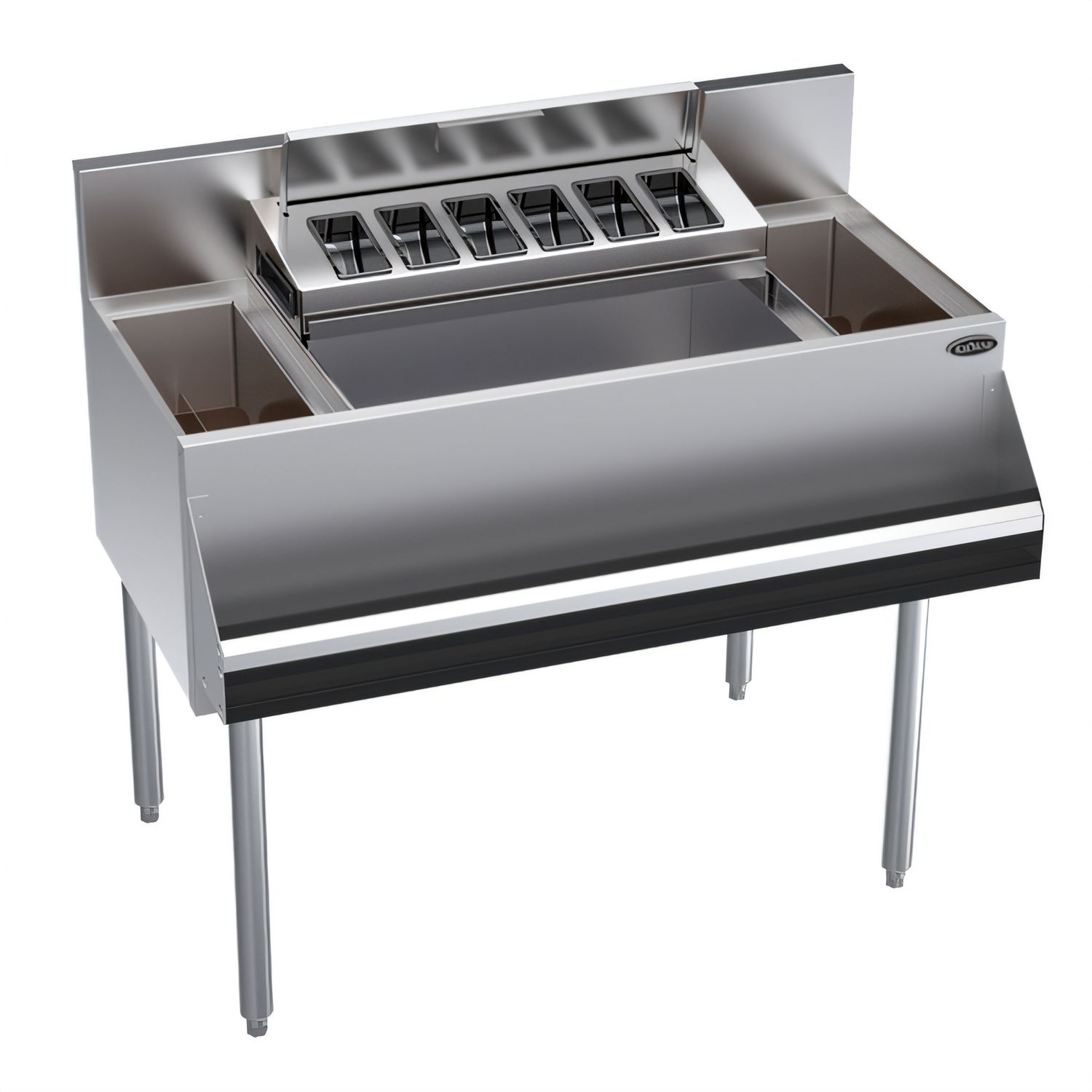

Krowne Royal Series 40" Elixir Mixology Multi-Station

Model KR24-MS40C • Center Ice Bin • 74 lb Ice Capacity

Give your bartenders everything they need in a single, space-saving footprint. The Royal Series Elixir Mixology Multi-Station combines a high-capacity ice bin, insulated bottle well, garnish caddy and speed rail—so service stays smooth even at peak volume.

Highlights

  • 24" center ice bin holds up to 74 lb of ice and includes an adjustable divider.
  • 8" insulated bottle well stores up to 20 elixir/cheater bottles plus 11 liquor bottles.
  • Removable 6-cup garnish station with self-storing cover keeps ingredients fresh.
  • Built-in speed rail keeps core spirits within easy reach.
  • 20-gauge stainless steel interior, sides, backsplash and apron for long-term durability.
  • 1 ⅝" tubular stainless legs with adjustable bullet feet for quick leveling.
  • 1" NPS drain (elixir section) and 1" IPS drain (ice bin) speed up clean-up.
  • Ships fully assembled—connect the drains and you’re ready to pour.
  • NSF & ETL-Sanitation listed.

Specifications

Overall width 40" / 1016 mm
Front-to-back depth 24" / 610 mm
Working height 36 1⁄2" / 927 mm
Backsplash height 6 1⁄2" / 165 mm
Ice bin interior depth 12"
Ice capacity 74 lb / 33.6 kg
Garnish cups 6 (included)
Elixir bottle capacity 20
Liquor bottle capacity 11
Unit weight 169 lb / 76.7 kg (shipping)
Drains 1" NPS (elixir) & 1" IPS (ice bin)
Construction 20-ga. stainless steel with foamed-in-place polyurethane insulation

Part of a Complete Bar System

  • Modular Royal Series underbar design aligns flush with adjoining sinks, dump stations and glass racks.
  • Available on stainless legs (standard) or factory-installed bar die for permanent installations.
  • Optional 10-circuit cold plate version (Model KR24-MS40C-10) factory-sealed into the ice bin.
Note: Bottles, glassware and installation hardware shown in photos are not included.

Item #5025 · Manufacturer ID 775 · Krowne Metal Corporation, Wayne NJ USA

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

40.0in

Depth

24.0in

Shipping Weight

169.0lbs

Splash

6"

Ice Capacity (approximate)

75 lbs.

Depth (front - back) OA

24" - 27"

Cold Plate

without

Construction

stainless steel & galvanized

Bin Depth

12" deep ice bin

Width (side - side) OA

37" - 42"

Components (left to right)

bottle well, ice bin, bottle well

Bottle Capacity

(20)

Specifications

Royal Series 8" Elixir Mixology Multi-Station, 40"W, 24" center ice bin, 74 lbs. ice capacity, ice bin divider, removable garnish station with integrated cover, (6) garnish cup capacity, insulated bottle well, (20) elixir bottle capacity (bottles not included), (11) liquor bottle capacity, built-in speed rail, 1" drain, NSF, ETL-Sanitation
