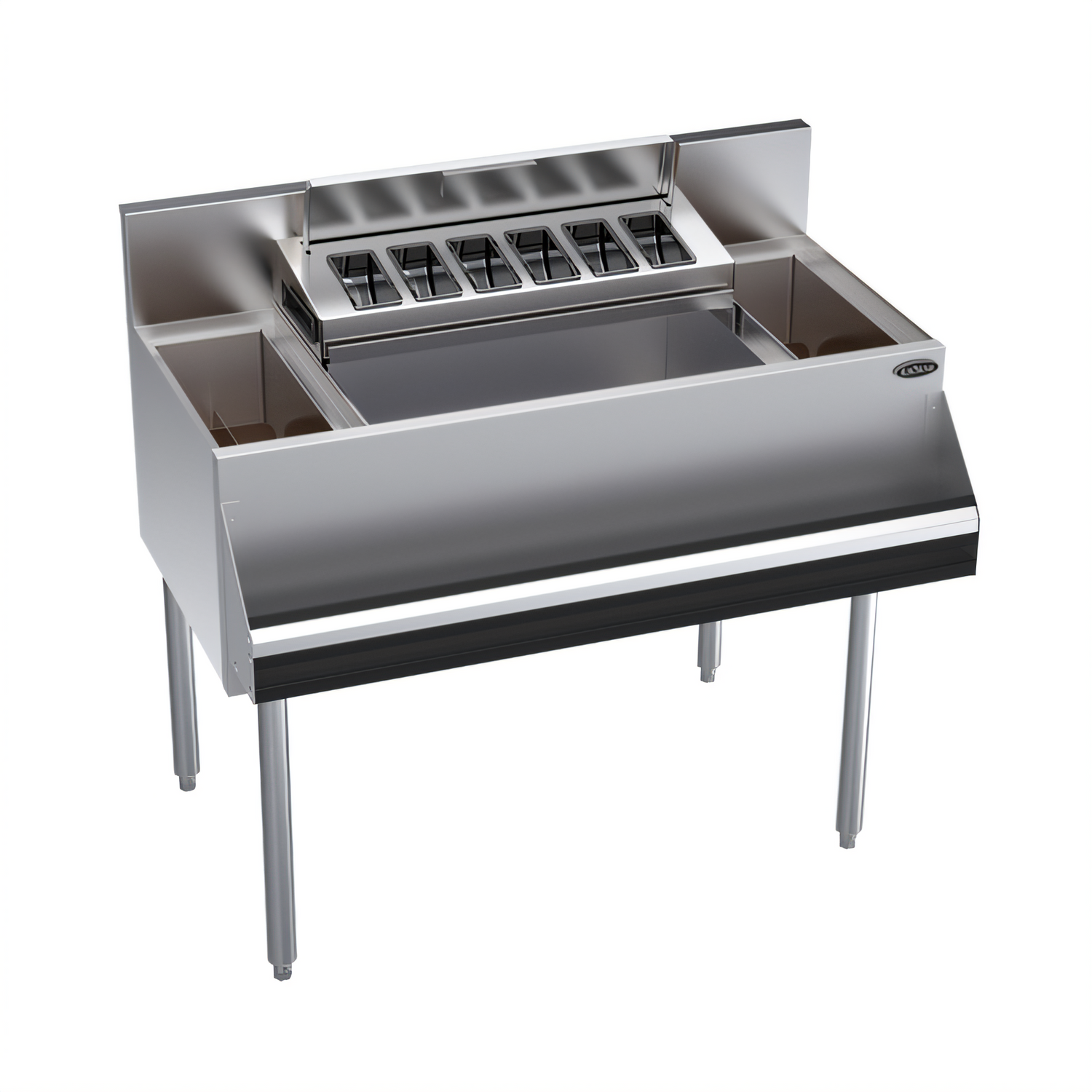

Krowne Royal Series 40" Elixir Mixology Multi-Station with 10-Circuit Cold Plate
Model KR24-MS40C-10 | NSF & ETL-Sanitation ListedTurn every cocktail into an effortless, high-margin masterpiece. The Royal Series 8" Elixir Mixology Multi-Station combines ice, soda lines, bottle storage and garnish prep in one 40-inch underbar powerhouse—perfect for craft bars, nightclubs and high-volume restaurants.
Key Features
- Sealed 10-circuit cast-aluminum cold plate chills soda/juice lines directly in the ice.
- Center 24" ice bin (12" deep) holds up to 74 lb of ice with an adjustable divider.
- Removable 6-cup garnish station with integrated hinged cover keeps ingredients fresh and accessible.
- Insulated 8" bottle well holds 20 elixir/cheater bottles (bottles not included).
- Liquor display section stores 11 frequently-poured spirits for lightning-fast service.
- Built-in single-tier speed rail for additional bottle organization.
- Foamed-in-place polyurethane insulation reduces ice melt and condensation.
- Durable 20-gauge stainless steel construction on interior, sides, backsplash and front apron.
- Ships fully assembled on 1 5⁄8" tubular legs with adjustable bullet feet.
Why It Belongs Behind Your Bar
- Consolidates prep and service into one 40" footprint—freeing up valuable bar space.
- Cold-plate design eliminates remote chillers and cuts down on ice waste.
- Modular Royal Series sizing mates seamlessly with other Krowne underbar equipment.
- NSF approval streamlines health-department inspections and approvals.
Technical Specifications
| Overall width | 40" (1016 mm) |
|---|---|
| Front-to-back depth | 24" (610 mm) |
| Ice bin location | Center |
| Ice capacity | 74 lb / 33.6 kg |
| Cold plate | Cast aluminum, 10 circuits, 5⁄16" O.D. stainless tubing |
| Drain connections | ½" IPS (ice bin w/ cold plate) & 1" NPS (elixir section) |
| Garnish cup capacity | 6 cups |
| Elixir bottle capacity | 20 bottles |
| Liquor bottle capacity | 11 bottles |
| Ice bin divider(s) | 1 adjustable divider included |
| Construction | 20-gauge stainless steel (interior, sides, backsplash, front apron) |
| Insulation | Foamed-in-place polyurethane |
| Approx. shipping weight | 264 lb (119.7 kg) |
| Certifications | NSF, ETL-Sanitation |
Bottles, soda lines and garnish inserts shown in images are for demonstration purposes and are not included.
Overall Dimensions:
40.0"W x 24.0"D x 36.5"HProduct Weight:
264.0 lbCertifications & Compliance
