Krowne

Krowne KR24-MS38L-10 Royal Series Bar Equipment

SKU: KR24-MS38L-10
$5,364.15
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Krowne New Arrivals

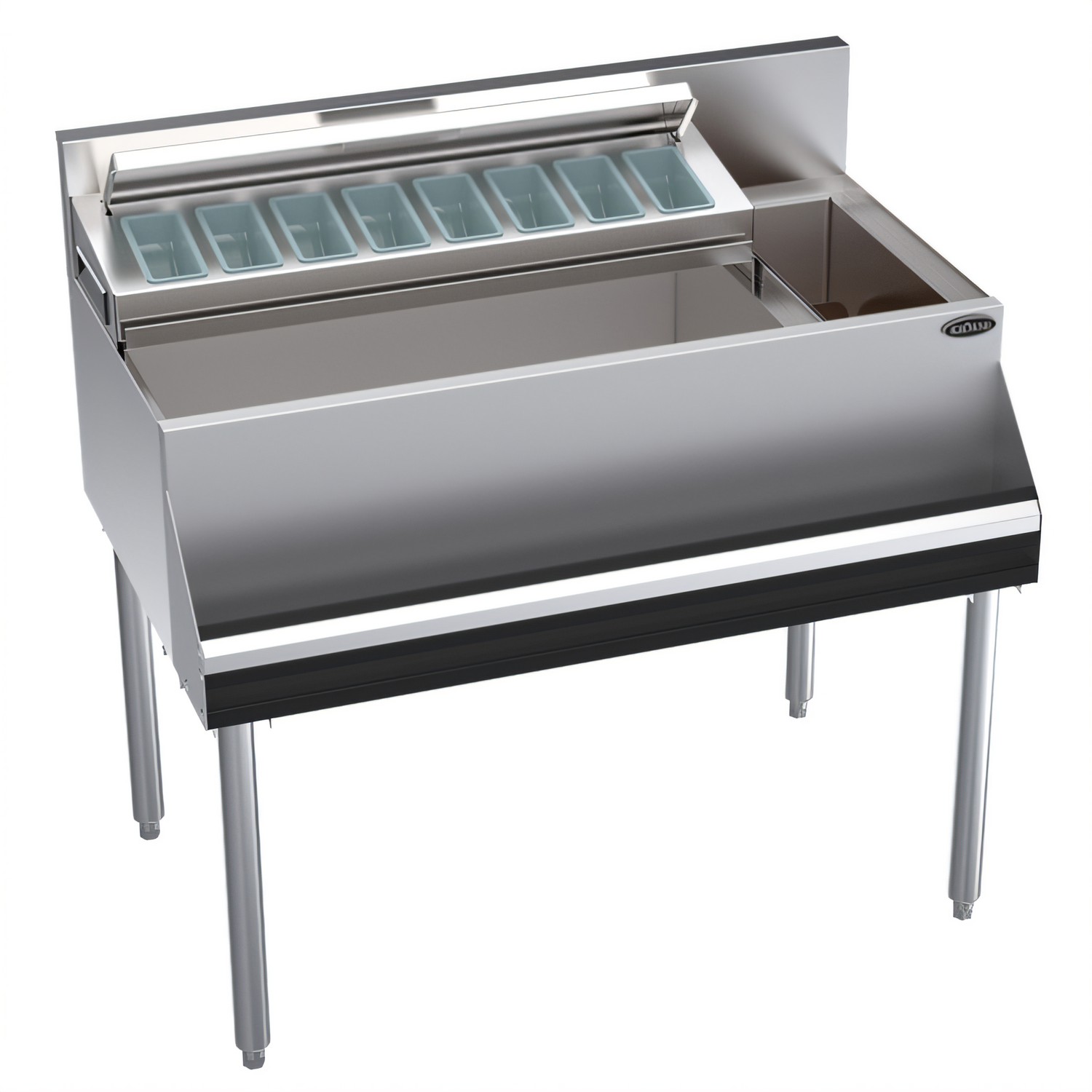

Krowne Royal Series 38" Elixir Mixology Multi-Station – Left Ice Bin, 10-Circuit Cold Plate

Model KR24-MS38L-10  |  NSF & ETL-Sanitation Listed

Give your bartenders a purpose-built workspace that keeps cocktails flowing and guests coming back. This Royal Series Multi-Station combines a high-capacity ice bin, integrated cold-plate soda service, bottle storage, garnish organization and a built-in speed rail in one 38" wide footprint—shipped ready to drop in and start pouring.

Key Benefits

  • 92 lb ice capacity in a 30" left-hand ice bin—enough for the busiest shifts.
  • 10-circuit cast-aluminum cold plate (5/16" O.D. stainless tubing) keeps post-mix beverages ice-cold from keg to glass.
  • Removable eight-cup garnish station with hinged cover for lightning-fast cocktail assembly.
  • Insulated 8" bottle well holds up to 10 elixir/cheater bottles (plus 10 liquor bottles on the speed rail) at the perfect mixing height.
  • Two adjustable ice-bin dividers let you keep crushed, cubed or specialty ice separated and organized.
  • Foamed-in-place polyurethane insulation throughout retains temperature and prevents condensation.
  • All-stainless construction (20 ga.) with galvanized backing for lasting corrosion resistance.
  • 1 ⅝" tubular legs with adjustable bullet feet for a rock-solid, level installation.
  • Ships fully assembled—simply connect the ½" drain and you’re ready for service.

Capacity at a Glance

Ice Bin 92 lbs  (30" length)  |  12" deep
Garnish Cups 8 (removable caddy with lid)
Elixir / Cheater Bottles 10 (insulated bottle well, bottles not included)
Liquor Bottles 10 (single-tier speed rail)
Ice Bin Dividers 2 adjustable stainless dividers
Cold-Plate Circuits 10 (KR-CPN4 built-in)

Technical Specs

Overall Width 38"
Front-to-Back Depth 24" (standard on all Royal Series multi-stations)
Backsplash Height 6 ½" H  ×  1 ½" D
Drain Connection ½" IPS (ice bin with cold plate) – includes 4" PVC tailpiece
Construction 20 ga. stainless steel interior, front apron, sides & backsplash;
20 ga. galvanized steel back & bottom
Insulation Foamed-in-place polyurethane
Net Weight 233 lbs (as shipped with cold plate)
Certifications NSF  &  ETL-Sanitation
Installation Note: A PVC tailpiece is supplied and must be used to prevent condensation caused by metal-to-metal contact on the drain line. Always follow local plumbing codes and provide an adequate floor drain.

Bottles, garnishes and decorative accessories shown in photos are for demonstration purposes only and are not included with purchase.

Overall Dimensions:

38.0"W x 24.0"D x 36.5"H

Product Weight:

233.0 lb
Manufacturer Krowne
Brand name Royal Series
Certifications ["NSF", "ETL-Sanitation"]
Height 36.5in
Width 38.0in
Depth 24.0in
Shipping Weight 233.0lbs
Width (side - side) OA 37" - 42"
Cold Plate (10) circuit
Bottle Capacity (10)
Ice Capacity (approximate) 90 lbs.
Depth (front - back) OA 24" - 27"
Splash 6"
Components (left to right) ice bin, bottle well
Construction stainless steel & galvanized
Bin Depth 12" deep ice bin
Specifications Royal Series 8" Elixir Mixology Multi-Station, built-in 10-circuit cold plate, 38"W, 30" ice bin on left, 92 lbs. ice capacity, (2) ice bin dividers, removable garnish station with integrated cover, (8) garnish cup capacity, insulated bottle well, (10) elixir bottle capacity (bottles not included), (10) liquor bottle capacity, built-in speed rail, 1/2" drain, NSF, ETL-Sanitation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download
