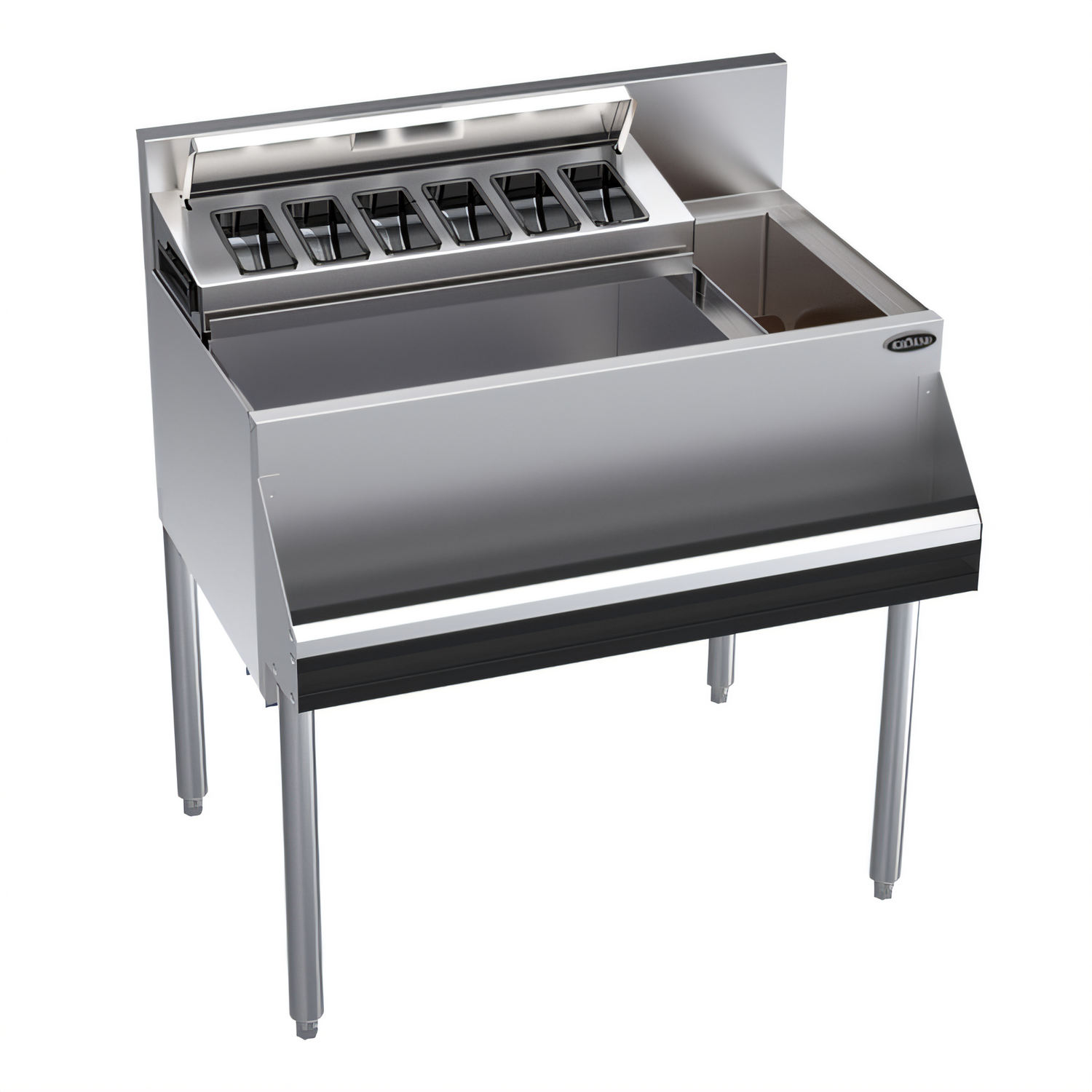

Krowne Royal Series 32" Elixir Mixology Multi-Station – Left Ice Bin
Model KR24-MS32L | NSF & ETL-Sanitation ListedDesigned for serious craft-cocktail programs, the Royal Series Elixir Mixology Multi-Station combines a high-capacity ice bin, insulated bottle well, and garnish caddy into one compact, fully assembled workstation. Keep ingredients ice-cold, organized and always within reach—even during the rush.
Key Features
- 24" left-mounted ice bin holds 74 lb of ice and includes 1 adjustable divider for standard or specialty ice.
- Removable 6-cup garnish station with hinged cover protects fruit and herbs from bar splash.
- 8" insulated bottle well keeps up to 10 elixir/cheater bottles chilled without dilution (bottles not included).
- Integrated speed rail accommodates 9 one-liter liquor bottles for lightning-fast service.
- Rugged 20-ga. stainless-steel interior, sides, and backsplash with foamed-in-place insulation.
- 1" gravity drain for both ice and elixir wells simplifies end-of-shift clean-up.
- 6 ½" backsplash contains splashes and provides a clean mounting surface for accessories.
- Ships fully assembled on four 1 5/8" tubular stainless legs with adjustable bullet feet.
Specifications
| Model | KR24-MS32L |
|---|---|
| Series | Royal Series Underbar |
| Overall Width | 32" (813 mm) |
| Front-to-Back Depth | 24" (610 mm) |
| Working Height | 30" (762 mm) |
| Overall Height w/ Backsplash | 36.5" (927 mm) |
| Ice Bin Location | Left |
| Ice Capacity | 74 lb (33.6 kg) |
| Ice Bin Depth | 12" |
| Garnish Cup Capacity | 6 cups (removable) |
| Elixir Bottle Capacity | 10 bottles (750 ml) |
| Liquor Bottle Capacity | 9 bottles (1 L) |
| Drain Size | 1" NPS / IPS |
| Construction | 20-ga. stainless interior, sides & backsplash; stainless-clad galvanized apron |
| Legs | 1 5/8" stainless tubular legs with adjustable bullet feet |
| Unit Weight | 123 lb (55.8 kg) |
| Certifications | NSF, ETL-Sanitation |
Need a right-side or center ice configuration, or a built-in cold-plate option? Reach out—we can configure any Royal Series station to fit your bar’s exact workflow.
Overall Dimensions:
32.0"W x 24.0"D x 36.5"HProduct Weight:
123.0 lbCertifications & Compliance
