Krowne  |  Royal Series  |  SKU: KR24-MS32L-10

Krowne KR24-MS32L-10 Royal Series Bar Equipment

$4,786.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

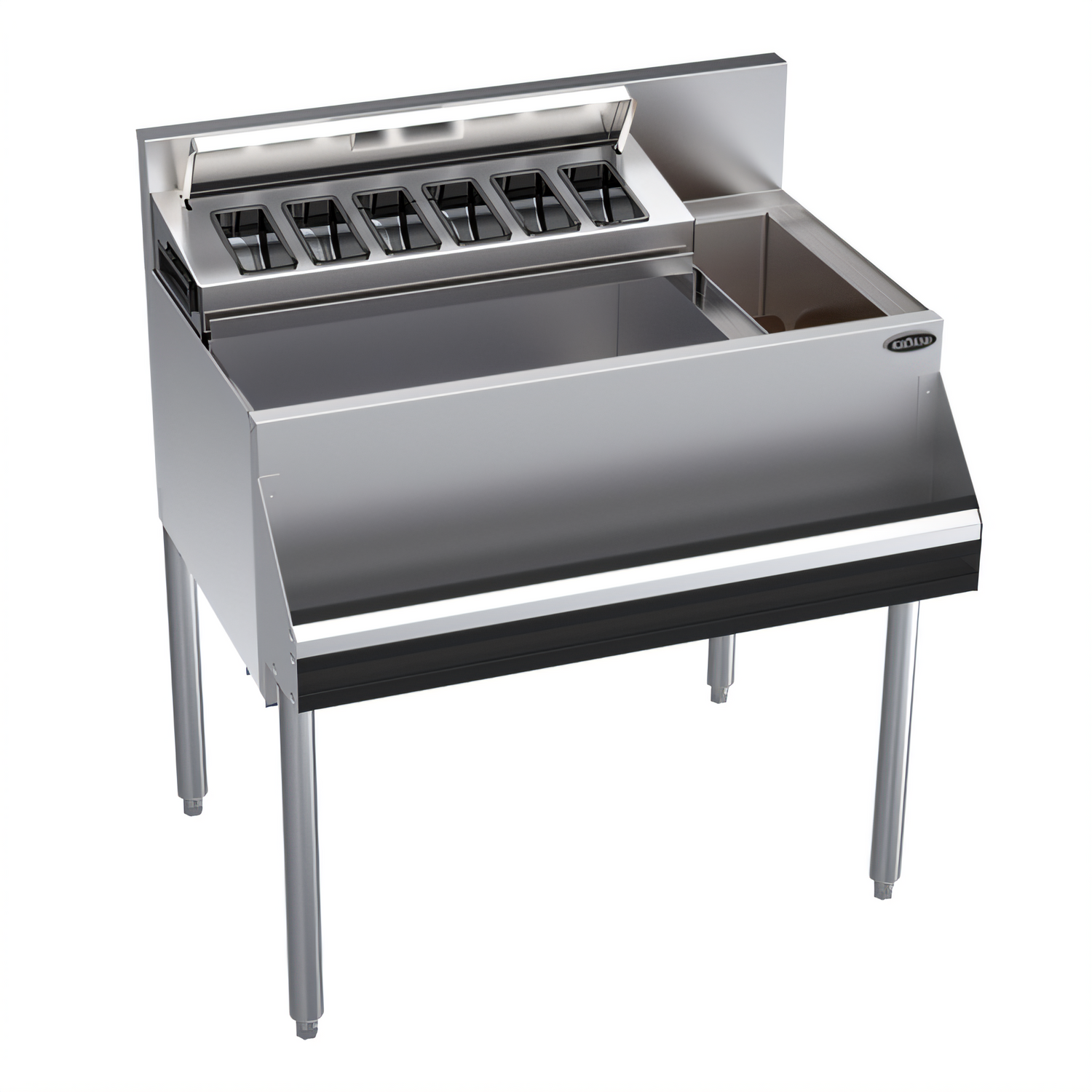

Krowne Royal Series Elixir Mixology Multi-Station, 32" – Left Ice Bin, 10-Circuit Cold Plate

Model KR24-MS32L-10

Engineered for serious cocktail programs, the Royal Series Mixology Multi-Station puts ice, mixers, syrups and spirits at your bartenders’ fingertips, delivering faster service and perfectly chilled drinks every time.

Key Advantages

  • Built-in 10-circuit cast-aluminum cold plate chills soda lines right in the ice bin for consistent, low-foam pours.
  • Generous 24" ice bin holds up to 74 lb of ice and includes an adjustable divider for easy separation of cube and crushed ice.
  • Six-cup removable garnish station with integrated lid keeps fruits and herbs fresh and protected.
  • Insulated bottle well accommodates 10 elixir/cheater bottles for house-made mixers (bottles not included).
  • Built-in speed rail keeps 9 liquor bottles front-and-center for rapid cocktail builds.
  • All-stainless 20-gauge construction with foamed-in-place insulation stands up to punishing bar environments.
  • Ships fully assembled on 1 5⁄8" tubular legs with adjustable bullet feet—level it, hook it up and start pouring.

Detailed Specifications

Overall width 32" (813 mm)
Front-to-back depth 24" (610 mm)
Working height 30" to deck / 36 1⁄2" to top of backsplash
Ice bin location Left
Ice capacity 74 lb
Cold plate Integrated 10-circuit cast-aluminum plate, 5⁄16" O.D. stainless tubing
Drain connections 1⁄2" IPS (ice bin)  |  1" NPS (elixir section)
Garnish capacity 6-cup removable caddy with hinged cover
Elixir bottle capacity 10 bottles (not included)
Liquor bottle capacity 9 bottles on built-in speed rail
Construction 20-ga stainless steel interior, front, sides & backsplash; galvanized bottom/back
Insulation Foamed-in-place polyurethane
Certifications NSF, ETL-Sanitation
Shipping weight Approx. 218 lb

Bottles, glassware and other props shown in photos are for illustration only and are not included with purchase.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

32.0in

Depth

24.0in

Shipping Weight

218.0lbs

Bottle Capacity

(10)

Width (side - side) OA

31" - 36"

Construction

stainless steel & galvanized

Splash

6"

Components (left to right)

ice bin, bottle well

Cold Plate

(10) circuit

Depth (front - back) OA

24" - 27"

Ice Capacity (approximate)

75 lbs.

Bin Depth

12" deep ice bin

Specifications

Royal Series 8" Elixir Mixology Multi-Station, built-in 10-circuit cold plate, 32"W, 24" ice bin on left, 74 lbs. ice capacity, ice bin divider, removable garnish station with integrated cover, (6) garnish cup capacity, insulated bottle well, (10) elixir bottle capacity (bottles not included), (9) liquor bottle capacity, built-in speed rail, 1/2" drain, NSF, ETL-Sanitation
