Description

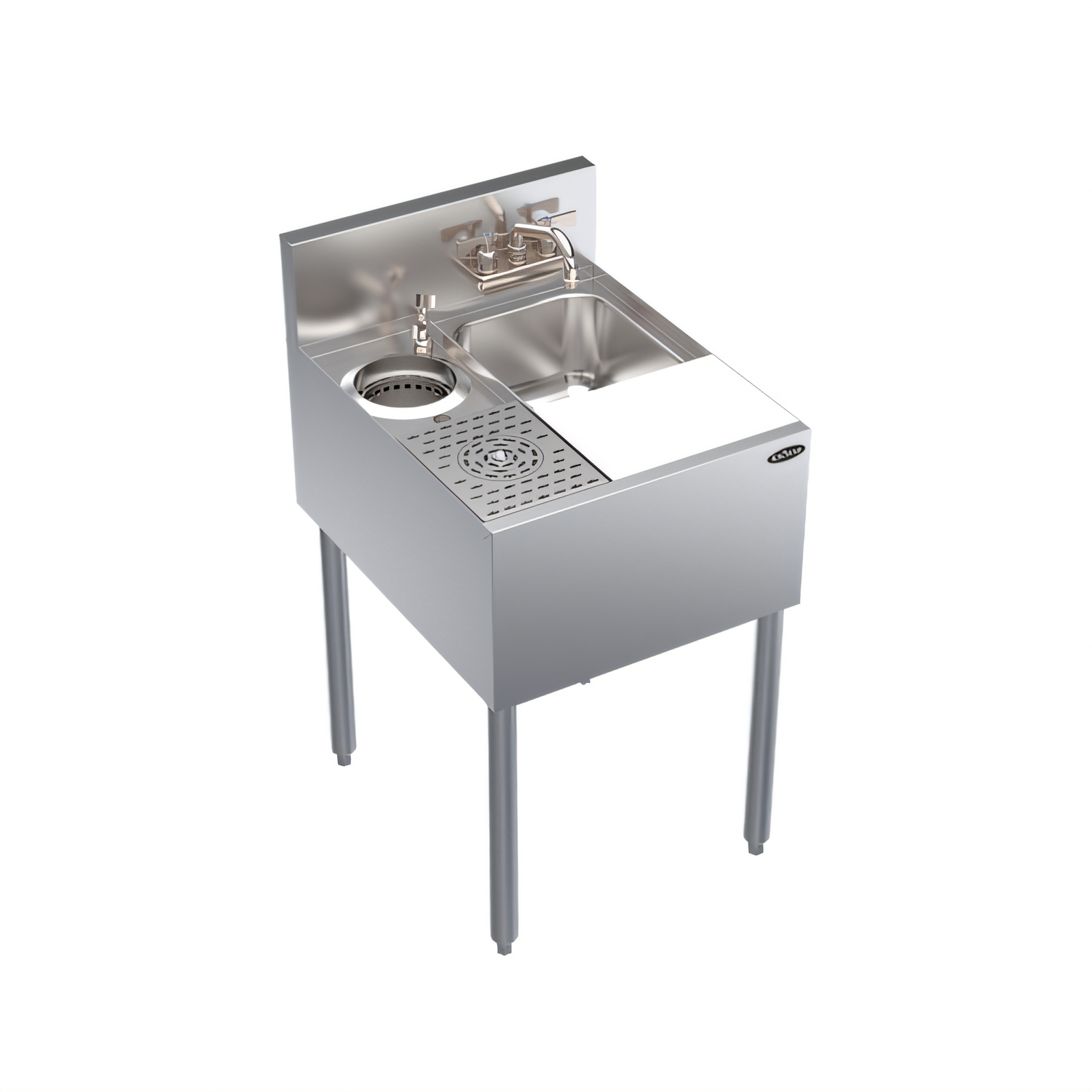

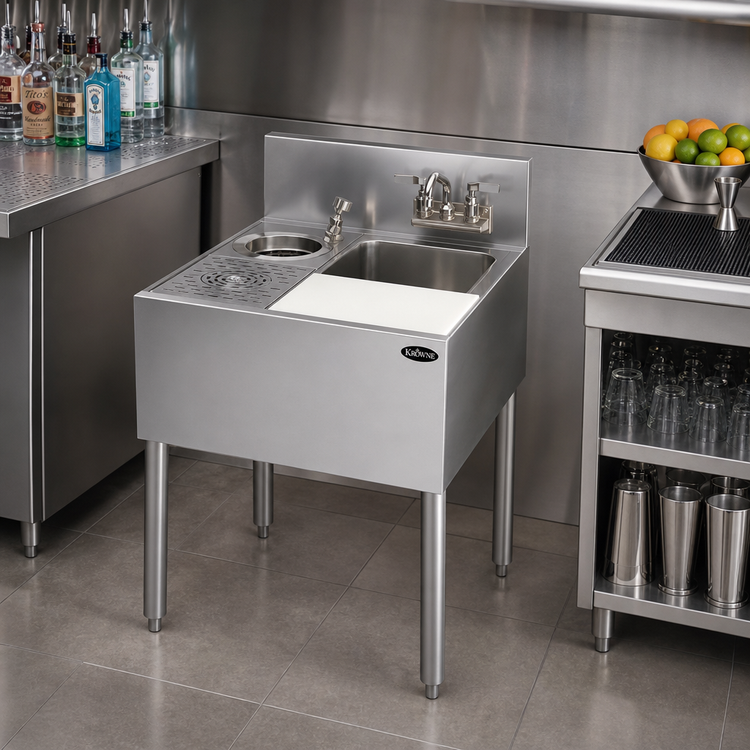

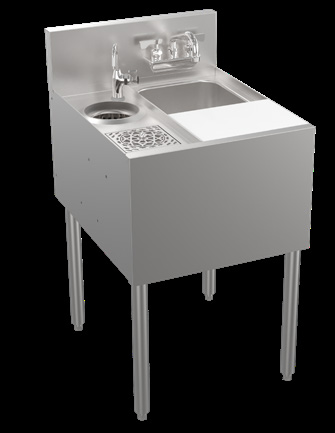

Krowne Royal Series Underbar Speed Unit – 20" W × 24" D

Model KR24-MS20 | NSF Listed

Built for bartenders that never slow down, the Krowne Royal Series 20" Specialty Speed Unit pairs a deep dump sink with a high-performance glass rinser and an integrated cutting station—all in a compact footprint that drops seamlessly into any underbar line-up. Heavy-gauge stainless steel construction and premium Royal-Series components deliver the durability, sanitation and speed your service demands.

Why You’ll Love It

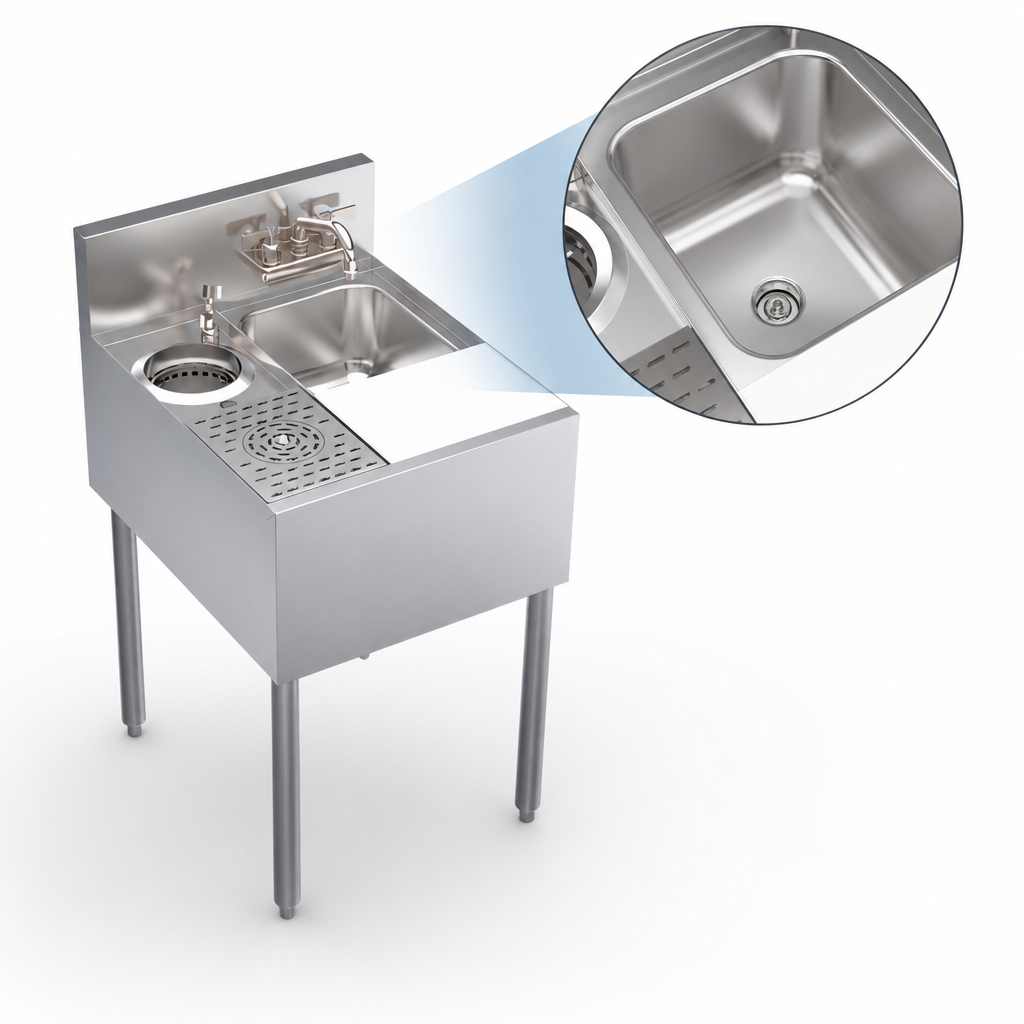

  • 10" W × 12" L × 7" D dump sink handles ice & liquid waste with ease.

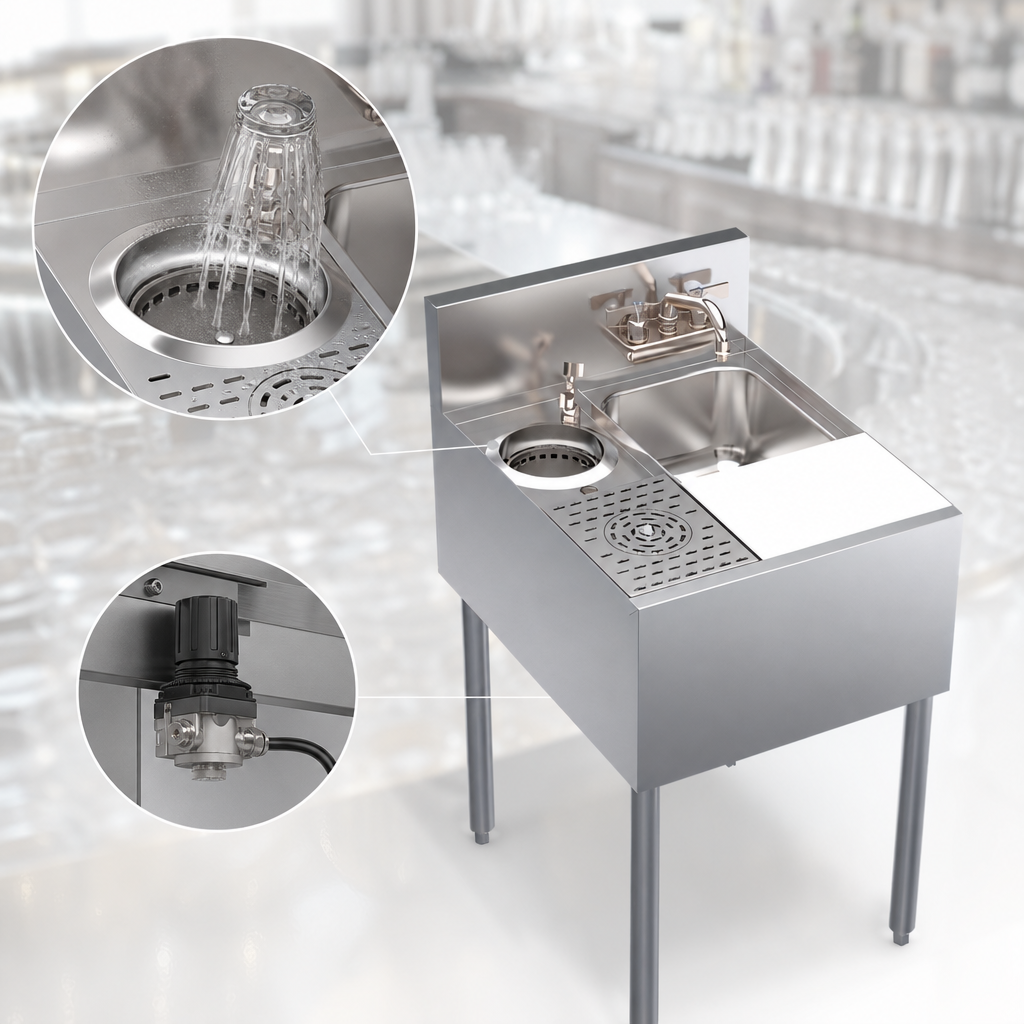

  • 6" diameter tool well with high-performance glass rinser and in-line pressure regulator for spot-free results in seconds.
  • Non-slip, flush-mounted 7.5" × 10" cutting board on the right—ideal for garnishes and quick prep.
  • Splash-mount Royal Series faucet with smooth 1/4-turn ceramic cartridges (4" centers).
  • 6-1/2" backsplash keeps surrounding work areas dry and hygienic.
  • 16-gauge stainless steel legs with adjustable thermoplastic bullet feet for fast leveling on uneven floors.
  • All-stainless top, front and sides; galvanized back and bottom for long-lasting corrosion resistance.
  • Separate 1-1/2" IPS drains for sink and dipperwell simplify plumbing.
  • NSF certification meets the strictest food-service health standards.
Quick-Glance Specs
Overall Dimensions 20" W × 24" D × 36-1/2" H (to backsplash)
Sink Bowl Size 10" W × 12" L × 7" D
Tool Well / Glass Rinser 6" Ø with pressure-regulated rinser nozzle
Cutting Board 7.5" × 10" non-slip, removable HDPE
Water Connections 1/2" IPS hot & cold (faucet) • 1/2" IPS cold (glass rinser & dipperwell)
Drain Connections 1-1/2" IPS (sink) • 1-1/2" IPS (dipperwell)
Materials 20-ga. 300-series stainless steel top, front, sides & backsplash • 16-ga. SS legs
Feet Adjustable grey thermoplastic bullet feet
Shipping Weight ≈ 68 lb
Professional Installation Required: This unit must be connected to dedicated water supplies and drains in accordance with local plumbing codes. Always flush supply lines before start-up.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

20.0in

Depth

24.0in

Shipping Weight

68.0lbs

Construction

stainless steel top, front, ends & legs

Bowl Size

10" x 12" front-to-back

Depth (front - back) OA

24" - 27"

Bowl Depth (rim - drain)

7"

Width (side - side) OA

19" - 24"

Drainboards

without drainboards

Splash

6"

Sink Compartments

(1)

Specifications

Royal Series Underbar Speed Unit, 20"W x 24"D, 10" x 12" x 7" deep sink bowl with cutting board on right, 6" diameter tool with high performance glass rinser with pressure regulator on left, splash mount Royal Series faucet, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
