Krowne  |  Royal Series  |  SKU: KR24-MD12

Krowne KR24-MD12 Royal Series Bar Equipment

$1,886.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet Instructions
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

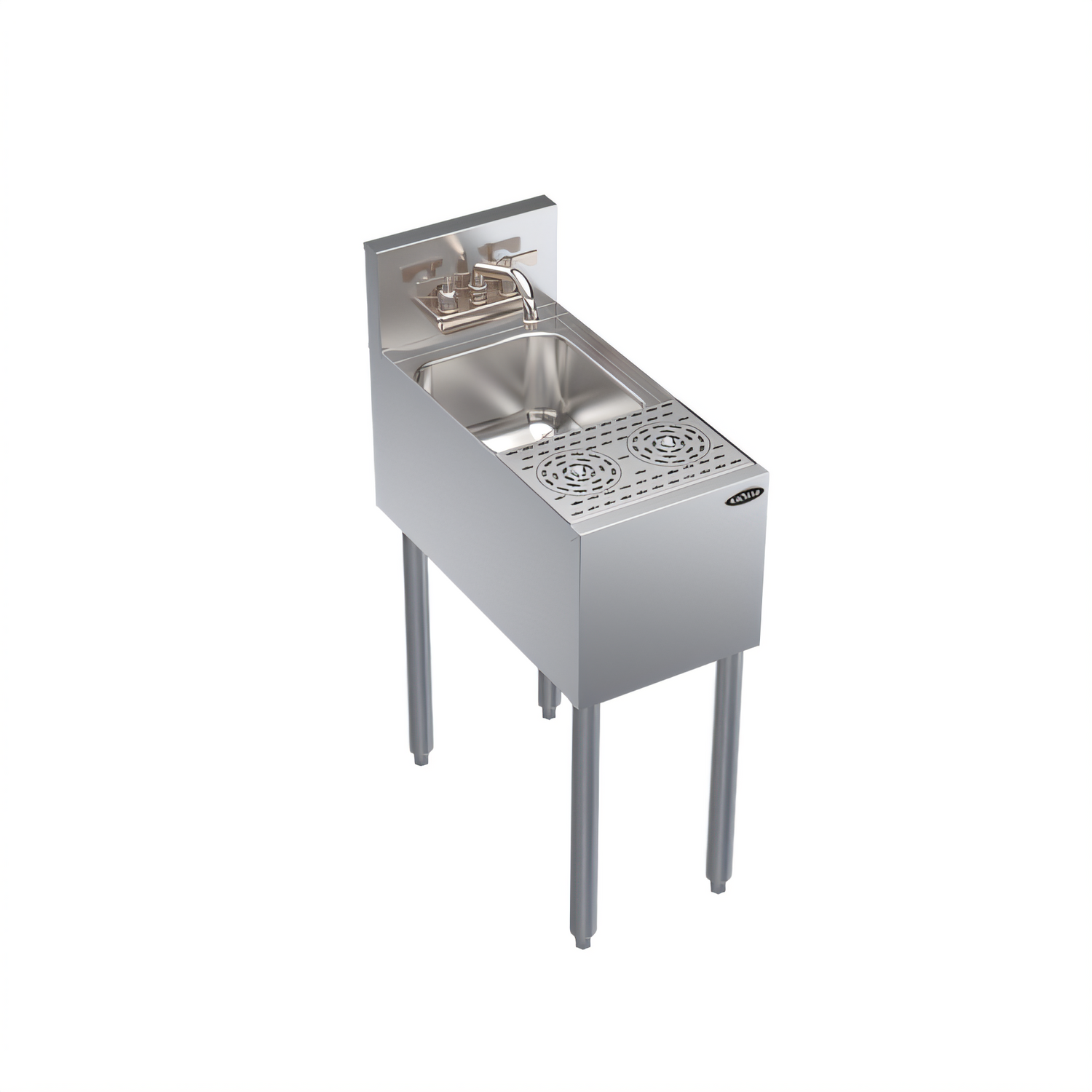

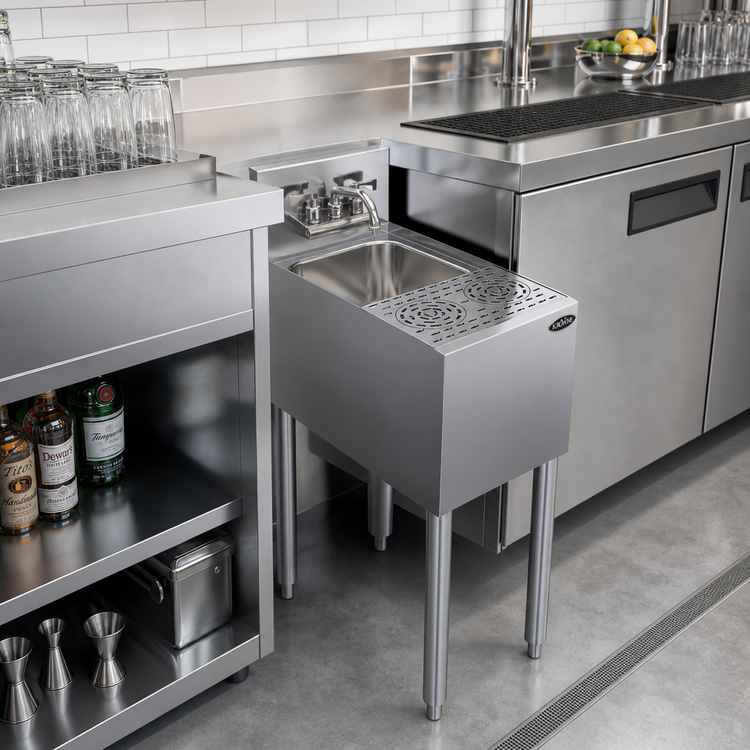

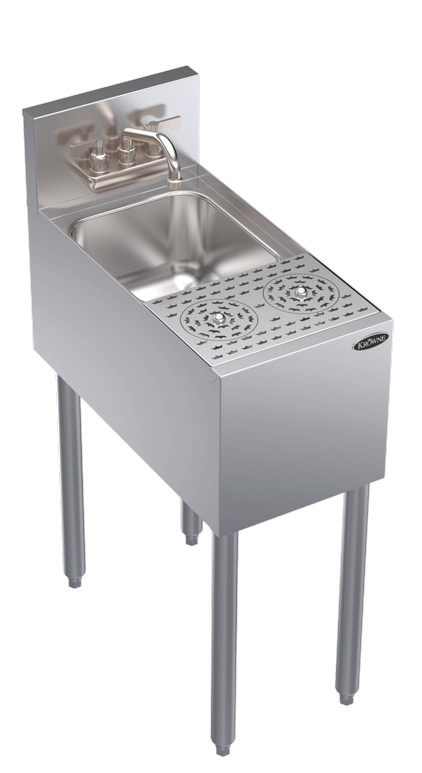

Krowne Royal Series 12" Underbar Speed Station – Dual Glass Rinsers (Model KR24-MD12)

Compact dump-sink module engineered for rapid glass turnover

Slip more service into less space. At just 12 inches wide, this Royal Series speed station adds a 7 inch-deep dump sink and two push-down glass rinsers to any 24" underbar line, keeping bartenders moving and glassware spotless during the busiest shifts.

Highlights

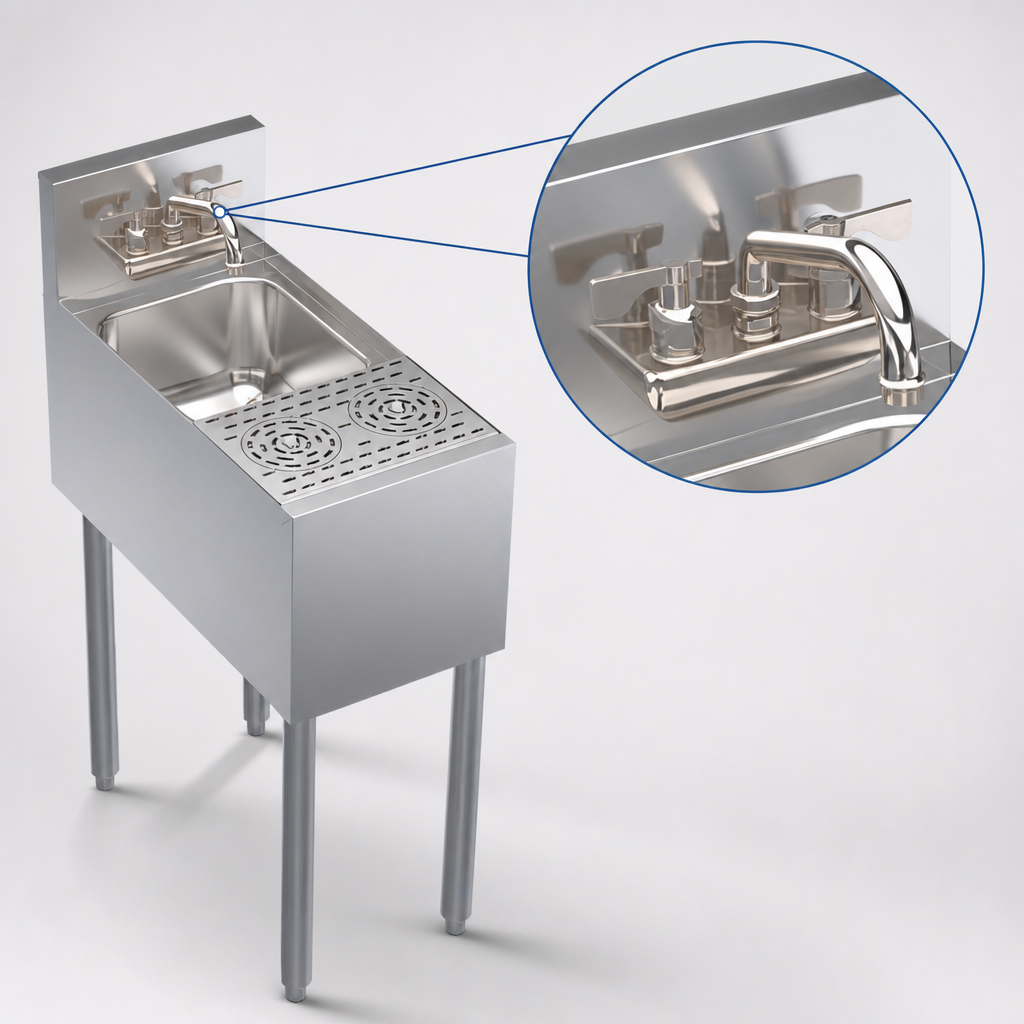

  • (2) High-performance push-down glass rinsers with built-in pressure regulators.

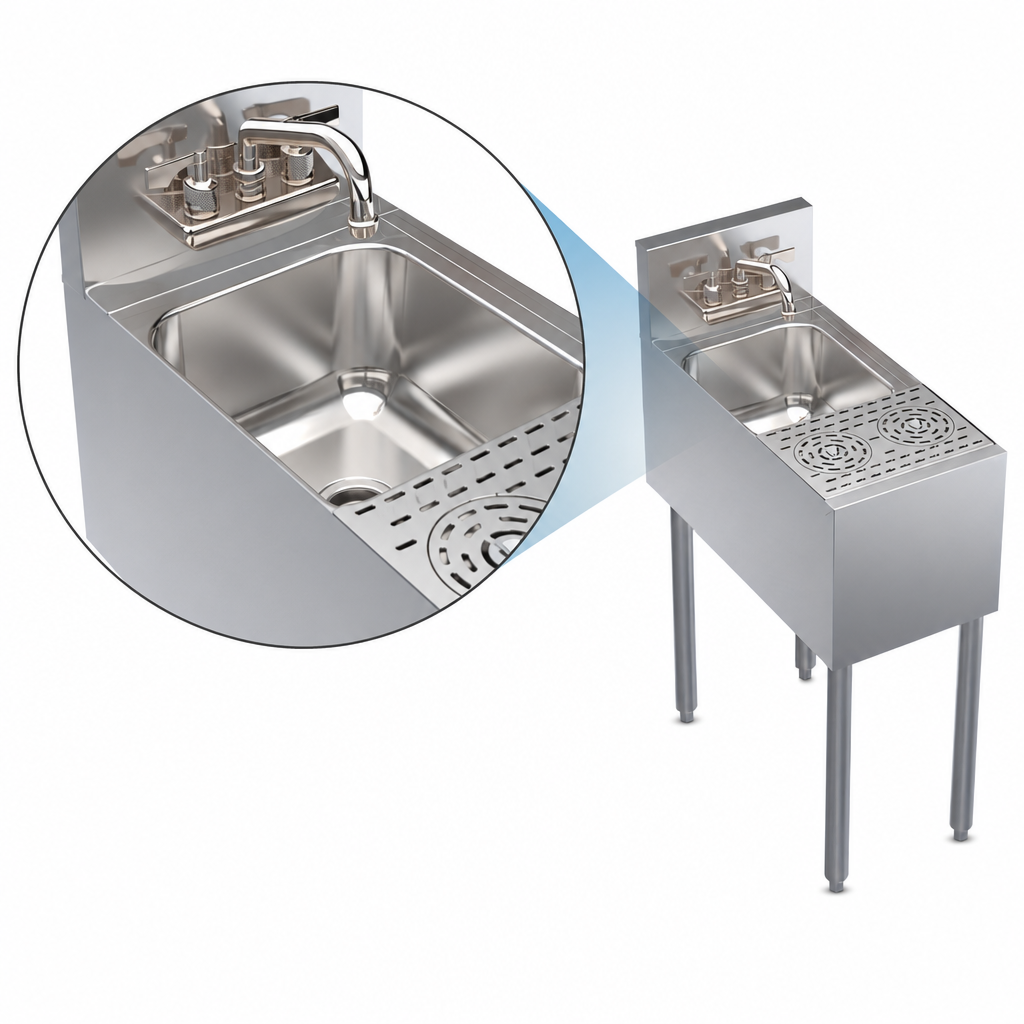

  • 10" × 12" × 7" sink bowl for fast ice and waste disposal.
  • Splash-mount Royal Series faucet, 4" centers, ¼-turn ceramic valves.
  • Removable perforated stainless steel worktop drains instantly for a cleaner, safer station.
  • 6 ½" backsplash contains spray and protects adjacent equipment.
  • 20 ga stainless steel top, apron, sides & backsplash resist corrosion in harsh bar environments.
  • Galvanized back & bottom reduce weight without sacrificing strength.
  • 1 ⅝" Ø, 16 ga stainless steel legs with adjustable thermoplastic bullet feet for quick leveling.
  • NSF listed for open foodservice installation.

Plumbing Connections

  • ½" IPS hot & cold water (faucet)
  • ½" IPS cold water (each glass rinser)
  • 1 ½" IPS center drain (dump sink)

Specifications

Overall Width 12" (305 mm)
Overall Depth 24" (610 mm)
Height to Work Surface 36 ½" (927 mm)
Height to Top of Backsplash 42 ¾" (1 085 mm)
Sink Bowl (W × L × D) 10" × 12" × 7"
Glass Rinsers (2) push-down spray heads w/ regulators
Drain Size 1 ½" IPS
Primary Material 20 ga stainless steel
Back / Bottom 20 ga galvanized steel
Legs & Feet 16 ga stainless legs, adjustable thermoplastic bullet feet
Shipping Weight ≈ 58 lb (26 kg)
Certifications NSF

Looking for the same unit with a cutting board or storage cabinet? Explore additional Royal Series models or reach out for a custom configuration.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

12.0in

Depth

24.0in

Shipping Weight

58.0lbs

Splash

6"

Construction

stainless steel top, front, ends & legs

Bowl Depth (rim - drain)

7"

Depth (front - back) OA

24" - 27"

Drainboards

without drainboards

Width (side - side) OA

7" - 12"

Sink Compartments

(1)

Bowl Size

10" x 12" front-to-back

Specifications

Royal Series Underbar Speed Station, 12"W x 24"D O.A., dump sink, (2) high performance push-down glass rinser faucets with pressure regulators, 10" x 12" x 7" deep sink bowl, splash mount Royal Series faucet, 1-1/2" center drain, removable perforated top, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
