Description

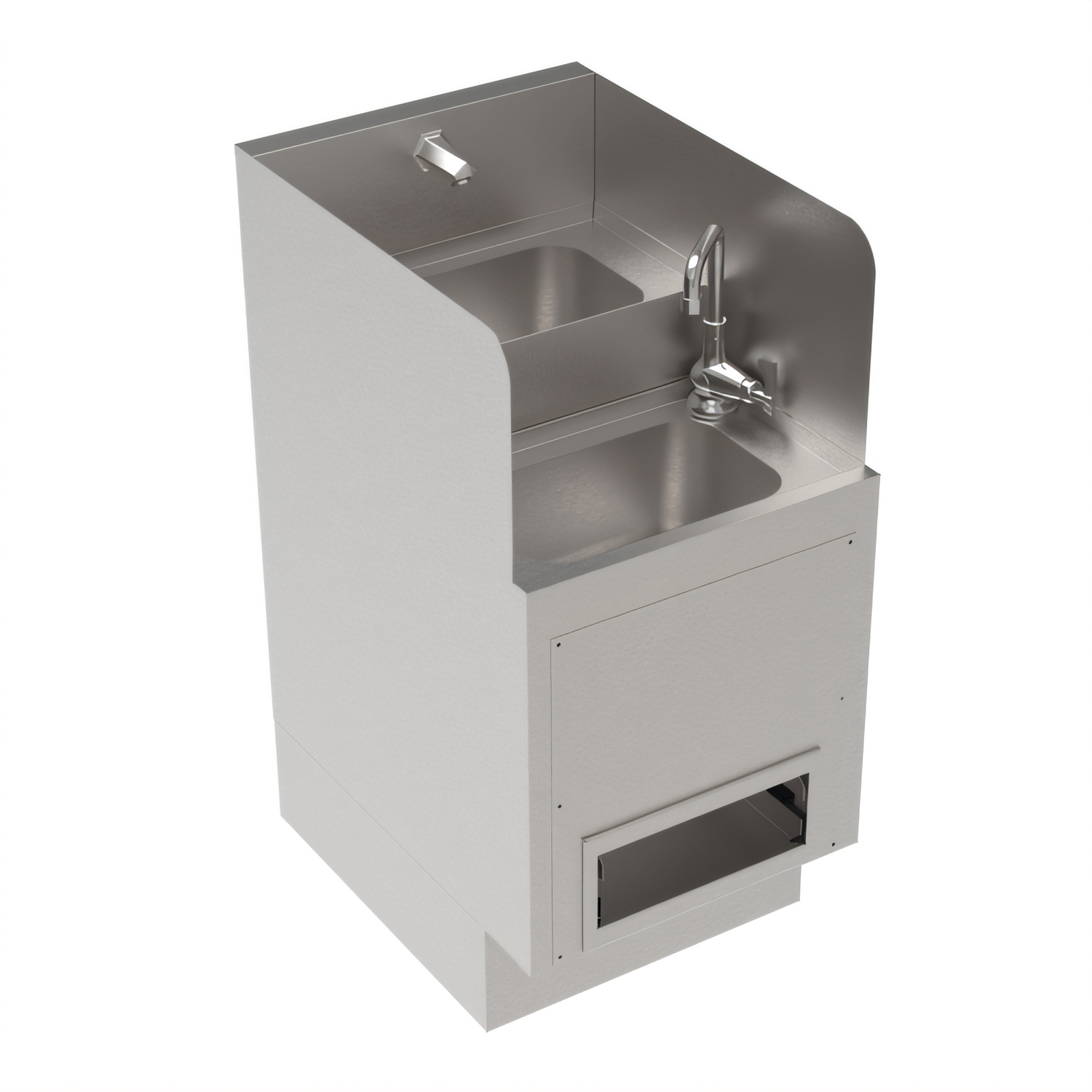

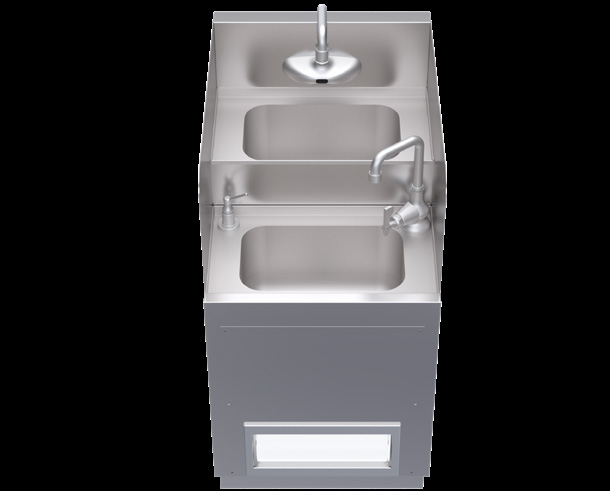

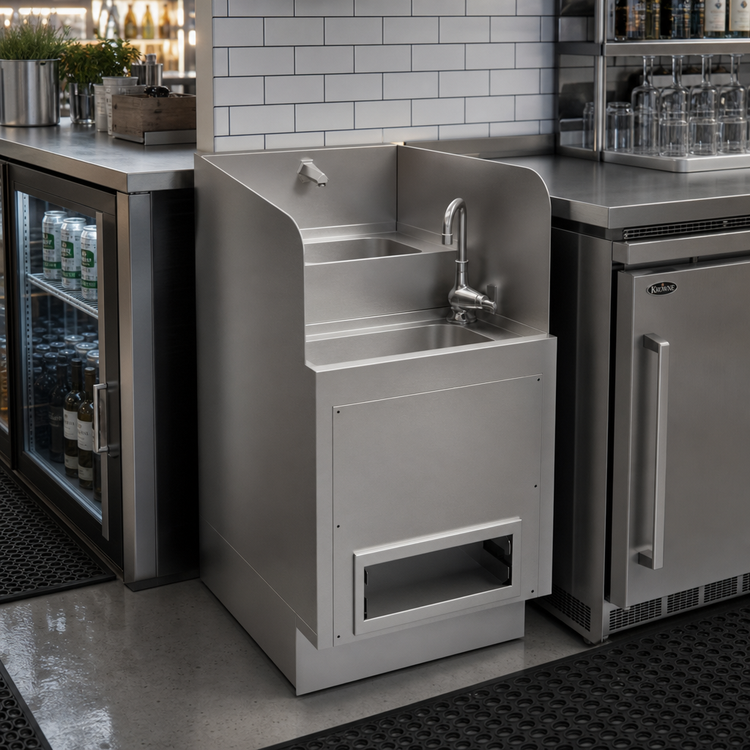

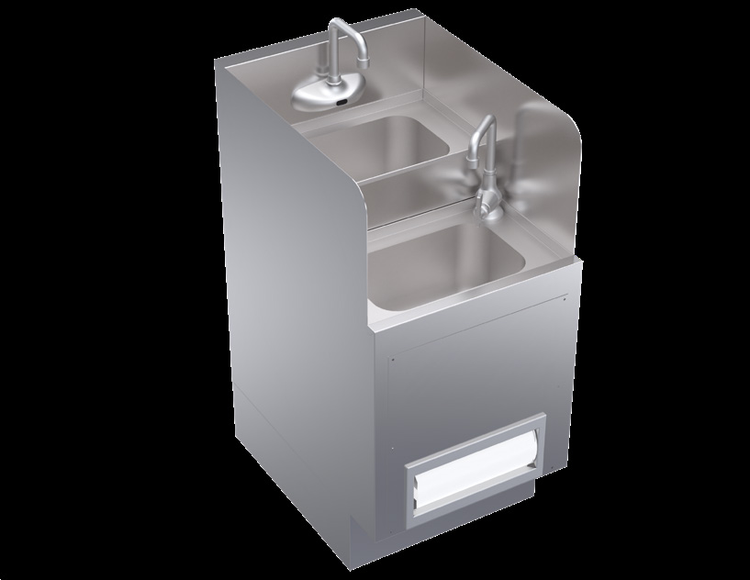

Krowne Royal Series Hybrid Speed Sink – 18" x 24"

Model KR24-HX18-E | Underbar Hand & Dump Sink Station

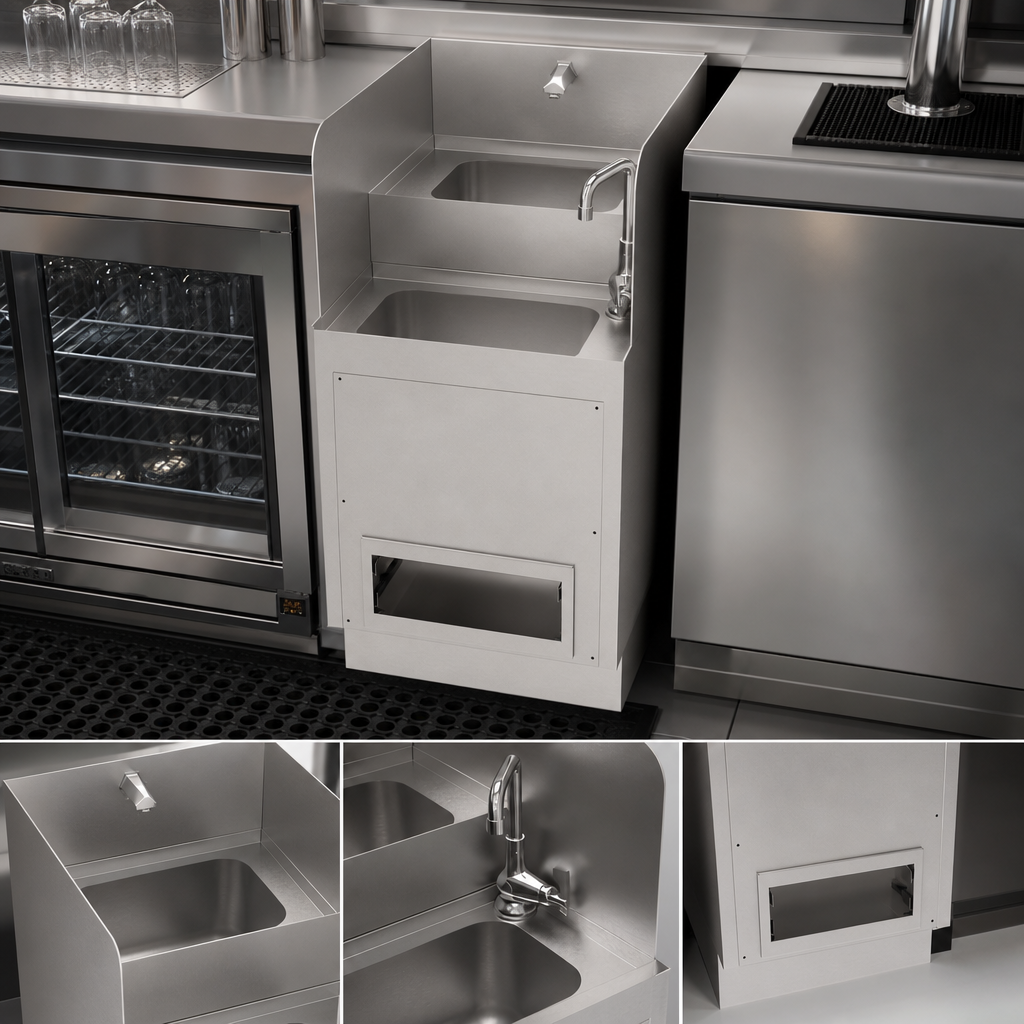

Combine a fully compliant hand-washing station with a high-capacity dump sink—all in the footprint of a standard speed rail. The Royal Series Hybrid Speed Sink lets bartenders work cleaner and faster while saving precious underbar space.

Key Features

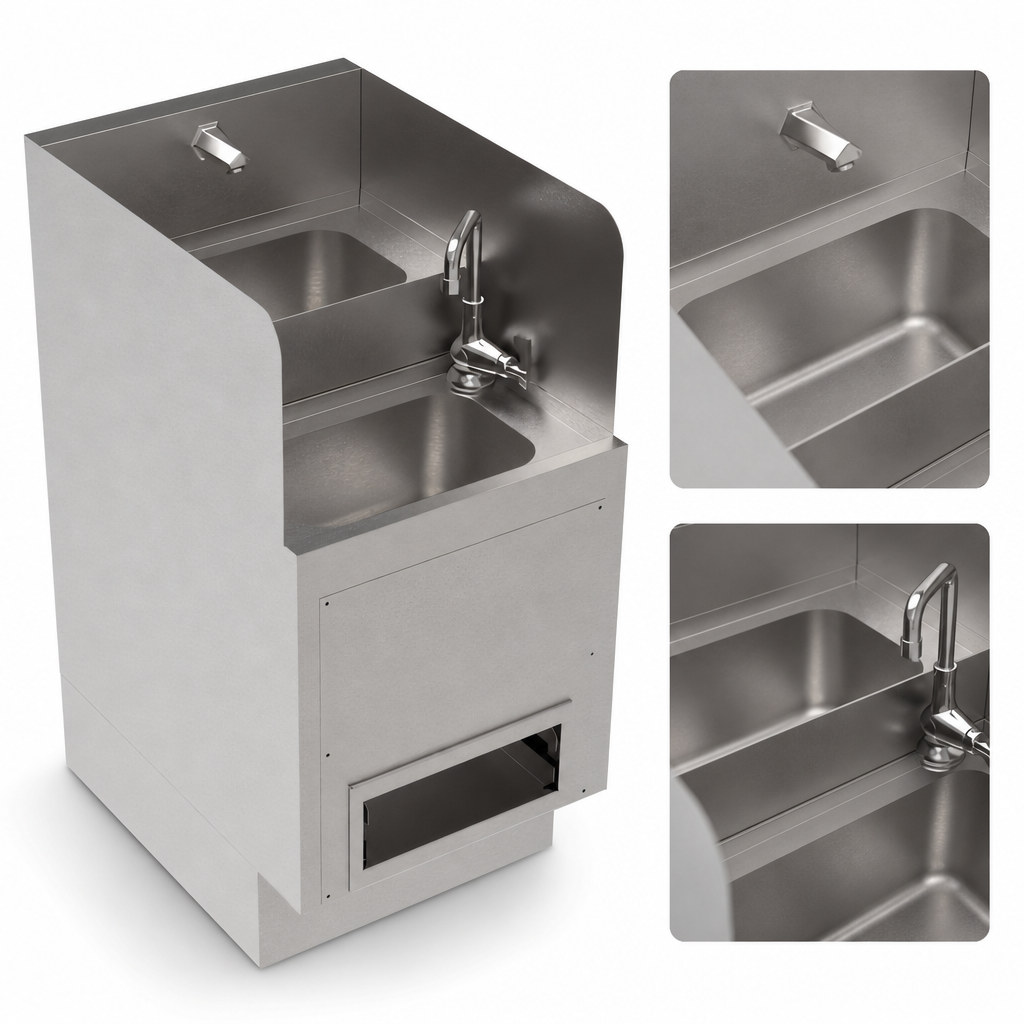

  • Two 8" × 13" sink bowls: dedicated upper hand sink & lower dump sink.
  • Touch-free electronic sensor faucet on hand sink (2.2 GPM).
  • Lever-style faucet on dump sink with water-saving 0.5 GPM flow.
  • Refillable deck-mounted soap dispenser—no cartridges required.
  • Front-mounted multifold paper towel dispenser for quick access.
  • Integrated 16 ga. side splashes keep liquids contained.
  • Removable front plate for effortless clean-out and service access.
  • Durable all-stainless construction (20 ga. body) resists corrosion.
  • 1-1/2" IPS drains on both bowls for easy hookup.
  • NSF certified for hand-washing compliance right out of the box.
Specifications
Overall Dimensions 18" W × 24" D × 36-1/2" H
Bowl Dimensions (each) 8" W × 13" D
Construction 20 ga. stainless steel body
16 ga. stainless side splashes
Hand-Sink Faucet Electronic sensor faucet 16-670 (2.2 GPM)
Dump-Sink Faucet Lever faucet 16-2XXL + spray 21-430L (0.5 GPM)
Drains 1-1/2" IPS on both bowls
Soap Dispenser Deck-mounted, refillable reservoir
Towel Dispenser Front-mounted multifold (paper not included)
Net Weight 75 lb / 34 kg
Certifications NSF
Installation Note: Water, drain and electrical connections for the sensor faucet must be performed by a licensed professional in accordance with local codes.

Looking for a manual-faucet version? Check out model KR24-HX18.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

18.0in

Depth

24.0in

Shipping Weight

110.0lbs

Overall Depth (front - back)

24" - 30"

Overall Width (side - side)

15" - 18"

Type

free standing

Specifications

Royal Series Underbar Hybrid Hand/Dump Sink, 18"W x 24"D (to match speed rail depth, (2) 8" x 13" sink bowls with electronic hand sink faucet, lever style dump sink faucet, deck mounted soap dispenser, front mounted multifold towel dispenser, side splashes, 1-1/2" drains, all stainless steel construction, NSF
