Krowne KR24-GS48 Royal Series Bar Equipment
Description

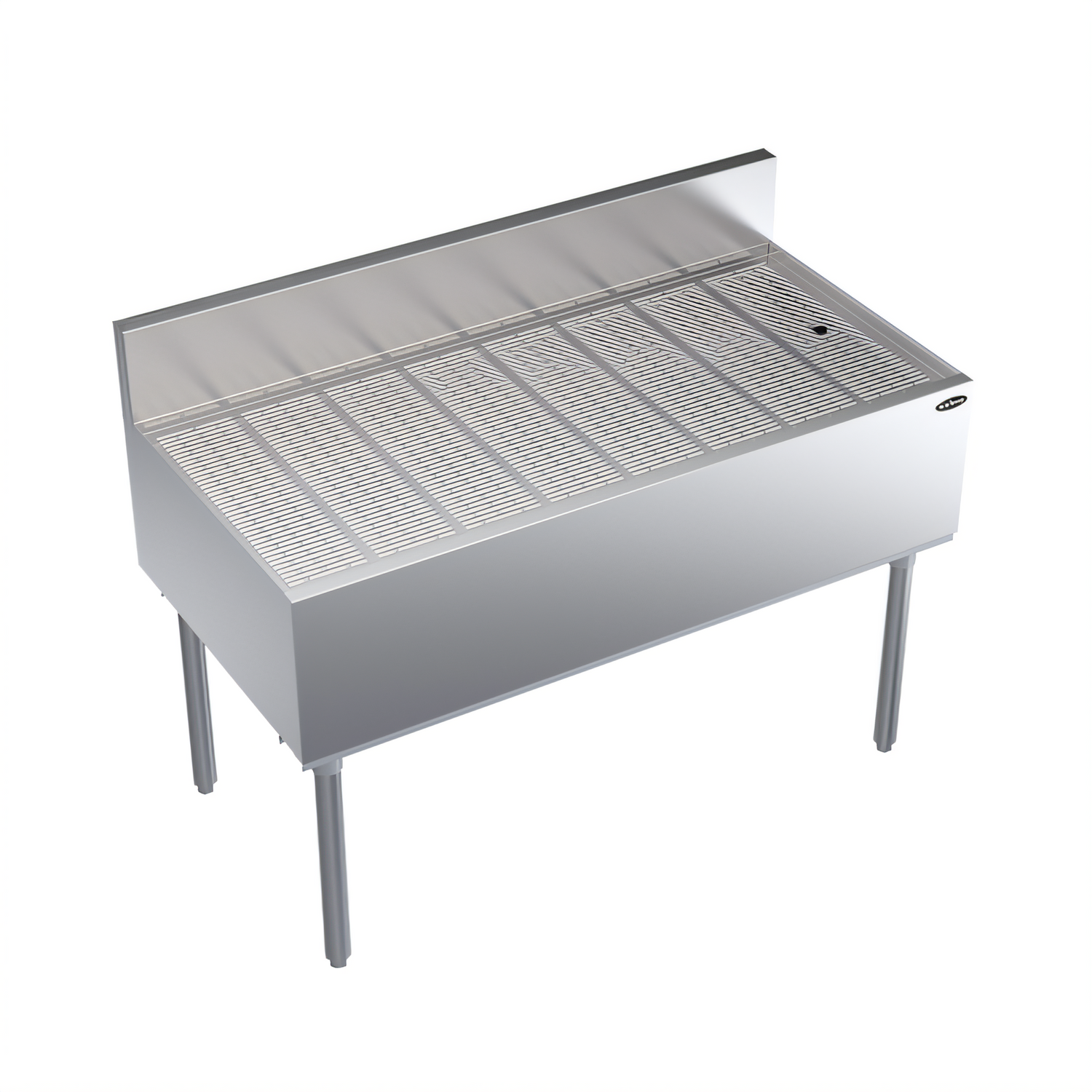

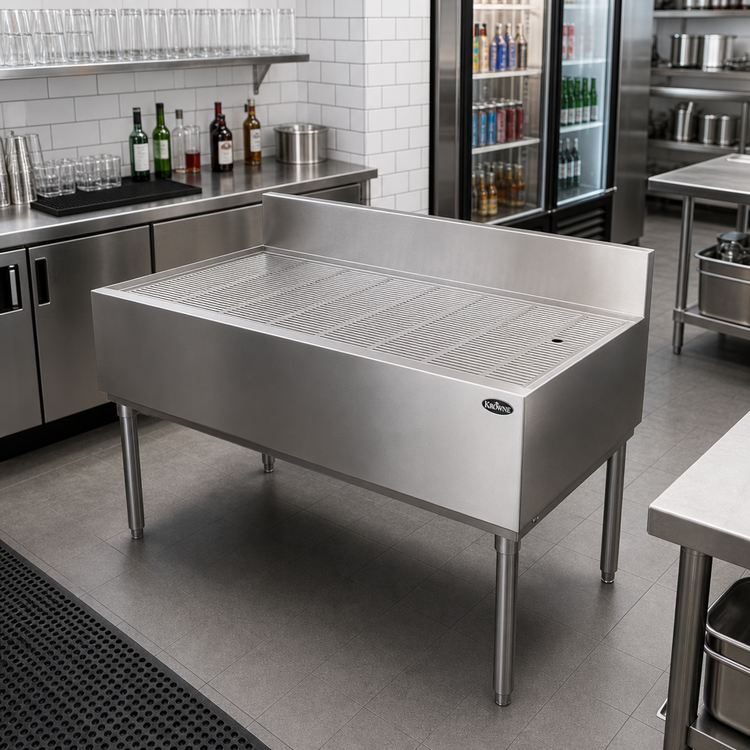

Krowne Royal Series 48" x 24" Free-Standing Underbar Drainboard
Model KR24-GS48 | NSF/ANSI Standard 2 CertifiedBuilt for high-volume beverage programs, the Krowne Royal Series free-standing drainboard delivers rugged performance in a compact 48" footprint. Its embossed 20-gauge stainless steel work surface quickly drains excess liquid through a welded grid into a 1" IPS waste, keeping your bar top clean and service-ready.
Why You’ll Love It

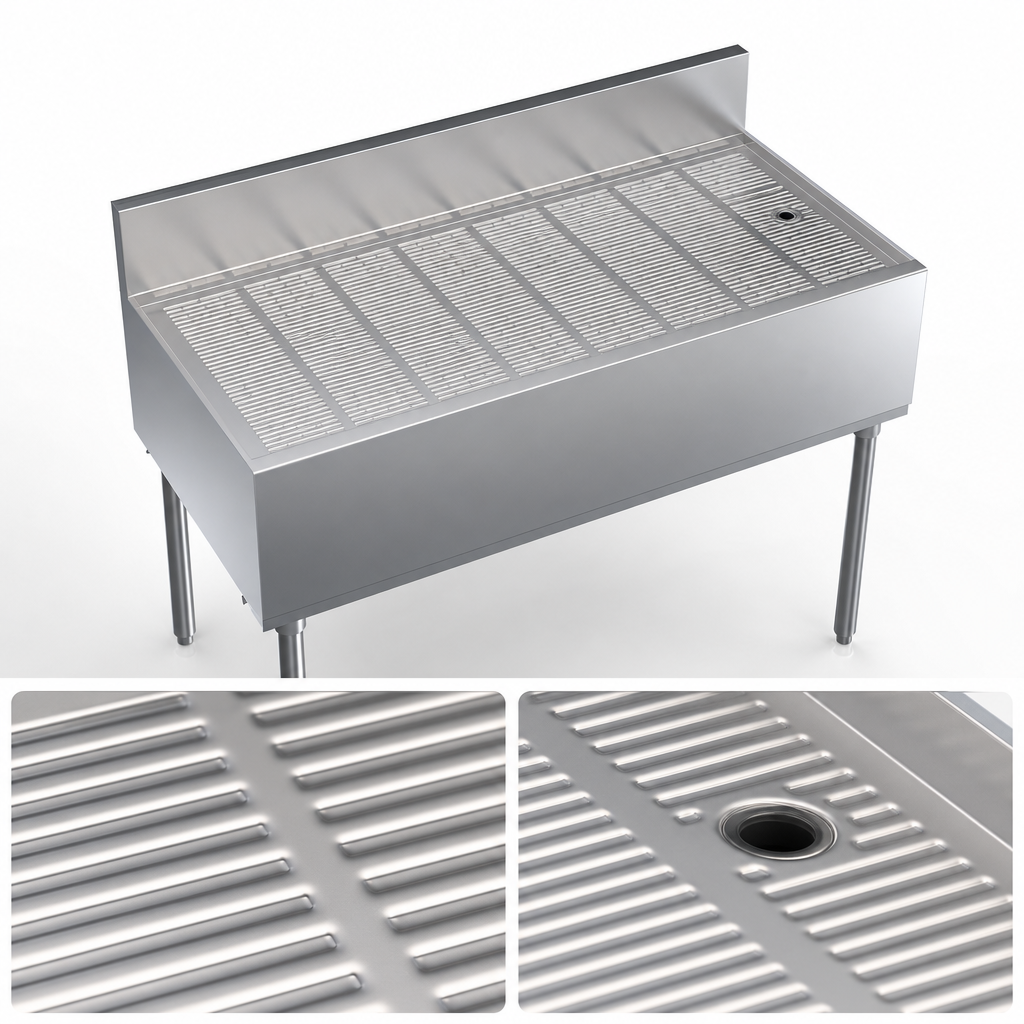

- Embossed 20-ga. stainless steel deck reinforced every 6" for superior rigidity.
- 3/4" radius on all vertical & horizontal edges—no sharp corners to trap debris.
- 20-ga. stainless steel front apron, sides, backsplash, back & bottom for full corrosion resistance.
- 1-5/8" Ø, 16-ga. stainless steel legs with adjustable thermoplastic bullet feet to level on uneven floors.
- 1" IPS drain connection simplifies tie-in to existing plumbing.
- NSF/ANSI 2 listed for open beverage service areas.
Product Specifications
| Model | KR24-GS48 |
|---|---|
| Overall Width | 48" (1219 mm) |
| Overall Depth | 24" (610 mm) |
| Working Height | 36 1/2" (927 mm) with feet at midpoint |
| Drain Outlet | 1" IPS (female) |
| Material | 20-ga. Type 304 stainless steel (top, apron, sides, back, bottom) |
| Legs / Feet | 1-5/8" Ø, 16-ga. stainless steel • grey thermoplastic bullet feet (adjustable) |
| Ship Weight | ≈ 82 lb (37 kg) |
| Certifications | NSF/ANSI 2 |
Optional Accessories (Sold Separately)
- KR-201 4" × 4" chase for beer/soda lines
- KR-203 3/4" × 3-1/2" soda line cut-out in backsplash
- KR-204 3-1/2" round drainboard cut-out for beverage lines
- KR-310 / KR-311 end splashes
- KR-301 / KR-302 corner returns
- KR-401 cap catcher & bottle opener kit
- RS-XX single & RD-XX double speed rails (sound-deadened)
Need a different size or add-on? The Royal Series offers drainboards from 12" to 48" wide and a full range of modular accessories. Contact us below and our team will configure the perfect underbar layout for your bar or brewery.
