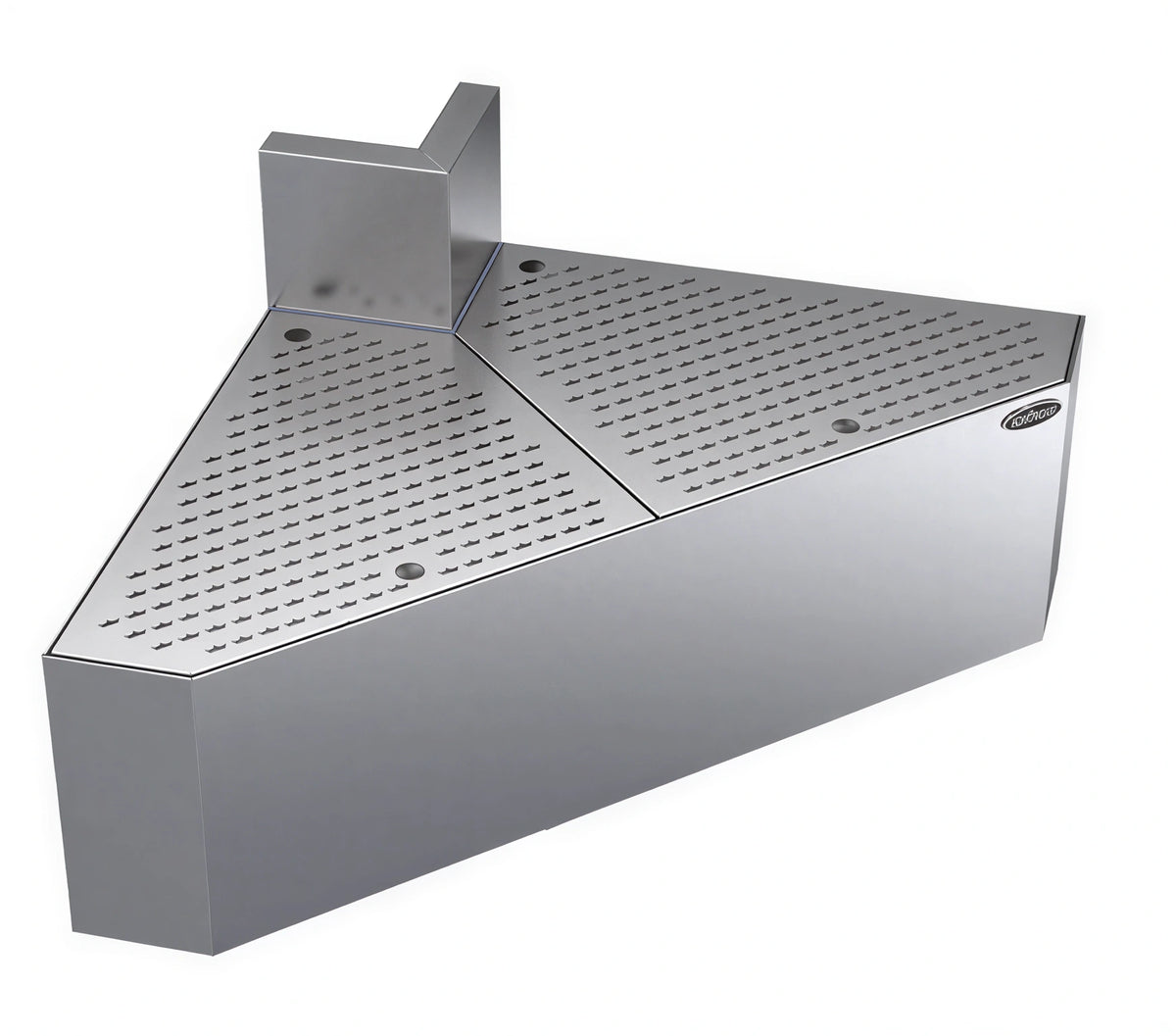

Krowne Royal Series KR24-DFC90 Stainless Steel 90° Underbar Corner Filler with Perforated Drainboard Top, 24-Inch Deep, One Leg
- Dimensions
- 32.5"W × 25.0"D
- Type
- Drainboard Corner Filler
- Style
- Full Corner
- Installation Type
- Drop-In
- Material
- Stainless Steel
- Corner Fill Angle
- 90 Degrees
Specifications
Description
Krowne Royal Series 90° Full-Corner Stainless Steel Underbar Corner Angle Filler with Drainboard Top, 24-Inch Deep
Front Corner, Drop-In Perforated Top, One Stainless Steel Leg
Built for clean 90° corner transitions, this stainless steel drainboard filler adds a durable perforated work surface and integrated drainage to underbar layouts.
- 90° full-corner design creates a finished front-corner transition in underbar layouts.
- 24-inch front-to-back depth is sized to work with speedrails.
- Removable perforated stainless top supports drainage and easier cleanup.
- Stainless steel top, front, sides, and support leg are built for commercial use.
- Includes a 1-inch IPS drain connection, 6-inch splash, and adjustable bullet foot.
Overall Dimensions:
32.5"W x 25.0"DProduct Weight:

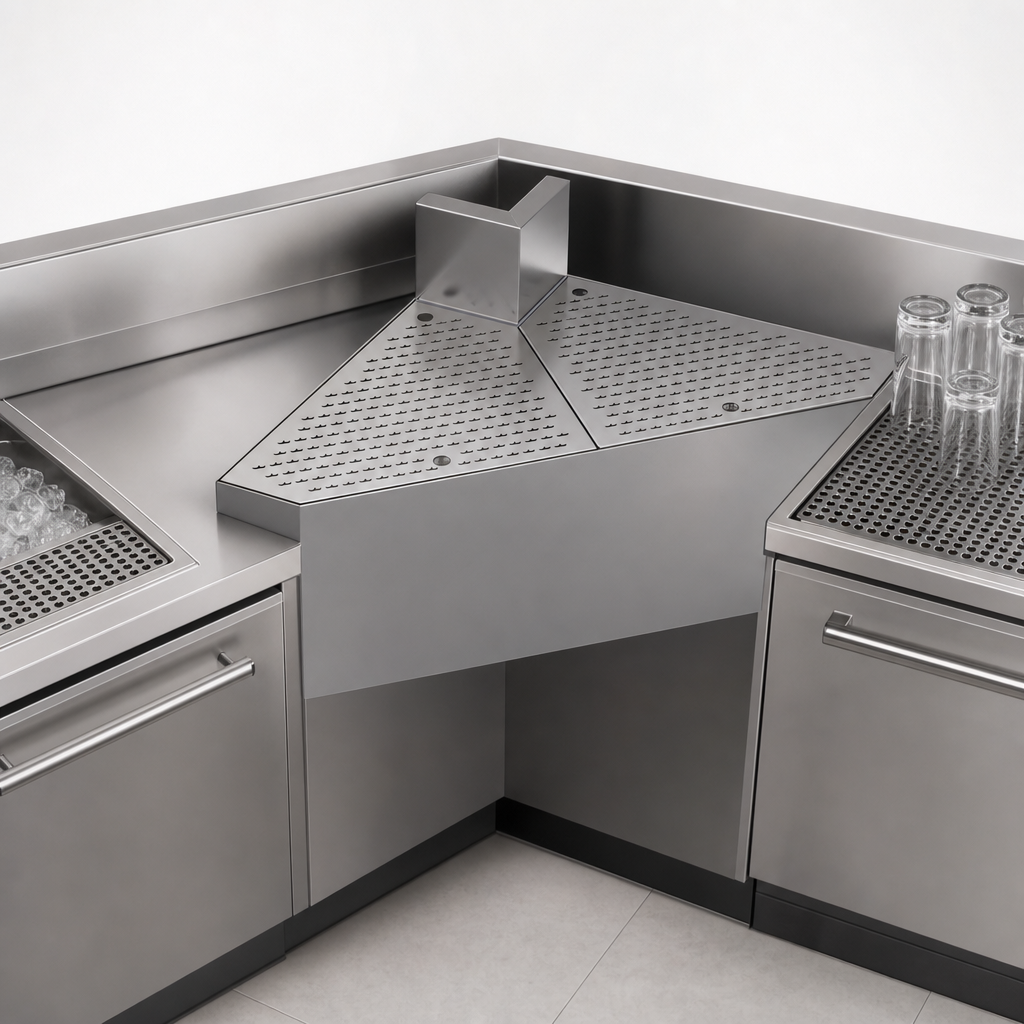

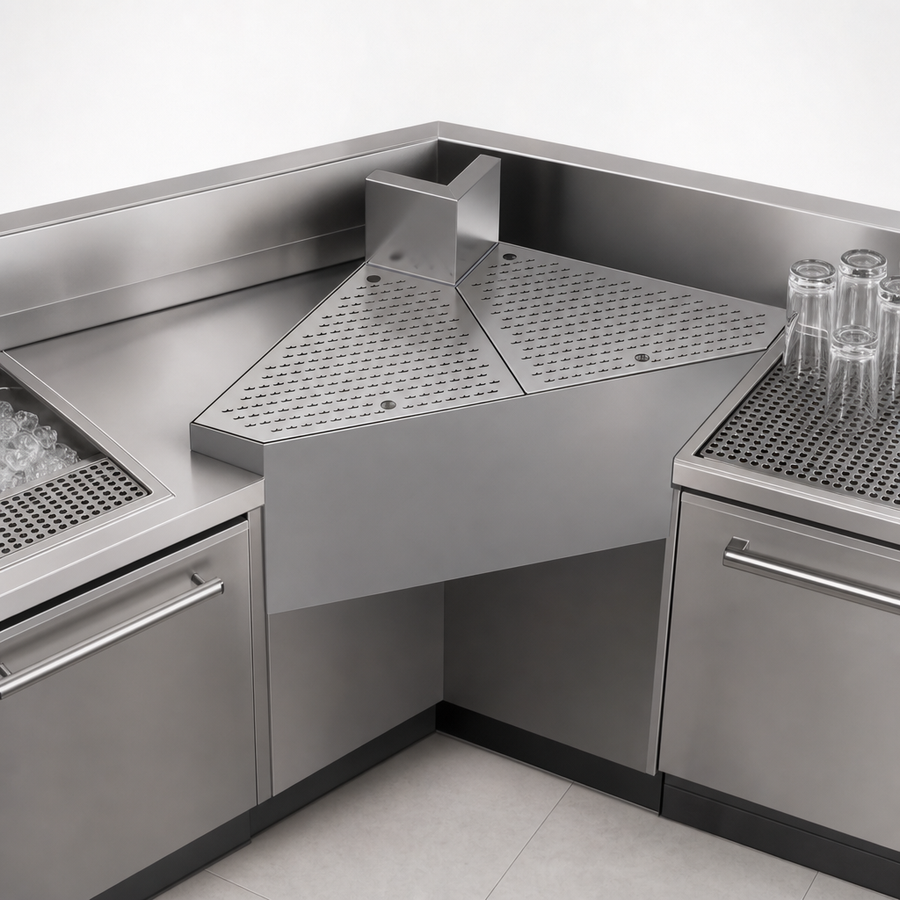

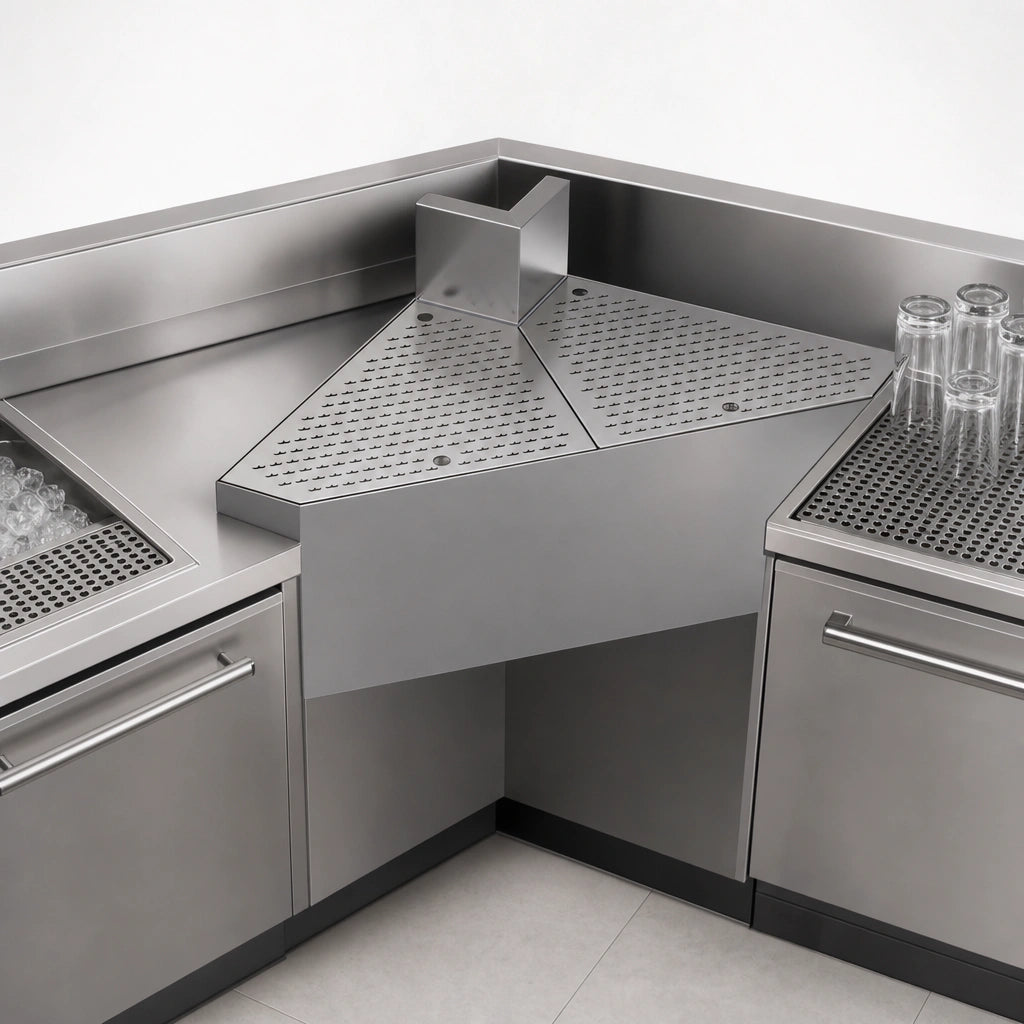

65.0 lb90° Full-Corner Layout
Designed for front-corner underbar applications and clean 90-degree turns.

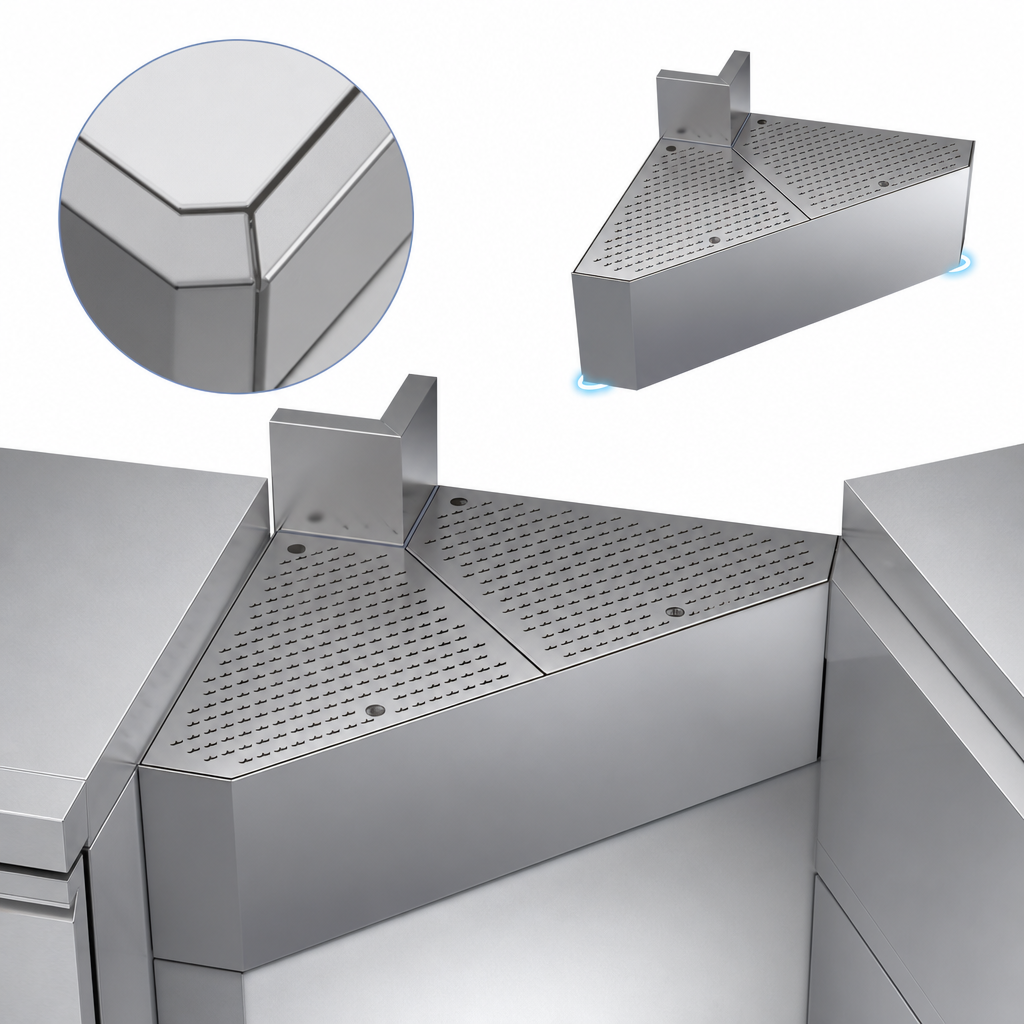

Clipped Front And Rear Corners
Clipped corner shape helps the filler fit neatly between adjacent units.
Flexible Mounting
Designed to mount between two adjacent underbar units or on adjacent stable surfaces.
Removable Perforated Top
Stainless perforated top has hemmed edges and welded corners for drainage and easier cleaning.
Stainless Steel Construction
Top, front, and sides are stainless steel for durability and a clean appearance.
Reinforced Drainboard Build
20-gauge embossed stainless steel construction is reinforced with welded braces every 6 inches and 3/4-inch radiused edges.
Integrated Drain Connection
Includes a 1-inch IPS drain connection.
One-Leg Support
Supplied with one stainless steel leg and an adjustable plastic bullet foot.
6-Inch Splash
Helps contain water at the back of the unit.
