Krowne  |  Royal Series  |  SKU: KR24-CB36

Krowne KR24-CB36 Royal Series Bar Equipment

$2,389.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

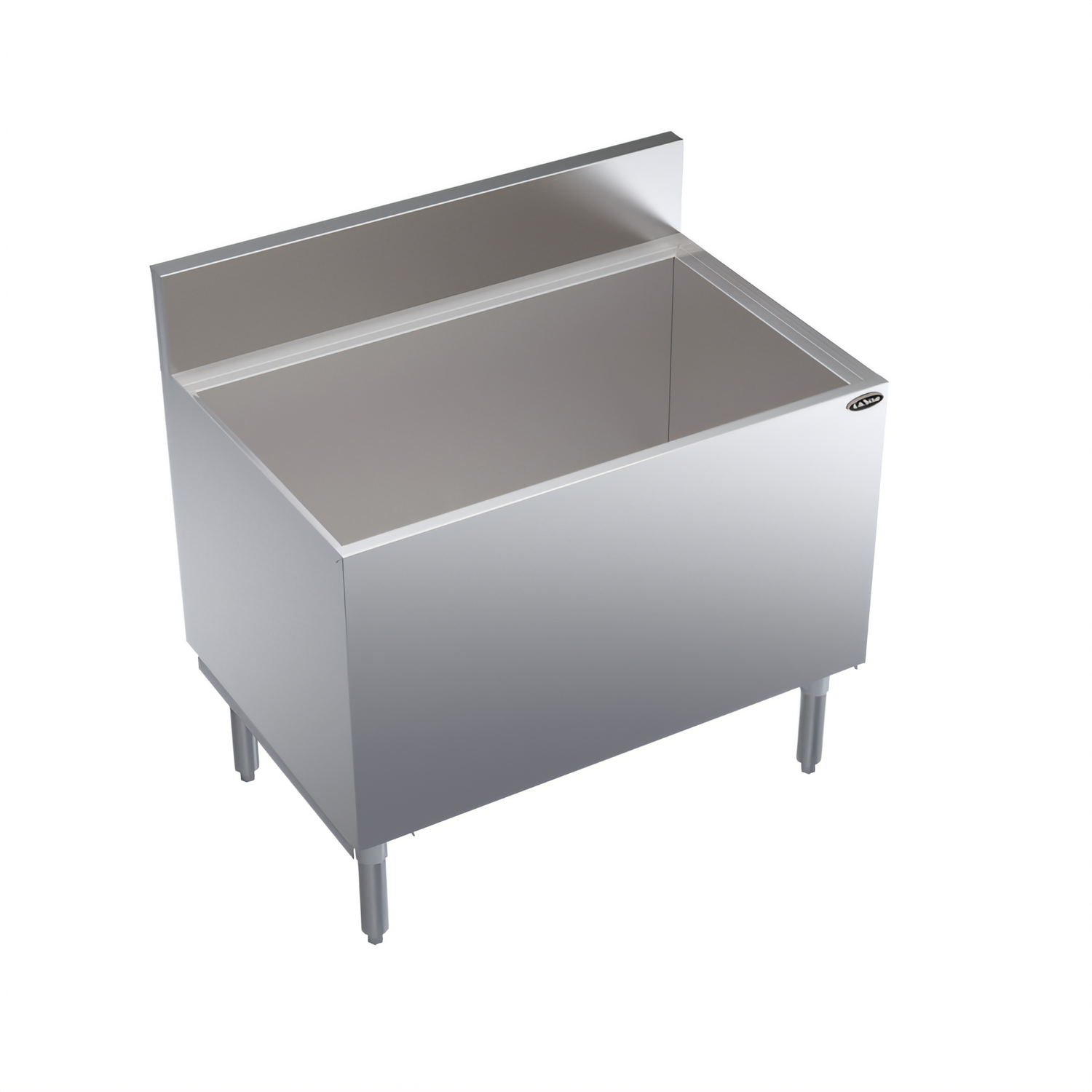

Krowne Royal Series Chill Master Beer Bin – 36" W

Model KR24-CB36 | 9-Case Capacity Underbar Ice / Beer Bin

Give your bartenders ice-cold, ready-to-serve beer right where they need it. The 36-inch Krowne Royal Series Chill Master Beer Bin holds up to nine full cases of bottles in an 18-inch deep, fully insulated liner—perfect for high-volume bars that demand consistent temperature control, rugged construction and NSF-listed sanitation.

Why You’ll Love It

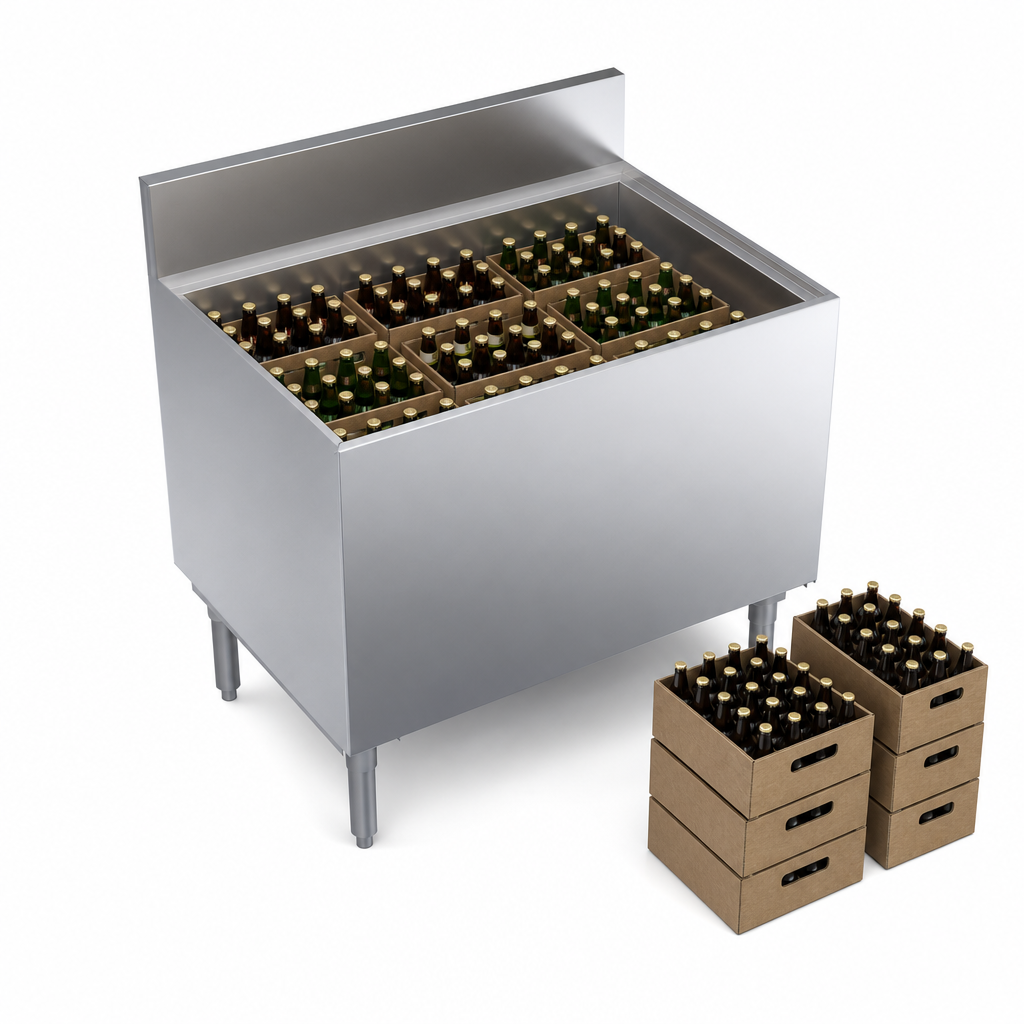

  • Holds (9) cases of beer bottles in a space-saving 36" x 24" footprint.

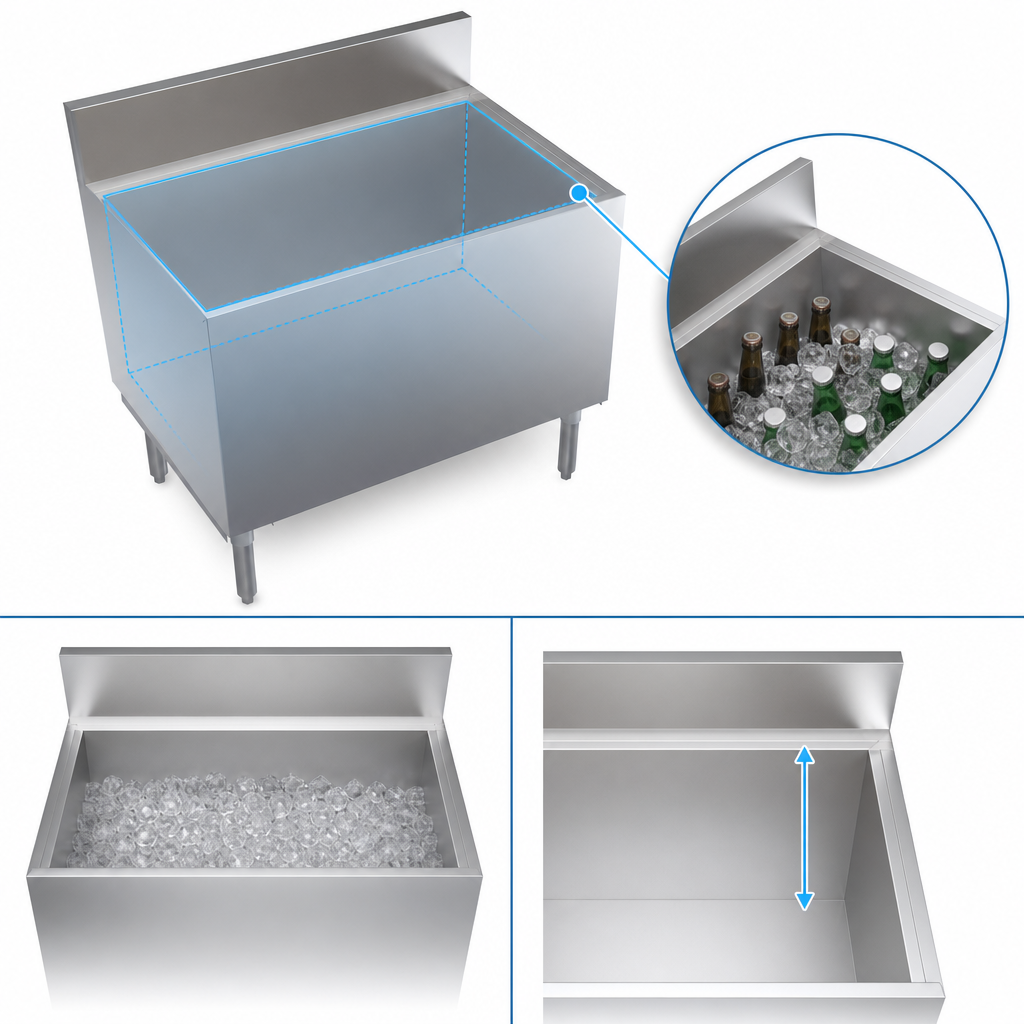

  • 18" deep foamed-in-place polyurethane liner keeps product ice-cold for hours.
  • Perforated stainless steel bottom allows meltwater to drain, keeping bottles dry.
  • 1" IPS drain connection for fast, unrestricted water removal (no cold plate).
  • All 20-gauge stainless steel interior, sides, backsplash, back & bottom for superior corrosion resistance.
  • 1 ⅝" 16-gauge stainless steel legs with adjustable grey thermoplastic bullet feet for rock-solid stability and easy leveling.
  • Part of the Royal Series underbar line—designed to integrate seamlessly with Krowne speed rails, cocktail stations and hand sinks.
  • NSF Standard 2 listed for open food storage.
At-a-Glance Specs
Exterior Width 36" (914 mm)
Exterior Depth 24" (610 mm)
Overall Height 30" to 30 ¾" (adjustable foot)
Inside Bin Dimensions 20" W × 34" L × 18" D
Case Capacity 9 cases of 12-oz beer bottles
Drain Connection 1" IPS – left side, 18" from end
Construction 20-ga. stainless top/inside/sides • 16-ga. tubular SS legs
Insulation Foamed-in-place polyurethane
Shipping Weight 165 lb (75 kg)
Certifications NSF Std 2
Popular Add-Ons (Sold Separately)
  • KR-115 Stainless Steel Divider – organize bottle flavors.
  • KR-310 / KR-311 End Splashes – protect adjacent equipment from meltwater.
  • KR-401 Cap Catcher & Bottle Opener – mount on front edge for fast service.
  • KR-503 Cross-Braced Caster Kit – convert to a 30" working-height mobile bin.

Ask your Krowne dealer to bundle accessories with your bin for a fully customized underbar station.

Installation Note: This unit requires connection to a 1" IPS drain line. Verify local plumbing codes and provide an air gap where required.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

36.0in

Depth

24.0in

Shipping Weight

165.0lbs

Splash

6"

Depth (front - back) OA

24" - 27"

Construction

stainless steel

Bin Depth

18" deep ice bin

Width (side - side) OA

31" - 36"

Specifications

Royal Series Underbar Chill Master Beer Bin, underbar, 36"W x 24"D, holds (9) cases of beer bottles, 18" deep liner, perforated bottom, 1" drain, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
