Krowne KR24-C48R Royal Series Bar Equipment
Description

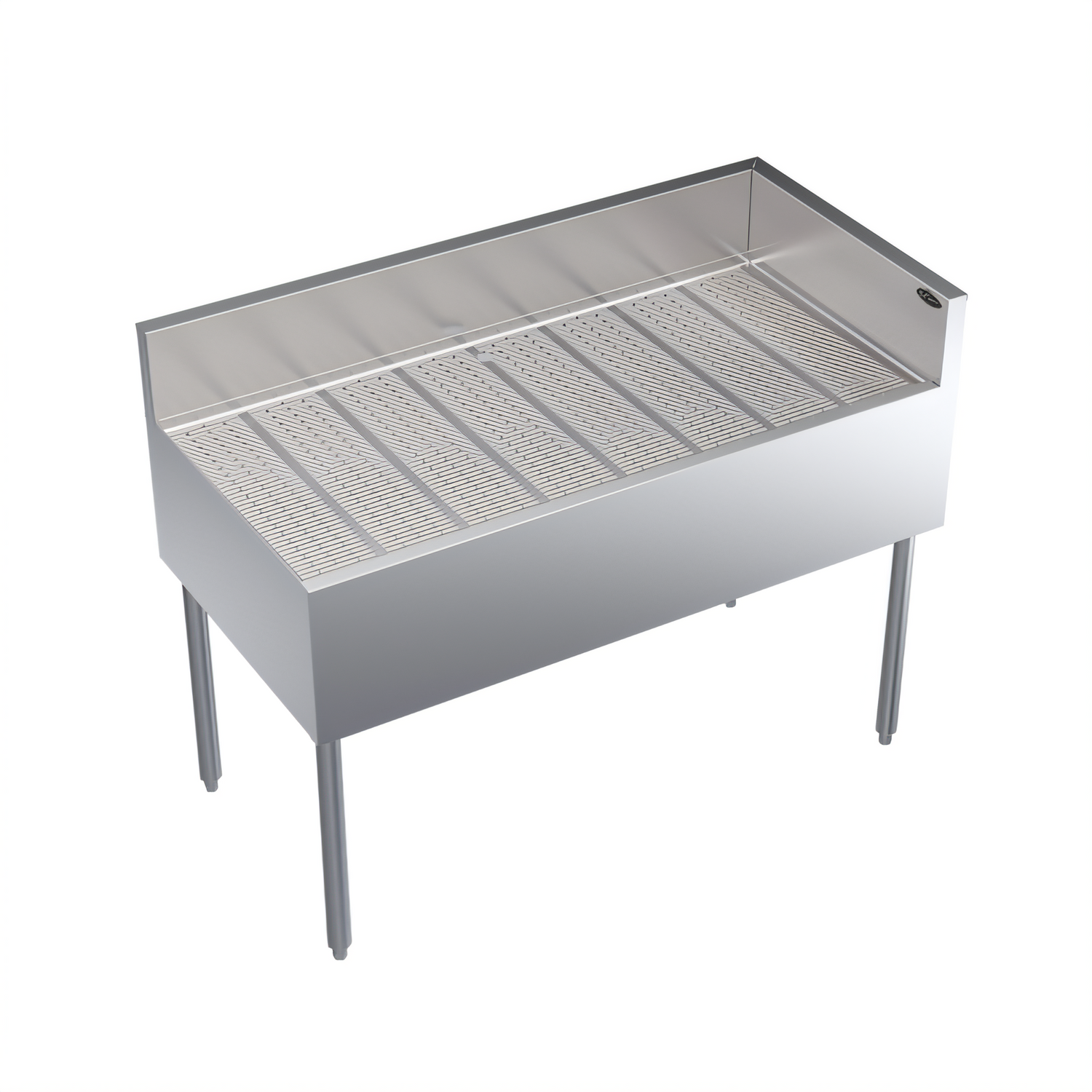

Krowne Royal Series 48" Corner Drainboard – Right End Return
Model KR24-C48L | Free-Standing Underbar DrainboardAdd a rugged, professional-grade drainboard to the corner of your bar line without sacrificing valuable workspace. Built from 100 % stainless steel and reinforced every 6", this Royal Series unit delivers the durability, sanitation and ergonomic performance bartenders demand—all while meeting NSF/ANSI Standard 2.
Key Features

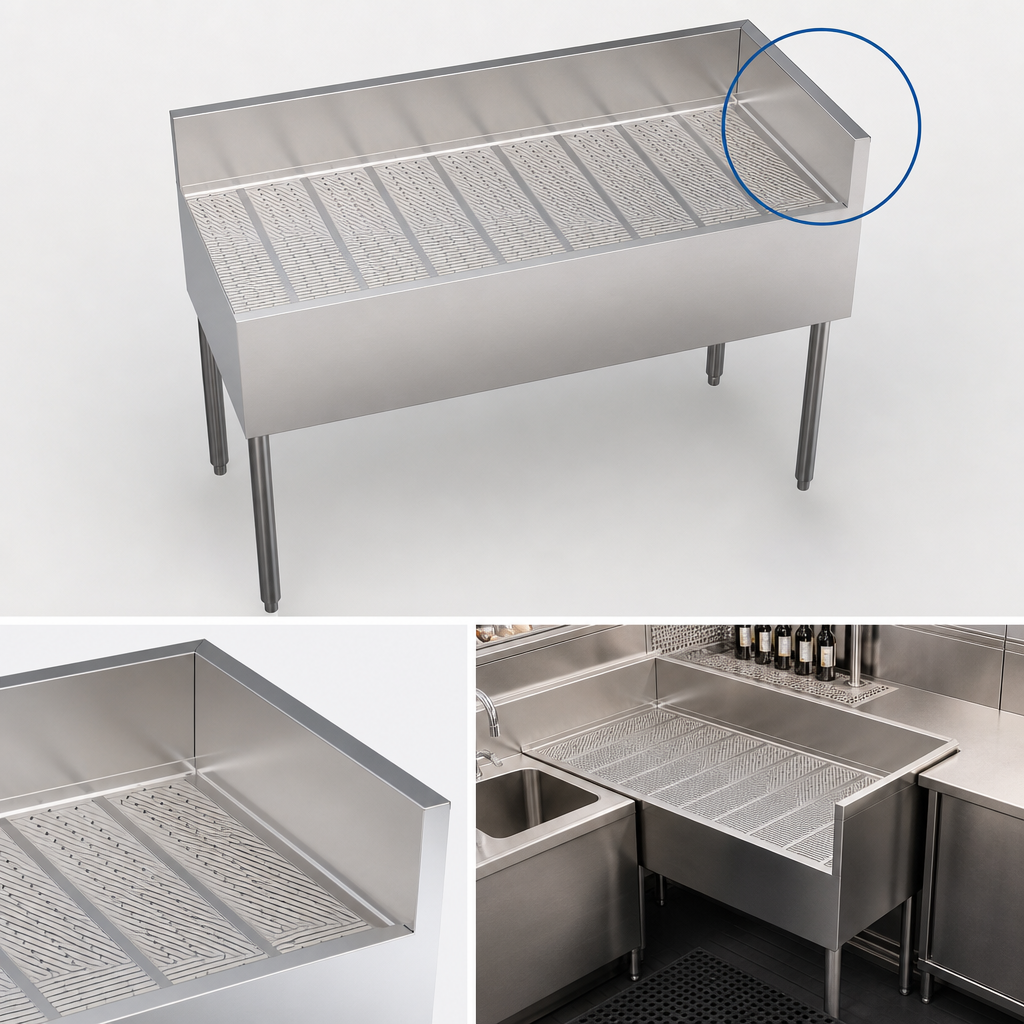

- 48" W x 24" D footprint with right-end return for seamless corner integration.
- 20 ga embossed stainless-steel drainboard, ¾" radius vertical & horizontal edges for easy cleaning.
- 1" IPS welded drain & pitch-correct top to keep glassware dry and servers moving.
- 20 ga stainless front apron, sides, backsplash, back and bottom—no rust-prone galvanized surfaces.
- 1 ⅝" (16 ga) tubular stainless legs with adjustable grey thermoplastic bullet feet for quick leveling.
- Free-standing design—no additional support framing required.
- NSF certified for open food & beverage zones.
At-a-Glance Specs
| Overall Width | 48 in / 1219 mm |
|---|---|
| Overall Depth | 24 in / 610 mm |
| Overall Height | 36 ½ in / 927 mm (to work surface) |
| Drain Connection | 1" IPS threaded outlet |
| Material Thickness | 20 ga top, apron, sides, backsplash 16 ga legs |
| Finish | Satin stainless steel |
| Approx. Weight | 85 lb / 38.5 kg |
| Certification | NSF/ANSI Standard 2 |
Compatible Accessories (Sold Separately)
- KR-201 – 4" x 4" chase for beer/soda lines
- KR-204 – 3 ½" round cut-out for beverage lines in drainboard
- RS-“XX” & RD-“XX” sound-deadened single & double speed rails
- KR-401 cap catcher & bottle opener kit
- Assorted end-splash kits for adjoining Royal Series modules
Need a different length, left-hand return, or extra backsplash cut-outs? The Krowne Royal Series is fully modular—contact us for custom configurations.
