Krowne KR24-C48L Royal Series Bar Equipment
Description

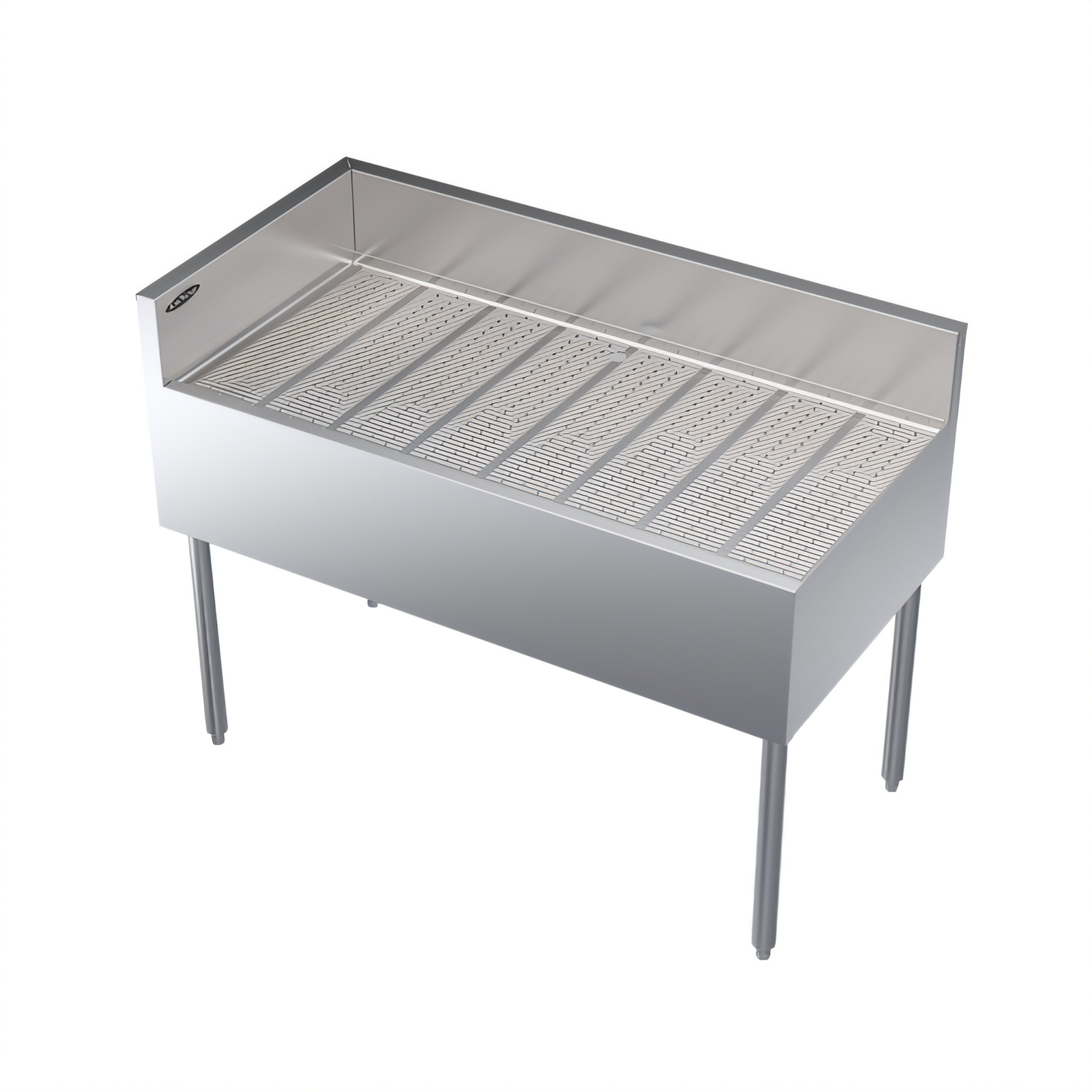

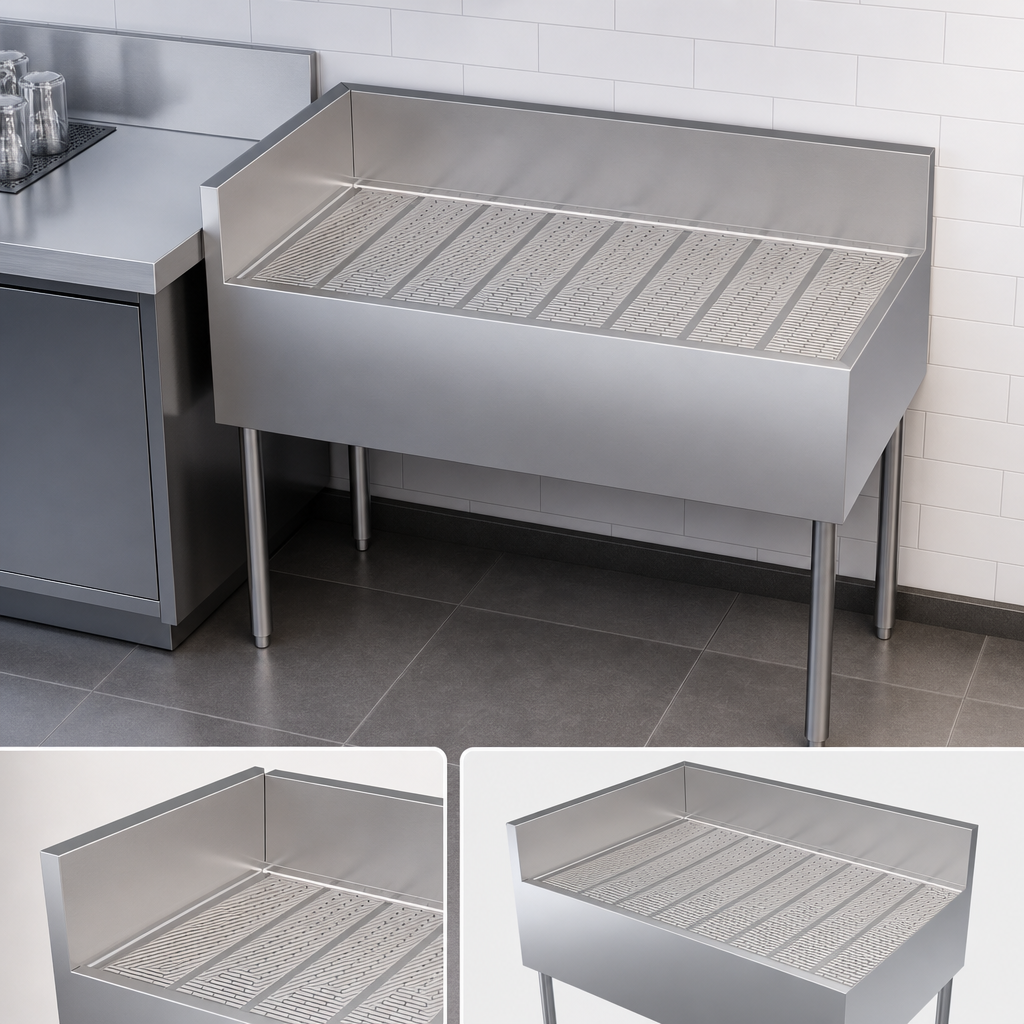

Krowne Royal Series 48" Left-Return Corner Drainboard
Model KR24-C48L | Free-Standing Underbar DrainboardTurn wasted corner space into productive, easy-to-clean work area. This 48" × 24" Krowne Royal Series corner drainboard delivers the rugged build quality, smooth drainage, and ergonomic 36-1/2" working height that busy bars and restaurants demand.
Key Features
- 20 ga. embossed stainless steel drainboard reinforced every 6" for unmatched rigidity.
- 3/4" radius on all edges for quick wipe-down and guest-facing safety.
- Left-hand return integrates seamlessly with adjoining underbar sections.
- 1" IPS welded drain with basket strainer for fast, dependable water removal.
- Stainless steel front, sides, back & bottom resist corrosion in wet environments.
- 1 5⁄8" O.D. 16 ga. stainless steel legs with adjustable thermoplastic bullet feet for rock-solid leveling.
- NSF/ANSI Standard 2 listed—approved for open foodservice installations.
Quick Specs
| Series | Royal Series Underbar |
|---|---|
| Configuration | Corner Drainboard – Left Return |
| Overall Width | 48" (1219 mm) |
| Overall Depth | 24" (610 mm) |
| Overall Height | 36-1/2" (927 mm) |
| Drain Connection | 1" IPS |
| Top Material | 20 ga. embossed stainless steel |
| Body Material | 20 ga. stainless steel front, sides, back & bottom |
| Legs / Feet | 1 5⁄8" O.D. 16 ga. stainless legs • adjustable grey thermoplastic bullet feet |
| Certification | NSF Std. 2 |
Optional Accessories (Sold Separately)
- KR-201 — 4" × 4" chase for beer/soda lines
- KR-203 — 3/4" × 3-1/2" soda line cut-out in backsplash
- KR-204 — 3-1/2" round cut-out for beverage lines in drainboard
- KR-311 — Left end splash kit to contain overspray
- RS-XX — Sound-deadened single speed rails (various lengths)
- RD-XX — Sound-deadened double speed rails (various lengths)
- KR-401 — Cap catcher with integrated bottle opener
Looking for a right-hand return or a different length? Chat with us—Krowne’s modular Royal Series can be configured to fit any bar layout.
