Krowne KR24-C42R Royal Series Bar Equipment
Description

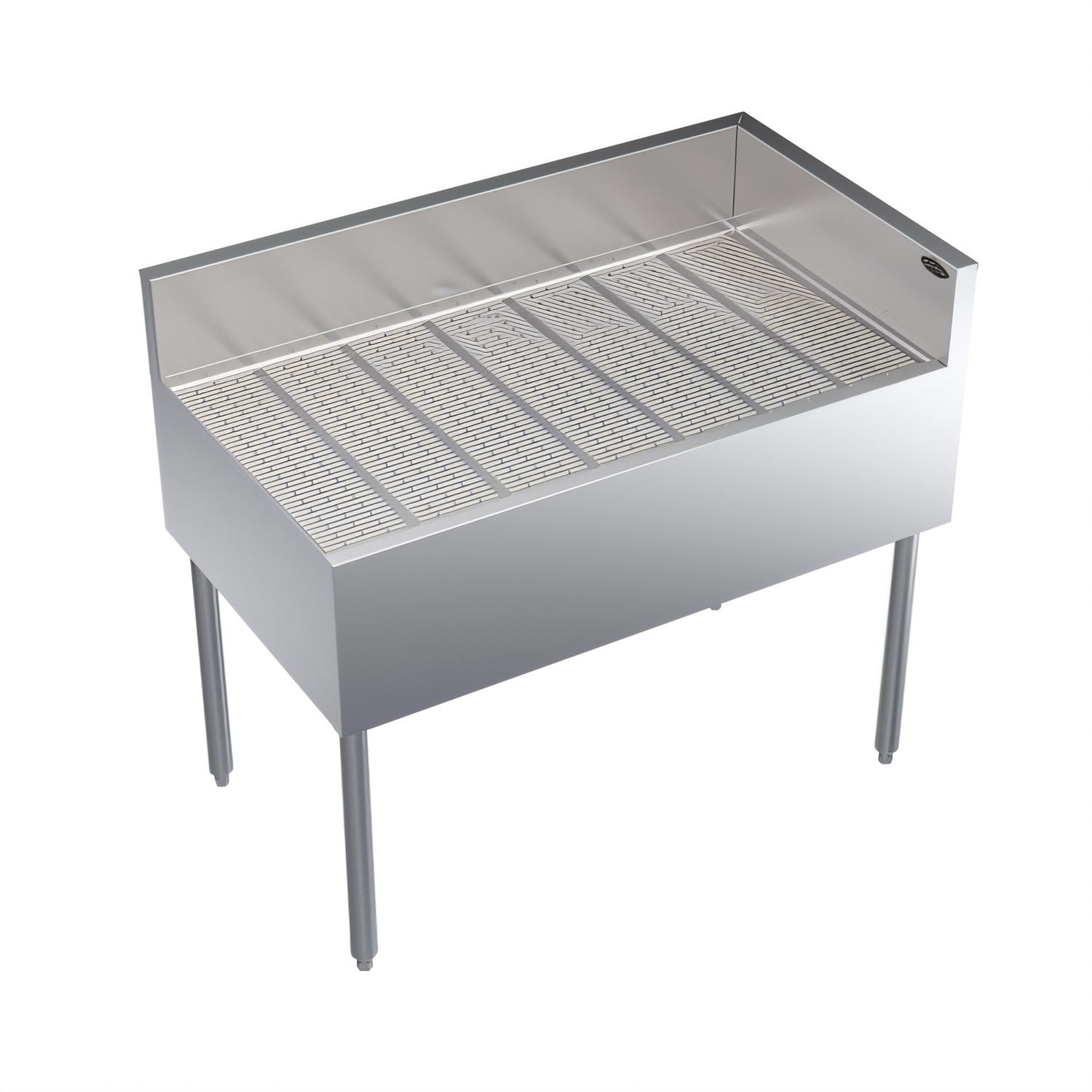

Krowne Royal Series 42" Underbar Corner Drainboard – Right End Return
Model #: KR24-C42 • NSF CertifiedKeep the busiest corners of your bar line running smoothly with Krowne’s Royal Series 42" corner drainboard. The embossed stainless work surface quickly sheds liquid toward a 1" drain, while the right-hand 90° return lets you form a seamless transition to adjoining underbar equipment.
Key Features
- Embossed 20-gauge stainless steel drainboard reinforced every 6" for rock-solid strength
- ¾" radius on all vertical & horizontal edges for easy wipe-downs and safer handling
- Front apron, sides, backsplash, back & bottom all fabricated from durable stainless steel
- 1" IPS drain connection located in the embossed top—no adapter required
- 1 ⅝" Ø, 16-gauge stainless steel legs with adjustable grey thermoplastic bullet feet to level on uneven floors

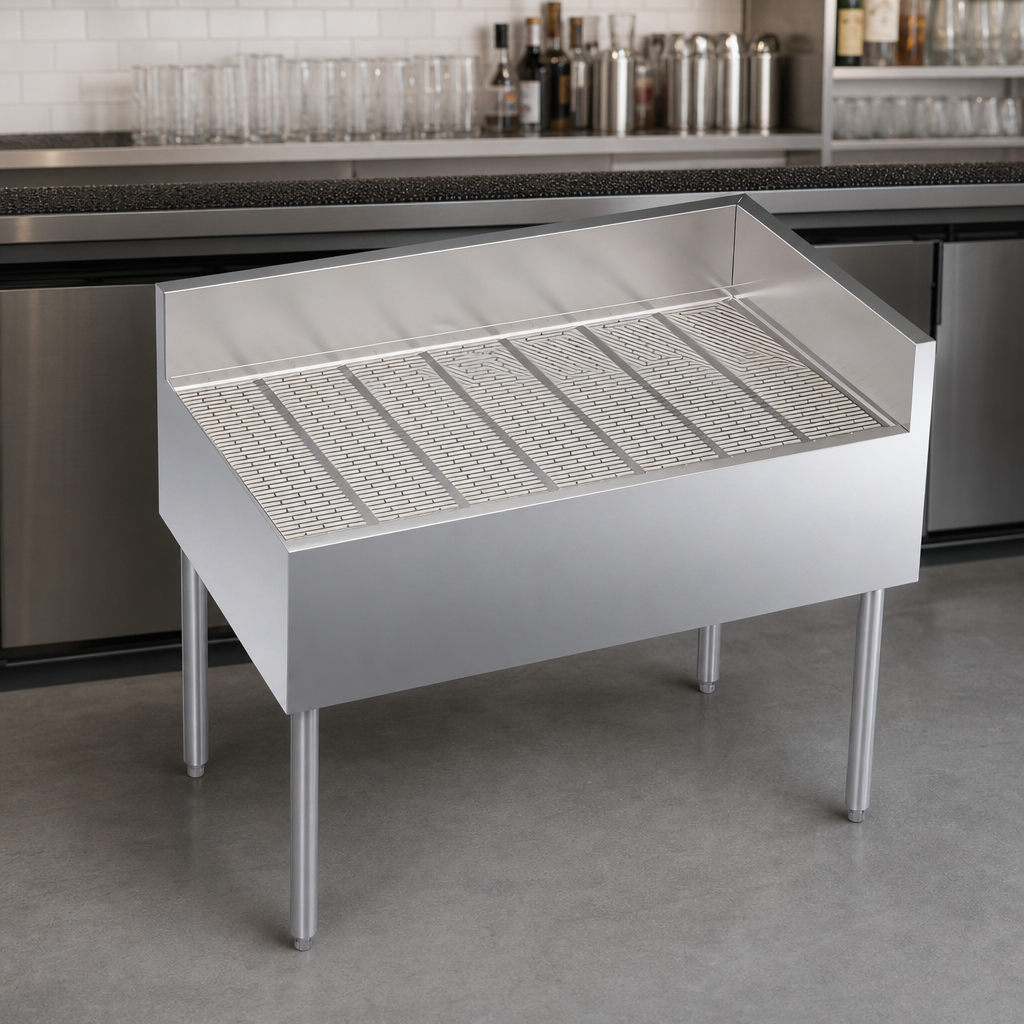

- Freestanding design—no costly field welding or brackets
- Conforms to NSF/ANSI Standard 2 for food-contact safety
Specifications
| Overall Dimensions (W × D × H) | 42" × 24" × 36 ½" |
|---|---|
| Return Orientation | Right End (90° corner) |
| Drain Connection | 1" IPS |
| Material Thickness | 20-ga. top, apron, sides, backsplash, back & bottom |
| Leg Construction | 1 ⅝" Ø, 16-ga. stainless steel tubing |
| Feet | Adjustable grey thermoplastic bullet feet |
| Approx. Weight | 77 lb |
| Certifications | NSF/ANSI 2 |
Popular Optional Accessories (sold separately)
- KR-201: 4" × 4" chase for beer or soda lines
- KR-204: 3 ½" round drainboard cut-out for beverage lines
- KR-401: Cap catcher & bottle opener
- RS-“XX”: Sound-deadened single speed rail (specify length)
- RD-“XX”: Sound-deadened double speed rail (specify length)
Need a left-hand return or a different length? The Royal Series offers multiple sizes and configurations—contact us for a quote.
