Krowne KR24-C36R Royal Series Bar Equipment
Description

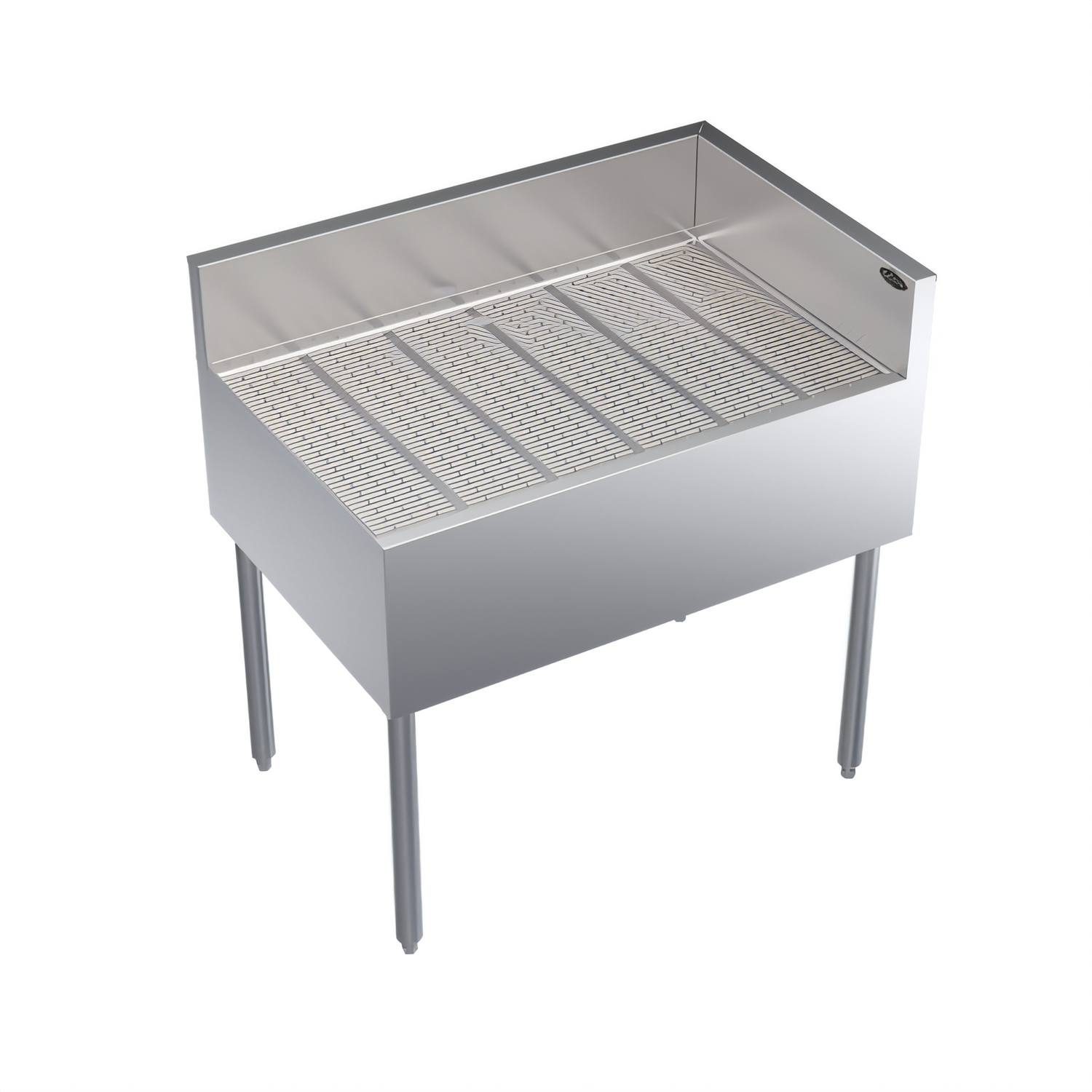

Krowne Royal Series 36" Right-Return Corner Drainboard

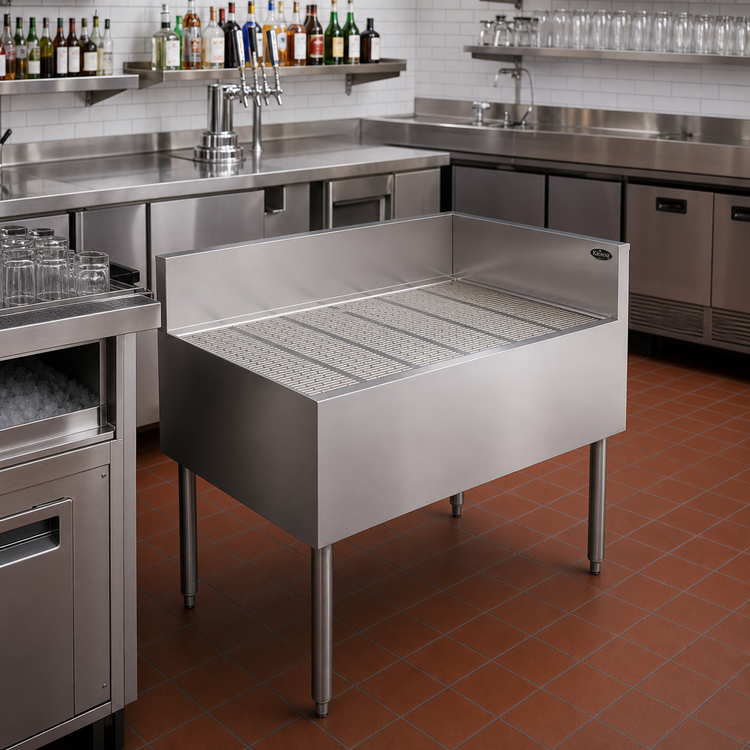

Model KR24-C36R • Free-Standing Underbar UnitTurn an unused bar corner into a high-capacity glass staging area with the Krowne Royal Series 36" corner drainboard. Built entirely from heavy-gauge stainless steel and reinforced every six inches, this NSF-listed unit delivers the durability, sanitation and drainage performance demanded by busy bars, breweries and entertainment venues.
Key Features

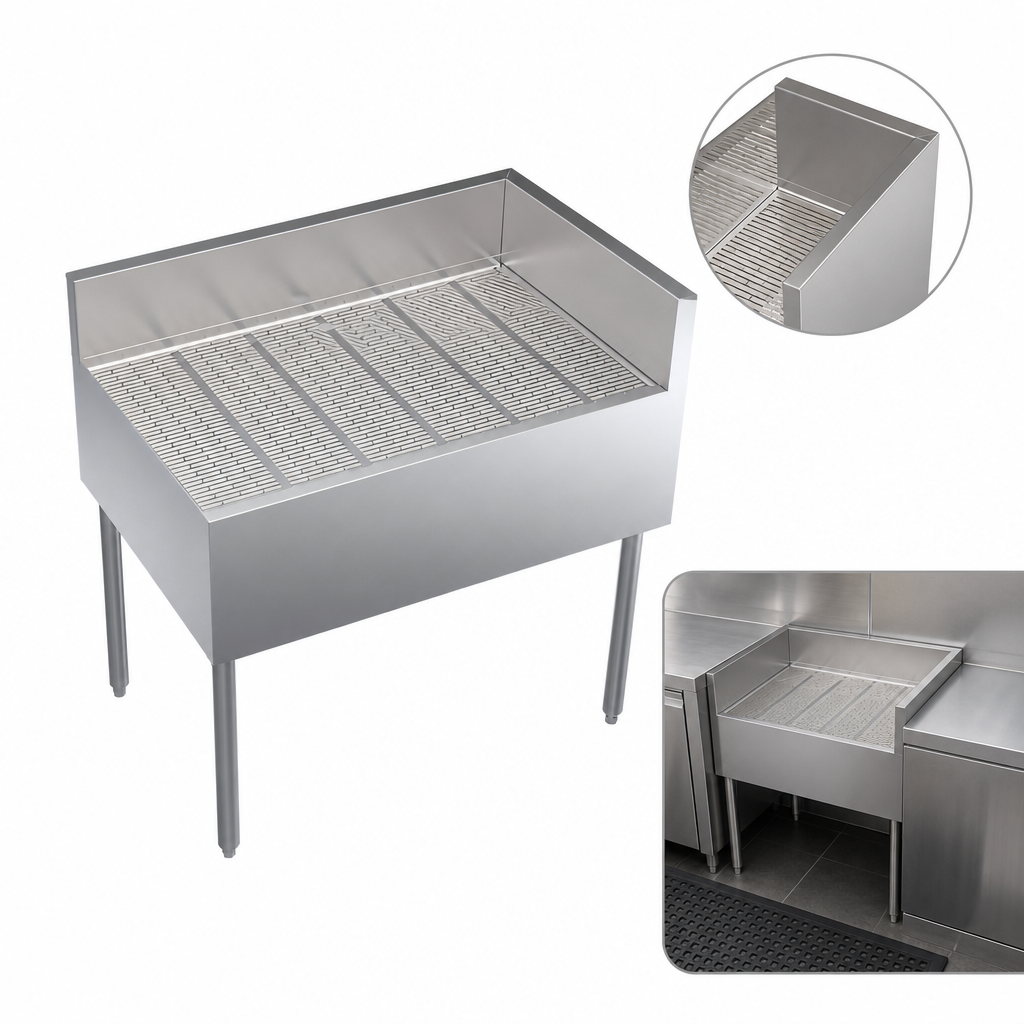

- Right-end return seamlessly mates with adjoining underbar equipment.
- Embossed drainboard top reinforced with welded braces every 6".
- 20 ga stainless steel top, front, sides, backsplash, back & bottom.
- 3/4" radius vertical & horizontal edges for effortless cleanup.
- 1" IPS drain connection integrated into the board.
- 1-5/8" Ø, 16 ga tubular stainless steel legs.
- Grey thermoplastic bullet feet adjust for a level, stable work surface.
- NSF/ANSI Standard 2 compliant.
Specifications
| Model | KR24-C36R |
|---|---|
| Overall Width | 36" (914 mm) |
| Overall Depth | 24" (610 mm) |
| Overall Height | 36-1/2" (927 mm) work surface |
| Return Orientation | Right |
| Drain Connection | 1" IPS |
| Construction | 20 ga embossed stainless steel; 16 ga legs |
| Shipping Weight | ≈ 70 lb (32 kg) |
| Certifications | NSF Standard 2 |
Optional Accessories
- KR-201 4" × 4" chase for beer/soda lines
- KR-203 ¾" × 3-½" soda line cut-out in backsplash
- KR-204 3-½" round cut-out for beer/soda lines
- RS-“XX” sound-deadened single speed rail (specify length)
- RD-“XX” sound-deadened double speed rail (specify length)
- KR-401 cap catcher & bottle opener
Looking for a mirror-image left-return model or custom cut-outs? Contact us—our bar equipment specialists can configure any Krowne underbar piece to fit your exact layout.
